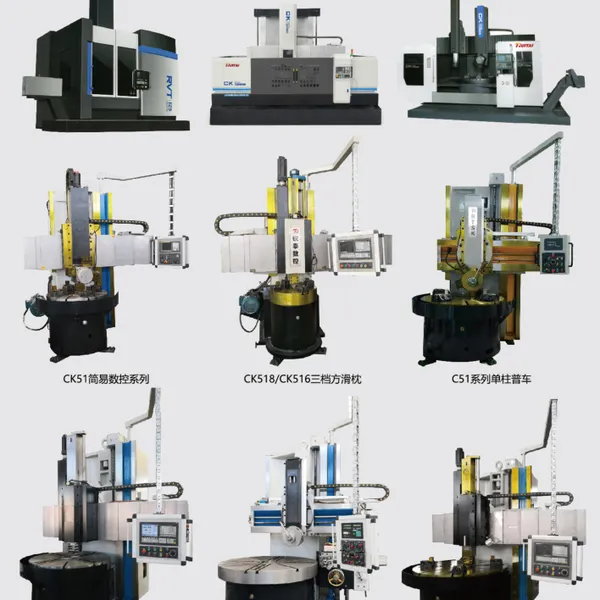

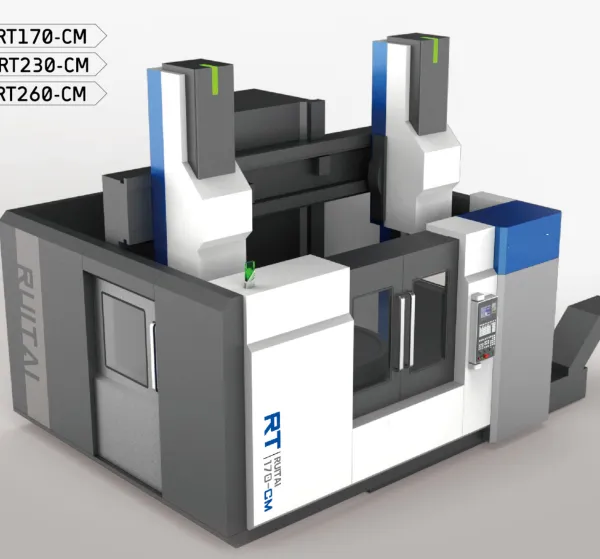

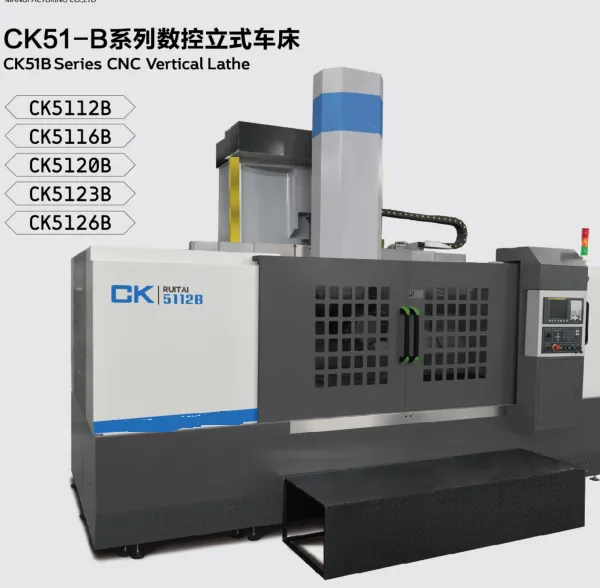

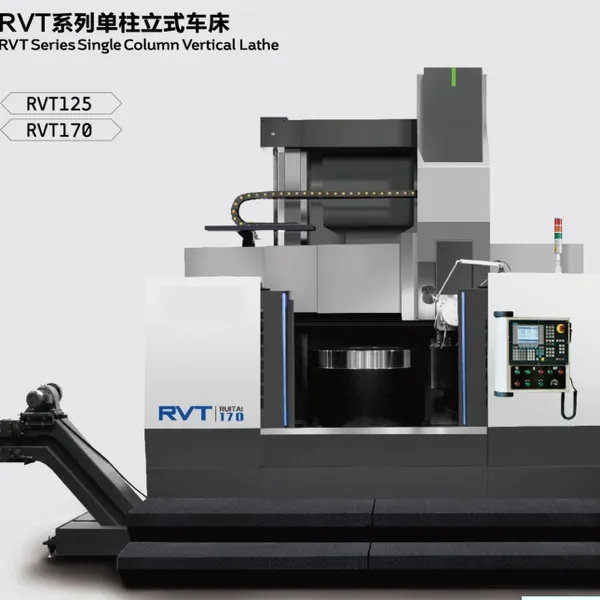

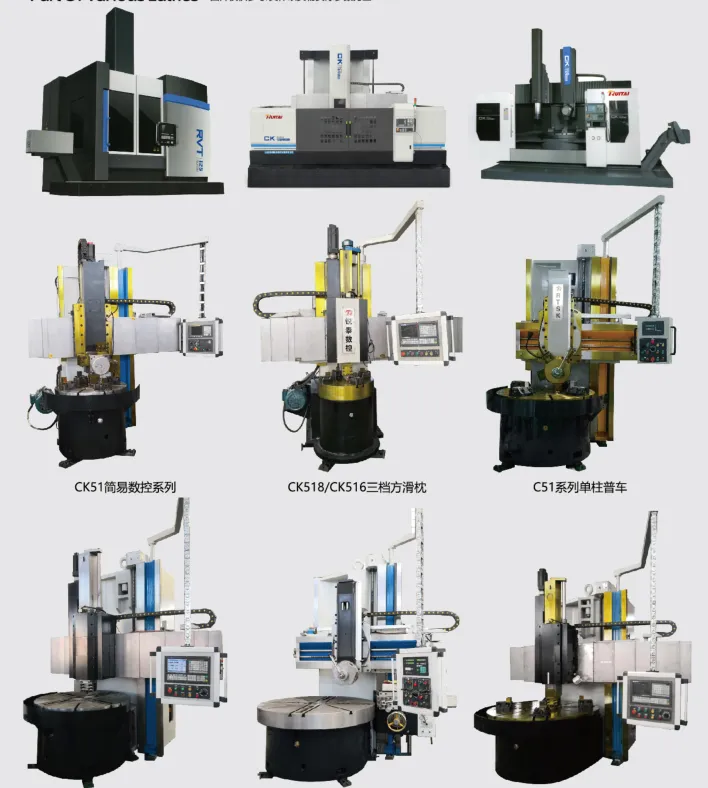

Cnc Vertical Lathe Vertical Turning and Boring Mill

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Vertical Lathe

Certification:

ISO 9001

Automatic Grade:

Automatic

Suzhou Excellence Intelligent Technology Co., LTD

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Type Vertical Lathe

Certification ISO 9001

Automatic Grade Automatic

Power Source Electric

Controlling Mode CNC

Precision High Precision

Processing Accessory Centre CNC Lathe

Guide Rail Inclined Guide Rail

Tool Holder Single-tool Holder CNC Lathe

Setting Mode Table

The name According to		Single position	gauge "	To prepare note
Processing Range	Maximum turning diameter	mm	Φ 950
	Maximum turning diameter (end face)	mm	Φ 900
	Maximum turning diameter (outer circle)	mm	Φ 800	Over slip saddle diameter
	Maximum workpiece height	mm	800
	Maximum workpiece weight	kg	1000
line cheng	X-axis stroke	mm	-20 ~ 465
line cheng	Z-axis stroke	mm	820
Torque	X-axis servo motor power	kW	4
Torque	Z-axis servo motor power	kW	7
Spindle	Spindle end form		A2-11
	Spindle speed range	r/min	50 to 1500	Standard chuck
	Main motor power	kW	18.5/22	FANUC main motor
	Maximum spindle torque	Nm	1150
Chuck	Hydraulic chuck	mm	Φ460 (18 ")
Rail Screw rod	X-axis guide specifications	mm	55
	Z-axis guide specifications	mm	55
	X-axis screw specifications	mm	50/10
	Z axis screw specifications	mm	50/10
Speed	Fast shift speed X/Z	m/min	20/16
Speed	Cutting feed speed	mm/min	0.1 to 1000
Knife holder	Tool capacity	the	12
	Maximum speed of power tool	r/min	3500
	Cutter head tool handle specification	mm	BMT75
	Tool shank specifications	mm	32 x 32
	Maximum diameter of boring tool handle	mm	Phi 50
Machined Ability	Power head motor power/lock-in torque	kW/Nm	5.5/48
	Maximum drilling capacity	mm	Phi 25  0.25	Normalizing medium carbon steel
	Maximum tapping capacity	mm	M18  2.5 / M27  2	Normalizing medium carbon steel
	Maximum slot milling capacity	mm	Phi 30  20  40	Normalizing medium carbon steel

Version number: 20230213

Page 5 contains 14 pages

Machine Tools precision	Positioning accuracy (X-axis)	mm	0.01
	Positioning accuracy (Z-axis)	mm	0.01
	Positioning accuracy (C-axis)	seconds	51
	Repeat positioning accuracy (X-axis)	mm	0.006
	Repeat positioning accuracy (Z-axis)	mm	0.006
	Repeated positioning accuracy (C-axis)	seconds	20
its it	Power capacity (approx.)	kVA	55
	Cutting fluid tank volume (approx.)	L	360
	Overall dimensions (L x W x H) (approx.)	mm	2600 * 3450 * 3750	Rear discharge car containing accumulated debris
	Machine weight (approx.)	Kg	11000
