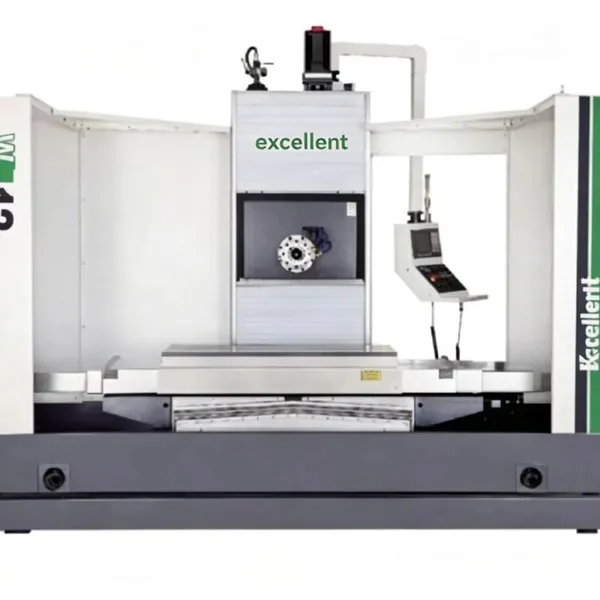

VIII. Main Specifications and Technical Parameters
Category | Item | Unit | Parameter
Worktable | Worktable dimensions | mm | 500×500
Worktable load capacity | kg | 600
Number of worktables | pcs | 1
Processing range | Maximum column travel (X-axis) | mm | 750
Maximum spindle box travel (Y-axis) | mm | 750
Maximum worktable travel (Z-axis) | mm | 750
Distance from spindle face to center of worktable | mm | 135–885
Distance from spindle centerline to worktable surface | mm | 50–800
Maximum rotary diameter | mm | 900
Maximum workpiece height | mm | 1050
Spindle | Taper bore (7:24) | BT50
Pull-stud model | P50T-1-MAS403 (45°)
Spindle speed | r/min | 6000
Feed | Cutting feed speed range | m/min | 10
Rapid traverse | X-axis | m/min | 24 (MAX 30)
Y-axis | m/min | 24 (MAX 30)
Z-axis | m/min | 24 (MAX 30)
Positioning accuracy | mm | 0.01
Repeatability accuracy | mm | 0.006
Indexing Rotary Table Parameters | Indexing table division (B-axis) | ° | 0.001°
Indexing speed | r/min | 10
Indexing positioning accuracy | sec | 10
Indexing repeatability accuracy | sec | ±3
System Configuration | Control system | FANUC 0i MF 1 package
X-axis motor | FANUC αiF22
Y-axis motor | FANUC αiF30B
Z-axis motor | FANUC αiF22
B-axis motor (worktable rotation) | FANUC αiF8
Spindle motor | FANUC αiⅠ15
Tool Magazine System | Magazine capacity | pcs | 24
Tool selection method | Random
Maximum tool weight | kg | 15
Maximum tool diameter (adjacent tool-free) | mm | φ105/φ200
Maximum tool length | mm | 350
Machine Dimensions | Overall machine size | mm | 6505×3625×3500
Machine weight | kg | 14,000
IX. Main Procurement Components List
No. | Name | Brand | Remarks
1 | CNC system 0i MF | FANUC |
Spindle motor | FANUC |
X/Y/Z/B axis motors and drives | FANUC |
2 | Three-axis ball screws | Taiwan |
3 | Screw support bearings | Japan |
4 | Roller linear guides | Taiwan |
5 | Spindle | Taiwan |
6 | Oil cooler | Tongfei |
7 | CNC rotary table | Taiwan |
8 | Electrical cabinet air conditioner | Tongfei |
9 | Lubrication system main components | Domestic |
10 | Pneumatic system main components | Taiwan |
11 | Electrical system main components | France |
12 | Couplings | Germany |
13 | Hydraulic system | Taiwan |
14 | Tool magazine | Taiwan |
15 | Chain-type chip conveyor | Guosheng |
