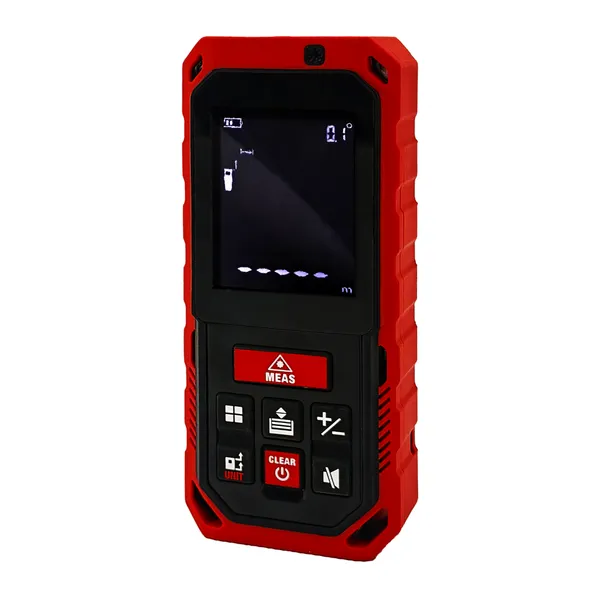

YHJ-100J(A) Mining Intrinsically Safe Laser Rangefinder
The YHJ-100J(A) mining intrinsically safe laser rangefinder utilizes a dedicated chip and incorporates an intelligent optoelectronic design. It is a high-precision, multi-functional length measurement instrument that can directly or indirectly measure distance, area, and volume. Its measurements are accurate and it is easy to use.
This product is suitable for distance measurement in work environments with flammable and explosive gas mixtures, and can also be widely used in industries such as construction, decoration, property management, transportation, fire protection, landscaping, urban planning, city appearance management, water conservancy inspection, and power maintenance for measurement purposes.
Technical parameters
Range |
0-100m |
Accuracy (mm) |
±10mm |
Single measurement |
√ |
Continuous measurement |
√ |
Area measurement |
√ |
Volume measurement |
√ |
Direct Pythagorean theorem |
√ |
Indirect Pythagoras① |
√ |
Indirect Pythagoras② |
√ |
Auto Horizontal Measurement |
√ |
Auto vertical Measurement |
√ |
Addition and subtraction |
√ |
Angle sensor |
√ |
Bluetooth |
Optional |
Measurement reference |
Front / Tripod screw hole / Rear reference |
Measurement unit |
m/ft/in/ft+in |
Auto power off |
3 minutes without operation |
Screen type |
2.0-inch LCD |
Protection grade |
IP65 |
Explosion-poof type |
Ex ia I Ma |
Laser class |
Class 2 |
Red |
Red light 490~670nm，＜1mW |
Battery type |
3pcs AAA batteries (nickel-metal hydride rechargeable batteries) |
Operating temperature |
0℃~+40℃ |
Storage temperature |
-40℃~60℃ |
Size(mm) |
115*49*26 |
Weight(g) |
140 |
