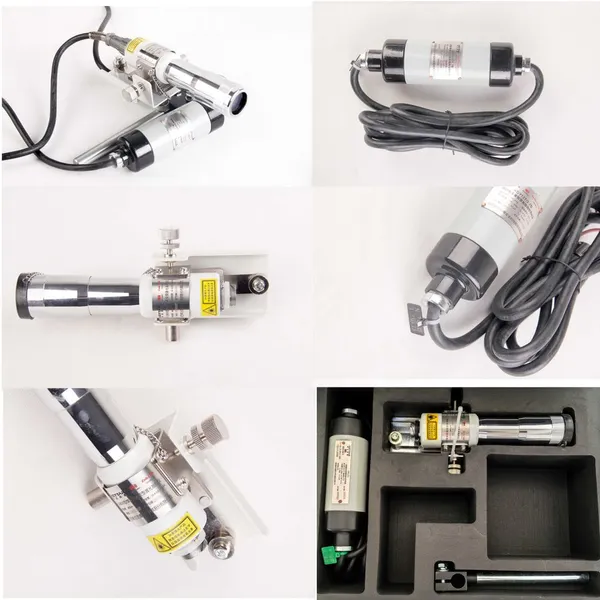

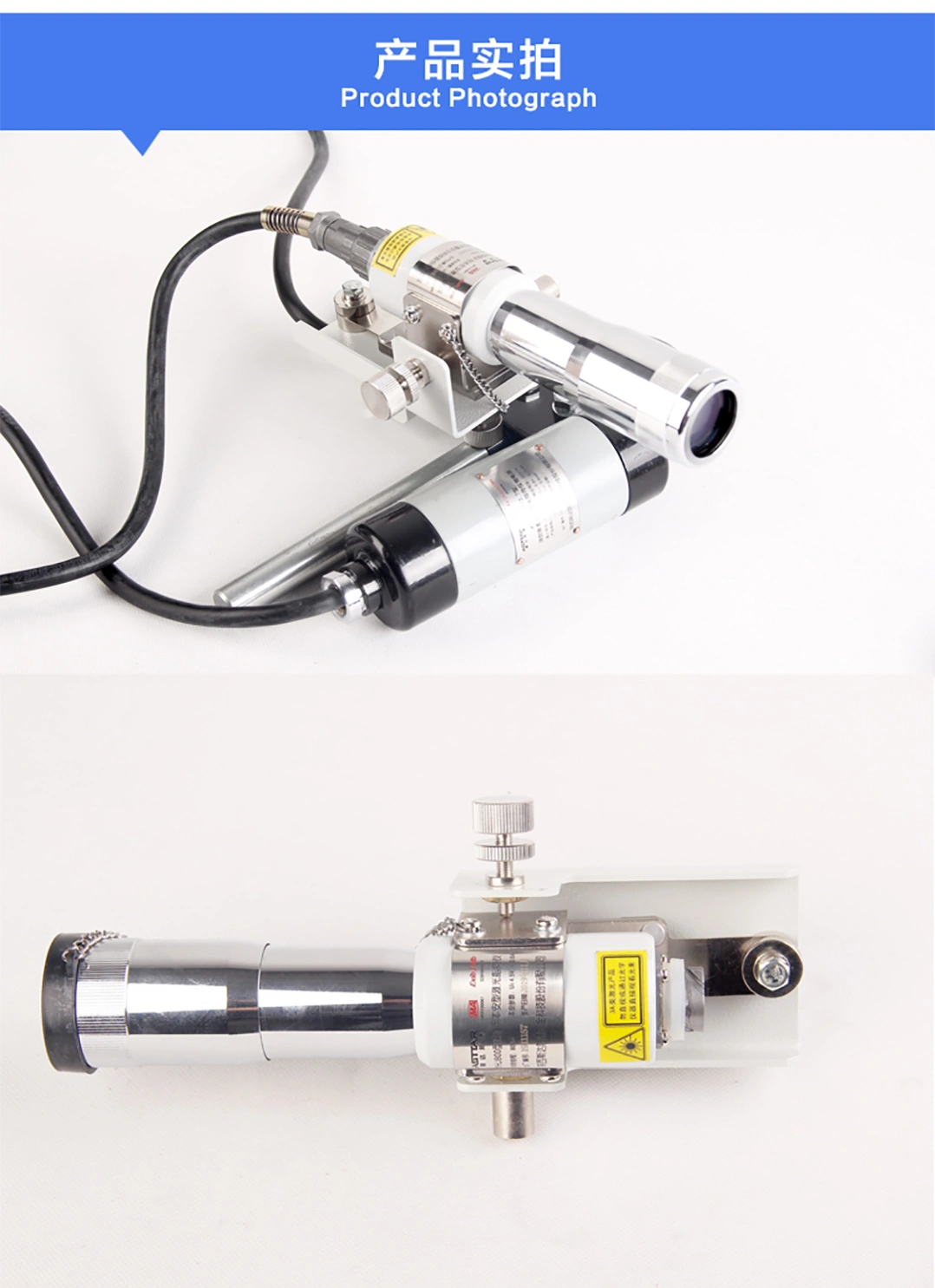

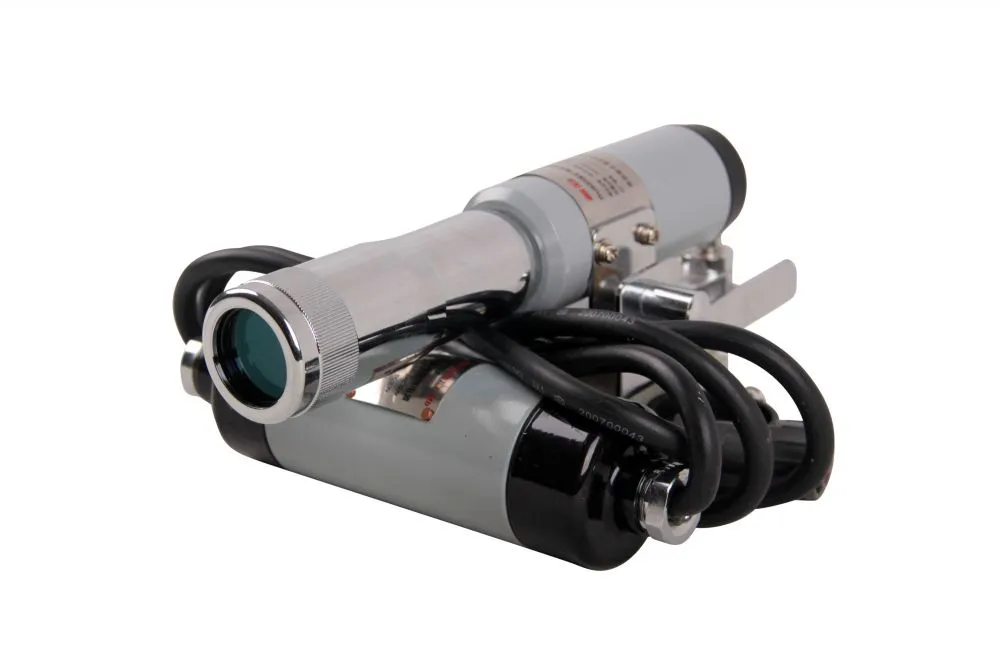

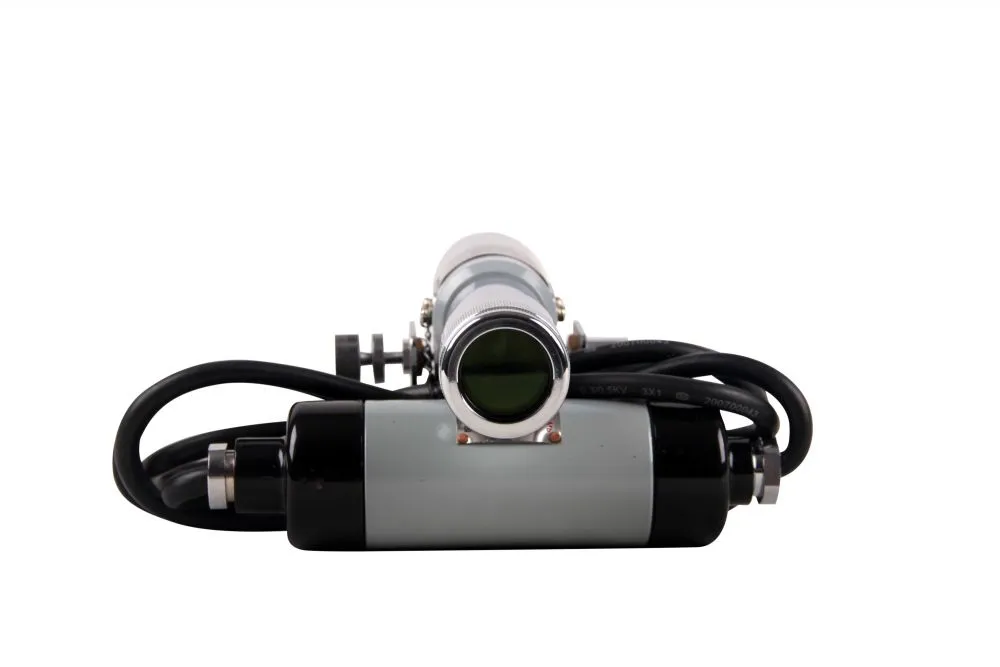

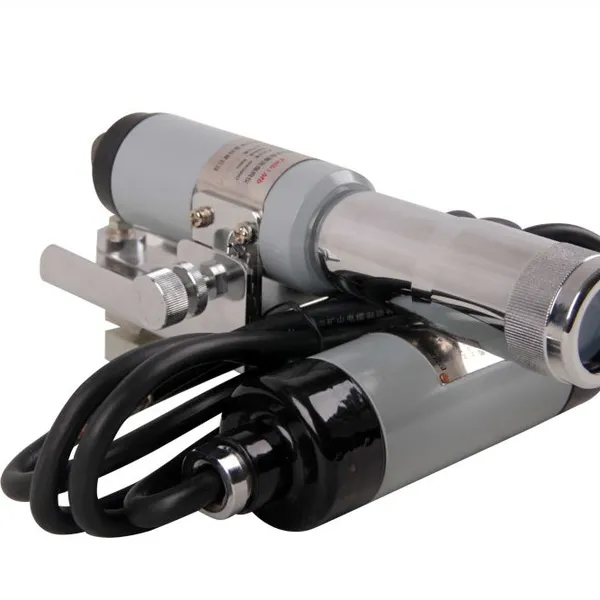

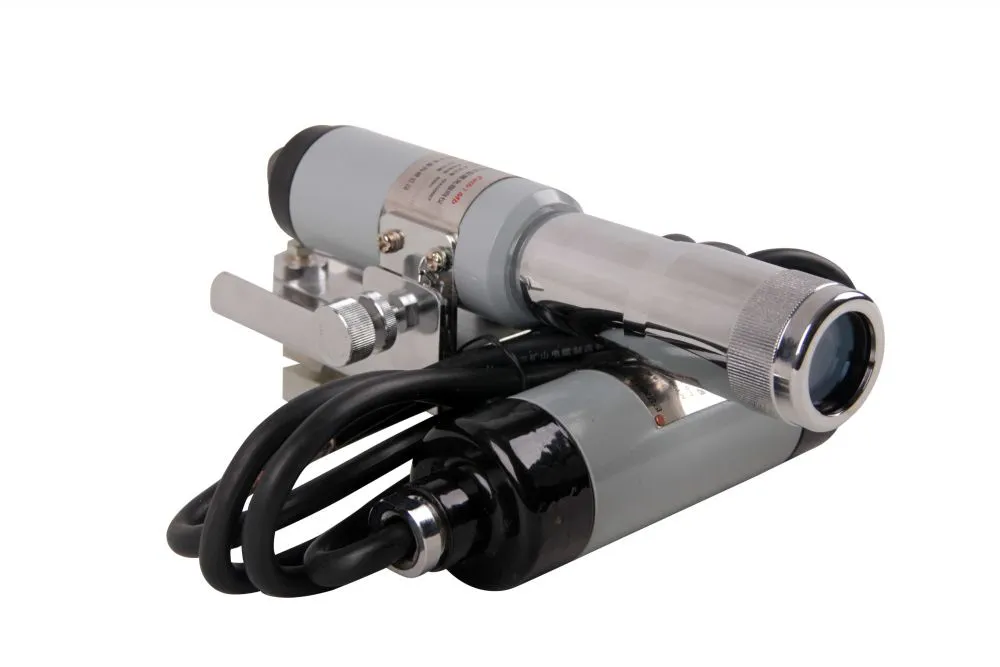

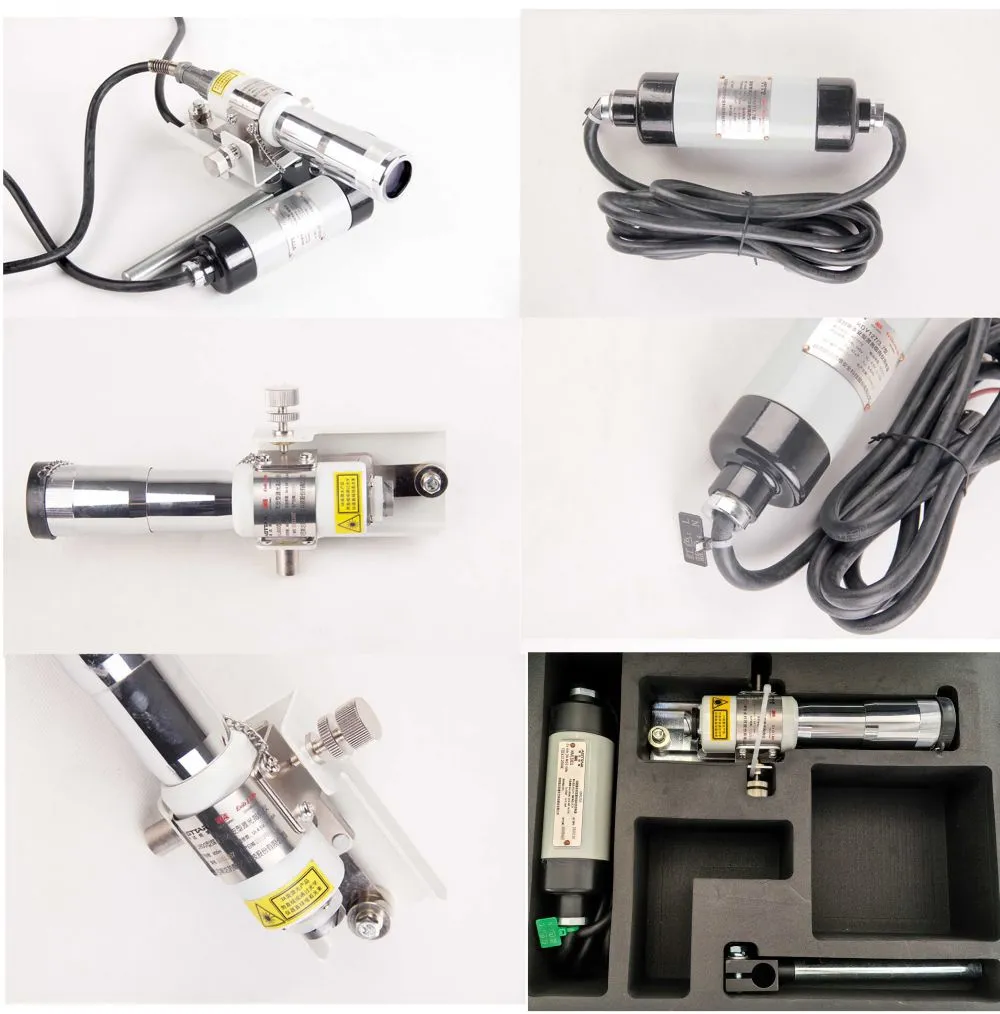

YHJ800 Coal mine intrinsically safe laser orientation equipment
Main features
•Adopting semiconductor laser, portable mobile power supply.
•It has the functions and characteristics of low power consumption, long life, good beam quality, overcurrent, overvoltage, short circuit protection, four-direction angle fine-tuning. and simple operation.
Technical specification
Item |
Technical specification |
Power supply mode |
AC power supply |
Supply voltage |
AC127V |
Effective range |
≥800m |
Laser output power |
≥1mW |
Spot diameter |
≤70 mm (at a distance of 800m) |
Laser wavelength |
635(red light)nm |
Horizontal adjustment range of laser beam |
≥2.5° |
Vertical adjustment range of laser beam |
≥2.5° |
Explosion-proof type |
Exib I Mb |
Weight |
3.5Kg |
Standard configuration |

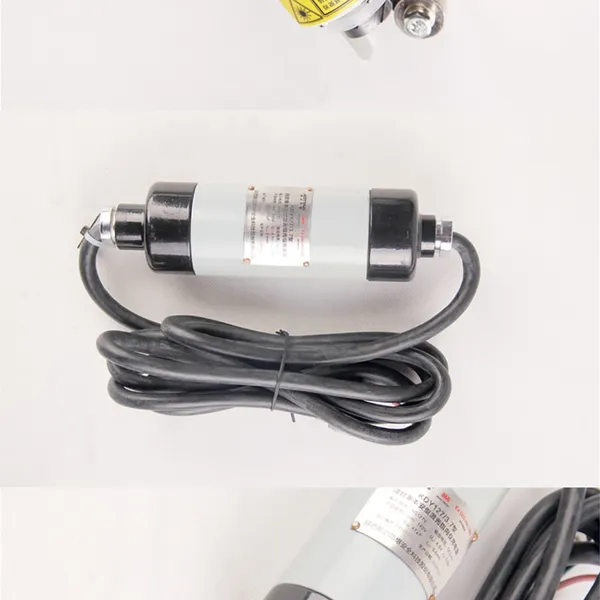

Special power supply 1 set, mounting rod |
Our Services
Company Information
ASTTAR - a high-tech enterprise, founded in 1995, is engaged in the development and production of software and hardware products in the professional field of safety emergency, it has six series and over a hundred types of products, its sales network covers the whole country, and its products are exported to dozens of countries and regions.
The company has a sound management system, has established a safety production management system with quality management as its core, it has passed ISO9001 quality management system, ISO14000 environmental quality management system, and OHSAS18001 occupational health and safety management system certifications, and has been awarded the title of "Shaanxi Province Quality Service Credit AAA-level Unit".
The company initiated the establishment of "Shaanxi ASTTAR Incubator Co., Ltd.", " Shaanxi Safety Industry MetrologyTesting Co., Ltd.", and "Shaanxi Province Safety Industry Research Institute Co., Ltd.", and created a safety emergency industry supporting service system with ASTTAR as the core, devoting to creating an industry ecological industry chain, and striving to build ASTTAR into a respected international and professional company.

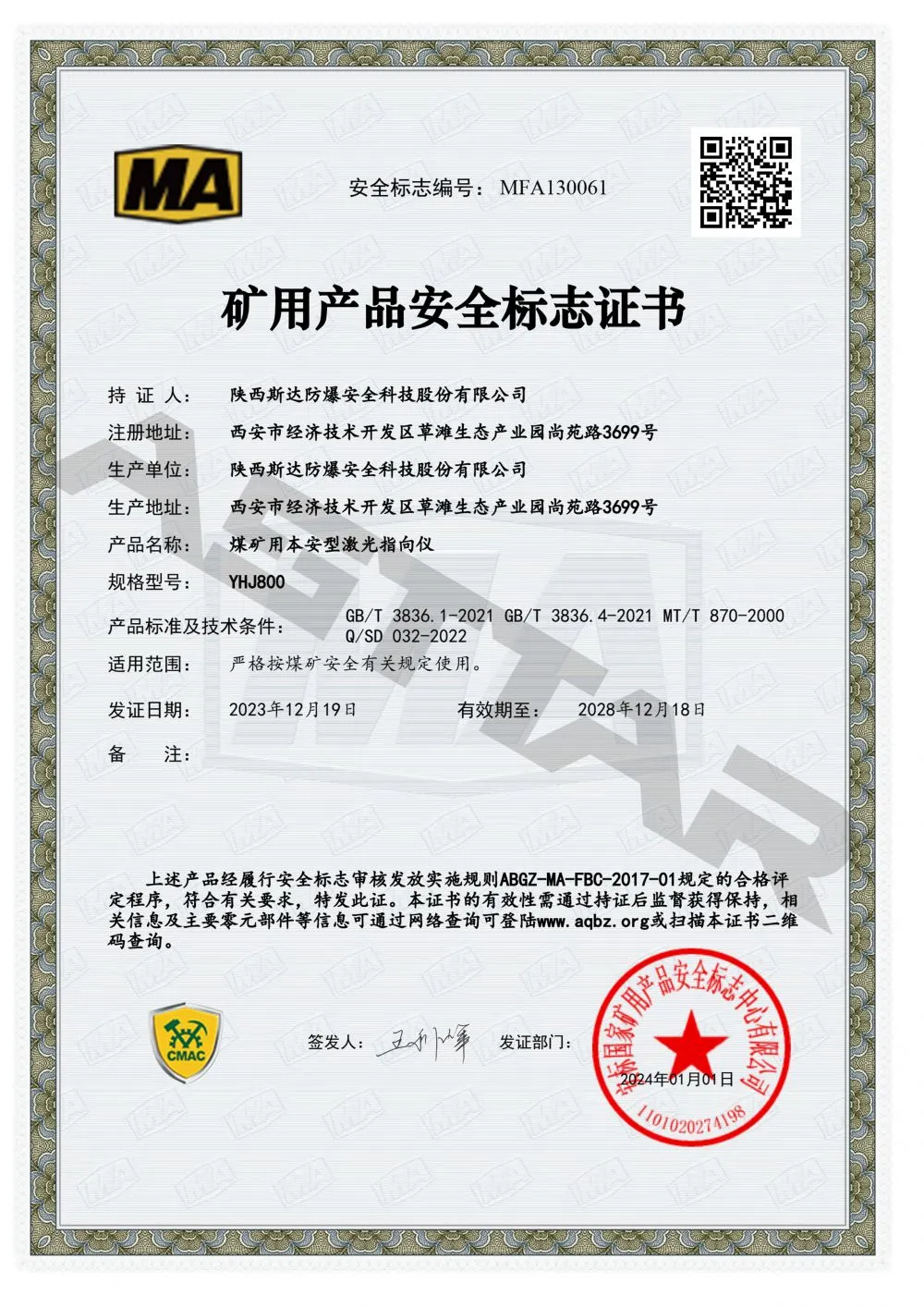

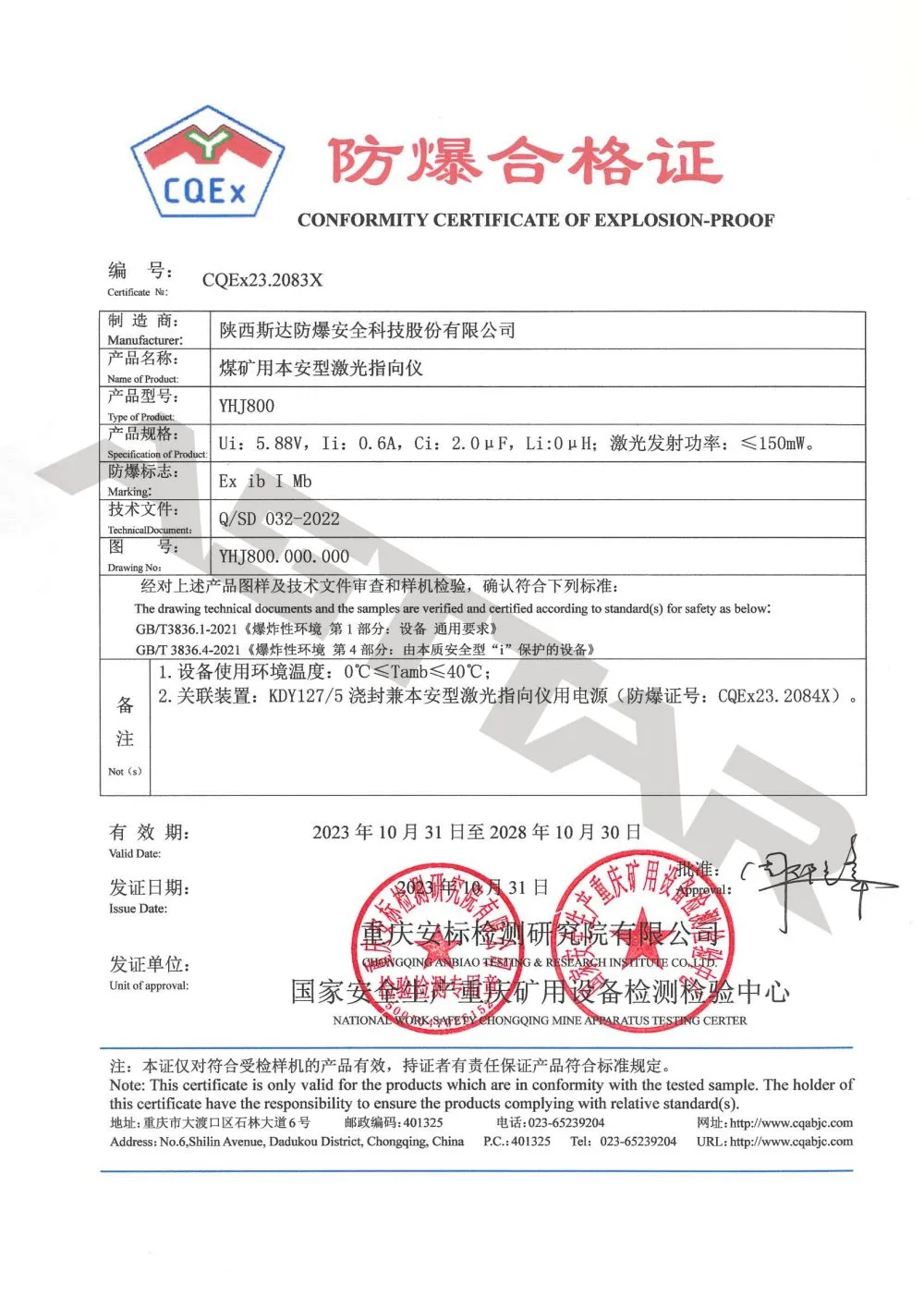

Certificate Showcase
