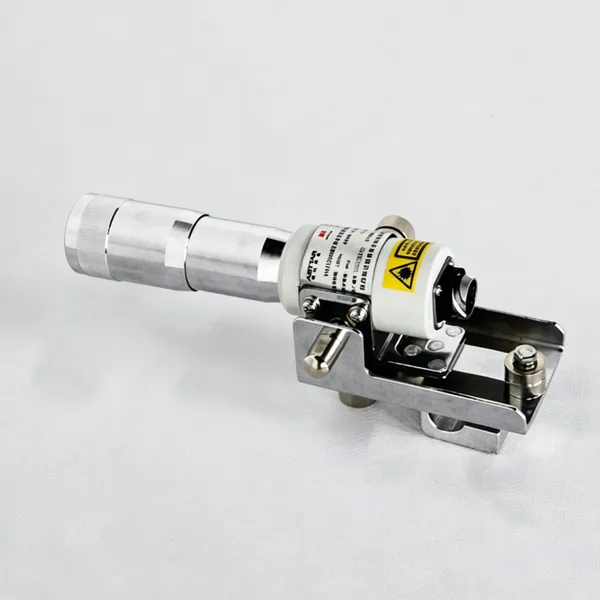

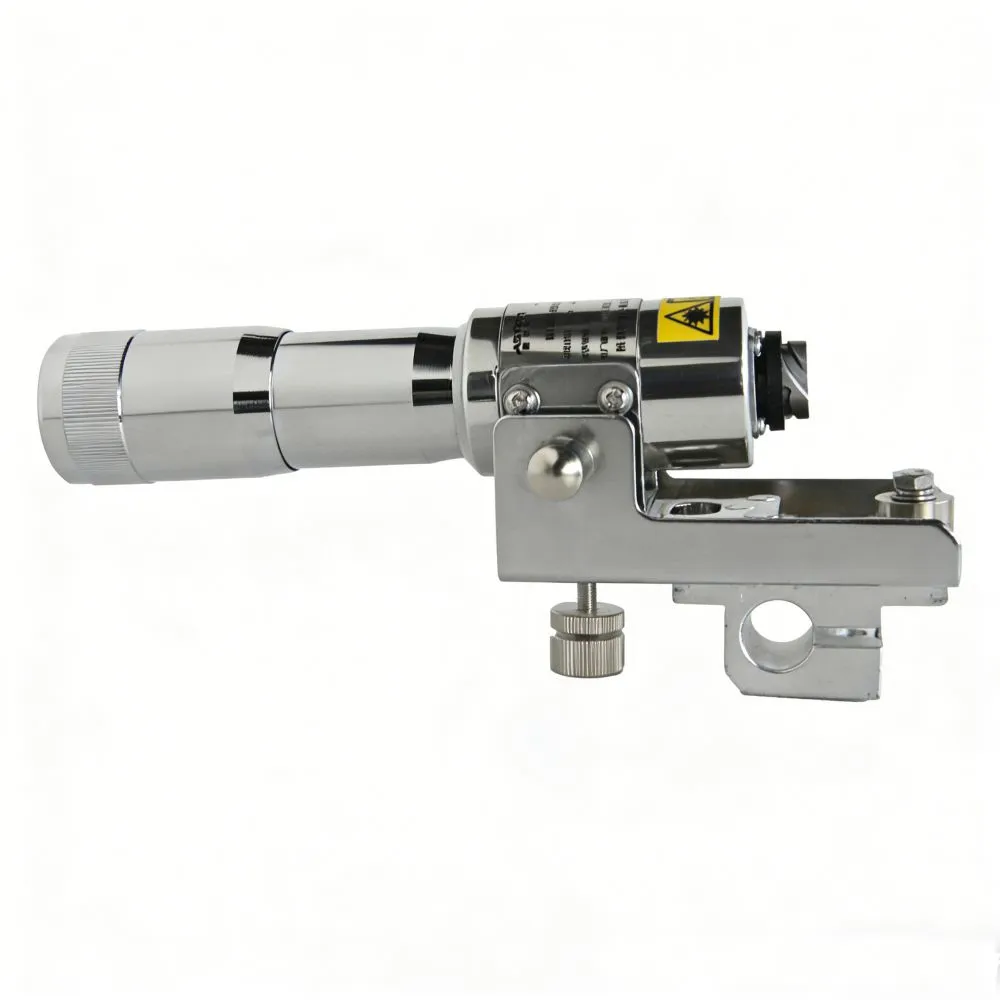

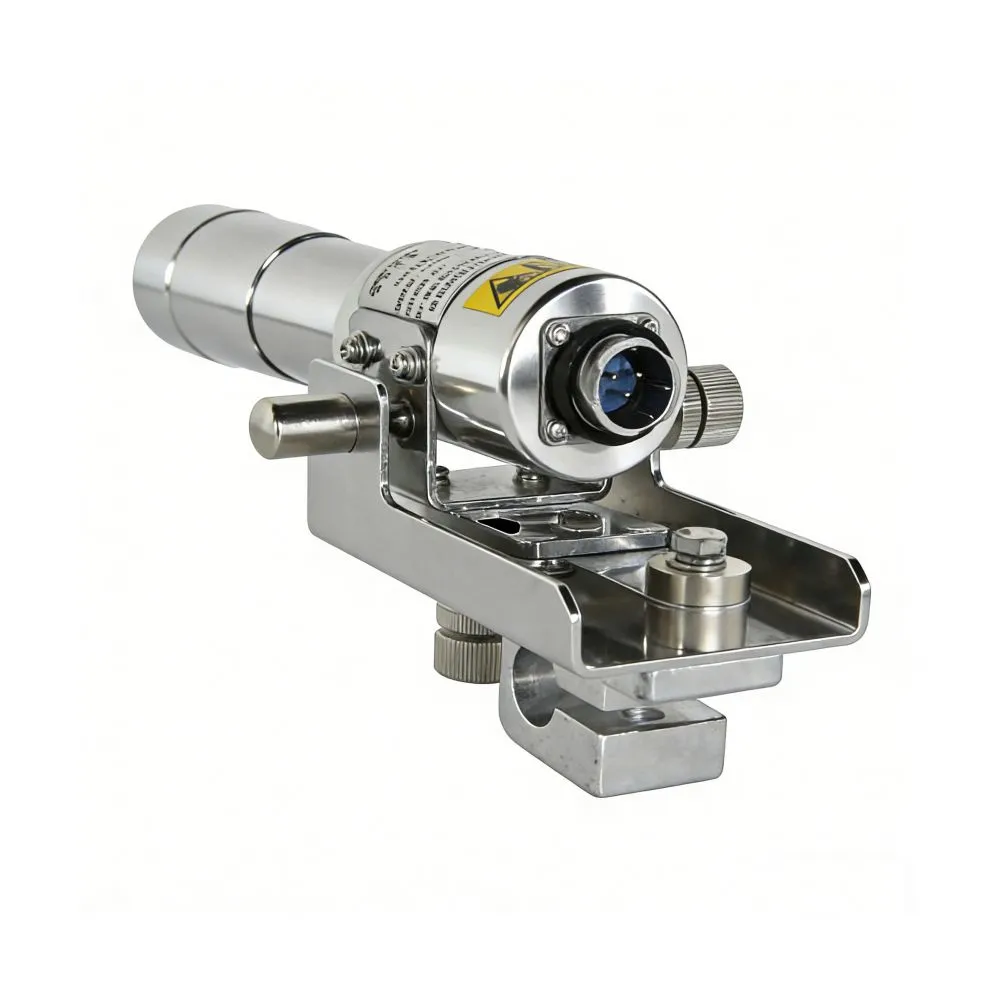

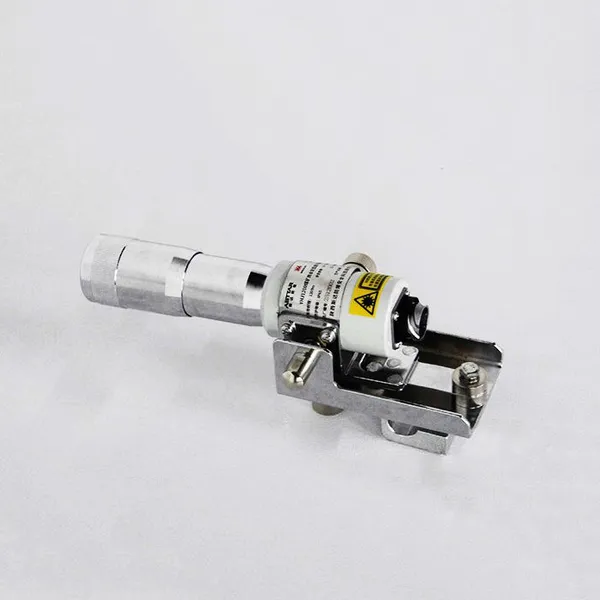

YHJ1200 Coal mine intrinsically safe laser orientation equipment

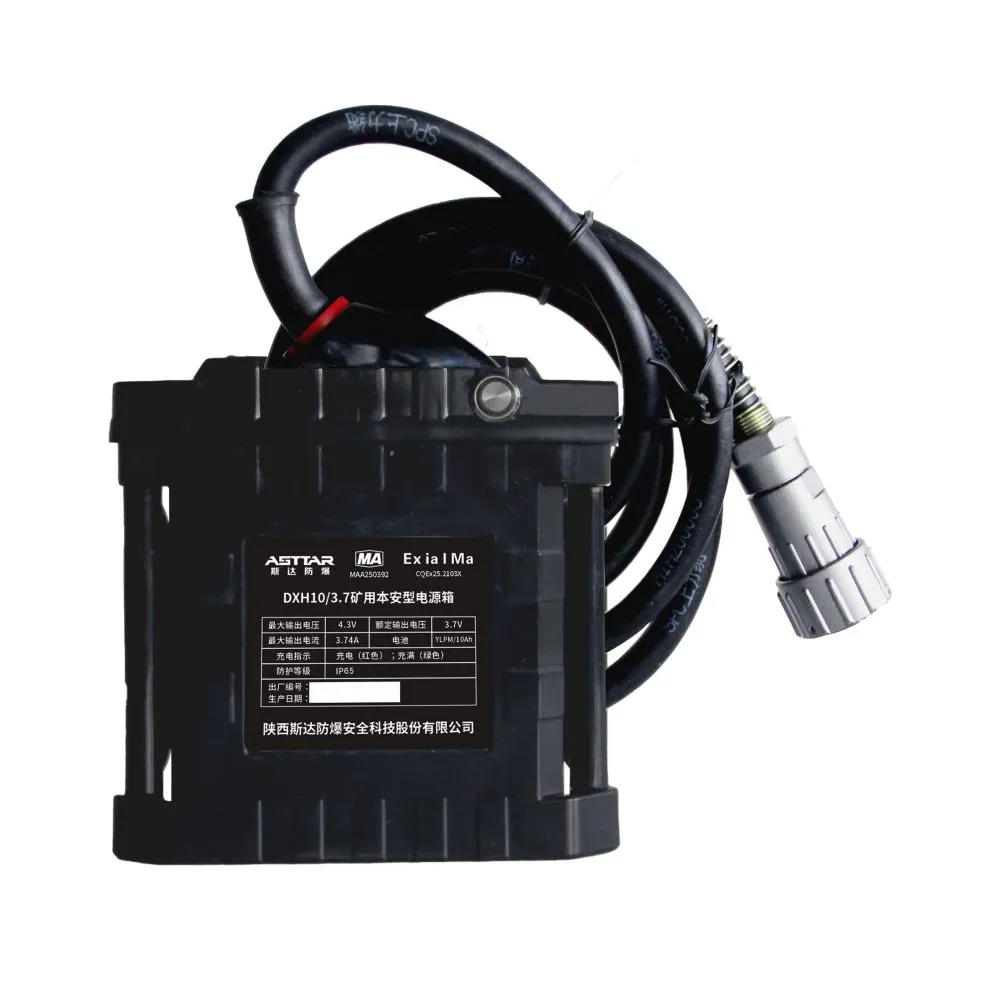

YHJ1200 coal mine intrinsically safe laser orientation instrument adopts semiconductor laser as a light source, with low power consumption, good beam quality, small size, light weight, easy installation and use, and stable and reliable performance. The DXH10/3.7 mining intrinsically safe power box and KDY127/5 encapsulated and intrinsically safe power supply can provide power for the orientation instrument.
The orientation instrument is widely used for directional positioning during mining tunnel excavation; guidance and control of the advancement direction of the road header; positioning of fully-mechanized mining faces in coal mines, as well as positioning and alignment of highways, railways, tunnels, culverts, bridges, high-rise buildings, and pipeline installations.
Item |
Technical specification |
|
Rated working voltage |
3.7V |
|
Effective range |
≥1200m |
|
Laser output power |
≤3mW |
|
Spot diameter |
≤80 mm (at a distance of 1200m) |
|
Laser working current |
≤50mA |
|
Horizontal adjustment range of laser beam |
≥2.5° |
|
Vertical adjustment range of laser beam |
≥2.5° |
|
Working method |
Continuous |
|
Explosion-proof type |
Ex ia I Ma |
|
Protection grade |
IP65 |
|
Dimension |
248mm×113mm× 42mm |
|
Weight |
≤2.4Kg |
|
Optional device |
KDY127/5 sealed and intrinsically safe laser guider power supply set, mounting rod. |
2PCS DXH10/3.7 mining intrinsically safe power supply boxes, charger, mounting rods. |
