Help CenterSintered Copper Powder Filter Element 30 Micron 0.6 MPa Differential Pressure Mill Test Report
Product Spotlights
Related Products
-
Sintered Copper Powder Filter Element 20 Micron Precision 0.5 MPa for Gas FiltrationNegotiableMOQ: 1 Piece -
Sintered Copper Powder Filter Element 20 Micron for Chemical Processing Corrosion ResistantNegotiableMOQ: 1 Piece
-
Sintered Copper Powder Filter Element 10 Micron 1000 L/min Flow Rate Standard CompliantNegotiableMOQ: 1 Piece
-
Sintered Copper Powder Filter Element 100 Micron Coarse 2.0 MPa Burst Pressure 1 Year WarrantyNegotiableMOQ: 1 Piece
-
Sintered Copper Powder Filter Element Full Technical Support 10 Micron Standard CompliantNegotiableMOQ: 1 Piece
Anping County Boli Hardware Wiremesh Products Factory, established in 1998, is a professional manufacturer specializing in sintered metal powder filter elements. Our 30 Micron Sintered Copper Powder Filter Element is designed for high-performance filtration under demanding conditions. With a differential pressure rating of 0.6 MPa and a comprehensive Mill Test Report provided, this product ensures reliable operation and precise filtration in various industrial applications. Backed by over two decades of expertise and an annual export value of US$5–10 million, we deliver quality and consistency to global markets.

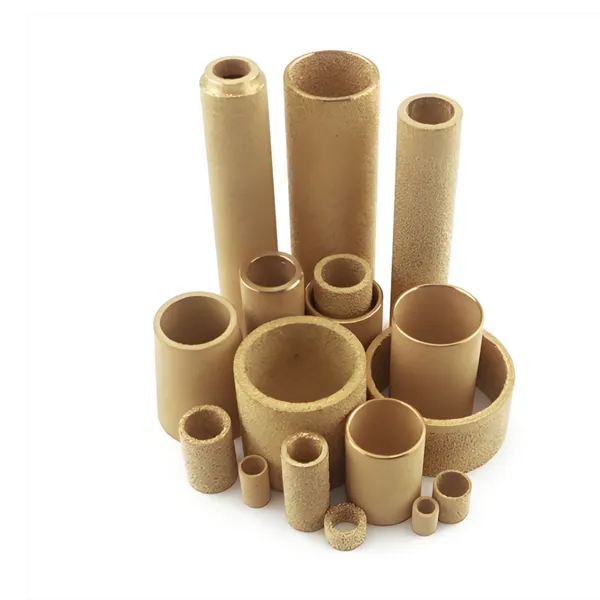

Our sintered copper powder filter elements are manufactured using advanced powder metallurgy techniques, resulting in a porous structure with excellent mechanical strength and thermal conductivity. The 30 micron filtration rating effectively removes solid contaminants while maintaining high flow rates. The element can withstand differential pressures up to 0.6 MPa without deformation, making it suitable for high-pressure systems. Each filter is supplied with a Mill Test Report certifying its physical and filtration properties, ensuring traceability and quality assurance.
Key Features & Technical Specifications
- Material: High-purity sintered copper powder (99.5% Cu min.)
- Filtration Rating: 30 microns nominal (absolute rating available upon request)
- Maximum Differential Pressure: 0.6 MPa (tested and verified)
- Operating Temperature: Up to 400°C in inert atmosphere; customizable for specific environments
- Porosity: 30–45% (adjustable per requirements)
- Thickness: Standard 2–5 mm (customizable)
- Shape: Cylindrical, disc, or custom geometries
- Connection: Threaded ends, flanged, or plain ends
| Parameter | Value |
|---|---|
| Filtration Area | 0.1–1.0 m² per element (customizable) |
| Clean Pressure Drop (at 10 L/min water) | |
| Burst Pressure | > 1.2 MPa (safety factor 2x) |
| Chemical Compatibility | Resistant to many acids, alkalis, and organic solvents (consult for specific media) |
Benefits to Customers: Our sintered copper powder filter elements offer excellent thermal and electrical conductivity, making them ideal for applications requiring heat dissipation or grounding. The uniform pore structure ensures consistent filtration and easy backwashing for extended service life. With a Mill Test Report included, you receive documented proof of performance, aiding in quality control and compliance. Customization options for dimensions, connection types, and micron ratings allow seamless integration into your existing systems.
Trusted by Global Industries: Anping County Boli Hardware Wiremesh Products Factory has been serving customers in North America, South America, Europe, Asia, Africa, and Oceania since 1998. Our annual export value of US$5–10 million reflects our commitment to international standards. We ship from major ports including Tianjin, Qingdao, Shanghai, and Foshan, ensuring timely delivery. Our factory in Hengshui, Hebei, China, employs advanced sintering technology and rigorous quality control processes. Each filter element is individually tested before shipment, and we provide technical support for installation and maintenance. Choose our sintered copper powder filter element for reliable, long-lasting filtration performance. Contact us for a quote or technical consultation.
Frequently Asked Questions
-
What is the typical lifespan of these filter elements?
Lifespan depends on operating conditions and cleaning frequency. With proper backwashing, they can last 1–3 years in most industrial applications. -
Can the filter element be cleaned and reused?
Yes, sintered copper powder filter elements are cleanable by backwashing, ultrasonic cleaning, or chemical cleaning. The Mill Test Report provides baseline data to monitor performance over time. -
What is the maximum temperature for continuous operation?
Standard elements can operate up to 400°C in inert or reducing atmospheres. For oxidizing environments, high-temperature options are available; please consult our technical team. -
Do you provide custom sizes or connection types?
Absolutely. We offer customization for diameter, length, thickness, and end connections (threaded, flanged, or plain). Minimum order quantities may apply. -
Is the Mill Test Report included with every order?
Yes, each filter element is supplied with a Mill Test Report that includes test results for filtration rating, differential pressure, porosity, and material composition. -
What is the typical lead time?
Lead time is 15–30 days depending on order quantity and customization. For urgent orders, please contact our sales team for expedited options. -
Can these elements be used for food or pharmaceutical applications?
Our copper powder filter elements are manufactured with high-purity materials. However, please verify compatibility with your specific regulatory requirements. We can provide material certificates upon request. -
What is the minimum order quantity?
Standard stock items have a MOQ of 10 pieces. Custom orders may have higher MOQ; please inquire for details.
