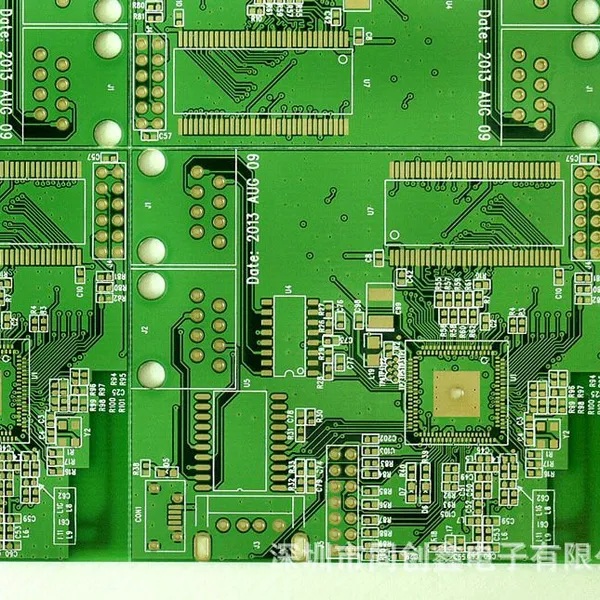

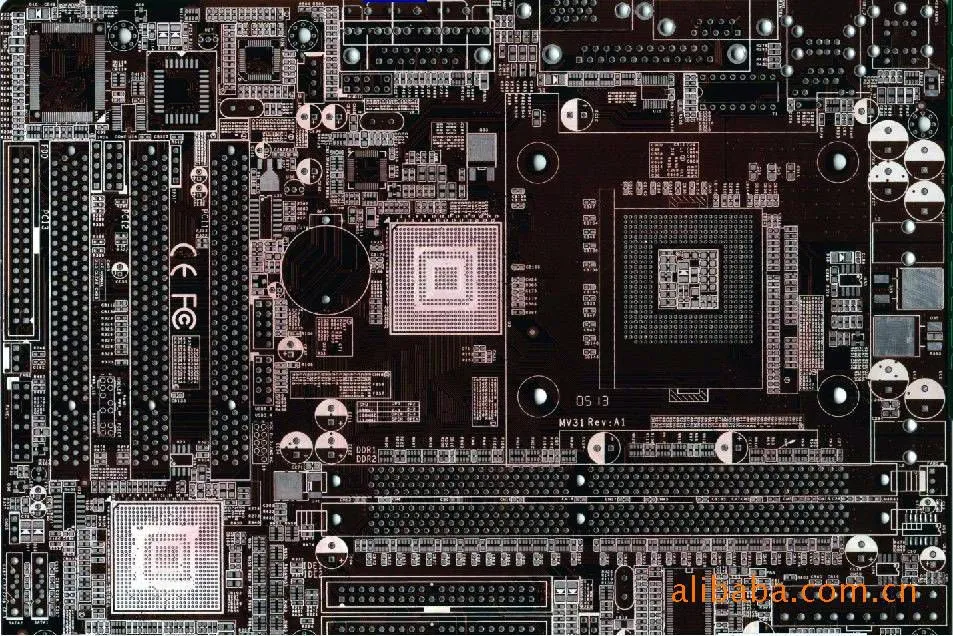

Technical specifications and process instructions for multi-layer stacked high-end circuit boards of China Chaosheng Electronic UAV products
Applicable industries: * * automotive electronics, medical, industrial control, military aerospace, ion equipment, servers, 5G communication, radar, drones, robots, wireless terminals, automation equipment**
>Overall divided into: board selection, surface treatment, key processes, reliability standards, and industry-specific requirements
1、 General requirements for general basic technologies (applicable to high-end industrial boards)
1. Selection of substrate sheet materials
|Application direction | Recommended board | Characteristic description|
|Conventional industrial/intelligent hardware/wireless terminal | FR-4 TG170/TG180 | Temperature resistance Tg ≥ 170 ℃, high heat resistance, low Z-axis expansion, lead-free reflow soldering 260 ℃|
|Server, 5G, high-speed signal board | Low loss board: Isola, Rogers, Shengyi high-speed material S7038, TU-872 | DK/Df controllable, impedance accurate, meets PCIe, DDR, high-speed differential signal|
|RF, radar, high-frequency antenna, 5G millimeter wave | PTFE/ceramic filled high-frequency board, RO4350B, RO5880 | extremely low dielectric loss, low high-frequency signal attenuation|
|Military, aerospace, high vibration working conditions | High reliability FR-4 Class3, polyimide PI board | Wide temperature range, radiation resistance, high mechanical strength, and extreme environmental resistance|
|High power, industrial control power supply, power control board | Thick copper plate, aluminum/copper based MCPCB | Copper thickness 2oz-10oz, good heat dissipation, carrying high current|
>Thickness range: 0.4mm to 3.2mm; Layers: 2 to 32 or more layers;
Copper thickness: signal layer 0.5oz -2oz; Power supply layer 2-12oz thick copper
2. Surface treatment process (selected by scenario)
1. * * Selective electroplating of hard gold (thick gold fingers)**
Nickel 3-6 μ m+hard gold Au 0.8-2.5 μ m, gold cobalt alloy
Applicable: Board edge connectors, plug-in modules, servers, industrial control expansion boards
> ⚠️ Plugging and unplugging contacts * * cannot use ordinary gold-plated ENIG * *, insufficient wear resistance

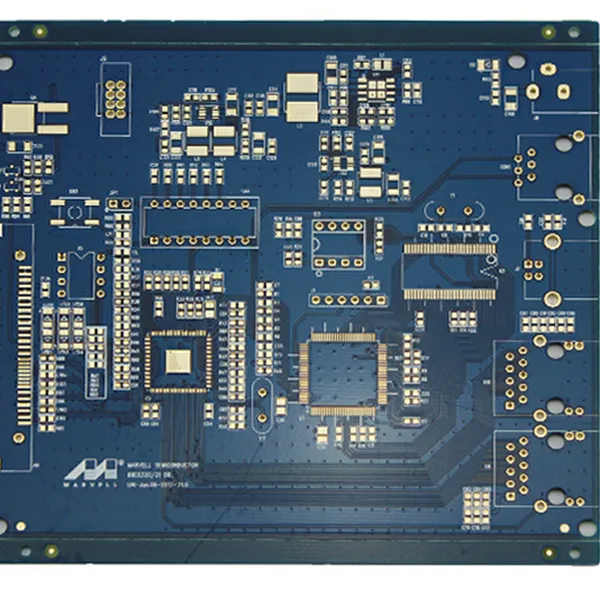

2. Chemical immersion gold ENIG**
Nickel 2-4 μ m+Gold 0.05~0.15 μ m
Applicable: BGA, QFN precision solder pads, medical, automotive, industrial control surface mount boards (no plug and play)
3. Silver/tin deposition**
Suitable for large-scale SMT, low-cost high-end industrial boards, pay attention to moisture-proof storage
4. OSP organic solder mask**
Ordinary signal boards and consumer smart hardware are not suitable for long-term storage
5. * * Thick Gold+Localized Palladium Plating (ENEPIG)**
Military, aerospace, radar, 5G RF modules, long-term oxidation resistance, multiple reflow soldering
3. Core process capability
-Minimum line width and spacing: * * 3mil/3mil (0.075mm) * *, BGA fine wire
-Minimum aperture: mechanical drill 0.15mm; laser blind hole 0.075mm (HDI blind buried hole structure)
-Impedance control: single ended 50 Ω, differential 90 Ω/100 Ω, tolerance ± 5%, ± 10% (high-speed board ± 3%)

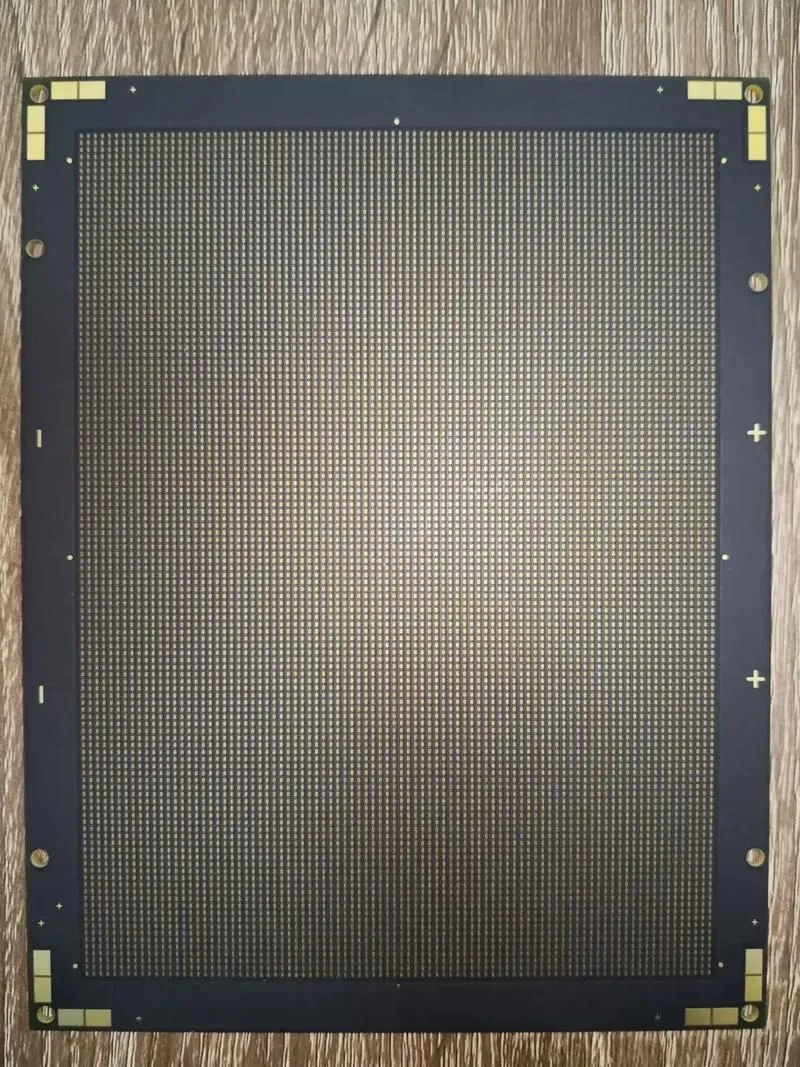

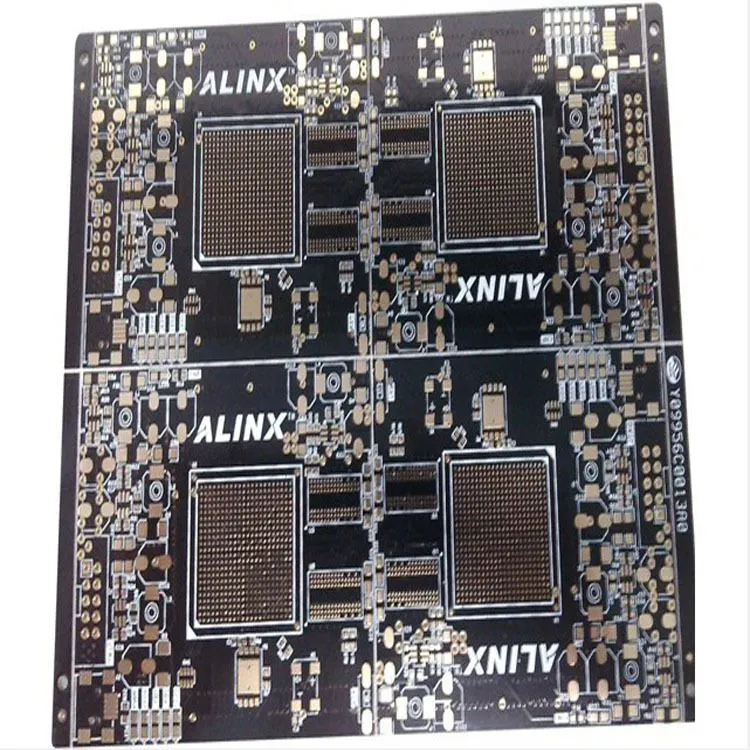

-Solder mask: liquid photosensitive green oil/black oil/matte black, high temperature resistance, anti reflection (commonly used matte black solder mask in radar and military industry)
-Golden finger chamfer: 30 °/45 ° beveled edge, locally thickened gold plating
-Laminated tolerance, hole accuracy, and strict control of expansion and contraction
-Impedance, withstand voltage, insulation resistance, withstand voltage, salt spray, temperature cycling reliability testing
4. General Reliability Standards
-Civil Industry: IPC-6012 Class 2
-Military/aerospace, high reliability equipment: IPC-6012 Class3
-Automotive Electronics: IATF16949, AEC-Q100
-Medical equipment: ISO-13485, biocompatible, low ion precipitation
-5G Communication: IPC-4101 High Frequency Substrate Specification
2、 Special technical specifications for circuit boards in various segmented industries
1. Automotive electronic PCB
Products: BMS battery management, in car central control, ADAS autonomous driving, headlights, body control, in car communication board
-Substrate: High TG FR-4, CAF ion migration resistant board
-Working temperature: -40 ℃~+125 ℃
-Process: Thick copper power lines HDI、 High insulation and voltage resistance, vibration resistance
-Surface treatment: immersion gold ENIG/ENEPIG; Connector contact hard gold finger
-Mandatory standard: IATF16949, PPAP file package available
2. Medical electronic circuit board
Equipment: monitor, testing instrument, surgical equipment, imaging equipment, portable medical terminal
-Low ion precipitation and low halogen optional, reducing corrosion
-High precision BGA, fine wiring, high insulation
-Surface priority gold deposition ENIG, high reliability of solder joints
-Moisture proof, disinfectant resistant environment, stable temperature circulation
-Compliance: ISO13485

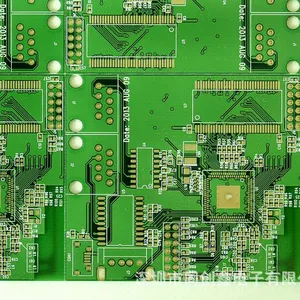

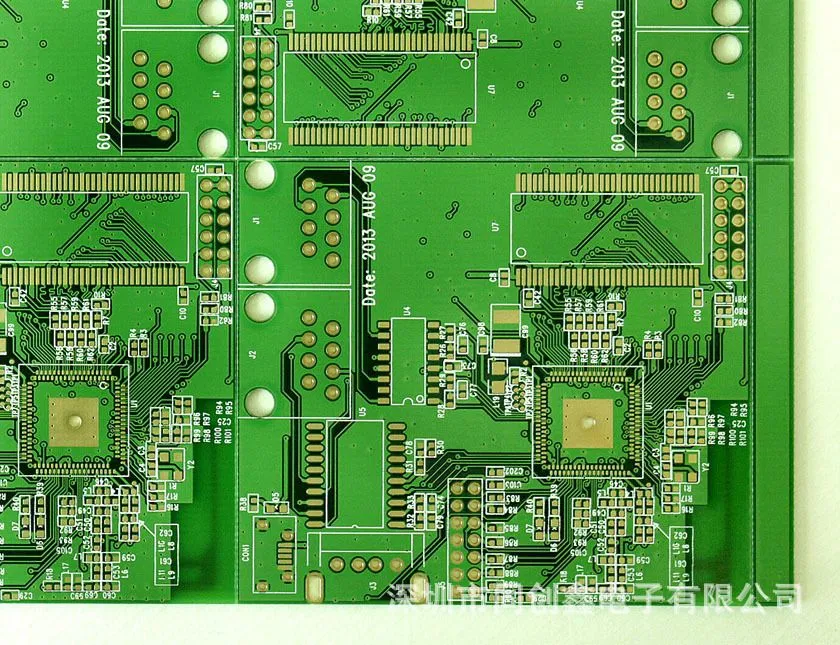

3. Industrial control/Industrial computer/Industrial power control/Automation
PLC、 Motion control, frequency converter, industrial control motherboard, IO board
-Wide temperature range -40~85 ℃, anti-interference, dust and moisture resistance
-Multilayer board, thick copper in some high-power areas
-The card insertion module uses * * thick hard gold fingers * * 1.27-2 μ m
-High voltage resistance, anti electromagnetic interference, long life uninterrupted operation

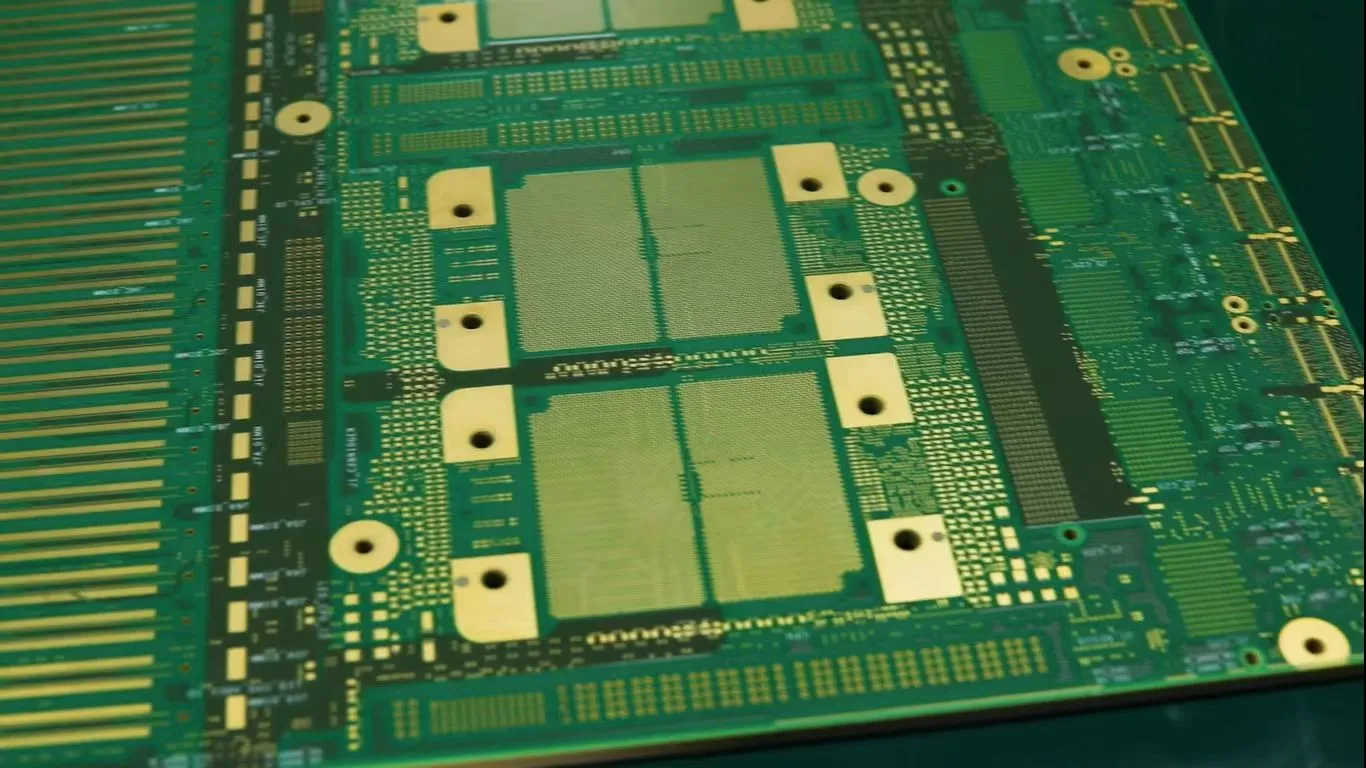

4. Server PCB
Computing power motherboard, memory board, accelerator card, backplane, PCIe 5.0 board
-High speed and low loss board with strict differential impedance of 100 Ω
-Number of high-rise buildings, large-sized boards HDI、 Back Drill technology reduces signal residue
-DIMM/PCIe gold fingers: hard gold 1.27-1.5 μ m, 45 ° chamfer
-High heat dissipation design, thick copper foil for high current

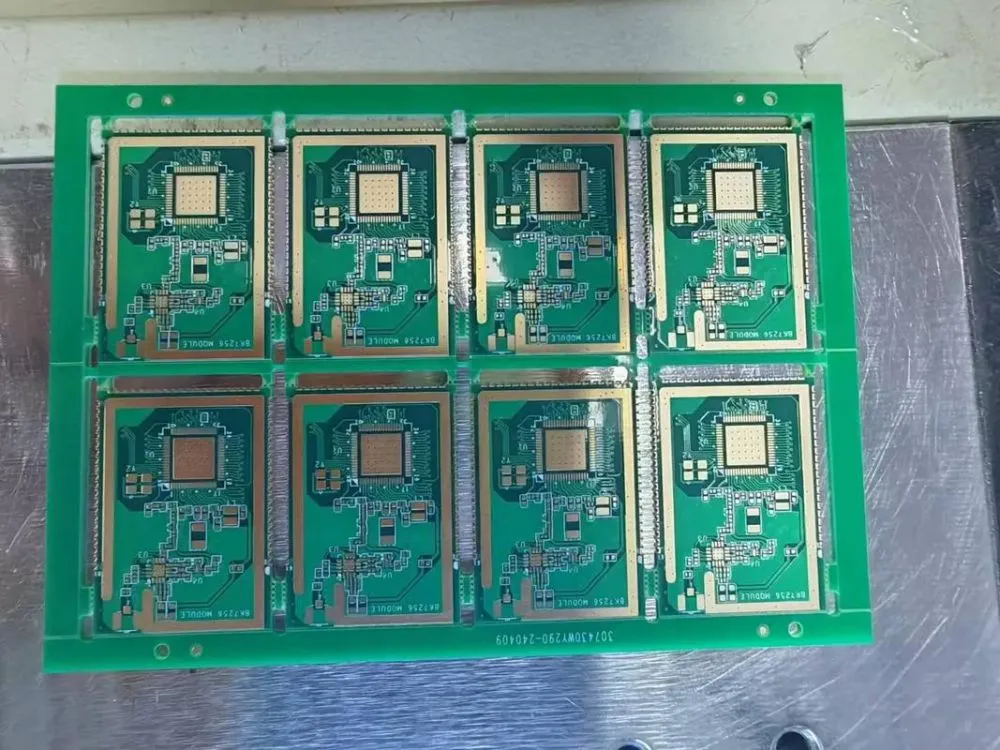

5. 5G communication, wireless terminals, wireless appliances
Base station unit, gateway, router, wireless module
Divided into 2 categories:
1. Digital control board: high-speed FR-4, HDI, precision BGA
2. RF board: Rogers high-frequency board, strict impedance 50 Ω single ended
Surface: Immersion gold, localized gold plating, low loss, reduced signal attenuation
6. Radar and jammer
High frequency RF circuit board, microwave board
-PTFE/ceramic high-frequency material with extremely low Df loss
-High precision impedance, flat copper surface, low roughness copper foil
-Matte black solder mask reduces reflection, locally thick gold-plated contacts
-Wide temperature range, high vibration resistance, and sealing compatibility

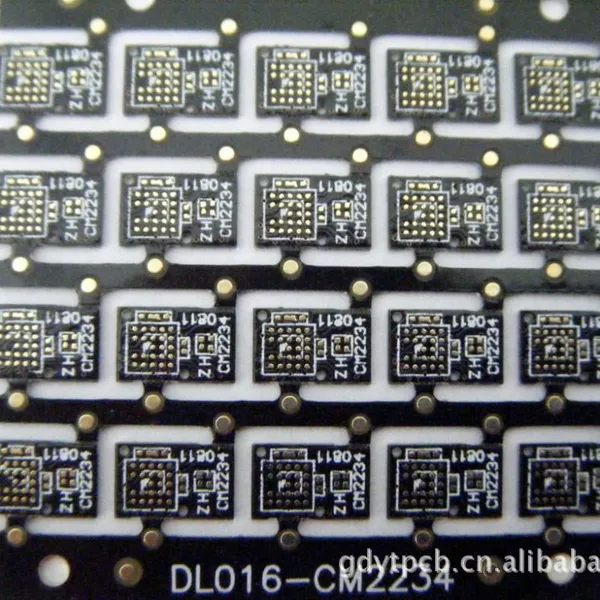

7. Drone&Robot Circuit Board
Flight control board, power drive, sensor board
-Lightweight, optional thin substrate 0.6-1.2mm
-High density HDI, miniaturization
-Anti vibration, impact, wide temperature operation
-Local thick copper heat dissipation in the power drive area
8. Ionic equipment/industrial high-power equipment
Plasma, ion cleaning, high-voltage power board
-High voltage insulation, increased wire spacing, anti creepage measures
-Thick copper circuit, aluminum/copper substrate heat dissipation
-Arc resistant and high voltage resistant design
9. Military, aerospace PCB
-IPC-6012 Class3 highest reliability level
-PI polyimide or special high-temperature resistant substrate
-ENEPIG palladium or selective thick hard gold
-Anti radiation, ultra wide temperature range -55 ℃~+125 ℃
-Strict full process traceability, full testing, non-destructive testing
