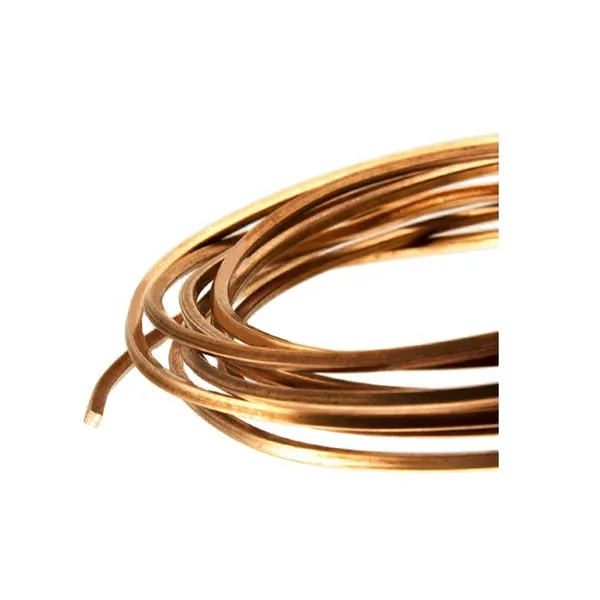

Enameled Square Copper Wire Diameter Ring 5.0 mm Temperature 220 Standard NEMA
US$ 16.30
500 - 999 Kiloamperes
US$ 15.20
≥1000 Kiloamperes
Key Specifications
Get Latest Price
Type:
Enameled Wire
Insulation Material:
enamel
Conductor Material:
Copper
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Polyurethane Enameled Copper Wire Transformer Copper Winding Wire in Thermal Class 200 & 220US$ 15.00 - 16.00MOQ: 500 Kilograms -
155 Class, 0.7 X 14 mm Flat Enameled Copper Wire Buy Copper Winding WireUS$ 15.80 - 16.60MOQ: 500 Kilograms
-
F Grade Size 6.15 X 3.95 mm Copper Enameled Flat Wire for Electric Motor AlternatorUS$ 15.80 - 17.60MOQ: 500 Kilograms
-
0.76x0.19 mm Copper Wire for Speaker Voice Coil Enamelled Rectangular Electrolytic Copper WireUS$ 15.80 - 16.60MOQ: 500 Kilograms
-
Enameled Square Copper Wires 2 X 2 mm Copper Winding Wire Suitable for 690V MotorUS$ 11.38 - 15.60MOQ: 300 Kilograms
Conductor Material
Copper
Conductor Type
Solid
Diameter
customized
Rated Voltage
varies by wire specifications
Model Number
Enameled Square Copper Wire (a)/(b)5.0 mm
Brand Name
LP Industry
Place of Origin
Henan, China
Shape
Flat
Single Wire Size
customized
Working Temperature
customized
Product Name
Enameled Square Copper Wire
Size
Thickness(Width)/a(b):0.45-6.0 mm
Insulation
G1, G2, G3
Rated Temperature
180(Class H), 200(Class C), 220(Class C+), 240(Class HC)
Standard
IEC NEMA GB JIS
Sample
Available
MOQ
300kg
Color
natural color, red, blue, green (customized)
Packing
30kg ~150kg ply-wood spool
Product Description
Class 220 grade 1 Polyimide Magnet Square Enamelled Copper Wire Price
Main Type
-Polyamide-imide enameled copper wire, Class 220
-Polyester (imide)/ Polyamide-imide enameled copper wire, Class 200
-Polyester-imide enameled copper wire, Class 180
-Modified polyester enameled copper wire, Class 155
-Polyurethane enameled copper wire, Class 155
-Polyester enameled copper wire, Class 130
-Polyurethane enameled copper wire, Class 130
Details Tech Information:
Test |
Technical requirement |
Type |
Copper wire:a(b):0.4—7.0 mm |
Resistivit |
0.017241Ω.mm2/m |
Breakdown voltage |
>2000V |
Heat shock |
heat shock up to and including 220°C |
Resistance to Solvents |
Standard solvent. Use a pencil of hardness ”H” the coating shall not be removed |
Apperance |
purplish, Smooth and bright and free from lacquer wart |
Packing |
Plastic spool or wooden spool. Custom specification is apply for flat wire |
Main Features
1) Suitable for winding in high speed machines
2) Very good resistance to transformer oils
3) Very good resistance to typical solvent
4) Freon resistant
5) Excellent resistance to mechanical stress
Product Usage
Related Products
Packing&Shipping
Small sample magnet wire normally adopt carton case, large quantity adopt wooden case and packing PT series, as follow picture show how to pack the enameled magnet wire.
Company Introduction
Our Services & Strength
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Certifications
Exhibition
FAQ
1.How long has your factory set up?
We started production in 1993.
2.how about your company's annual production capacity?
Our Company’s annual production is about 8,000 tons.
3.How large the scale of your company?
Our Company covers almost 100,000 square meters, including plant area of 80,000 square meters.
4. What’s your company 's product scope?
we have many kinds of products ,such as enameled aluminum wire, enameled cooper wire, paper covered magnet wire, fiber glass covered magnet wire and other aluminum/cooper magnet wire products.
5. Some parameters about your company products
Enameled copper wire(mm):Round 0.025-4.5 Flat a1-10,b3-16
Enameled aluminum wire(mm):Round 0.2-8.0 Flat a1-10,b3-16
Fiber glass covered wire(mm): Round 1-7 Flat a1-10,b3-35
Paper covered wire (mm):Round 2-7 Flat a1-10,b3-35
ECCA wire (mm):Round 0.19-4.0
6. Why choose us?
Guarantees of Coil winding wire:
1) Factory Direct and on-time shipment.
2) ELANTAS insulation paint available.
3) Large size safe package up to PT-270.
4) Customized sizes,OEM are accepted!
5) Goods are sold with rerun or refund guarantee due to quality issue!
Shipping terms of Coil winding wire
1) Sample time: Nearby 3-5days, distance 5-7days.
2) Production time: 10-30days(Depends on the Qty) after advanced payment received
3) Packing: Each into individual carton box, then into export carton
