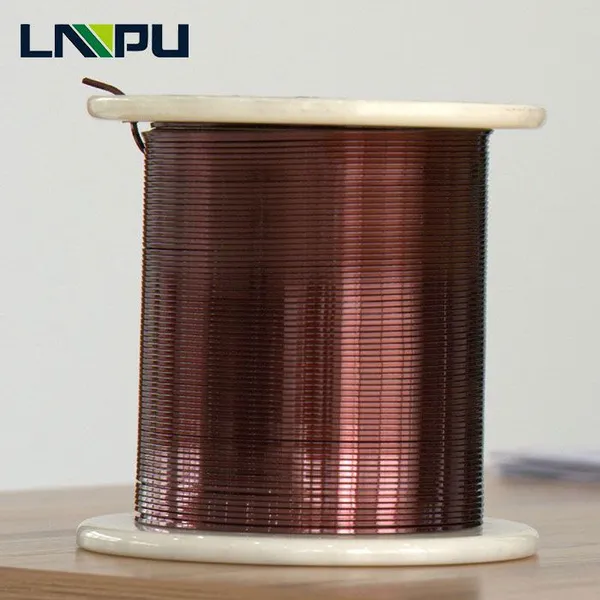

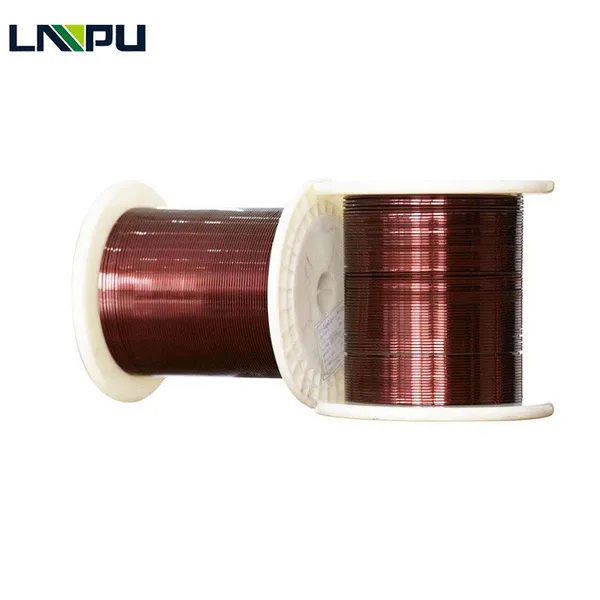

Rectangular Copper Winding Wire for Designing a Transformer LP Industry
US$ 15.60
500 - 999 Kilograms
US$ 11.39
≥1000 Kilograms
Key Specifications
Get Latest Price
Type:
Copper Winding Wire
Insulation Material:
enamel
Conductor Material:
Copper
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solderable UEW-F AWG 44 0.05mm Enameled Copper Wire Polyurethane Enameled Copper WireUS$ 15.80 - 16.60MOQ: 500 Kilograms -
To Build Copper Coils to Produce Magnetic Fields Rectangular Copper Wire With Insulation LayerUS$ 11.39 - 15.60MOQ: 500 Kilograms
-
Looking for Cross Sectional Areas Between AWG#12 and AWG#24 Enameled Square Copper WiresUS$ 11.39 - 15.60MOQ: 500 Kilograms
-
Market Price 1 Sq mm Electrical Wire Winding Enameled Copper Rectangular Enamelled Copper WireUS$ 15.80 - 16.60MOQ: 500 Kilograms
-
Supply Copper Magnet Wire With Different Colour Enamel Enamelled Copper Wire. SWG 18-34US$ 15.36 - 15.80MOQ: 500 Kilograms
Conductor Material
Copper
Conductor Type
Solid
Rated Voltage
varies by wire specifications
Model Number
Rectangular Copper Winding Wire
Brand Name
LP Industry
Place of Origin
Henan, China
Product Name
Rectangular Copper Winding Wire
Conductor
Copper
Size
Thickness(a) 0.3-10 mm; Width(b) 1-22 mm
Insulation
Single, Double, Triple, etc.
Thermal Class
120(Class E);180 (Class H);200 (Class C);220 (Class C+); 240(Class HC)
Standard
IEC NEMA GB JIS
Monthly Output
12000-16000 TONS
MOQ
500KG
Sample
Sample is Available
Product Description
Main Application Of Enameled Flat Copper Wire
1-Transformer
2-Generator
3-Refrigeration System
4-Class C Generators
5-UPS Power Supply
6-Electronic Transformer
Magnet Flat Coil of Copper Enamel Copper Flat Wire for Generator |
||||||
Type |
Enameled Flat Copper Wire |
|||||
Diameter(mm) |
a:1-10,b:3-16 |
|||||
Temperature class |
180,200,220 |
|||||
Standard |
IEC,NEMA,GB,JIS |
|||||
Bobbin |
150kg wooden spool, plastic spool or according to customer requirements. |
|||||
Application |
Dry transformers/Motors/Generators/Machine windings/Welding machines/Other windings |
|||||
Resistance to Solvents |
Standard solvent. Use a pencil of hardness 'H' the coating shall not be removed |
|||||
Insulation varnish |
Elantas varnish |
|||||
Conductor |
Bare copper wire or squeeze bare flat wire confirm the National standard, smooth surface, low resistance |
|||||
Product Features
1) Enameled Copper Wire is one kind of magnet wire which is consisted of bare round copper which accord with EN 13601Cu-ETP standard as the conductor and multi-layer insulation layers. The multi-layer insulation layers can be polyester, modified polyester or polyester-imide and so on.
2) Our Enameled Round Copper Wire is one kind of enameled wire which has high heat resistance. Its temperature class can be from 130℃ to 220℃.
3) Our Enameled Flat Copper Wire uses TU2 oxygen-free copper as raw material.TU2 oxygen-free copper has good conductivity and heat conductivity.
Product Usage
Related Products
Packing&Shipping
Small sample magnet wire normally adopt carton case, large quantity adopt wooden case and packing PT series, as follow picture show how to pack the enameled magnet wire.
Company Introduction
Our Services & Strength
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Certifications
Exhibition
FAQ
1.How long has your factory set up?
We started production in 1993.
2.how about your company's annual production capacity?
Our Company’s annual production is about 8,000 tons.
3.How large the scale of your company?
Our Company covers almost 100,000 square meters, including plant area of 80,000 square meters.
4. What’s your company 's product scope?
we have many kinds of products ,such as enameled aluminum wire, enameled cooper wire, paper covered magnet wire, fiber glass covered magnet wire and other aluminum/cooper magnet wire products.
5. Some parameters about your company products
Enameled copper wire(mm):Round 0.025-4.5 Flat a1-10,b3-16
Enameled aluminum wire(mm):Round 0.2-8.0 Flat a1-10,b3-16
Fiber glass covered wire(mm): Round 1-7 Flat a1-10,b3-35
Paper covered wire (mm):Round 2-7 Flat a1-10,b3-35
ECCA wire (mm):Round 0.19-4.0
6. Why choose us?
Guarantees of Coil winding wire:
1) Factory Direct and on-time shipment.
2) ELANTAS insulation paint available.
3) Large size safe package up to PT-270.
4) Customized sizes,OEM are accepted!
5) Goods are sold with rerun or refund guarantee due to quality issue!
Shipping terms of Coil winding wire
1) Sample time: Nearby 3-5days, distance 5-7days.
2) Production time: 10-30days(Depends on the Qty) after advanced payment received
3) Packing: Each into individual carton box, then into export carton
