Product Introduction

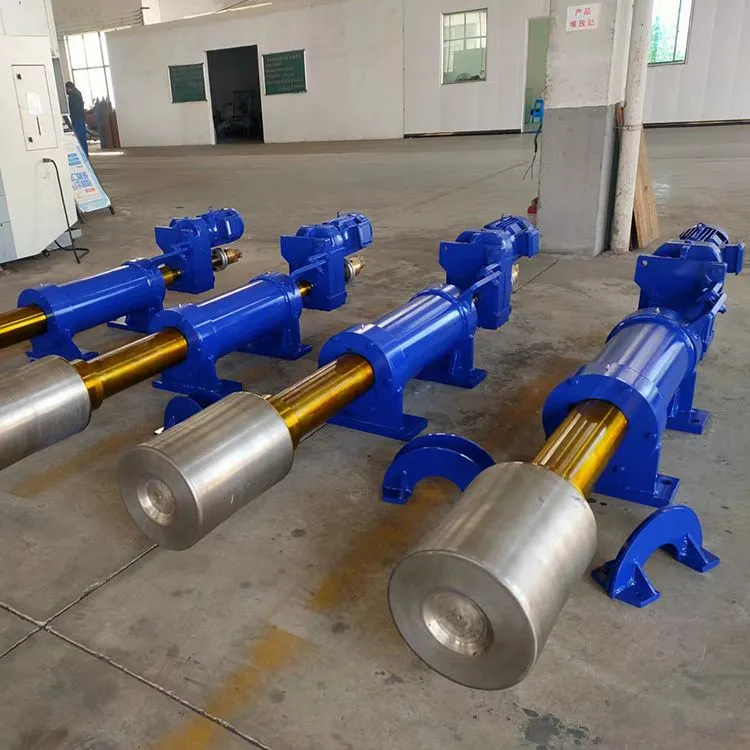

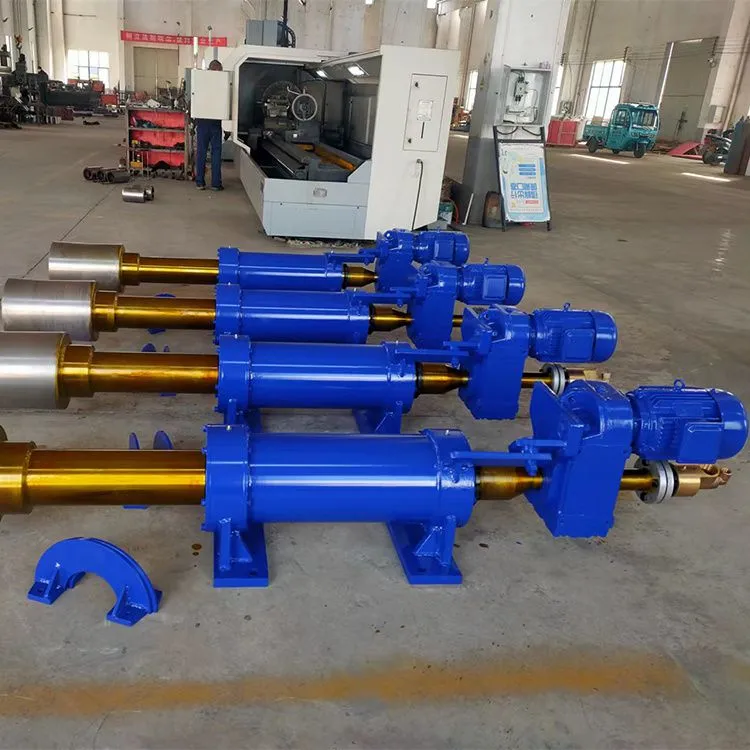

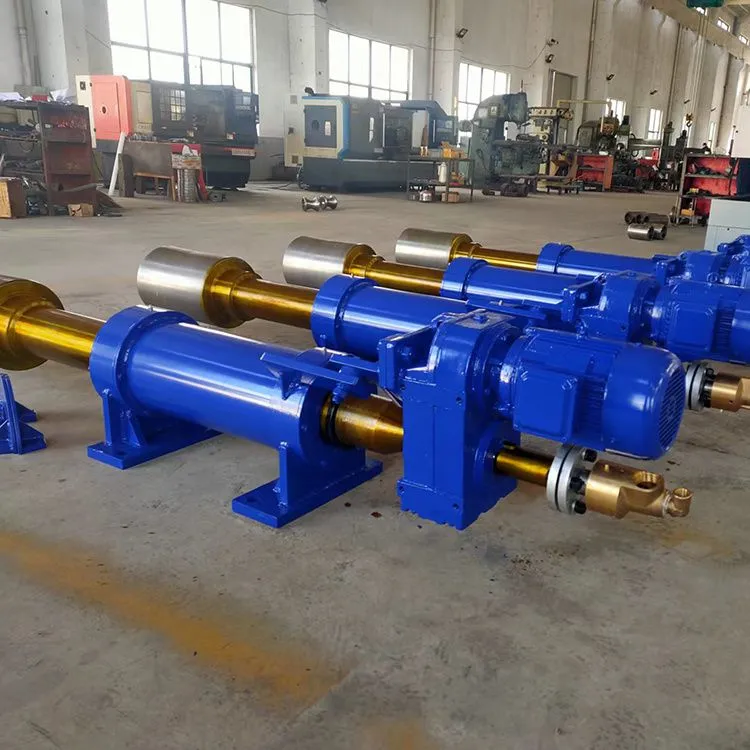

Cantilever roller assembly is a complete set of mechanical devices with cantilever rollers as the core, integrating bearing seats, transmission shafts, adjustment mechanisms, sealing components, and other components. Its core feature is that one end of the roller body is fixed to the support structure, and the other end is arranged in a suspended manner. Through modular combination, it realizes the transportation, support, and attitude control of materials. Unlike the assembly of roller systems with fixed ends, it is more suitable for production scenarios with limited space or flexible operations. The roller body parameters and assembly combination forms can be adjusted according to process requirements.
Product function
Stable conveying and guidance:
Lift various materials such as steel plates, glass, paper, etc., accurately limit the trajectory of material movement, prevent deviation, wrinkling, or overturning during transportation, ensure continuous and smooth flow of materials, and lay the foundation for subsequent processing procedures.
Collaborative process control:
Adjust the tension during the material processing, cooperate with straightening, leveling, drying and other processes, and help improve the product accuracy; Under high or low temperature conditions, cooling and heating components can be integrated to ensure stable material processing performance.
Space and working condition adaptation:
By utilizing the advantages of cantilever structure, flexible installation and operation can be achieved in narrow spaces. At the same time, component selection can be used to cope with harsh working conditions such as high temperature, wear, and corrosion, reducing the impact of the environment on operations.
Convenient operation and maintenance assistance:
Modular design facilitates separate disassembly and replacement of rollers or components, reducing maintenance difficulty, minimizing production line downtime, and improving overall operational efficiency.
Application scenarios
Metallurgical industry:
Hot rolling/cold rolling production line, steel billet heating furnace inlet and outlet section, non-ferrous metal processing line, used to support and transport materials such as steel billets, steel plates, aluminum billets, etc., in conjunction with rolling and straightening processes.
Building materials industry:
The annealing section and forming section of the glass production line, cement clinker conveying line, and gypsum board processing line are responsible for the transportation and shaping support of high-temperature materials.
Light industry:
Paper machine mesh section, drying section, film/non-woven fabric production line, printing and packaging assembly line, ensuring stable transportation and process connection of lightweight materials such as paper and film.
Other fields:
Mining conveying equipment, new energy material processing lines, rubber and plastic product production lines, etc., are suitable for the conveying and process control needs of various materials.
Main material
Core roller body:
High quality carbon steel and alloy structural steel are used in conventional working conditions, and their strength and rigidity are improved through quenching and tempering treatment; Nickel chromium heat-resistant steel is selected for high-temperature conditions to enhance its resistance to high-temperature oxidation.
Supporting and transmission components:
The bearing seat is mostly made of high-strength cast iron or medium carbon alloy steel, and the transmission shaft is made of alloy structural steel to ensure the overall load-bearing capacity and transmission stability of the assembly.
Adaptation to special working conditions:
Wear resistant scenes use roller surface chrome plating, spray wear-resistant alloy or stainless steel material; Priority should be given to using stainless steel such as 304 and 316L in corrosive environments; Lightweight requirements can be met by using high-strength aluminum alloys or composite materials.
Sealing and auxiliary components:
The sealing components are made of heat-resistant and wear-resistant rubber or polytetrafluoroethylene, and the adjustment mechanism accessories are made of high-strength carbon steel or aluminum alloy, taking into account both flexibility and durability.
Advantages and Features
Flexible structure:
The cantilever design, combined with an adjustable mechanism, can adjust the length, angle, and height of the roller body according to production needs, adapt to different process layouts and space limitations, and have strong compatibility.
Convenient maintenance:
Modular assembly form, strong universality of components, no need to disassemble and replace the equipment as a whole, greatly reducing operation and maintenance costs and downtime.
Wide adaptability to working conditions:
Through material selection and component upgrades, it can withstand harsh environments such as high and low temperatures, wear and corrosion, and adapt to different working conditions of light and heavy loads, with a wide range of applications.
Stable operation:
Accurate guidance and tension control capabilities can effectively avoid material conveying deviations, ensure product processing accuracy, and improve the overall operational stability of the production line.
Why Choose Zhuoyue？
1. Scalable Production Capacity
With a facility spanning 46,000 square meters and equipped with comprehensive advanced machinery, we guarantee efficient end-to-end production for both standard and customized projects, meeting high-volume and diverse requirements.
2. Expertise-Driven Technical Strength
More than 25% of our 80+ employees are R&D specialists, focused on core products such as cantilever rollers, apron rollers, heat- and wear-resistant Roller Tables, and more, delivering technologically advanced and reliable solutions.
3. Dual Benefits of Quality and Cost Efficiency
We adhere to direct factory sales, maintaining strict quality control to ensure exceptional wear resistance and durability. By eliminating intermediaries, we offer high-cost performance without compromise.
4. Flexible Customization and Proven Experience
We support drawing-based customization and have successfully served numerous renowned domestic and international enterprises across industries such as metallurgy and heavy machinery, boasting extensive experience in tailored design and global supply.
5. Globally Verified Reliability
Our products are distributed worldwide and have passed rigorous inspections by clients across multiple countries. Their long-term performance and service endurance allow us to seamlessly meet both local demands and international standards.
If you have any needs, please contact us in a timely manner！
