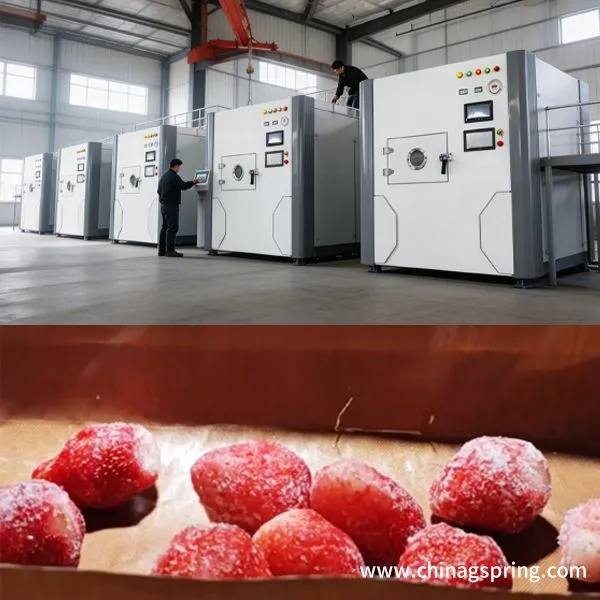

Large Scale Industrial Microwave Vacuum Dryer
Our Large Scale Industrial Microwave Vacuum Dryer is designed for industrial-scale low-temperature drying applications in the food, pharmaceutical, herbal extract, chemical, nutraceutical, and specialty material industries.
By combining microwave volumetric heating with vacuum drying technology, the system enables rapid moisture removal under reduced pressure. This technology is particularly suitable for many heat-sensitive materials that require controlled drying temperatures and efficient moisture removal.
The equipment can be configured with an intelligent PLC control system, adjustable microwave power, automated vacuum control, and customized chamber capacity to meet different industrial production requirements.
Key Features
Large-scale industrial drying capacity
Microwave + vacuum combined drying technology
Low-temperature drying capability
Rapid internal moisture removal
Uniform volumetric microwave heating
Automatic PLC touch-screen control
Adjustable microwave power
Adjustable vacuum pressure
Automated drying process monitoring
SUS304 stainless steel construction
SUS316 optional for specific applications
Energy-efficient operation
Customized chamber size and capacity
OEM & ODM manufacturing available
CE-compliant design available
Suitable Materials
Suitable for many materials requiring controlled low-temperature drying, including:
Herbal Extracts
Botanical Extracts
Pharmaceutical Raw Materials
Food Ingredients
Fruit & Vegetable Products
Spices
Nutraceutical Materials
Protein Materials
Enzyme Preparations
Specialty Chemicals
Biological Materials
Other Heat-Sensitive Products
Working Principle
Under vacuum conditions, the boiling point of water is reduced. Microwave energy simultaneously penetrates the material and directly heats moisture inside the product, promoting evaporation throughout the material.
This combination can provide faster drying, reduced thermal exposure, and improved moisture uniformity for suitable products compared with conventional surface-heating methods.
Actual drying temperature, capacity, and processing time depend on the material properties, initial moisture content, product thickness, and target final moisture level.
Applications
Widely used in:
Food processing plants
Pharmaceutical manufacturing
Herbal medicine processing
Botanical extract production
Nutraceutical manufacturing
Chemical processing
Biotechnology applications
Specialty material processing
Industrial R&D and pilot production
Advantages of Our Industrial Microwave Vacuum Dryer
Large Capacity
Customized chamber volume and microwave power are available for industrial-scale production.
Low-Temperature Drying
Vacuum conditions reduce the evaporation temperature, making the system suitable for many heat-sensitive materials.
Fast Moisture Removal
Microwave energy directly heats moisture inside the material, helping accelerate the drying process.
Intelligent PLC Control
Microwave power, vacuum pressure, drying time, and other parameters can be monitored and adjusted through the PLC system.
Customized Industrial Solution
Equipment dimensions, capacity, microwave power, vacuum system, and automation level can be designed according to the customer's production requirements.
FAQ
Q1: What is the advantage of a large-scale microwave vacuum dryer?
It combines volumetric microwave heating with vacuum drying and can be engineered for larger industrial batch sizes, providing efficient moisture removal for suitable materials.
Q2: Is it suitable for heat-sensitive materials?
Yes. Vacuum drying allows moisture to evaporate at lower temperatures, making the technology suitable for many heat-sensitive materials.
Q3: Can the machine be customized for our factory?
Yes. We can customize chamber size, microwave power, vacuum system, conveyor or batch configuration, PLC control, and overall equipment dimensions.
Q4: Do you provide OEM & ODM services?
Yes. We offer customized design, branding, electrical configuration, production capacity, and complete microwave vacuum drying solutions.
Technical Specifications：
Machine Model
GSV-6HMV
GSV-10HMV
GSV-30HMV
GSV-50HMV
Work Frequency
2450±50MHZ
2450±50MHZ
2450±50MHZ
2450±50MHZ
Rated Apparent Microwave Power
≤7KW
≤11KW
≤33KW
≤55KW
Output Microwave Power
≥6KW
≥10KW
≥30KW
≥50KW
Vacuum Pressure
-(0-99.9Kpa) customized setting
Capacity
2-3kg/batch
≤5-6kg/batch
≤15-20kg/batch
≤20-30kg/batch
Work Process Temperature
20-60℃
20-60℃
20-60℃
20-60℃
Vacuum Pump
Rotary Vane Pump or Customized
Rotary Vane Pump or Customized Rotary Vane Pump or Customized Rotary Vane Pump or Customized Cooling Type
Water Chiller System for Vacuum System
Water Chiller System for Vacuum System Water Chiller System for Vacuum System Water Chiller System for Vacuum System Work Style
Batch Type/Customized Time
Batch Type/Customized Time Batch Type/Customized Time Batch Type/Customized Time Operation
PLC & Touch Screen
PLC & Touch Screen PLC & Touch Screen PLC & Touch Screen Tray No.
Customized
Customized Customized Customized Tray Material
Teflon Material or Customized
Teflon Material or Customized Teflon Material or Customized Teflon Material or Customized Material
SUS304 or food material
SUS304 or food material SUS304 or food material SUS304 or food material Size
Customized Cabinet or Cylinder Microwave Vacuum Drye
Customized Cabinet or Cylinder Microwave Vacuum Drye Customized Cabinet or Cylinder Microwave Vacuum Drye Customized Cabinet or Cylinder Microwave Vacuum Drye Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request.
