Home > Industrial Equipment & Components > Environment Protection Device > Waste Treatment Equipment > Factory Price FRP Pressure Vessel for Fertilizer Industry – High-Strength Tank

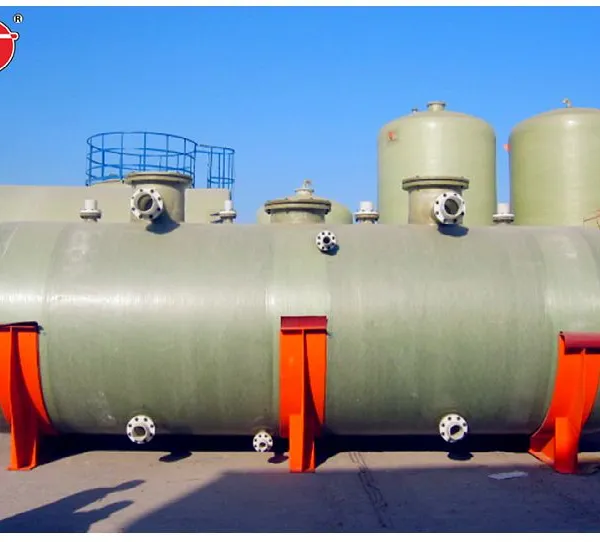

Factory Price FRP Pressure Vessel for Fertilizer Industry – High-Strength Tank

Factory Price FRP Pressure Vessel for Fertilizer Industry – High-Strength Tank thumbnail-3

Factory Price FRP Pressure Vessel for Fertilizer Industry – High-Strength Tank thumbnail-4

Factory Price FRP Pressure Vessel for Fertilizer Industry – High-Strength Tank thumbnail-5

Factory Price FRP Pressure Vessel for Fertilizer Industry – High-Strength Tank photo-1

Factory Price FRP Pressure Vessel for Fertilizer Industry – High-Strength Tank photo-2

Factory Price FRP Pressure Vessel for Fertilizer Industry – High-Strength Tank photo-3

Factory Price FRP Pressure Vessel for Fertilizer Industry – High-Strength Tank photo-4

Factory Price FRP Pressure Vessel for Fertilizer Industry – High-Strength Tank photo-5

Product Spotlights

Factory Price FRP Pressure Vessel specifically designed for the fertilizer industry. Corrosion-resistant, high-strength composite tank with customizable sizing, pressure ratings up to 2.5 MPa, and low maintenance. Direct manufacturer since 2009, exporting globally with competitive pricing and reliable quality.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Glass Fiber Reinforced Plastic (FRP)

Working Pressure:

0.6 MPa – 2.5 MPa (customizable)

Diameter:

200 mm – 1500 mm (customizable)

Contact Supplier Request Quote Chat Now

Hengshui City Yike Composite Materials Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Glass Fiber Reinforced Plastic (FRP)

Working Pressure 0.6 MPa – 2.5 MPa (customizable)

Diameter 200 mm – 1500 mm (customizable)

Height 500 mm – 3000 mm (customizable)

Color Blue, Green, Gray, or Custom RAL

Application Fertilizer industry, chemical storage, water treatment

Connection Type Flanged, Threaded, or Custom

Design Standard ASME, GB/T, or as per customer requirement

Hengshui City Yike Composite Materials Co., Ltd., established in 2009 with an annual export value of US$1.5–2.5 million, is proud to present our Factory Price FRP Pressure Vessel for Fertilizer Industry – High-Strength Tank. As a direct manufacturer, we offer cost-effective solutions without compromising quality. Our tanks are engineered to withstand harsh chemical environments in fertilizer production, combining high strength with corrosion resistance. By choosing our product, you gain a reliable partner with over a decade of experience in composite materials, serving global markets across North America, South America, Eastern Europe, Southeast Asia, and beyond.

This FRP pressure vessel is specifically designed for the fertilizer industry, where aggressive chemicals like acids, alkalis, and salt solutions are common. The high-strength composite structure provides superior durability compared to traditional steel tanks, eliminating rust and reducing maintenance costs. Below we detail the key features, technical specifications, and benefits that make our tank an ideal choice for your storage and pressure application needs.

Key Features & Advantages

Corrosion Resistance: The FRP material is inherently resistant to a wide range of chemicals used in fertilizer production, including sulfuric acid, phosphoric acid, and ammonia. This extends the tank's service life significantly.
High Strength-to-Weight Ratio: Our composite construction offers strength comparable to steel at a fraction of the weight, making transportation and installation easier and more cost-effective.
Customizable Design: We offer flexible sizing, pressure ratings, connection types, and colors to meet your specific process requirements. Customizations are available upon request.
Pressure Handling: Designed to withstand working pressures from 0.6 MPa to 2.5 MPa, with higher ratings available for specialized applications. Each vessel undergoes rigorous hydrostatic testing.
Low Maintenance: The non-metallic nature eliminates the need for linings, coatings, or cathodic protection. Simple periodic inspections are sufficient to ensure long-term performance.
Thermal Insulation: FRP has low thermal conductivity, reducing heat loss or gain, which is beneficial for temperature-sensitive fertilizer solutions.
Long Service Life: With proper design and materials, our tanks can last 15–20 years or more, even in harsh chemical environments.

Technical Specifications (Typical Parameters)

Parameter	Value/Range	Notes
Material	E-glass fiber + polyester/vinyl ester/epoxy resin	Resin type selected per chemical compatibility
Working Pressure	0.6 – 2.5 MPa (customizable up to 4.0 MPa)	Test pressure: 1.5 times working pressure
Diameter	200 – 1500 mm	Larger diameters available upon request
Height	500 – 3000 mm	Customizable
Wall Thickness	3 – 20 mm depending on design	Calculated per ASME/Guidelines
Connection	Flanged (ANSI/DIN), Threaded (NPT/BSP), or Custom	Material: FRP or stainless steel
Color	Standard: Blue, Green, Gray; Custom RAL available	UV-resistant gel coat for outdoor use
Operating Temperature	-20°C to +80°C (higher with special resin)	Consult for extreme temperatures

Why Choose Our FRP Pressure Vessel?

Factory Direct Pricing: As a manufacturer, we eliminate middlemen, offering competitive prices without sacrificing quality. Bulk orders qualify for additional discounts.
Stringent Quality Control: Each vessel is manufactured using advanced winding technology and undergoes strict quality checks including dimensional inspection, pressure testing, and visual examination.
Global Shipping Expertise: We ship from Tianjin, Shanghai, and other ports, with experience exporting to over 20 countries across six continents. Our packaging ensures safe transit.
Technical Support: Our engineering team provides comprehensive support from design to installation, ensuring the tank meets your process requirements.

Hengshui City Yike Composite Materials Co., Ltd. has been a trusted supplier since 2009, with annual export value reaching US$1.5–2.5 million. Our products are used in fertilizer plants, chemical processing, water treatment, and other industries worldwide. We have served clients in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and more. Our commitment to quality and customer satisfaction is reflected in our long-term partnerships and repeat orders.

Choosing our Factory Price FRP Pressure Vessel for Fertilizer Industry means investing in a durable, low-maintenance, and high-performance solution. Whether you need a standard tank or a custom design, we are ready to deliver. Contact us today for a quote or technical consultation. Let us help you optimize your fertilizer production with a reliable pressure vessel that stands the test of time.

Frequently Asked Questions (FAQ)

Q: What materials are used in your FRP pressure vessels?
A: We use high-quality E-glass fiber combined with polyester, vinyl ester, or epoxy resin, depending on the chemical environment. The resin is selected based on the specific chemicals in your fertilizer process to ensure maximum compatibility.
Q: Can the tank be customized for unusual dimensions or pressure ratings?
A: Yes, we offer complete customization. You can specify diameter, height, working pressure, connection type, and color. Our engineering team will design the tank to meet your requirements, subject to material limitations.
Q: How long does the tank last in a fertilizer application?
A: With proper material selection and regular inspection, our FRP tanks typically last 15–20 years or more. The corrosion resistance of FRP eliminates rust, which is a common failure mode for steel tanks.
Q: What is the maximum working pressure you can achieve?
A> Our standard range is 0.6–2.5 MPa, but we can design up to 4.0 MPa for specific applications using higher-strength reinforcements and thicker walls. Please consult our technical team for extreme pressures.
Q: Are these tanks suitable for ammonia or highly corrosive fluids?
A: Yes, we provide a chemical compatibility chart for each resin system. For ammonia, we recommend using a vinyl ester or epoxy resin with appropriate corrosion barrier. Please share your fluid composition for a precise recommendation.
Q: Do you provide installation services or support?
A: We provide detailed installation manuals and technical support via video call or email. For large projects, we can arrange on-site supervision at an additional cost. Our team can also recommend local installation partners.
Q: What is the typical lead time for a custom tank?
A: Standard designs take 15–25 working days. Custom designs may require 25–40 working days depending on complexity. We offer expedited production for urgent orders (additional charges apply).
Q: How do you ensure the tank is safe for pressure use?
A: Every vessel undergoes hydrostatic pressure testing at 1.5 times the rated working pressure. We also perform visual inspection and dimensional checks. Our manufacturing process follows established composite pressure vessel standards (e.g., ASME RTP-1, GB/T 19090).
