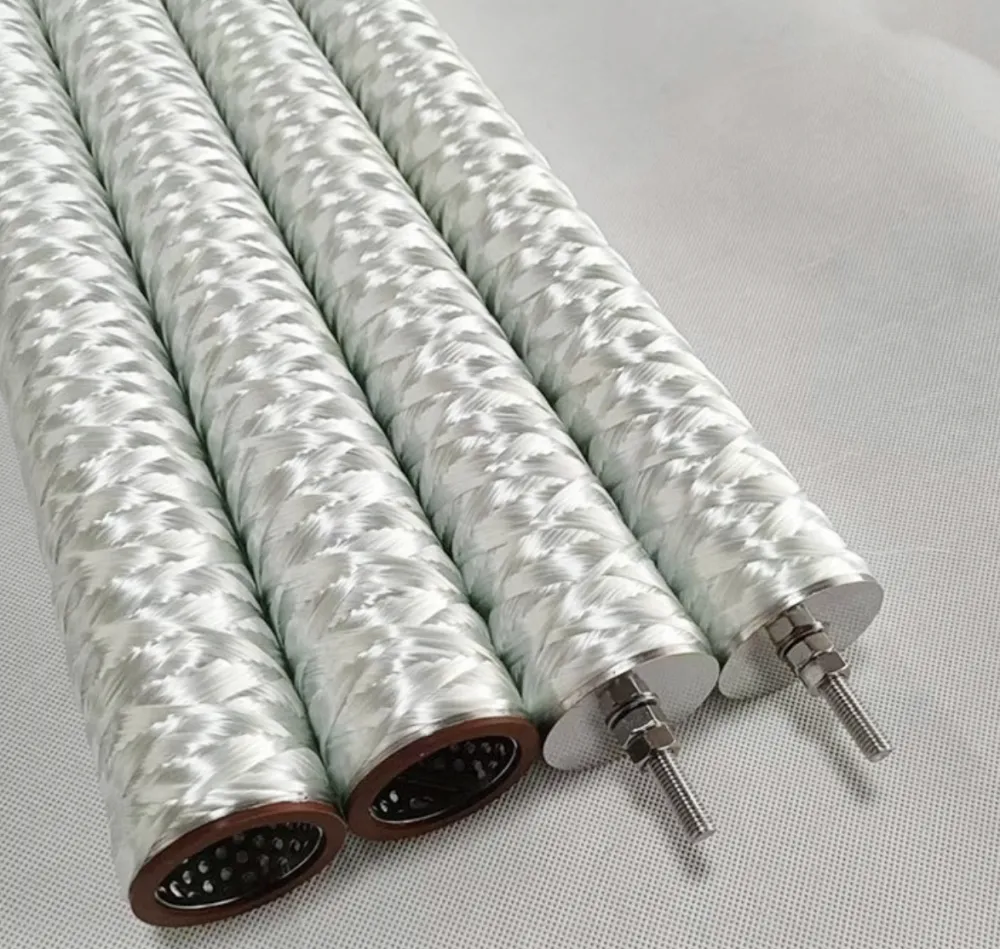

Welcome to Anping County Boli Hardware Wiremesh Products Factory – a trusted manufacturer with over 25 years of experience in filtration solutions. Since 1998, we have been dedicated to producing high-quality custom filter cartridges that meet the rigorous demands of global industries. Our Custom Glass Fiber Filter Cartridge utilizes advanced melt-blown technology to achieve a precise 0.45 micron filtration rating, capable of operating at temperatures up to 250°F. With an annual export value of US$5–10 million and shipping ports including Tianjin, Qingdao, and Shanghai, we serve markets across North America, Europe, Asia, and beyond. This product is engineered to deliver reliable performance, extended service life, and is backed by a 1-year warranty for your peace of mind.
Designed for demanding filtration applications, this cartridge combines the strength of glass fiber with the efficiency of melt-blown manufacturing. The result is a high-density, uniform filter media that captures particles down to 0.45 microns with minimal pressure drop. Whether you need to filter water, chemicals, oils, or gases, this cartridge offers consistent quality and durability.
Key Features & Technical Specifications
- Filtration Precision: 0.45 micron absolute rating ensures removal of fine particles, bacteria, and sediments.
- Advanced Melt-Blown Technology: Creates a graded pore structure for high dirt-holding capacity and long service life.
- High Temperature Resistance: Operates continuously at 250°F (121°C), suitable for hot liquids and steam sterilization.
- Glass Fiber Media: Chemically resistant, non-shedding, and compatible with a wide pH range (2–13).
- Customizable Dimensions: Available in various lengths (10", 20", 30", 40") and outer diameters (2.5", 4.5") with end cap options (DOE, SOE, 222, 226).
- Low Pressure Drop: Optimized design reduces energy consumption in filtration systems.
- 1-Year Warranty: Covers manufacturing defects and ensures product reliability.
| Parameter | Value |
| Media Material | Borosilicate Glass Fiber |
| Filtration Rating | 0.45 Micron (Nominal) |
| Max Operating Temperature | 250°F (121°C) |
| Max Differential Pressure | 80 psi (5.5 bar) at 77°F |
| Core Material | Polypropylene or Stainless Steel (optional) |
| End Cap Options | DOE, SOE, 222 O-Ring, 226 O-Ring |
| Length Range | 10" to 40" (custom lengths available) |
| Outer Diameter | 2.5" or 4.5" (custom upon request) |
Benefits for Your Business
- Enhanced Product Quality: Achieve cleaner filtrate with 0.45 micron retention, meeting stringent industry standards for pharmaceuticals, food & beverage, and electronics.
- Reduced Downtime: High dirt-holding capacity (up to 600 grams per 10-inch cartridge) extends change-out intervals, lowering maintenance costs.
- Versatile Compatibility: Works with water, solvents, acids, alkalis, and oils – ideal for chemical processing, water treatment, and petrochemical applications.
- Energy Savings: Low pressure drop design reduces pump energy consumption by up to 15% compared to conventional filters.
- Customization Flexibility: Tailor length, end caps, and core material to fit your existing housing without modification.
Our factory in Hengshui, Hebei, China, operates with advanced melt-blown production lines and strict quality control. Each cartridge undergoes pressure integrity testing and media uniformity checks. With a 1-year warranty, we stand behind the durability and performance of our product.
Frequently Asked Questions (FAQ)
-
Q: What is the typical lifespan of this cartridge?
A: Lifespan depends on operating conditions and contaminant load. Under normal conditions, a 10-inch cartridge can last 3–6 months. We recommend monitoring differential pressure. -
Q: Can this cartridge be used for steam sterilization?
A: Yes, the glass fiber media can withstand repeated steam sterilization cycles at 250°F (121°C). However, ensure the housing is rated for steam. -
Q: Do you provide samples before bulk order?
A: Absolutely. We offer free samples for evaluation, with the customer covering shipping costs. Contact our sales team for details. -
Q: What is the minimum order quantity (MOQ)?
A: Standard MOQ is 50 pieces per size. For custom specifications, MOQ may vary. Please inquire. -
Q: How do I select the right end cap type?
A: End cap selection depends on your housing. Common options: DOE (Double Open End) for standard housings, SOE (Single Open End) with O-ring for sealed applications. We can advise based on your system. -
Q: Is this cartridge suitable for food-grade applications?
A: Yes, the glass fiber media is FDA-compliant for indirect food contact. We can provide a certificate of compliance upon request. -
Q: What packaging is used for export?
A: Each cartridge is individually sealed in a polyethylene bag, then packed in sturdy corrugated boxes. For large orders, palletized packaging is available to prevent damage. -
Q: Can you customize the filtration rating to other microns?
A: Yes, we offer custom micron ratings from 0.1 to 100 microns. Please specify your requirements.
Why Choose Anping County Boli Hardware Wiremesh Products Factory? Established in 1998, we have grown into a reliable supplier with annual exports exceeding US$5 million. Our products are shipped from major Chinese ports to over 10 global markets, including North America, Europe, and Southeast Asia. We prioritize quality control, on-time delivery, and customer satisfaction. With a 1-year warranty and responsive after-sales support, you can confidently integrate our filter cartridges into your operations. Contact us today for a quote or to request a sample. Let us help you achieve superior filtration performance.
