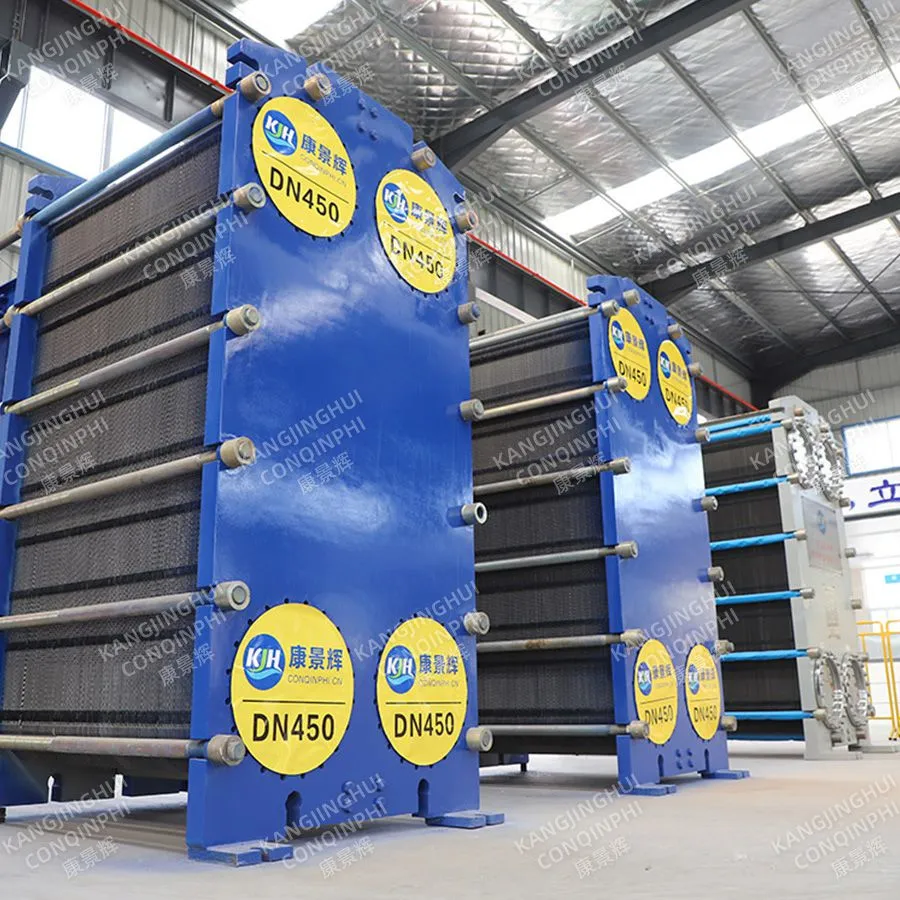

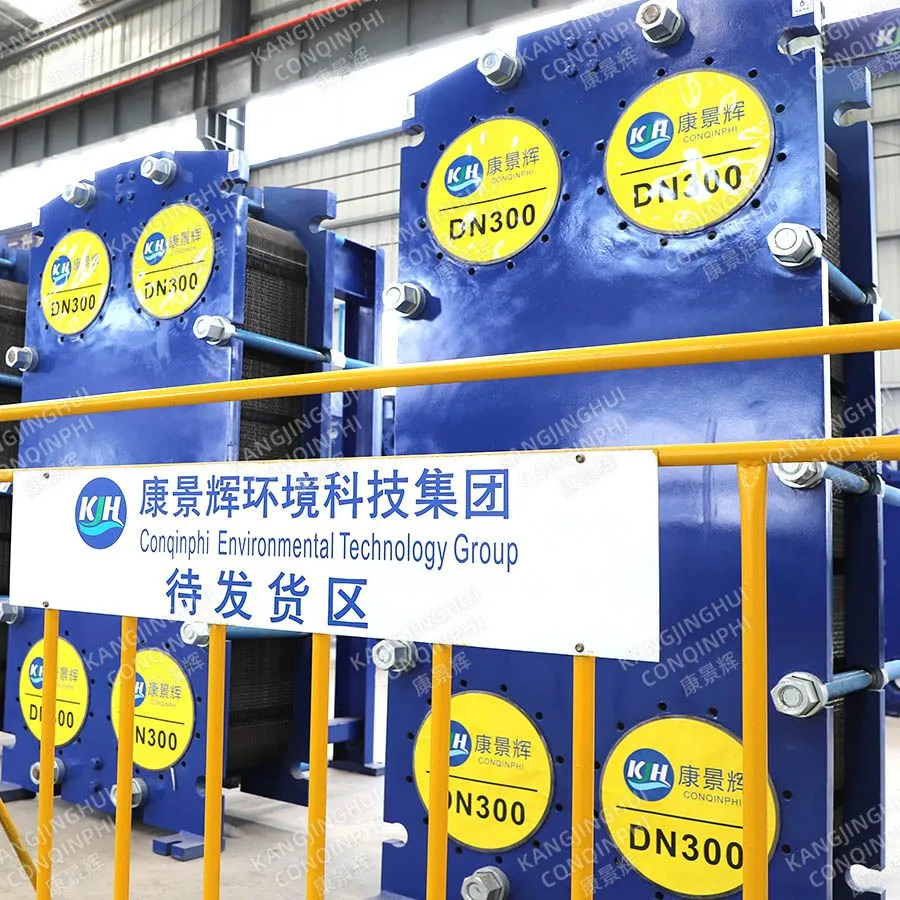

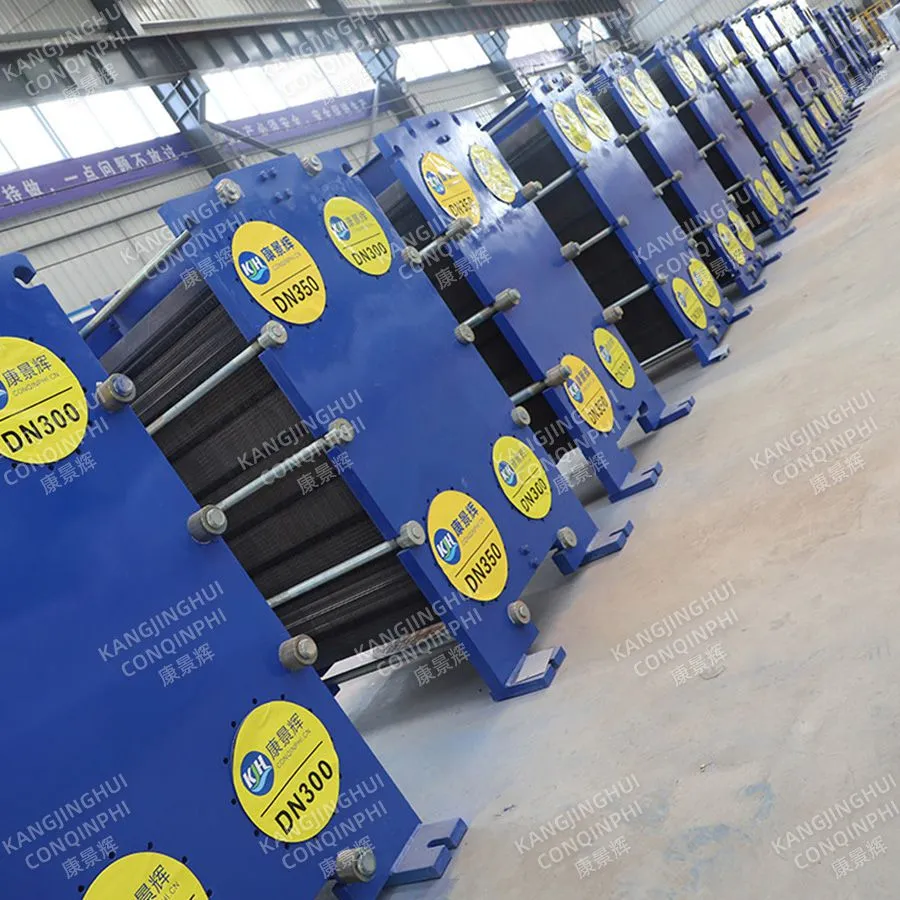

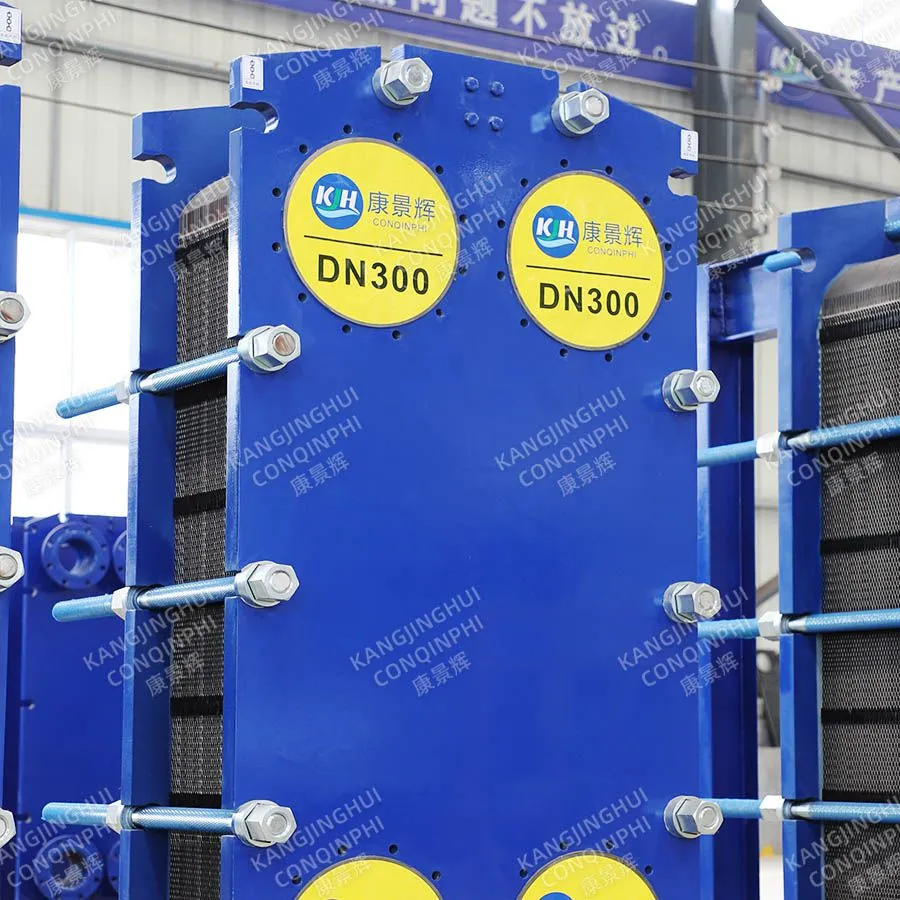

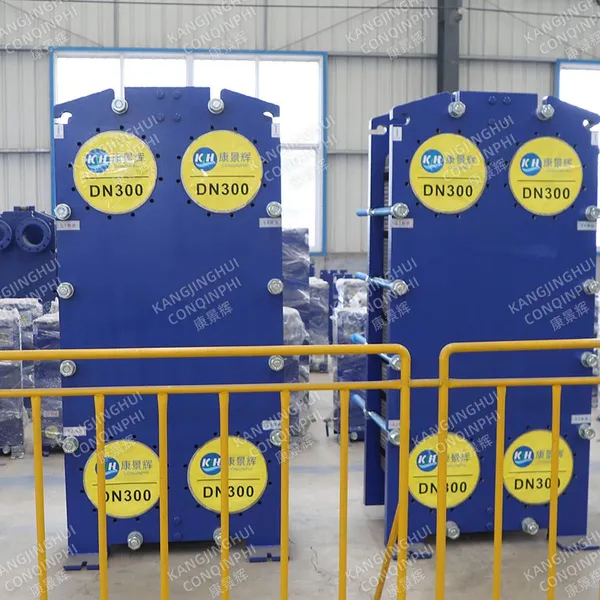

At Qingdao Conqinphi Environmental Technology Group Co., Ltd., we specialize in manufacturing high-performance Steam Plate Heat Exchangers designed specifically for food processing environments where CIP (Clean-in-Place) cleaning is a critical requirement. Our heat exchangers combine robust engineering with sanitary design, ensuring efficient heat transfer while meeting strict hygiene standards. With over 8 years of expertise and a factory spanning 10,000–30,000 square meters, we deliver reliable solutions that help food processors maintain product quality and operational efficiency.
This product is engineered to withstand the rigorous demands of steam heating in food applications, from pasteurization to cooking. The CIP compatibility means no disassembly is needed for cleaning, reducing downtime and labor costs. Our heat exchangers are built with high-grade stainless steel and advanced gasket materials, offering excellent corrosion resistance and long service life. Whether you need to heat juice, dairy, sauces, or other liquid foods, our steam plate heat exchanger provides consistent performance and easy maintenance.
Key Features
- CIP Compatible Design: Smooth internal surfaces and no dead zones allow thorough cleaning without disassembly, meeting sanitary standards.
- High Thermal Efficiency: Herringbone plate pattern creates turbulent flow, maximizing heat transfer coefficient and reducing energy consumption.
- Robust Construction: Made from AISI 304 or 316L stainless steel for plates and frames, with gaskets available in EPDM, NBR, or Viton to suit different media.
- Flexible Configuration: Customizable number of plates, frame size, and connection types (tri-clamp, flange, threaded) to fit your process layout.
- Wide Application Range: Suitable for heating, cooling, pasteurization, and sterilization in food, beverage, dairy, and pharmaceutical industries.
- Easy Maintenance: Modular design allows quick plate replacement or expansion without replacing the entire unit.
- Compliance with Standards: Manufactured under HACCP and ISO9001 certified processes, ensuring consistent quality and traceability.
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Max Working Pressure | 1.0 MPa (10 bar) / 1.6 MPa (16 bar) optional | Higher pressure ratings available on request |
| Max Working Temperature | 200°C (392°F) | Limited by gasket material |
| Plate Material | AISI 304 / 316L | Other alloys upon request |
| Gasket Material | EPDM (standard), NBR, Viton | Select based on media compatibility |
| Connections | Tri-clamp (sanitary), Flange, Threaded | Customizable |
| Plate Thickness | 0.4 mm – 0.8 mm | Depends on pressure rating |
| Flow Capacity | Up to 500 m³/h (customizable) | Varies with plate count and size |
| Heat Transfer Area | 0.5 m² – 500 m² per unit | Modular design allows expansion |
Advantages for Food Processing
- Reduced Contamination Risk: CIP compatibility ensures that all product-contact surfaces are thoroughly cleaned, preventing cross-contamination between batches.
- Energy Savings: The high heat transfer coefficient (up to 6,000 W/m²·K) means less steam consumption and faster heating cycles.
- Compact Footprint: Compared to shell-and-tube exchangers, plate heat exchangers require up to 80% less space, ideal for crowded processing plants.
- Lower Maintenance Costs: Easy access to plates for inspection and replacement; simple gasket replacement without special tools.
- Customizable to Your Process: We work with you to design the exact plate count, port size, and frame length to meet your flow rate and temperature requirements.
Trusted by Global Food Processors
Qingdao Conqinphi Environmental Technology Group Co., Ltd. is a certified manufacturer with HACCP, ISO9001, ISO14000, and other international standards. Since our establishment in 2015, we have exported heat exchangers to over 50 countries across North America, Europe, Southeast Asia, Africa, and Oceania. Our annual export value exceeds US$10 million, and we maintain a dedicated quality control team of 30+ engineers. With a factory size of 20,000 square meters and 250+ skilled employees, we are equipped to handle large-scale orders and custom projects. Every steam plate heat exchanger undergoes rigorous hydrostatic testing and pressure testing before shipment to ensure zero defects.
Our clients include leading dairy processors, breweries, and juice manufacturers who rely on our equipment for 24/7 operation. We offer a 12-month warranty on all parts and provide technical support for installation and commissioning. Contact us today to discuss your specific application and receive a customized quotation.
Frequently Asked Questions
Q1: What is the difference between a steam plate heat exchanger and a regular plate heat exchanger?
A: Steam plate heat exchangers are designed to handle the high temperature and pressure of steam (often up to 200°C and 1.6 MPa). They typically use thicker plates and specific gasket materials (e.g., Viton or high-temperature EPDM) to withstand thermal stress. Our models are also optimized for CIP cleaning, with smooth surfaces and no crevices.
Q2: Can this heat exchanger be used for both heating and cooling?
A: Yes. The same unit can be used for steam heating on one side and process cooling on the other, provided the temperature and pressure limits are respected. The plate arrangement and gasket selection can be tailored for dual service.
Q3: How do I ensure the heat exchanger is compatible with my CIP system?
A: Our design includes smooth internal surfaces, no dead legs, and all welded or gasketed joints that are accessible for cleaning. The connections are typically tri-clamp for easy integration with CIP skids. We can also provide a certificate of surface finish (Ra ≤ 0.8 μm) upon request.
Q4: What gasket material should I choose for my application?
A: For food-grade steam heating, we recommend EPDM (up to 150°C) or Viton (up to 200°C). If your media contains oils or fats, NBR is a better choice. We will help you select based on your specific product and cleaning chemicals.
Q5: Do you offer custom plate sizes or frame lengths?
A: Absolutely. We can customize the number of plates, port diameters, frame length, and even the plate pattern (chevron angle) to optimize heat transfer and pressure drop for your process. Minimum order quantity may apply for custom dimensions.
Q6: How long does it take to clean the heat exchanger using CIP?
A: Typically a CIP cycle takes 30 minutes to 1 hour, depending on the soil type and flow rate. Because our design minimizes dead zones, cleaning is more efficient than with traditional shell-and-tube exchangers.
Q7: What certifications do your products carry?
A: Our manufacturing facility is certified under ISO9001, ISO14000, HACCP, and several other management systems. Each heat exchanger is tested per our quality procedures. We can also supply a material certificate (EN 10204 3.1) and pressure test certificate.
Q8: Can I get a sample for testing before placing a bulk order?
A: Yes, we offer sample units for evaluation. The sample cost is negotiable, and we can provide a full refund if the sample is returned within 30 days. Contact our sales team to discuss terms.
