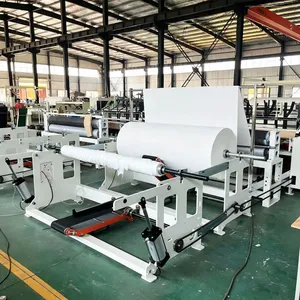

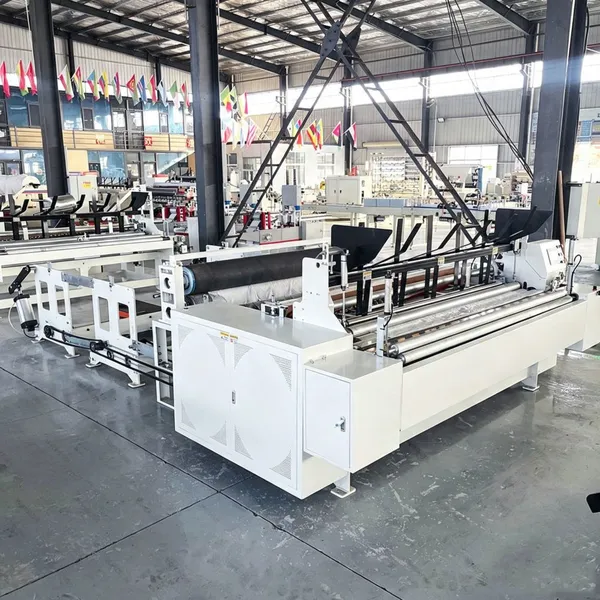

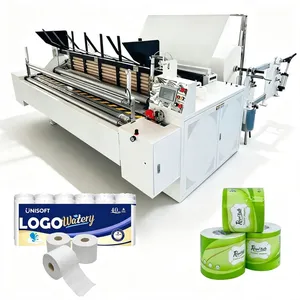

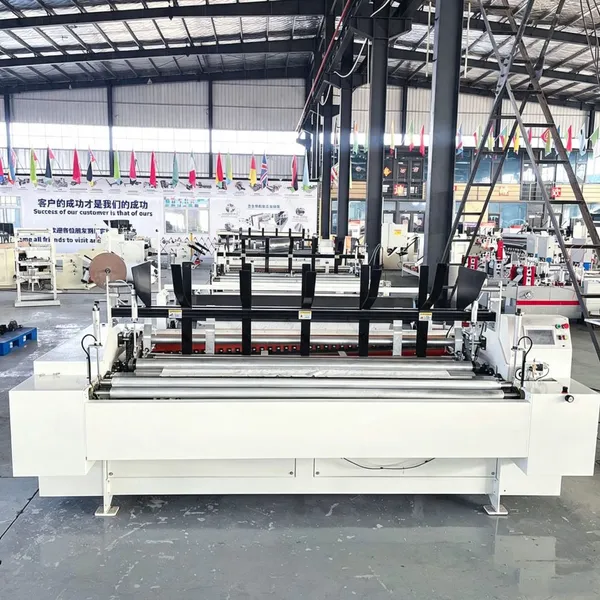

Help CenterAutomatic Toilet Paper Roll Machine Tissue Paper Machine Toilet Tissue Paper Making Cutting Packing Machine for Sale
Product Spotlights

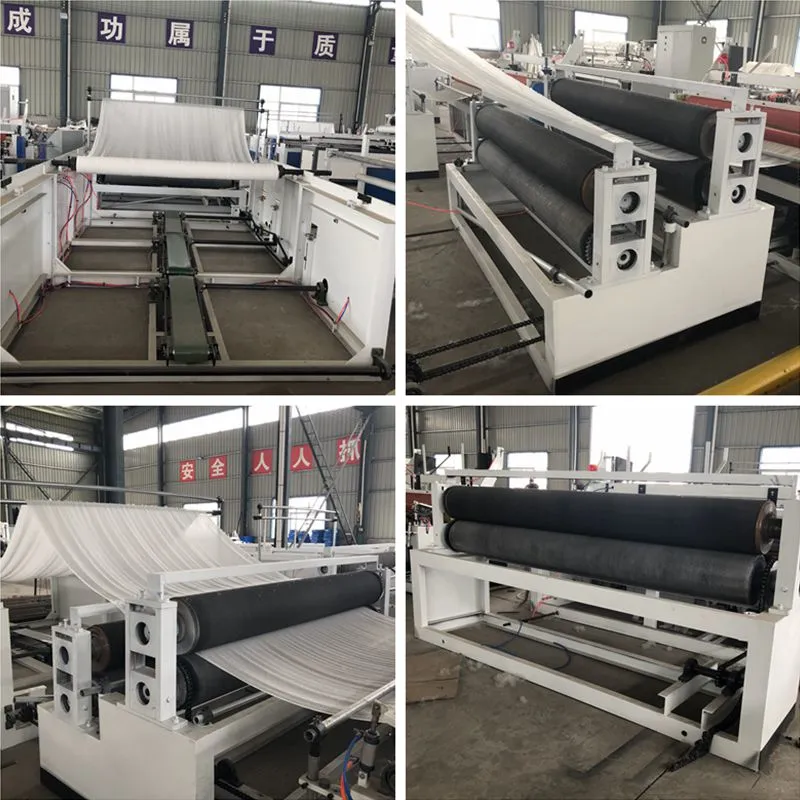

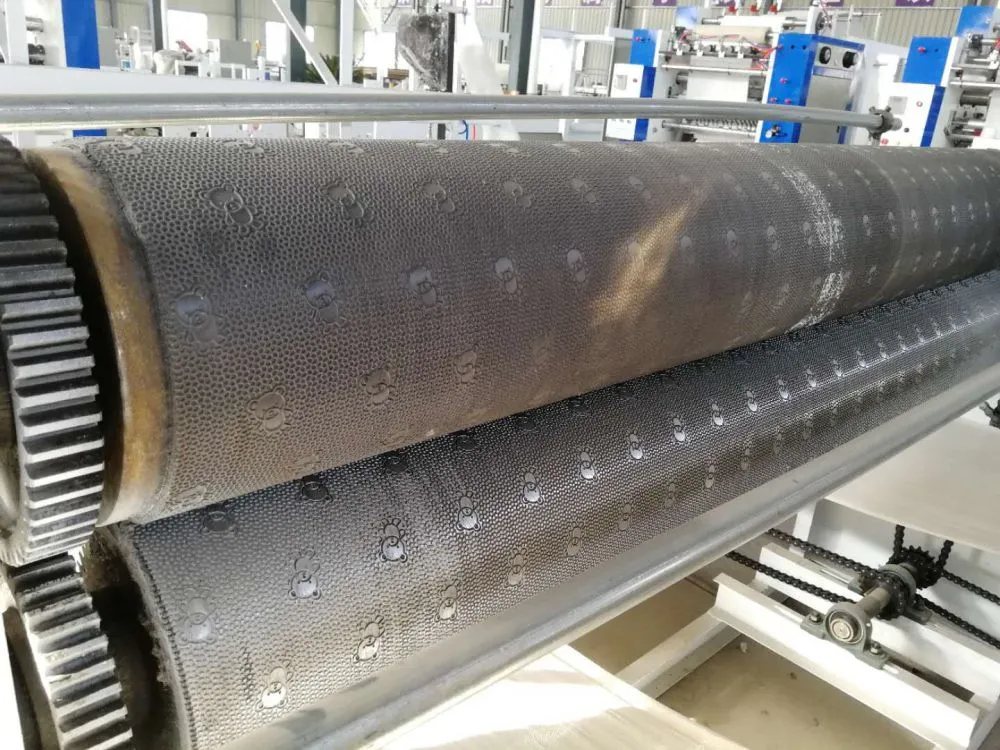

Embossing Machine: The embossing feature enhances the texture and quality of the produced toilet paper, adding value to the final product.
Related Products
-
Full Automatic Toilet Paper Making Machine Toilet Paper Tissue Machine EquipmentNegotiableMOQ: 1 Piece -
Toilet Paper Progressing Machine Roller Paper Slitting and Rewinding for Toilet Paper Making MachineNegotiableMOQ: 1 Piece
-
Jumbo Roll Toilet Paper Toilet Tissue Paper Rewinding Machine Automatic Toilet Roll Machine Toilet Tissue Production LineNegotiableMOQ: 1 Piece
-
Automatic Paper Making Production Machinery Soft Tissue Jumbo Roll Facial Napkin Tissue Paper Making Process LineNegotiableMOQ: 1 Piece
-
Good Price Jumbo Roll Toilet Paper Making Machine Toilet Paper Roll Make Machine Semi Automatic Manufacturing Production LineNegotiableMOQ: 1 Piece
Item |

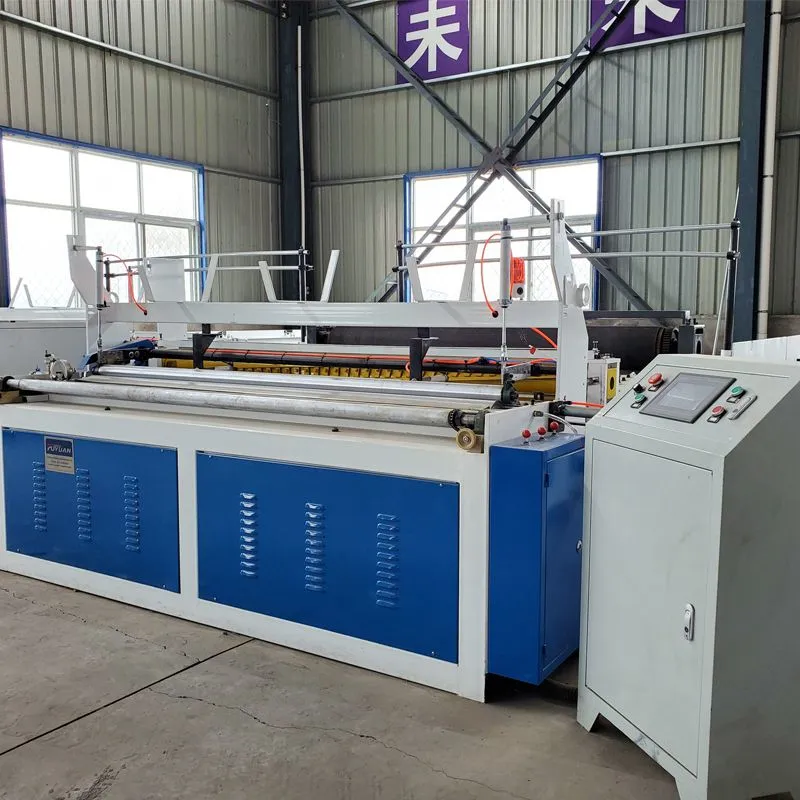

Toilet Paper Making Rewinding Machine |
Model Number |
VR1800 |
Paper Width |
2200mm |
Finished Diameter |
50-2200mm adjutable width |
Base Diameter |
1100mm(Other size are available) |
Jumbo Roll Core Diameter |
Standard 76mm |
Process Capability |
150~280m/min |
Back Stand |
Standard three layersynchronous transmission |
Parameter Setting |
PLC computer operating system interface |
Perforation Pitch |

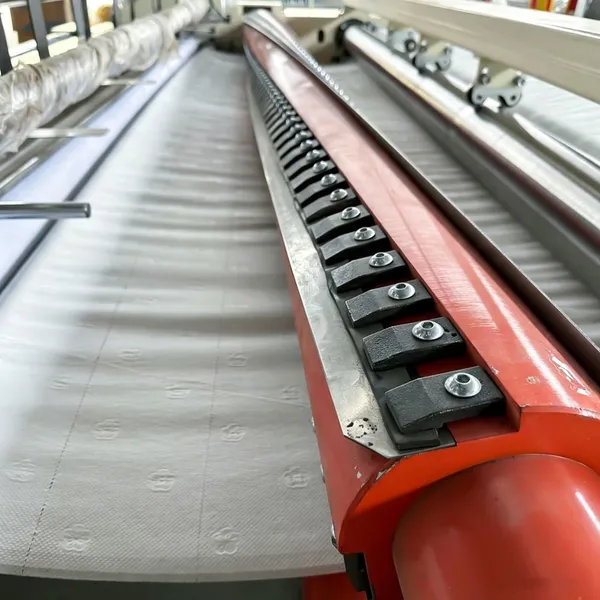

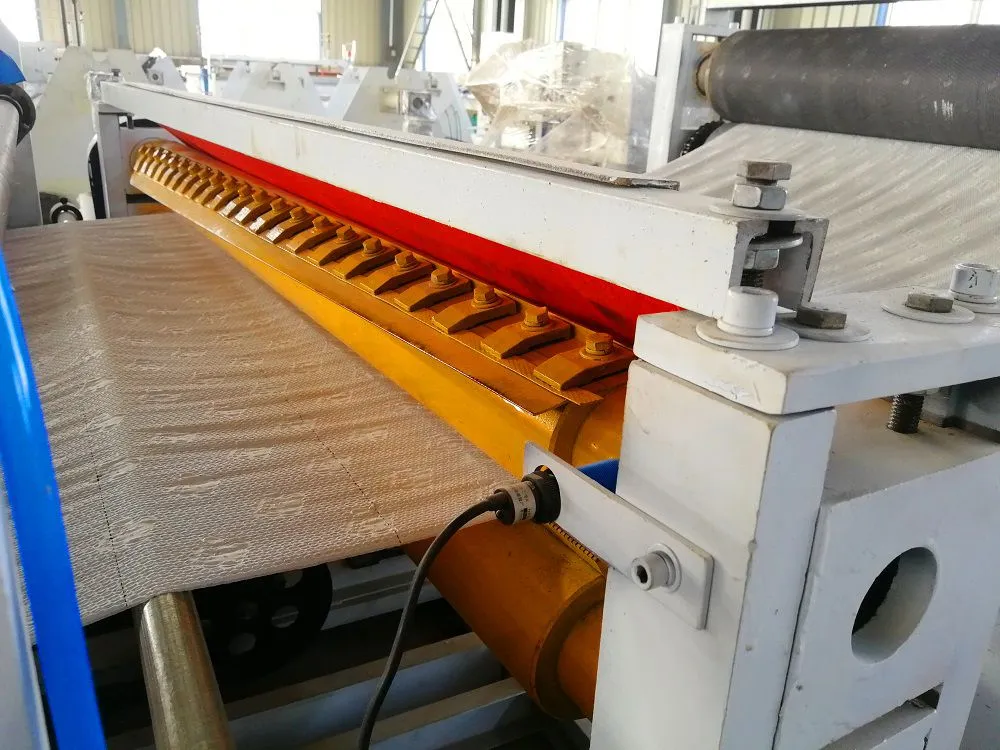

2: 150~300mm 3: 80~220mm |
Paper Rack |
2 layer or 3 layer |
Maxi Roll cutting |
Yes |
Pneumatic System |
The 3 horse air compressor,a minimum pressure of 5kg/cm2Pa |
Power |
4.5KW |
Weight |
3500kg |
Dimension |
4.5*2.8*1.7mm |
Main parameters:
1, PLC used in automatic rewinding, automatic delivery of finished products, immediately reset rewinding, automatic trimming,spray glue, sealing synchronization once completed. Instead of the traditional waterline trimming, to achieve a new trimming sticky tail technology, finished products left 10mm-20mm tail, easy to use. To achieve a loss of paper tail, thereby reducing costs.
2, PLC used in the finished product in the rewinding process before the first loose, to solve the finished product for a long time storage, loose core phenomenon.
3, the application of the original paper monitoring system, broken paper automatically shut down. In the high-speed operation of the process, real-time monitoring of the base paper to reduce the loss caused by broken paper to ensure the normal operation of high-speed equipment.
