Help CenterFull Automatic Small Toilet Paper Making Machine Toilet Paper Roll Making Machine Production Line Factory Price
Product Spotlights
Production Capacity 200 m/min: With a production capacity of 200 meters per minute, the machine can handle high-volume production, meeting the demands of large-scale manufacturing plants.
Related Products
-
Fully Automated New Small Size Toilet Paper Making Machine ChinaNegotiableMOQ: 1 Piece -
Automatic PLC Controller Toilet Paper Making Machine Toilet Paper Roll Making Machine Production Line Factory PriceNegotiableMOQ: 1 Piece
-
Low Cost Automatic Toilet Paper Roll Production Line Toilet Paper Rewinding Machine Tissue ManufactureNegotiableMOQ: 1 Piece
-
Hotel Toilet Paper Manufacturing Machine Jumbo Roll Toilet Paper Kitchen Towel Roll Paper Product Making MachineryNegotiableMOQ: 1 Piece
-
Customized Embossed Toilet Paper Rewinding Machine Jumbo Roll Toilet Paper Machine Production LineNegotiableMOQ: 1 Piece

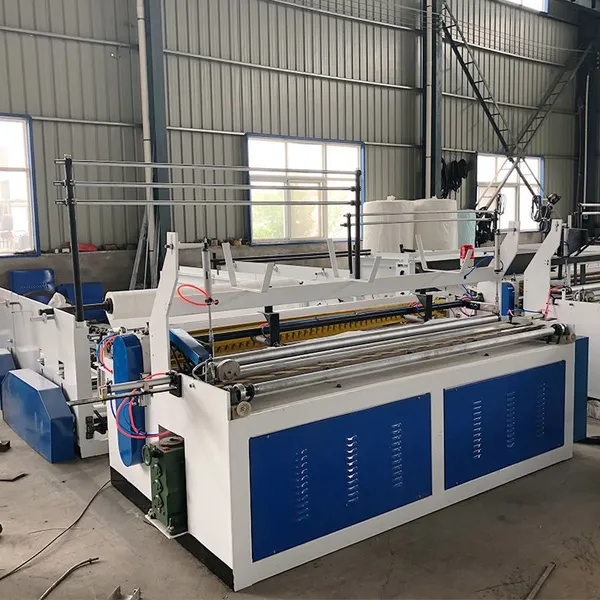

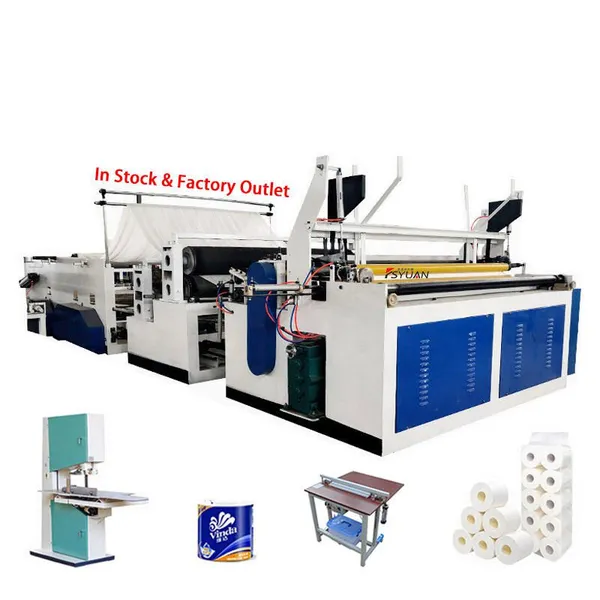

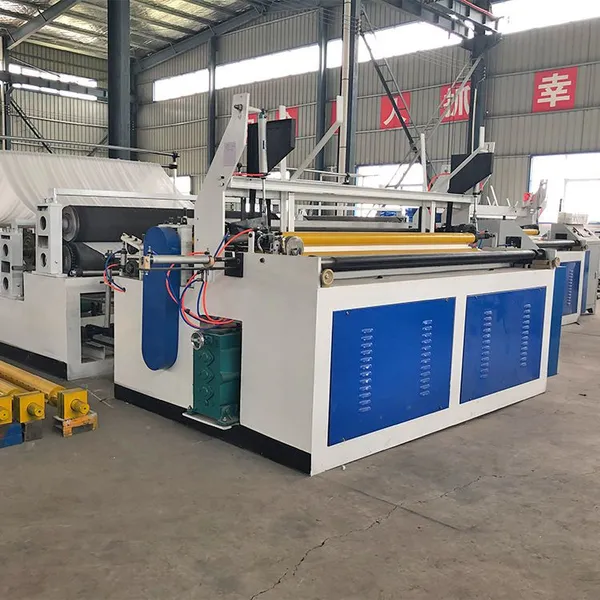

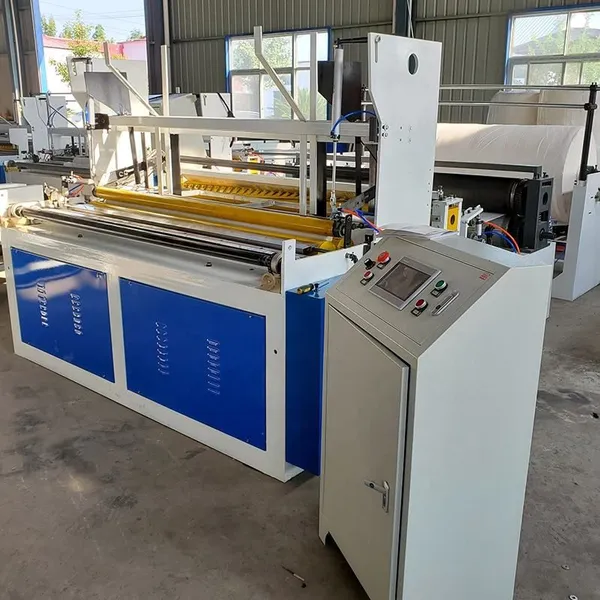

Full Automatic Kitchen Towel Machine Toilet Paper Roll Making Machine Toilet Paper Slitting Rewinding MachineThe toilet paper rewinding machine is through rewinding the jumbo roll, and then become jumbo paper rolls into two-layer or three-layer small toilet paper roll.Toilet paper roll rewinding processing machine, have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products.
Product name |
Automatic Toilet Paper Rewinding Machine |
Machine model |
VL-1575/1880/2100/2400/2800/3000 |
Base paper roll diameter |
1200mm (Please specify) |
Jumbo roll core diameter |
76mm (Please specify) |
Punch |
2-4 knife,spiral cutter line |
Control syetem |
PLC control,variable frequency speed control,touch screen operation |
Product range |
core paper, non core paper |
Drop tube |
manual and automatic (optional) |
Working speed |
150-280 m/min |
Power |
220V/380V 50HZ |
Embossing |
Single embossing,double embossing |
Finished product launch |
Automatic |
Performance Characteristics
1. Using PLC computer to program the finished paper in the rewinding process to achieve the tightness and looseness of the different tightness to solve the looseness of the finished product due to long-term storage.
2. Full-automatic rewinding machine can choose double-sided embossing, gluing compound, which can make paper more soft than single-sided embossing, the effect of double-sided finished products is consistent, and each layer of paper does not spread when used, especially suitable for processing.
3. The machine is equipped with processing unintentional, solid, paper tube toilet paper, which can instantly switch between products, and can also be selected according to user needs.
4. Automatic trimming, glue spraying, sealing, and shafting are completed synchronously, so that there is no paper loss when the roll paper is cut into the band saw and packaged, which greatly improves the production efficiency and the grade of the finished product. Easy to enable.
5. Pneumatic belt feeding, double reel and each axis of the original paper have independent tension adjustment mechanism.
