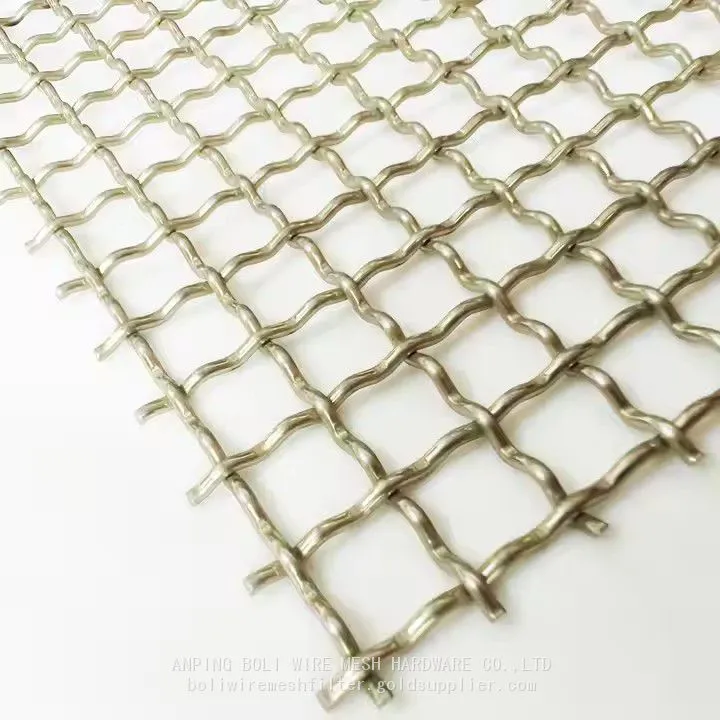

AISI 316 Stainless Crimp Mesh With Mill Test Report, 1 Year Warranty, Technical Support
Product Spotlights
AISI 316 stainless steel provides superior corrosion resistance; includes Mill Test Report for material traceability; 1-year warranty and technical support from a manufacturer with 25+ years of experience; customizable dimensions and fast shipment from major Chinese ports.
US$ 1.20
≥1000 Square Meters
Key Specifications
Get Latest Price
Material:
Other, AISI 316 Stainless Steel
Wire Diameter:
Other, 0.5mm - 6.0mm (Customizable)
Warranty:
1 Year
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN/QINGDAO/SHANGHAI
Delivery Detail:
3 days
Related Products
-
Crimped Mesh Screen AISI 316, 0.5mm Wire, 1mm Opening, 2000mm Width RollUS$ 1.20MOQ: 1000 Square Meters -
AISI 316 Stainless Crimp Mesh for Water Treatment Filtration, Corrosion ResistantUS$ 1.20MOQ: 1000 Square Meters
-
Heavy Duty Crimped Mesh AISI 316, 5mm Wire, 40mm Opening, 2.5m x 2.5m SheetsUS$ 1.20MOQ: 1000 Square Meters
-
AISI 316 Stainless Crimp Mesh, 3mm Wire, 15mm Opening, 1200mm x 3000mm PanelUS$ 1.20MOQ: 1000 Square Meters
-
Precise AISI 316 Crimp Mesh Screen, 1.0mm Wire, 4mm Opening, Interlocked WovenUS$ 1.20MOQ: 1000 Square Meters
Material
Other, AISI 316 Stainless Steel
Wire Diameter
Other, 0.5mm - 6.0mm (Customizable)
Warranty
1 Year
Weave Type
Crimp / Crimped Wire Mesh
Surface Treatment
Mill Finish / Pickling Optional
Mesh Opening
1mm - 100mm (Customizable)
Width
0.6m - 2.5m (Customizable)
Length
10m - 30m (Customizable)
Included Document
Mill Test Report
Technical Support
Available
Anping County Boli Hardware Wiremesh Products Factory, established in 1998, is a professional manufacturer specializing in wire mesh products. Our AISI 316 Stainless Crimp Mesh is crafted from high-quality AISI 316 stainless steel, offering superior corrosion resistance and durability in harsh environments. Every roll comes with a Mill Test Report to guarantee material traceability and quality compliance, backed by a 1-year warranty and dedicated technical support. With over 20 years of export experience, we serve global markets including North America, Europe, and Southeast Asia, ensuring reliable supply and consistent quality.
Key Features & Technical Specifications
- Superior Material: AISI 316 stainless steel contains molybdenum, providing excellent resistance to chlorides, acids, and saltwater – ideal for marine, chemical, and food processing applications.
- Precision Crimp Design: Each wire is accurately crimped before weaving, ensuring uniform mesh opening, high structural strength, and minimal deformation under load.
- Mill Test Report Included: Every batch is tested for chemical composition and mechanical properties. The report is provided upon shipment, ensuring full traceability.
- 1-Year Warranty: We stand behind our product. If any manufacturing defect is found within one year, we offer free replacement or repair.
- Technical Support: Our experienced engineers provide guidance on mesh selection, installation, and maintenance to ensure your project success.
- Customizable Dimensions: Wire diameter, mesh opening, width, and length can be tailored to your specific requirements.
Typical Applications
| Industry | Application |
|---|---|
| Marine & Offshore | Fencing, walkways, gratings, anti-slip surfaces |
| Chemical Processing | Sieving, filtering, separation of corrosive media |
| Food & Beverage | Conveyor belts, strainers, washing baskets |
| Architecture & Construction | Decorative facades, safety barriers, reinforcement |
| Mining & Quarrying | Screening, scalping, aggregate sizing |
Available Specifications (Standard Range)
| Parameter | Value |
|---|---|
| Wire Diameter | 0.5 mm – 6.0 mm |
| Mesh Opening | 1 mm – 100 mm |
| Width | 0.6 m – 2.5 m |
| Length | 10 m – 30 m (or as per request) |
| Surface Finish | Mill finish, pickling, or passivation optional |
Why choose our AISI 316 Stainless Crimp Mesh? The combination of premium material, precision crimping, and stringent quality control ensures long service life even in aggressive environments. Each roll is carefully packed to prevent damage during transit. Our factory has shipped over 2,000 tons of wire mesh globally, and our annual export value exceeds US$5 million. We are a reliable partner for distributors, contractors, and OEM projects.
Frequently Asked Questions
-
Q: What is the difference between AISI 304 and AISI 316 for crimp mesh?
A: AISI 316 contains molybdenum, offering better resistance to chlorides, saltwater, and acidic environments. If your application involves coastal or chemical exposure, 316 is recommended. -
Q: Do you provide the Mill Test Report for every batch?
A: Yes, a Mill Test Report is included with each shipment, showing the chemical composition and mechanical properties of the stainless steel used. -
Q: Can I customize the mesh size and wire diameter?
A: Absolutely. We offer custom dimensions. Please provide your required mesh opening and wire diameter, and we will produce accordingly. -
Q: What is the lead time for an order?
A: For standard sizes, lead time is typically 15–20 working days. Custom orders may require 25–30 working days, depending on quantity. -
Q: How is the mesh packed for shipping?
A: We pack rolls in strong woven bags or wooden crates, with inner moisture-proof paper to ensure safe arrival. -
Q: Do you offer free samples?
A: Yes, we can provide small samples (e.g., A4 size) for quality evaluation. The sample is free, but the customer pays for shipping. -
Q: What kind of technical support can I expect?
A: Our engineers can help you select the correct mesh specification, provide installation guidance, and answer any technical questions before and after purchase.
Trust Anping County Boli Hardware Wiremesh Products Factory – with 25+ years of manufacturing experience, a dedicated R&D team, and strong export presence. We are committed to delivering high-quality products and excellent service. Contact us today for a quote or to discuss your specific requirements. Your satisfaction is our priority.
