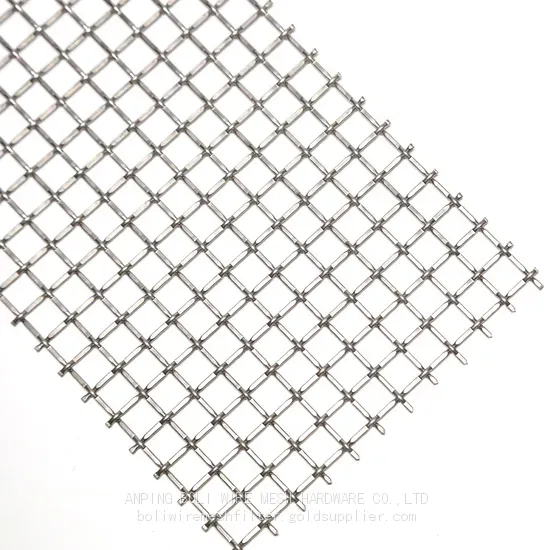

Precise AISI 316 Crimp Mesh Screen, 1.0mm Wire, 4mm Opening, Interlocked Woven
Product Spotlights
AISI 316 stainless steel interlocked crimp mesh with 1.0mm wire and 4mm opening offers superior corrosion resistance, stable structure, and high open area. Ideal for heavy-duty screening, filtration, and architectural applications. Customizable dimensions, backed by 25+ years of manufacturing excellence.
US$ 1.20
≥1000 Square Meters
Key Specifications
Get Latest Price
Material:
Other, AISI 316 Stainless Steel
Wire Diameter:
Other, 1.0 mm
Application:
Other, Filtration
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN/QINGDAO/SHANGHAI
Delivery Detail:
3 days
Related Products
-
AISI 316 Stainless Steel Crimped Mesh, 2mm Wire Diameter, 10mm Opening, Plain WeaveUS$ 1.20MOQ: 1000 Square Meters -
Crimped Mesh Screen AISI 316, Free Sample Available, Custom Sizes, Quality GuaranteedUS$ 1.20MOQ: 1000 Square Meters
-
Crimped Mesh Screen AISI 316 Used in Mining Sieving, High Wear ResistanceUS$ 1.20MOQ: 1000 Square Meters
-
Durable AISI 316 Crimped Wire Mesh, 4mm Wire, 25mm Opening, 1.5m x 30m RollUS$ 1.20MOQ: 1000 Square Meters
-
316L Crimped Mesh Screen 0.8mm Wire 1.5x1.5mm Opening for FiltrationUS$ 1.20MOQ: 1000 Square Meters
Material
Other, AISI 316 Stainless Steel
Wire Diameter
Other, 1.0 mm
Application
Other, Filtration
Opening Size
4 mm × 4 mm
Weave Type
Interlocked Crimp
Mesh Count
Approx. 5 mesh per inch (based on opening + wire)
Surface Treatment
Mill finish, optional pickling or passivation
Width
Customizable (standard up to 2m)
Length
Customizable (roll or sheet form)
Welcome to Anping County Boli Hardware Wiremesh Products Factory – a trusted manufacturer since 1998 with annual export value exceeding US$5 million. Our Precise AISI 316 Crimp Mesh Screen (1.0mm wire, 4mm opening, interlocked woven) is engineered for demanding environments where corrosion resistance, precise filtration, and structural integrity are non-negotiable. This mesh is ideal for industries ranging from chemical processing to food production, offering a perfect balance of strength and open area. Backed by decades of experience and a global customer base spanning North America, Europe, Asia, and Oceania, we deliver consistent quality from our factory in Hengshui, Hebei.
The interlocked crimp weave ensures that each wire is securely locked at every intersection, preventing shifting and maintaining a uniform opening size even under heavy loads. Below we break down the key specifications and advantages.
Key Specifications
| Parameter | Value |
|---|---|
| Material | AISI 316 Stainless Steel (with 2-3% molybdenum for enhanced pitting resistance) |
| Wire Diameter | 1.0 mm (±0.02 mm tolerance) |
| Opening Size (Square) | 4.0 mm × 4.0 mm |
| Open Area | Approx. 64% (ensures high flow rate) |
| Weave Type | Interlocked Crimp (also known as double crimp) |
| Standard Width | 1 m, 1.2 m, 1.5 m (custom widths available) |
| Roll Length | 30 m (standard), can be cut to sheets |
Product Features & Benefits
- Superior Corrosion Resistance: AISI 316 contains molybdenum, making it highly resistant to chlorides, acids, and saltwater – ideal for marine, chemical, and food processing applications.
- Interlocked Weave Stability: Each wire is crimped and locked at cross points, preventing distortion under tension or impact. This ensures consistent opening size over long service life.
- Precise Opening Control: With 1.0mm wire and 4mm opening, the mesh provides a clear separation size of approximately 4mm, suitable for coarse filtration, dewatering, or material sizing.
- High Flow Efficiency: About 64% open area allows liquids or gases to pass through quickly while retaining solids above 4mm.
- Easy to Fabricate: Can be cut, bent, welded, or formed into panels, baskets, or cylinders. Custom edge treatments (e.g., folded edges, welded borders) are available.
- Temperature Resistance: AISI 316 maintains strength up to 870°C in continuous service, making it suitable for hot gas filtration or furnace screens.
- Cleanable & Reusable: Due to the smooth surface and robust construction, the mesh can be cleaned by backwashing, brushing, or ultrasonic methods, extending replacement cycles.
Common Applications
- Chemical & Petrochemical: Catalyst support, tower packing retention, liquid filtration (e.g., sulfuric acid, caustic soda).
- Food & Beverage: Juice pulp separation, beer brewing grain screen, nut and seed sizing.
- Mining & Aggregate: Vibrating screen deck for stone, sand, and gravel classification (4mm size).
- Architecture: Decorative façade panels, security fencing, animal enclosures.
- Water Treatment: Intake screens, strainer baskets, filter support grids.
- Marine: Boat exhaust screens, bilge pump filters, fish farm cages.
Why Choose Anping County Boli Hardware Wiremesh?
With over 25 years of specialization in wire mesh manufacturing, we understand the importance of consistent quality. Our production line features advanced crimping and weaving machines, and every batch undergoes strict inspection for opening size, wire tension, and material composition. We export to more than 15 countries and regions, with annual export turnover between US$5 million and US$10 million. Our main ports are Tianjin, Qingdao, Shanghai, and Foshan, ensuring timely delivery worldwide. Whether you need a standard roll or a custom-cut panel, our team can provide technical support and quick quotations.
We are confident that our Precise AISI 316 Crimp Mesh Screen will meet your most demanding requirements. Contact us today for a quote or sample – we look forward to building a long-term partnership.
Frequently Asked Questions (FAQ)
-
Q: What is the difference between AISI 304 and AISI 316 for this mesh?
A: AISI 316 contains molybdenum (2-3%) which provides superior resistance to chlorides and acids. For applications in marine, chemical, or food environments with high salt content, 316 is recommended. 304 is suitable for less corrosive environments and is more cost-effective. -
Q: Can I get the mesh in different widths or lengths?
A: Yes, we offer custom widths up to 2 meters and lengths as per your requirement. Standard rolls are 30 meters long, but we can also cut sheets or supply pre-cut panels. -
Q: How is the interlocked weave different from plain weave?
A: In interlocked (double crimp) weave, each wire is crimped at every intersection, creating a locking effect that prevents wires from shifting. This results in a more rigid mesh with consistent opening size, ideal for high-vibration or heavy-duty screening. -
Q: What is the tolerance on the opening size?
A: Our standard tolerance is within ±0.1 mm for the opening. For critical applications, tighter tolerances can be arranged upon request. -
Q: Is the mesh suitable for food contact?
A: Yes, AISI 316 stainless steel is generally recognized as safe for food contact. The mesh can be supplied with a passivated surface to meet hygiene standards. Please confirm specific food safety regulations in your region. -
Q: Do you provide samples before bulk order?
A: Absolutely. We can send small samples (e.g., 200mm × 200mm) for evaluation. Sample cost is usually covered by the customer, but we refund it for large orders. -
Q: What is the typical lead time?
A: For standard sizes and materials, lead time is 10-15 working days. Custom orders may take 20-30 working days depending on quantity and specifications. -
Q: How should I store the mesh to prevent damage?
A: Store in a dry, indoor environment away from corrosive chemicals. If storing outdoors, cover with a waterproof tarp and keep off the ground. The mesh should be handled with care to avoid bending wires.
