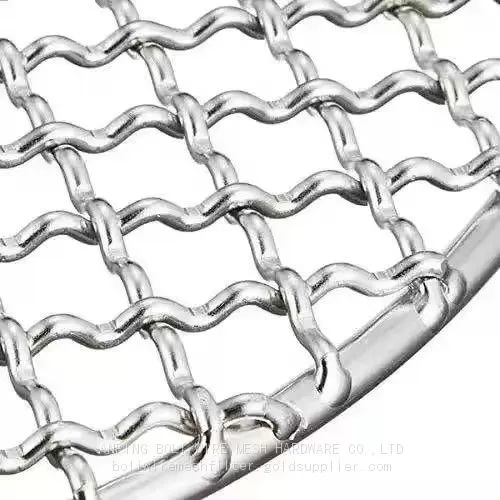

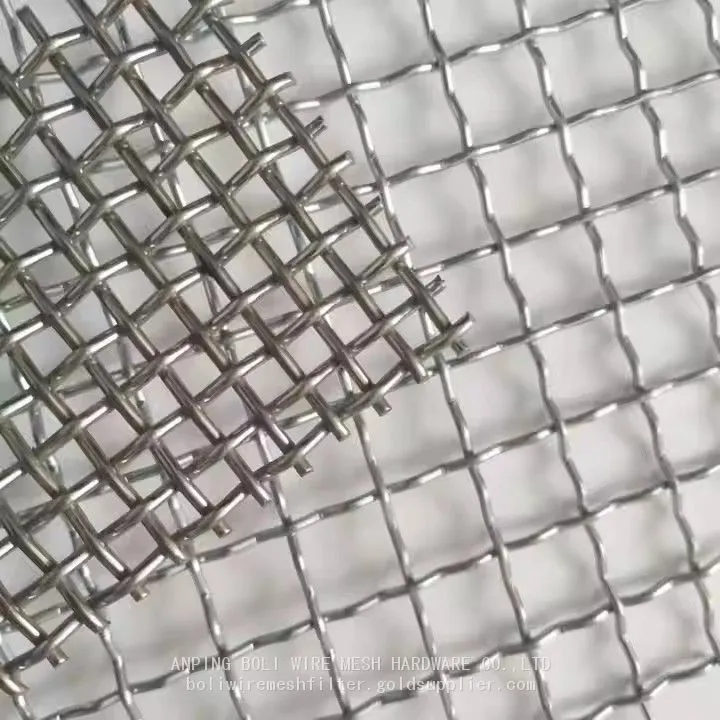

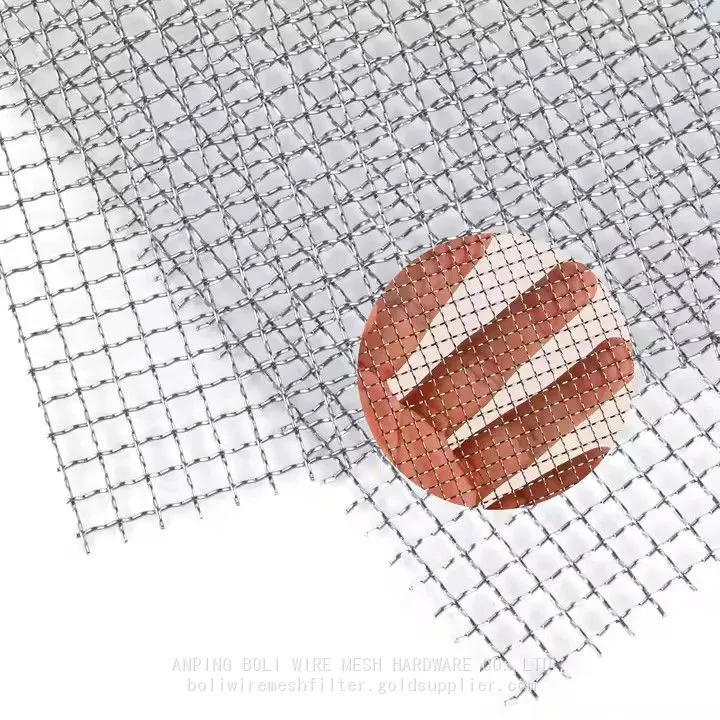

316L Crimped Mesh Screen 0.8mm Wire 1.5x1.5mm Opening for Filtration
Product Spotlights
Precision 316L crimped mesh with 0.8mm wire and 1.5x1.5mm opening, offering excellent corrosion resistance, uniform apertures, and high flow rates. Ideal for chemical, water, and food filtration. Factory-direct from a 25-year manufacturer, customizable sizes, and fast global shipping.
US$ 1.20
≥1000 Square Meters
Key Specifications
Get Latest Price
Material:
Other, 316L Stainless Steel
Wire Diameter:
Other, 0.8 mm
Application:
Other, Filtration
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN/QINGDAO/SHANGHAI
Delivery Detail:
3 days
Related Products
-
AISI 316 Crimp Wire Netting 2mm Wire 4x4mm Opening Heavy DutyUS$ 1.20MOQ: 1000 Square Meters -
AISI 304 Crimp Wire Netting 1.5mm Wire 3x3mm Opening Industrial GradeUS$ 1.20MOQ: 1000 Square Meters
-
Crimp Wire Netting 304 for Aggregate Screening and Soil SeparationUS$ 1.20MOQ: 1000 Square Meters
-
Crimped Mesh Screen 316 Stainless Steel Factory Direct Supply With Technical SupportUS$ 1.20MOQ: 1000 Square Meters
-
AISI 304 Crimp Wire Netting With Mill Test Report and 1 Year WarrantyUS$ 1.20MOQ: 1000 Square Meters
Material
Other, 316L Stainless Steel
Wire Diameter
Other, 0.8 mm
Application
Other, Filtration
Opening Size
1.5 x 1.5 mm
Weave Type
Crimped
Mesh Shape
Sheet / Roll
Surface Finish
Silver / Mill Finish
Customization
Available upon request
As a leading manufacturer from Anping County Boli Hardware Wiremesh Products Factory, established in 1998, we specialize in producing high-quality 316L Crimped Mesh Screen with 0.8mm wire diameter and 1.5x1.5mm opening, designed specifically for precision filtration. Our decades of experience in wire mesh manufacturing ensure that every roll or sheet meets rigorous standards for durability and performance. This product offers excellent corrosion resistance, high tensile strength, and consistent opening sizes, making it an ideal choice for demanding filtration applications across industries.
Product Features
- Material: 316L stainless steel – superior resistance to chlorides, acids, and high temperatures compared to standard 304.
- Wire Diameter: 0.8 mm – robust yet flexible, providing long service life under mechanical stress.
- Opening Size: 1.5 x 1.5 mm – optimized for fine particle retention while maintaining good flow rates.
- Crimped Weave: The crimped wires lock together, preventing shifting and ensuring stable aperture dimensions.
- Surface Finish: Clean, mill finish – no coatings that could contaminate filtered media.
- Customization: Available in sheets, rolls, or cut-to-size pieces; edge treatments (welded, folded, etc.) upon request.
Technical Specifications
| Parameter | Value |
|---|---|
| Material | 316L Stainless Steel (UNS S31603) |
| Wire Diameter | 0.8 mm (±0.03 mm) |
| Opening Size | 1.5 x 1.5 mm |
| Open Area | Approx. 44% (calculated from opening and wire diameter) |
| Mesh Count | Approx. 10.6 x 10.6 per inch |
| Tensile Strength | ≥ 500 MPa (typical) |
| Operating Temperature | Up to 400°C (in air) |
| Standard Width | 1 m, 1.2 m, 1.5 m (custom widths available) |
Applications
- Chemical and petrochemical filtration – removal of solid particles from corrosive fluids.
- Water and wastewater treatment – screening of debris and sediment.
- Food and beverage processing – separation of pulp, seeds, or impurities.
- Pharmaceutical manufacturing – fine filtration of active ingredients.
- Mining and mineral processing – sizing and dewatering.
- Architectural and decorative uses – ventilation panels, safety guards.
Why Choose Our 316L Crimped Mesh Screen?
- Precision manufacturing: Our advanced crimping machines ensure uniform wire spacing and consistent opening sizes.
- Durable material: 316L has lower carbon content, reducing carbide precipitation during welding and enhancing corrosion resistance.
- Cost-effective: Direct factory pricing eliminates middlemen, providing high quality at competitive rates.
- Flexible packaging: Available in rolls (up to 30 m length) or flat sheets, with protective wrapping for export.
- Fast turnaround: We maintain large inventory of standard specifications; custom orders are dispatched within 15–20 days.
Trust & Credibility
Anping County Boli Hardware Wiremesh Products Factory has been a trusted name in wire mesh since 1998. With an annual export value between US$5 million and US$10 million, our products reach markets across North America, South America, Europe, Southeast Asia, Africa, and Oceania. We ship from major ports including Tianjin, Qingdao, Shanghai, and Foshan, ensuring efficient logistics worldwide. Our team is dedicated to quality control – every batch is inspected for wire diameter, opening tolerance, and surface finish before shipment. We welcome your inquiries and are ready to provide samples, technical drawings, and customized solutions for your filtration needs.
Frequently Asked Questions
-
Q: What is the difference between 316 and 316L stainless steel?
A: 316L has a lower carbon content (max 0.03%) compared to 316 (max 0.08%), which reduces the risk of intergranular corrosion after welding. It is preferred for applications requiring high corrosion resistance in chloride environments. -
Q: Can this mesh be used for high-temperature filtration?
A: Yes, 316L can withstand operating temperatures up to approximately 400°C in air. For higher temperatures, please consult us for alternative materials. -
Q: What is the open area percentage?
A: For 0.8 mm wire and 1.5 mm opening, the open area is about 44%. This allows good flow while retaining particles larger than 1.5 mm. -
Q: Do you offer custom sizes or edge finishing?
A: Absolutely. We can cut to your specified dimensions, and provide edge treatments such as welded edges, hemmed edges, or folded edges. Please provide your requirements. -
Q: What is the packaging method for export?
A: Standard packaging includes wooden pallets or crates, with waterproof paper and plastic film to protect against moisture during shipping. Rolls are wound on sturdy cores. -
Q: How long is the delivery time?
A: For standard sizes, we can ship within 5–10 days. Custom orders typically take 15–20 days, depending on quantity and complexity. -
Q: Can I get a sample before placing a bulk order?
A: Yes, we offer free samples (you pay shipping) of up to 200x200 mm. Please contact us with your details. -
Q: Is this mesh suitable for food contact?
A: 316L stainless steel is generally recognized as safe for food contact. However, please verify compliance with local regulations. We recommend using a passivated finish for food applications.
