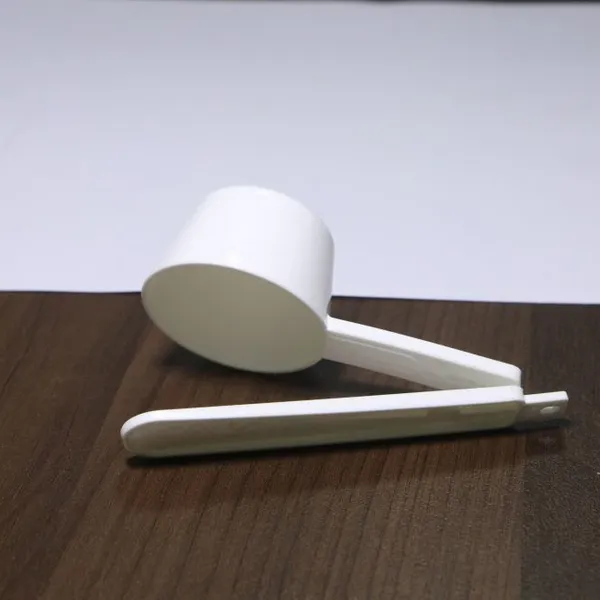

Help CenterPrecision Dosing Scoop Mold Tooling – 1x16 Cavity, DME Base, S136 Cavity Steel, Hot Runner, 500K-1M Cycle Life
Product Spotlights
Related Products
-
High Cavity Injection Mold for Dosing Scoop: 1x32 Layout, H13/S136 Steel, LKM Standard, 220V HeatingNegotiableMOQ: 5000 Pieces -
Custom Plastic Injection Mold for Dosing Scoop – 1x16/1x32 Cavity, S136 Core, Hot Runner System, 0.5-1M ShotsNegotiableMOQ: 5000 Pieces
-
1x32 Cavity Dosing Scoop Mold Tooling Made of H13 Steel, LKM/DME Base, 500K Shots GuaranteeNegotiableMOQ: 5000 Pieces
-
High Cavity Dosing Scoop Mold for Pharmaceutical Dosing Application – 1x16 Layout, H13 Steel, Hot Runner, 500K ShotsNegotiableMOQ: 5000 Pieces
-
Multi-Cavity Plastic Injection Mold for Dosing Scoop: 1x32, H13 Steel, LKM Base, Hot Runner, Moldflow OptimizedNegotiableMOQ: 5000 Pieces
Changzhou Hongxinyutai Precision Mold Co., Ltd., established in 2017, is a specialized manufacturer of high-precision mold tooling for plastic injection molding. With a factory spanning 1,000–3,000 square meters and a dedicated team of 51–100 employees, we deliver reliable, long-lasting mold solutions to global markets. Our Precision Dosing Scoop Mold Tooling – 1x16 Cavity, DME Base, S136 Cavity Steel, Hot Runner, 500K-1M Cycle Life is engineered to produce consistent, high-quality dosing scoops with exceptional efficiency. This mold combines advanced hot runner technology with premium S136 cavity steel, ensuring minimal maintenance and maximized productivity for your production line.
This tooling is designed for high-volume applications where precision and repeatability are critical. The 1x16 cavity configuration allows you to produce 16 dosing scoops per cycle, significantly boosting output while maintaining tight tolerances. The DME base ensures compatibility with standard injection molding machines, simplifying installation and reducing downtime. Whether you are manufacturing scoops for food packaging, pharmaceutical dosing, or chemical handling, this mold delivers consistent cavity-to-cavity filling and smooth ejection.
Key Features and Technical Specifications
- 1x16 Cavity Layout: Optimized for high-throughput production of small to medium-sized dosing scoops. Each cavity is precisely machined to ensure uniform wall thickness and dimensional accuracy.
- DME Standard Mold Base: Fully compatible with industry-standard DME clamping plates and ejector systems, enabling quick setup on most injection molding machines.
- S136 Cavity Steel: Premium stainless steel (AISI 420 modified) offers excellent corrosion resistance, high hardness (48–52 HRC), and superior polishability. Ideal for food-grade and medical applications.
- Hot Runner System: Provides precise temperature control, reduced cycle time, and no cold runner waste. Designed for balanced melt flow to all 16 cavities, minimizing part weight variation.
- Long Cycle Life: Rated for 500,000 to 1,000,000 cycles under normal operating conditions. The robust construction and wear-resistant materials ensure extended service life with minimal maintenance.
- Precision Cooling Channels: Strategically placed cooling circuits reduce cycle time and improve part consistency. Optional conformal cooling available for complex geometries.
- Interchangeable Components: Cavity inserts, core pins, and hot runner nozzles are designed for easy replacement, reducing downtime and mold repair costs.
| Parameter | Specification |
|---|---|
| Mold Base Size | Customizable (standard DME sizes available) |
| Cavity Steel Hardness | 48–52 HRC |
| Hot Runner Type | Valve gate or open gate (optional) |
| Max Injection Pressure | Up to 2000 bar |
| Cycle Time Estimation | 8–12 seconds (depending on material and part geometry) |
| Material Compatibility | PP, PE, PS, ABS, PA, PC, and other thermoplastics |
The hot runner system is a standout feature of this mold. By eliminating the need for a cold runner, you reduce material waste and shorten cycle times. The balanced manifold design ensures that all 16 cavities fill at the same rate, resulting in identical part weights and dimensions. This is especially important for dosing scoops, where even a small variation can affect product accuracy. Additionally, the S136 cavity steel provides a mirror-like surface finish, which is easy to clean and prevents residue buildup – critical for food and pharmaceutical applications.
Our mold tooling is built for reliability and ease of maintenance. The DME base allows for quick interchangeability with other molds, reducing setup time. Stainless steel cavity inserts resist corrosion from plastic fumes and cooling water, extending the life of the mold. We also offer optional wear-resistant coatings (e.g., TiN, DLC) to further enhance durability for abrasive materials.
Trust and Expertise
At Changzhou Hongxinyutai Precision Mold Co., Ltd., we have been delivering precision mold solutions since 2017. Our factory is equipped with advanced CNC machining centers, EDM machines, and CMM inspection equipment to ensure every mold meets strict dimensional tolerances. We hold TS16969 certification, which reflects our commitment to quality management systems in the automotive and industrial sectors. Our team of experienced mold designers and toolmakers work closely with clients to optimize the mold for specific materials and production volumes.
We have exported to markets across North America, South America, Europe, Asia, Africa, and Oceania. Our main ports of shipment are Jiangsu, Shanghai, and Shenzhen, ensuring efficient logistics to global destinations. Whether you need a standard 1x16 cavity dosing scoop mold or a fully customized solution, we provide detailed design reviews, mold flow analysis, and trial sample support.
Why choose our Precision Dosing Scoop Mold Tooling?
- Proven cycle life of 500K–1M cycles with proper maintenance.
- Hot runner system reduces scrap and improves part consistency.
- S136 stainless steel cavities ensure hygiene and corrosion resistance.
- DME standard base means easy integration with existing machinery.
- Backed by a certified manufacturer with worldwide shipping experience.
Contact us today to discuss your dosing scoop production requirements. We offer competitive pricing, fast lead times, and comprehensive after-sales support. Let us help you achieve higher efficiency and lower total cost of ownership with our precision mold tooling.
