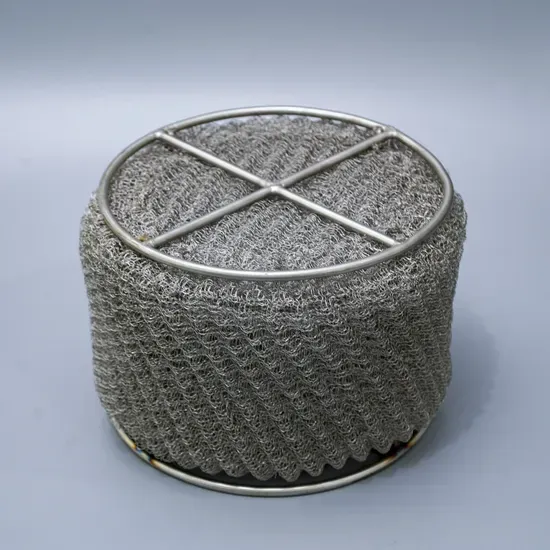

Welcome to Anping County Boli Hardware Wiremesh Products Factory – a trusted manufacturer with over two decades of experience in wire mesh solutions. Since 1998, we have been dedicated to producing high-quality filtration products, exporting to markets across North America, South America, Europe, Asia, Africa, and Oceania. Our 304 Stainless Steel Wire Mesh Demister Mist Eliminator Pad, featuring a 0.1mm wire diameter and 95% porosity, is specifically engineered to efficiently separate liquid droplets from gas streams, ensuring optimal performance in various industrial processes. This product combines precision manufacturing with robust material selection, offering exceptional durability and corrosion resistance.
Whether you need to protect downstream equipment, improve product purity, or reduce emissions, our mist eliminator pad provides a reliable and cost-effective solution. Backed by our annual export value of US$5–10 million, we guarantee consistent quality and timely delivery from our ports in Tianjin, Qingdao, Shanghai, and Foshan.
Key Features & Technical Specifications
| Parameter | Value |
|---|---|
| Material | 304 Stainless Steel |
| Wire Diameter | 0.1 mm (0.004 inch) |
| Porosity | 95% |
| Thickness | 100 mm (standard, customizable) |
| Operating Temperature | Up to 600°C (approx.) |
| Separation Efficiency | ≥ 99% for droplets > 5 µm |
| Available Sizes | Custom length/width/diameter |
Detailed Product Advantages
- Superior Droplet Capture: With 0.1mm wire diameter and 95% porosity, our demister pad offers a large surface area for capturing fine liquid mists, providing high separation efficiency while maintaining low pressure drop.
- Corrosion Resistance: 304 stainless steel resists oxidation and corrosion in harsh environments, making it suitable for chemical, petrochemical, oil & gas, and pharmaceutical applications.
- Customizable Dimensions: We can tailor the pad to fit your specific vessel or column dimensions – rectangular, circular, or any shape required. Contact us for custom sizes.
- Easy Installation: The flexible wire mesh structure can be cut or shaped on-site, simplifying installation in existing or new equipment.
- Long Service Life: The robust construction and high-temperature tolerance (up to 600°C) ensure lasting performance in demanding processes.
- Eco-Friendly: By effectively removing entrained liquids, our demister pads help reduce emissions and prevent contamination of downstream systems, supporting environmental compliance.
Application Fields
This mist eliminator pad is widely used in:
- Chemical reactors and distillation columns
- Evaporators and condensers
- Gas scrubbers and absorption towers
- Oil and gas separation units
- Air pollution control systems
- Steam purification in power plants
- Pharmaceutical and food processing
Why Choose Anping Boli?
As a manufacturer established in 1998, Anping County Boli Hardware Wiremesh Products Factory has been serving global clients with superior wire mesh products. Our annual export value of US$5–10 million reflects the trust our customers place in us. We ship from multiple ports (Tianjin, Qingdao, Shanghai, Foshan) to major markets worldwide, including North America, Europe, South America, the Middle East, and Southeast Asia. Every demister pad is produced with strict quality control, ensuring consistent dimensions and performance. Our experienced team can provide technical support to help you select the right specifications for your application. We are committed to delivering reliable, cost-effective solutions that enhance your process efficiency.
Don't compromise on quality – choose a product backed by decades of manufacturing expertise. Contact us today for a quote or to discuss your custom requirements. We are ready to serve you with prompt communication and professional service.
Frequently Asked Questions
Q1: What is the typical delivery time for this demister pad?
A: For standard sizes, delivery usually takes 7–15 working days after order confirmation. Custom orders may require 15–25 working days, depending on the quantity and complexity.
Q2: Can the pad be cut to a specific shape on-site?
A: Yes. The wire mesh structure is flexible and can be easily cut with scissors or shears to fit irregular vessel openings. We also provide pre-cut shapes upon request.
Q3: What is the maximum operating temperature of this 304 stainless steel demister pad?
A: 304 stainless steel can withstand continuous operating temperatures up to approximately 600°C (1112°F). For higher temperature applications, we recommend exploring other materials like 316L or Hastelloy.
Q4: How does the porosity affect separation efficiency?
A: Higher porosity (like 95%) allows more gas flow with lower pressure drop, but still provides excellent droplet capture due to the fine wire diameter. The combination of 0.1mm wire and 95% porosity is optimized for efficient mist elimination with minimal energy loss.
Q5: Can I get a sample before placing a bulk order?
A: Absolutely. We offer small sample pieces for testing. Please contact our sales team with your requirements, and we will arrange a sample with a reasonable cost (refundable upon bulk order).
Q6: Do you provide certificates of material or quality?
A: Yes, we can provide a mill test certificate for the 304 stainless steel material upon request. Additional quality inspection reports are also available.
Q7: Is this product suitable for corrosive environments like chlorine or acid gas?
A: 304 stainless steel offers good resistance to many organic and inorganic chemicals. However, for highly corrosive environments (e.g., strong acids or chlorides), we recommend using 316L or other specialized alloys. Our team can help you select the best material based on your specific gas composition.
Q8: What is the minimum order quantity (MOQ)?
A: The MOQ for standard demister pads is 10 pieces. For custom sizes, MOQ may vary. Please contact us for detailed pricing.
