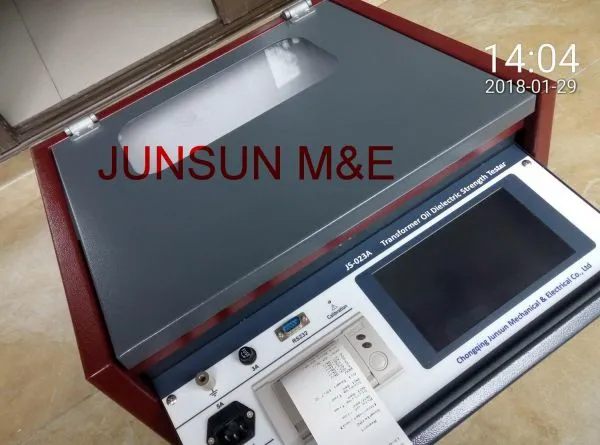

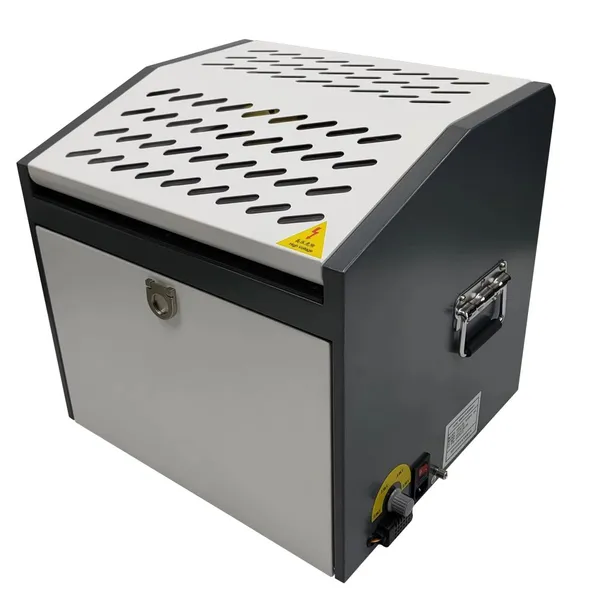

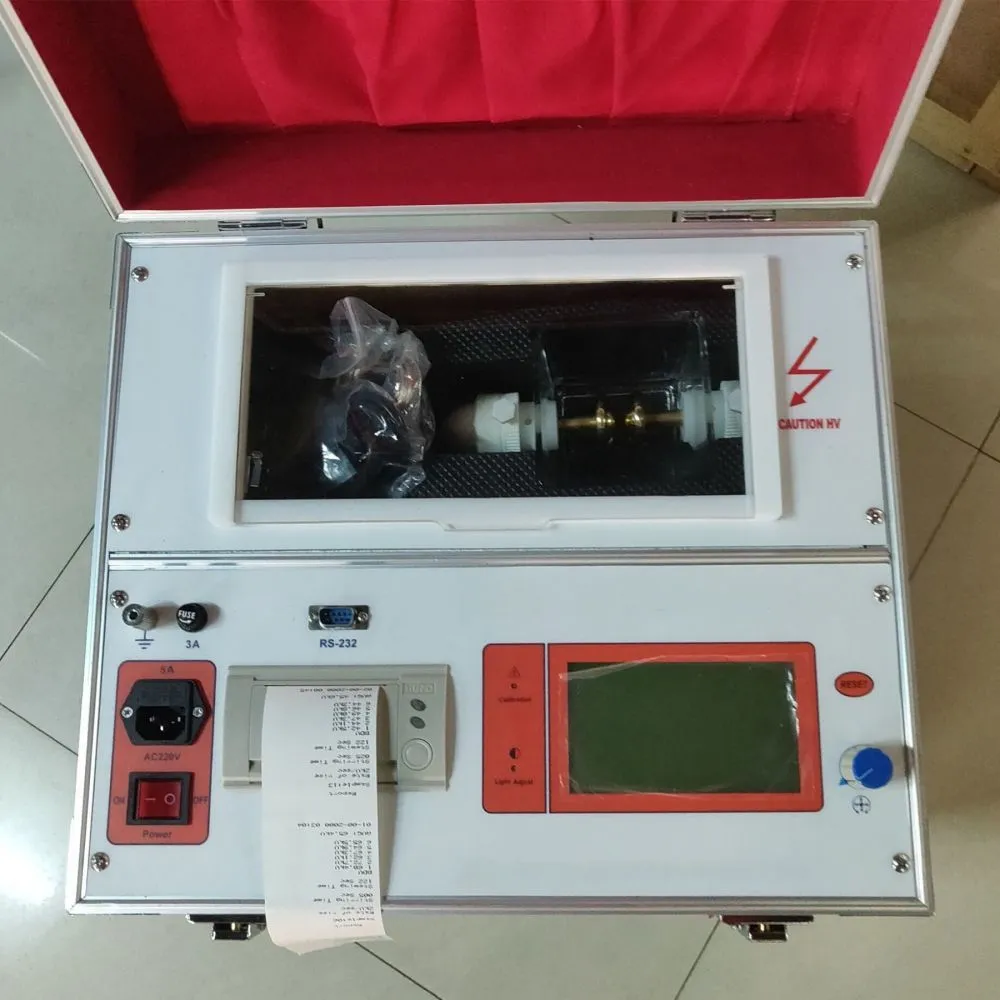

CJME 100KV Automatic Insulation Oil Dielectric Strength Tester is specially designed for testing the breakdown voltage (BDV, or dielectric strength) of transformer oil.
The breakdown voltage is one of the most important parameters of transformer oil, it is a rule of the voltage withstand. The value of breakdown voltage indicates whether the oil contains water, impurity and electric particles, and you'll know the oil value via the breakdown voltage.

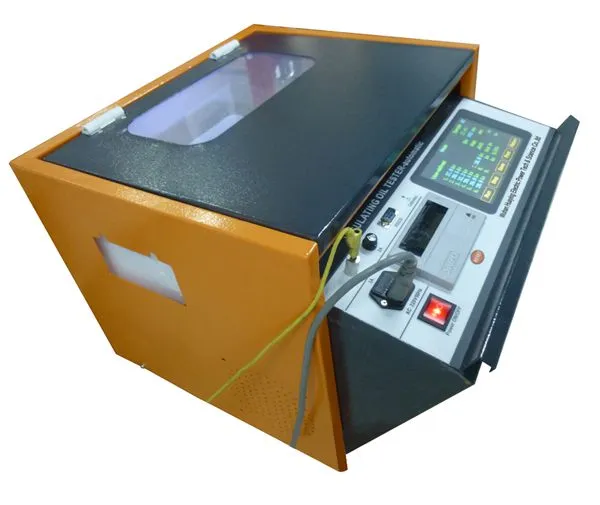

JCDY-023 Series Transformer Oil Dielectric Strength Tester provides reliable, accurate measurement of breakdown voltage of transformer oil. It is suitable for both field and laboratory use.
Key Features:
The instrument is controlled by a large capacity single chip microcomputer, and the work is stable and reliable.
There is a wide range watchdog circuit in the instrument to eliminate the phenomenon of death.
A variety of operation options, the instrument with astm d1816, astm d877 ,IEC156 three national standard methods and custom operation, can
adapt to different users of a variety of choices;
4. An instrument using special glass mold for one time, prevent the occurrence of oil spills and other interference phenomenon;
5. The unique high voltage terminal sampling design of the instrument allows test values to directly enter the A/D converter, avoiding the errors caused by analog circuits, and making the measurement results more accurate.
6. The instrument has the functions of over current, overvoltage, short circuit and so on, and has very strong anti-interference ability and good electromagnetic compatibility.
7. Portable structure, easy to move, easy to use both inside and outside.
Technical Specifications:
| Name | Indicators |
|---|---|
| Output voltage | 0~80 kV(or 0-100kV) |
| THVD | |
| Pressure rate | 0.5~5.0 kV/s |
| Booster capacity | 1.5 kVA |
| Measurement accuracy | ±2% |
| Supply voltage | AC 220 V ±10% |
| Power frequency | 50 Hz ±2% |
| Power | 200 w |
| Applicable temperature | 0~45? |
| Applicable humidity | |
| Width * height * depth | 410×390×375 (mm) |
| Net weight | ~ 32 kg |
