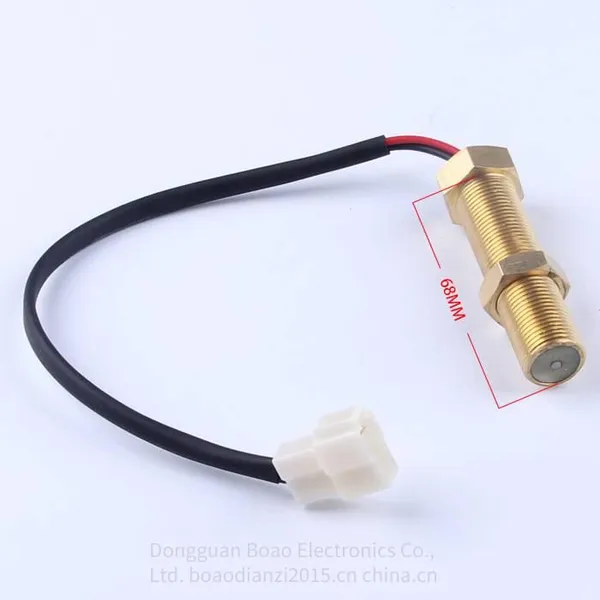

This product is a magnetoelectric speed sensor. It is installed next to the flywheel of the engine. When the engine rotates, the speed sensor senses an alternating current signal, and its frequency is proportional to the engine speed. The speed sensor is used in conjunction with a tachometer to measure the engine speed. This product has the advantages of simple structure, convenient installation, stable quality, and reliable performance.
I. Main Performance
Operating environment temperature: -30℃~120℃
Maximum induced voltage: 30V AC
Installation thread: M16-1.5 M18-1.5
II. Precautions for Use
1. This product is tightened on the engine through the thread using a wrench, and the maximum tightening torque is 49N*m
2. The distance from the sensor end face to the top surface of the induction gear is 1mm
3. The sensor has two output terminals. A shielded cable should be used to reliably connect the output end of the sensor to the tachometer to ensure smooth transmission.

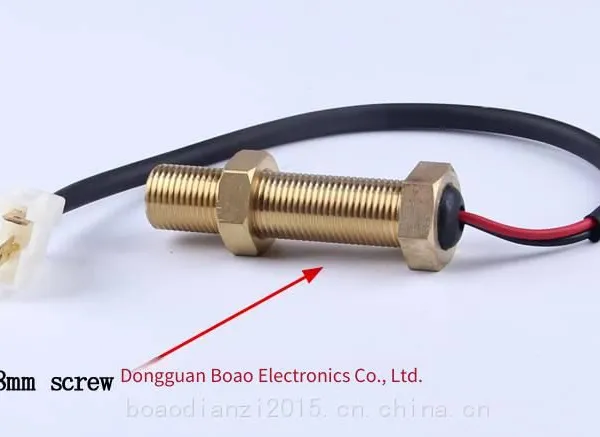

M18*1.5

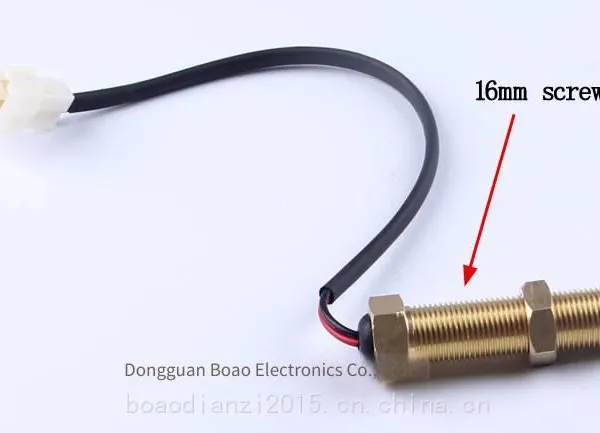

M16*1.5

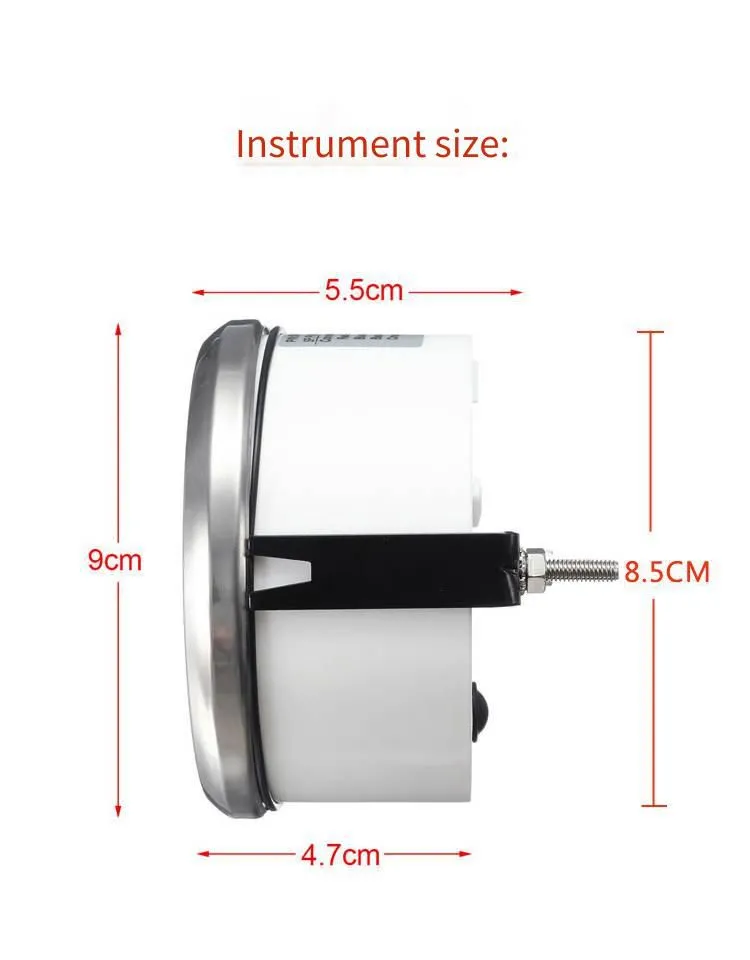

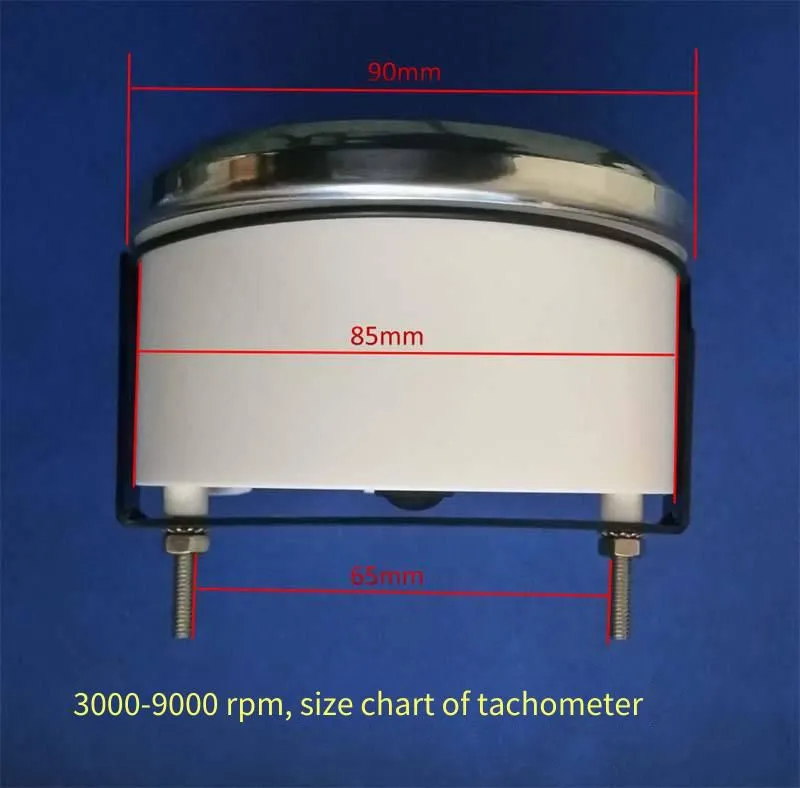

The speed sensor is used in conjunction with a tachometer or control instrument
