Home > Electrical & Electronics > Sensor > Pressure Sensor > Xbaiao Connecting Rod Float Ball Liquid Level Switch, Top-mounted Liquid Level Control Water Level Double Float Ball Switch

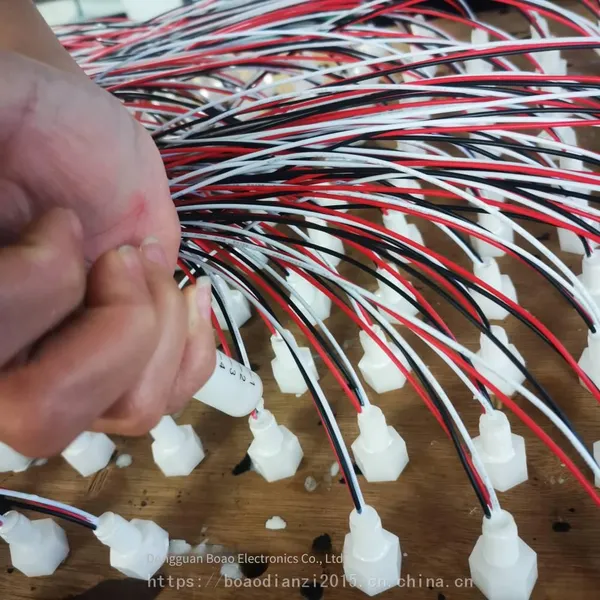

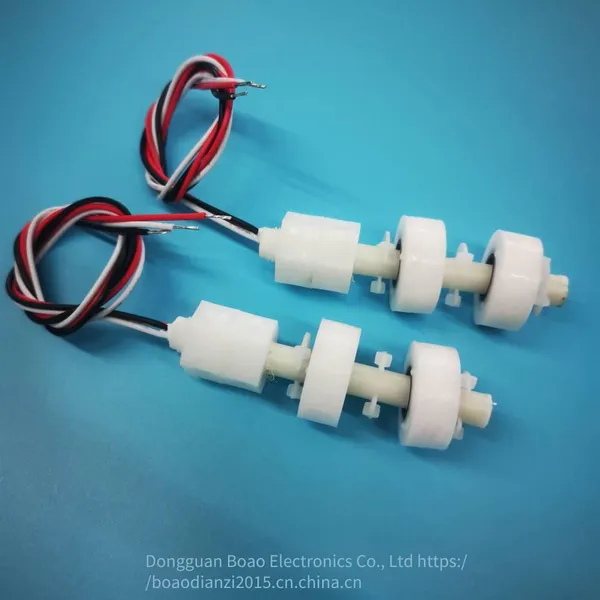

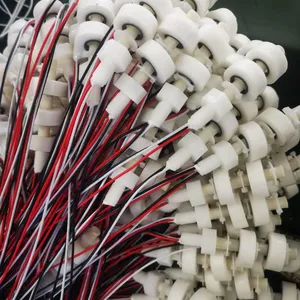

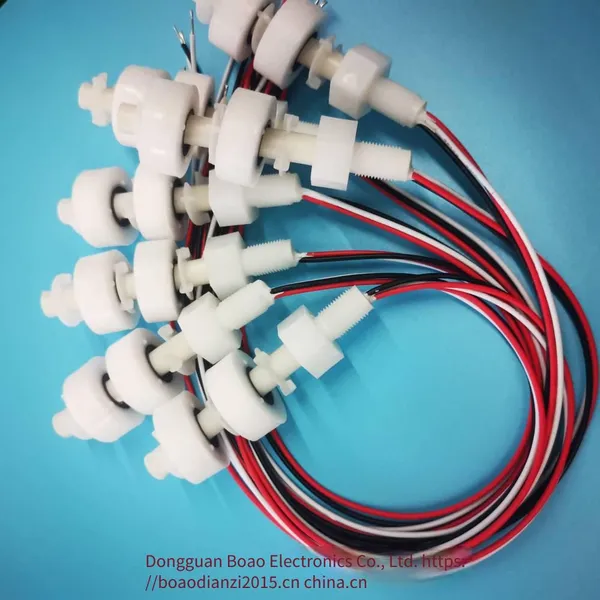

Xbaiao Connecting Rod Float Ball Liquid Level Switch, Top-mounted Liquid Level Control Water Level Double Float Ball Switch
US$ 2.77
100 - 999 Pieces
US$ 2.46
≥1000 Pieces
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Dongguan, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Zhongtong Bus Water Level Alarm Sensor, Zhongtong Bus PartsUS$ 11.69 - 25.85MOQ: 2 Pieces -
3818080-q4412 Qingdao Jiefang Hanwei Water Level Alarm Switch Assembly / 3818080-q4412US$ 11.69 - 25.85MOQ: 2 Pieces
-
Customized Stainless Steel Float Switches, High-temperature Float Switches, and Water Level Switches From the Original ManufacturerUS$ 11.85 - 28.92MOQ: 2 Pieces
-
Low Water Level Alarm Switch for Auxiliary Water Tank, Water Level Sensor, Water Level Alarm for Expansion TankUS$ 2.77 - 6.92MOQ: 1 Piece
-
High-temperature Stainless Steel Float Switch, Model: Ba-ss300i-d1mr-ha350US$ 11.69 - 25.85MOQ: 2 Pieces
| 【Small Float Level Switch】Selection Reference |
| The float level switch is an accessory that can well detect the liquid level and output switch contact signals. Several parameters that must be provided before purchasing |
| Selection parameters: |
| 1. Guide rod length |
| From the installation surface of the water tank to the position to be detected at the bottom. If the guide rod length exceeds 300MM, it is recommended to use stainless steel. PP can be made from 25mm to 4m, and stainless steel can be made from 45mm to 4m |
| 2. Material selection |
| The materials can be selected from PP/PVDF/stainless steel 304, 316, 316L/teflon spraying, etc., depending on the usage environment. Different materials can be used in different environments (acid and alkali resistance) |
| 3. Installation form |
| It depends on the installation environment. For example: 1. If the water tank is not fully sealed and is built - in the equipment, nut fixing can be selected (determine the thread size). 2. For outdoor water tanks or pools, it is recommended to choose flange + junction box. 3. For sealed water tanks, use external threads larger than the outer diameter of the float). Supplementary: Usage environment (water or other liquids), thread (size)/flange (size), whether it comes with a junction box/whether it is anti - B. Temperature: The large tube can reach up to 300 degrees, and the small tube can reach up to 150 degrees |
| 4. Wire requirements |
| You can choose from ordinary low - temperature wires, high - temperature braided wires, corrosion - resistant high - temperature Teflon wires, two - core sheathed wires, etc. |
| 5. Number of action points |
| The number of action points is equal to the number of water levels to be detected, but the number of floats is not equal to it |
| 6. Voltage requirements |
| You can choose between 200VDC/100VDC. This is the withstand voltage of the switch, so do not exceed the voltage (220V/24V) |
| 7. Number of outgoing wires |
| It depends on the number of action points. For a single point, there are two wires; for two points, there are four or three wires, and one of them is a common wire, and so on |
The above product information, pictures, and prices are for reference only. Welcome to communicate online or call for consultation to enjoy greater discounts. We sincerely look forward to cooperating with you!
