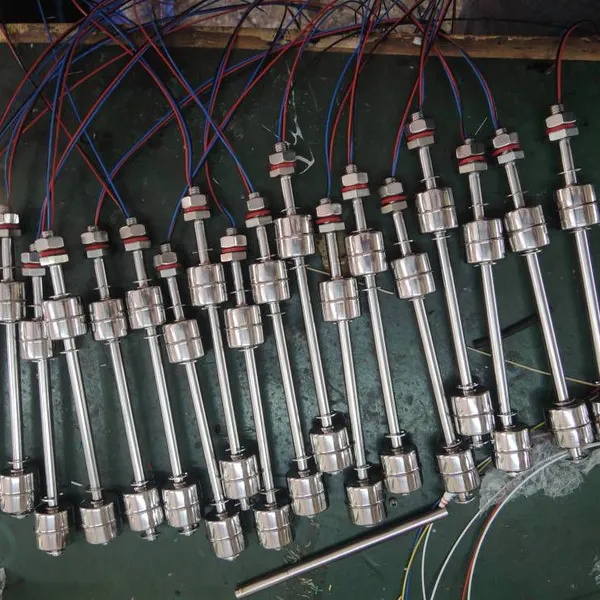

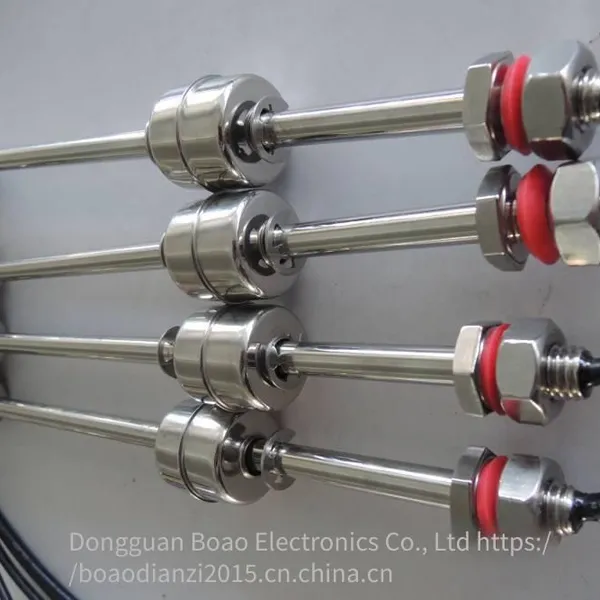

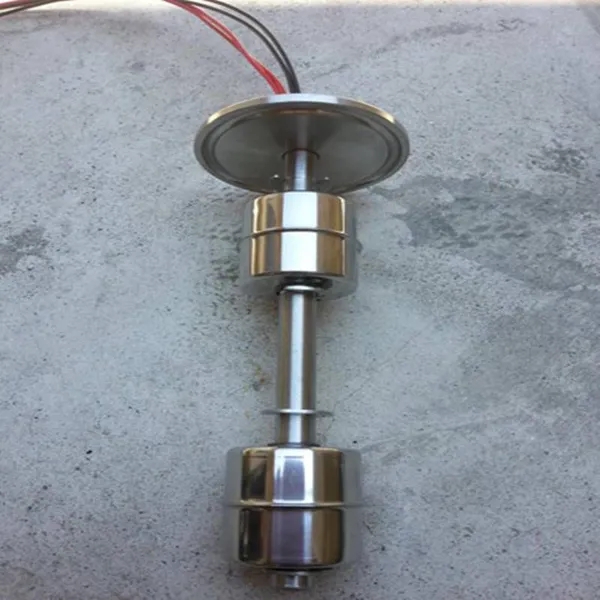

Home > Electrical & Electronics > Sensor > Pressure Sensor > High-temperature 304 Stainless Steel Float Switch, Reed Switch Double Liquid Level Float, Customized Connecting Rod Liquid Level Switch
High-temperature 304 Stainless Steel Float Switch, Reed Switch Double Liquid Level Float, Customized Connecting Rod Liquid Level Switch
US$ 6.77
100 - 999 Pieces
US$ 5.85
≥1000 Pieces
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Dongguan, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Xbaiao Connecting Rod Float Ball Liquid Level Switch, Top-mounted Liquid Level Control Water Level Double Float Ball SwitchUS$ 2.46 - 2.77MOQ: 100 Pieces -
Zhongtong Bus Water Level Alarm Sensor, Zhongtong Bus PartsUS$ 11.69 - 25.85MOQ: 2 Pieces
-
3818080-q4412 Qingdao Jiefang Hanwei Water Level Alarm Switch Assembly / 3818080-q4412US$ 11.69 - 25.85MOQ: 2 Pieces
-
Customized Stainless Steel Float Switches, High-temperature Float Switches, and Water Level Switches From the Original ManufacturerUS$ 11.85 - 28.92MOQ: 2 Pieces
-
Low Water Level Alarm Switch for Auxiliary Water Tank, Water Level Sensor, Water Level Alarm for Expansion TankUS$ 2.77 - 6.92MOQ: 1 Piece
| 【Small Float Level Switch】 Classification Instructions |
| The selection of a float level switch needs to be considered from its material combination. Of course, this is also based on its usage environment. Choosing a level switch suitable for the environment will greatly extend its service life. If the wrong one is selected, it may be damaged just after use. The following classification will help you choose the level switch. |
| Series 1: Plastic Features: |
| Combination Form 1: All PP material Food grade, suitable for food, household appliances and other products with water-based media |
| Combination Form 2: PP + NBR float Can withstand relatively high temperatures, low specific gravity, suitable for oil-based media |
| Combination Form 3: PVDF Withstands temperatures of 120 degrees, resistant to acid and alkali corrosion, delicate and durable structure, long product life, good reliability, stronger pressure resistance, and wide application range. Applicable to most oils and has good stability in water. |
| Series 2: Stainless steel Features: |
| 【Float switch】Selection instructions: |
| Please select float balls of various materials according to the characteristics of the measured object, such as operating temperature, pressure, specific gravity, acid and alkali resistance. |
| 1. Temperature: PVDF can withstand temperatures up to 120°C, PP material up to 80°C, and SUS304/316 up to 200°C. |
| 2. Pressure: Plastic float balls can withstand a pressure of 5kg/cm2, and SUS float balls can withstand a pressure of 30kg/cm2. |
| 3. Adhesion: Float balls with a large size and low specific gravity should be selected to overcome the surface tension of the liquid. |
| 4. Chemical properties: Plastic materials are suitable for acid and alkali environments. If temperature needs to be considered, PVDF should be selected. |
| 5. Oil essence: Metal materials should be used. |
| 6. Specific gravity: The specific gravity SG of the float ball must be less than that of the measured liquid, otherwise the float ball will not float. |
