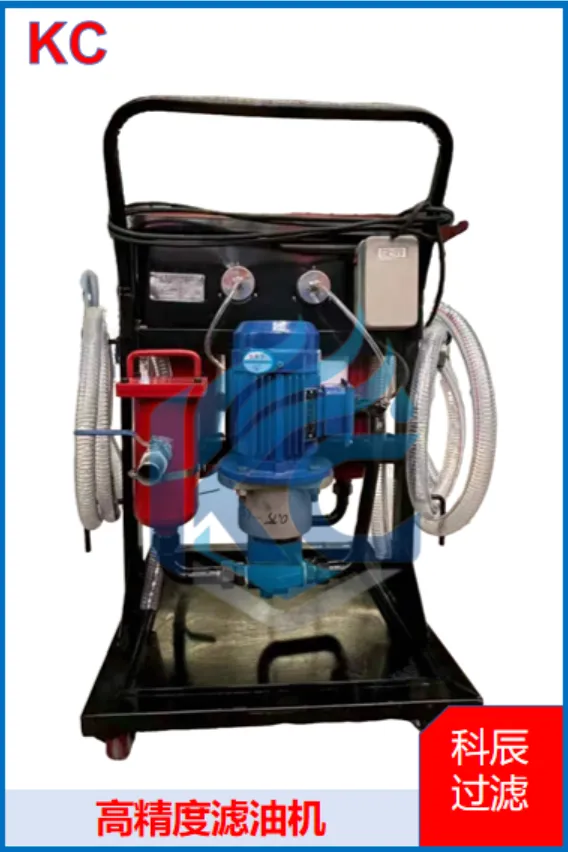

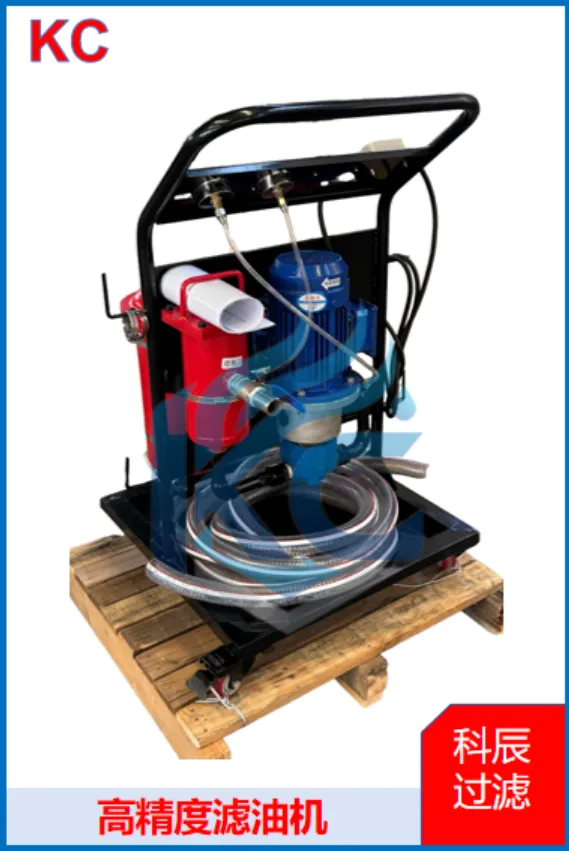

Help CenterHigh-precision Oil Filter for Hydraulic Stations, Removing Fine Solid Particles
Product Spotlights
Related Products
-
Box-type Oil Filter for Stationary Indoor Applications Such as Oil StationsUS$ 800 - 1000MOQ: 1 Piece -
High Viscosity Oil Filter for Filtering and Purifying Gear Oil, Heavy Oil and Industrial LubricantsUS$ 800 - 1000MOQ: 1 Piece
-
High Solid Content Oil Filter for Industrial Oil Containing Abundant Solid ImpuritiesUS$ 800 - 1000MOQ: 1 Piece
-
Ultra-precision Oil Filter for Removing Fine Particle Impurities, Suitable for Precision Machine Tools and Hydraulic Systems.US$ 800 - 1000MOQ: 1 Piece
-
Plate and Frame Oil FilterSuitable for Removing Solid Impurities and Trace Moisture From Transformer OilUS$ 800 - 1000MOQ: 1 Piece

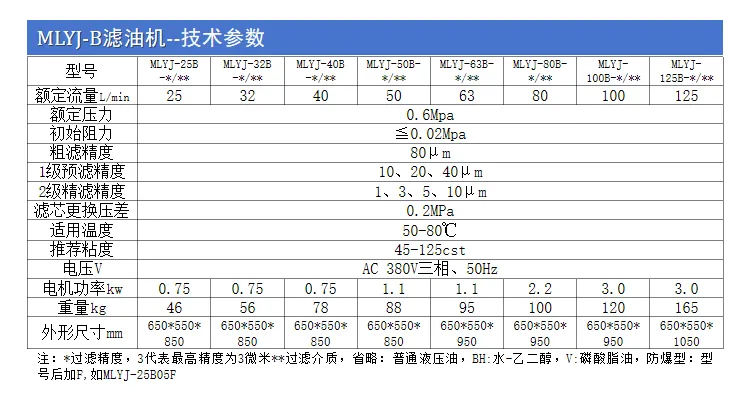

Brand: MTModel: MLYJ-BWorking Principle: Pressure filtrationType: MobileWorking Pressure: ＜0.35 MPaCleanliness Class: NAS 6-12Connection Type: Quick coupling with oil hosesSurface Finish: Powder coatingMounting: Casters with brakes
Design Standard: GB/T26114-2010 General technical specification for liquid filtersFilter Element Standard: GB/T1404.1/2/3-2007 Test method for structural integrity of filter cartridgesNoise Test Standard: GB/T4214.1-2000 Noise test method
Application Scope: Filling and circulating filtration of anti-wear hydraulic oil, impurity removal and purification of transformer oil and capacitor oil, on-line circulation of gear oil, filling and transfer of hydraulic oil and lubricating oil, filtration and waste oil regeneration of automotive engine oil.
Working Principle

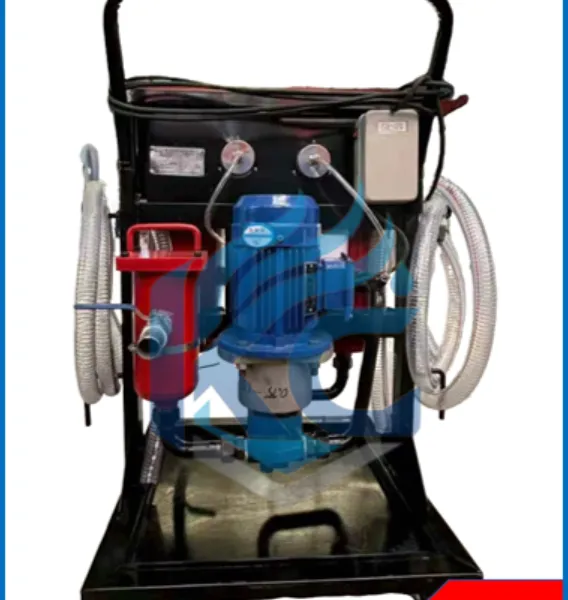

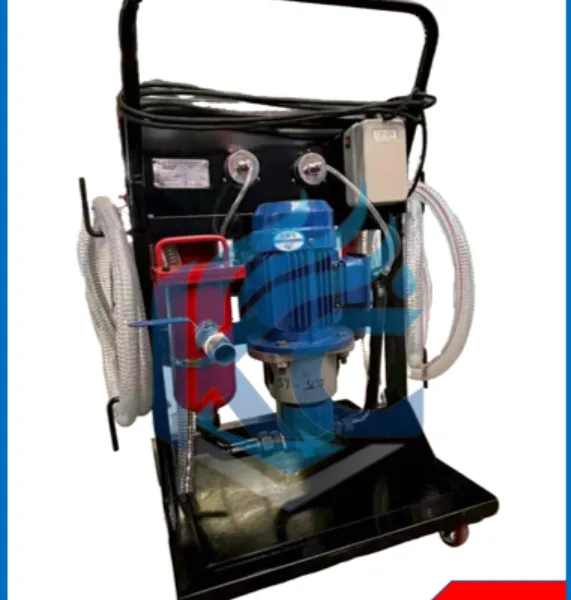

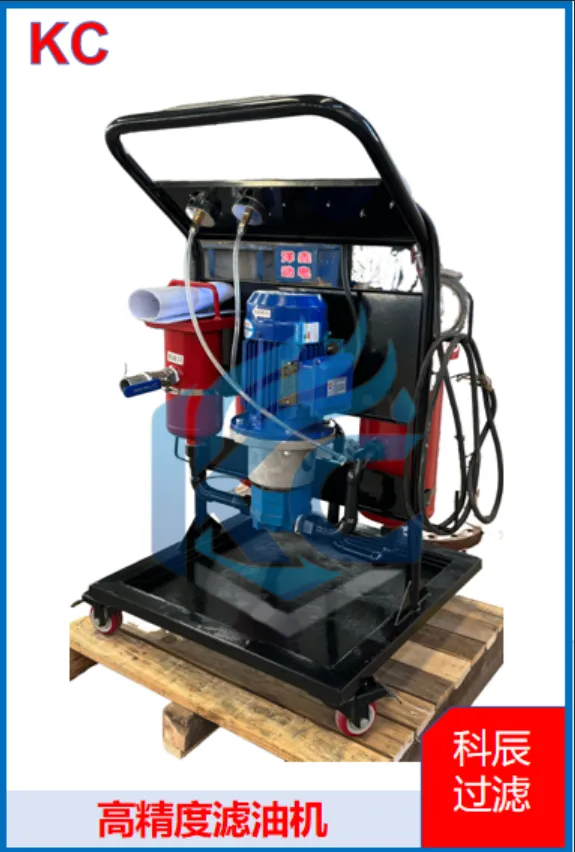

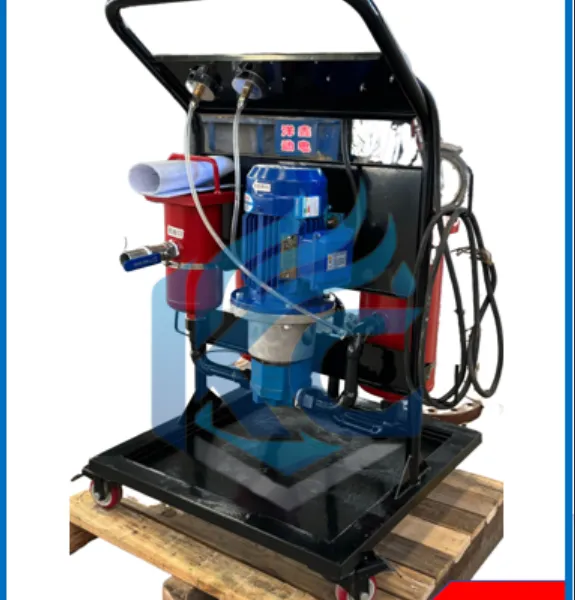

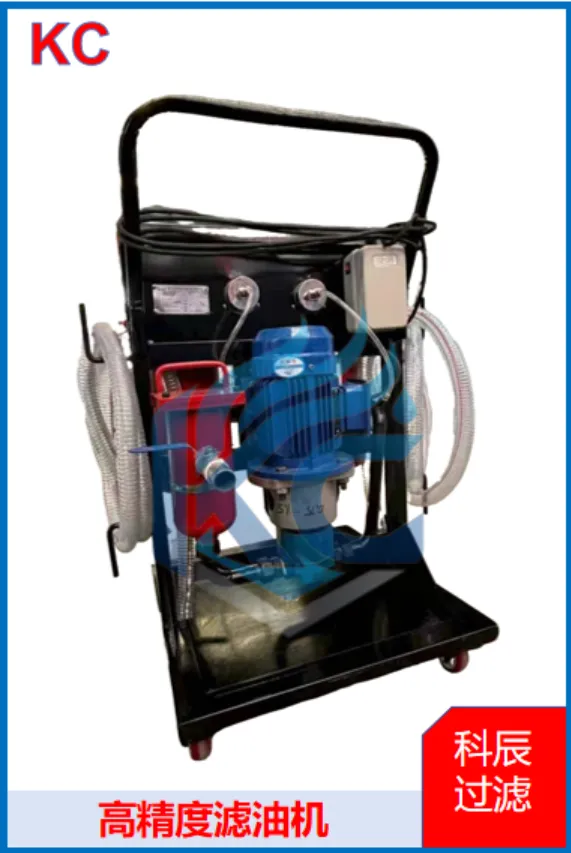

This oil filter is equipped with a motor-driven dedicated gear pump, featuring low noise, strong self-priming capacity and stable operation.

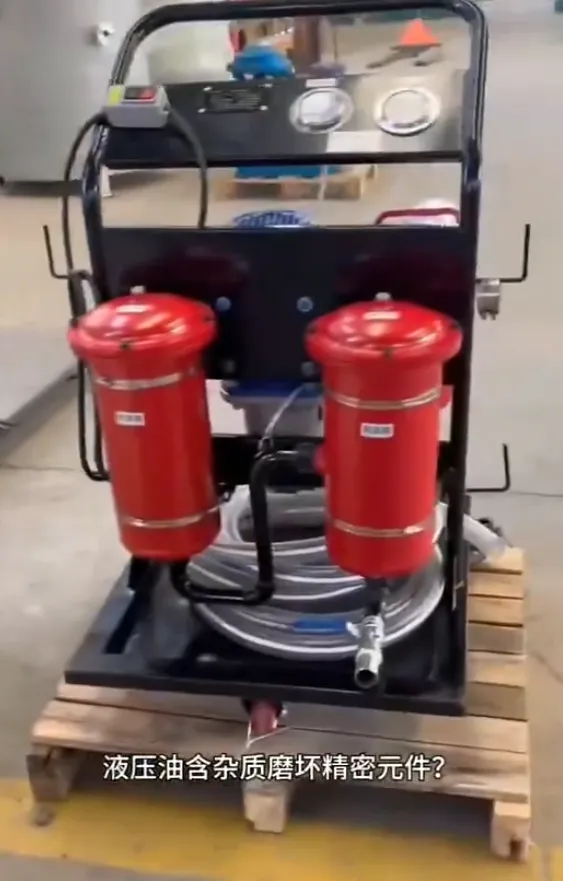

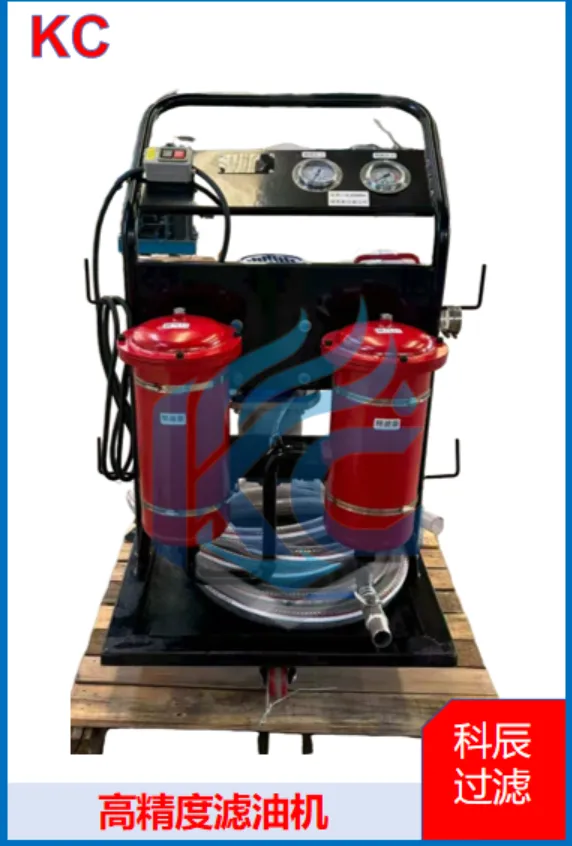

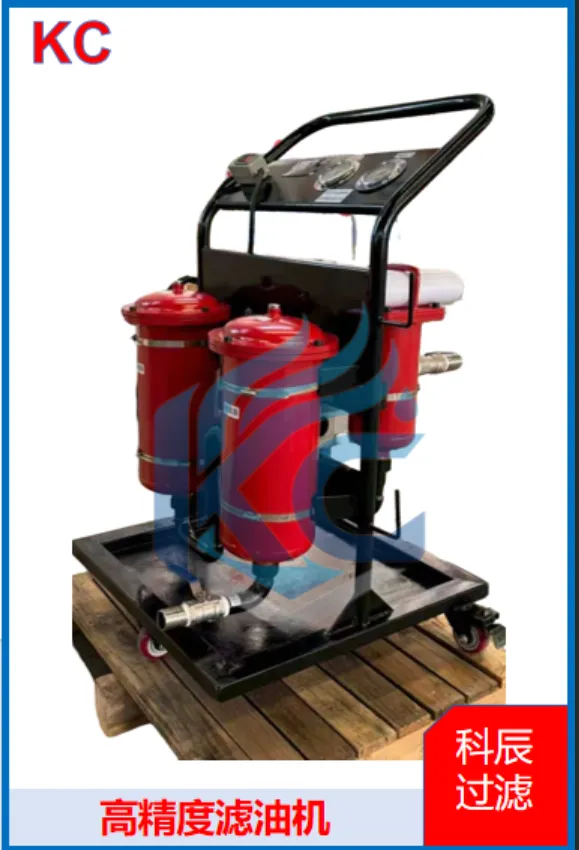

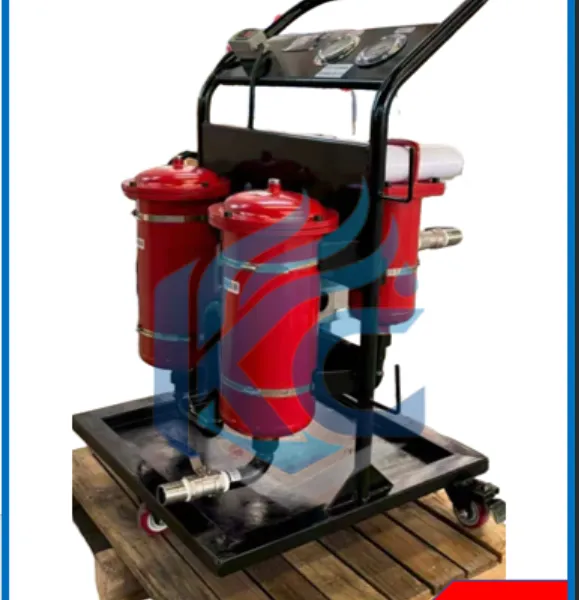

A pre-pump strainer protects the oil pump and extends the service life of the main filter. It adopts dual-stage filtration consisting of a primary pre-filter and a secondary fine filter for higher efficiency. An overflow protection device is installed to ensure the safety of the hydraulic system.
A comprehensive motor protection unit prevents damage caused by motor overload. The fine filter housing is designed with a quick-open structure, enabling fast opening of the top cover and filter element replacement without any tools.
A pressure gauge on the control panel continuously displays the operating status and contamination level of the filter elements. Fine filter cartridges with different filtration ratings are available to meet diverse demands, and differential pressure alarm function can also be configured optionally.
