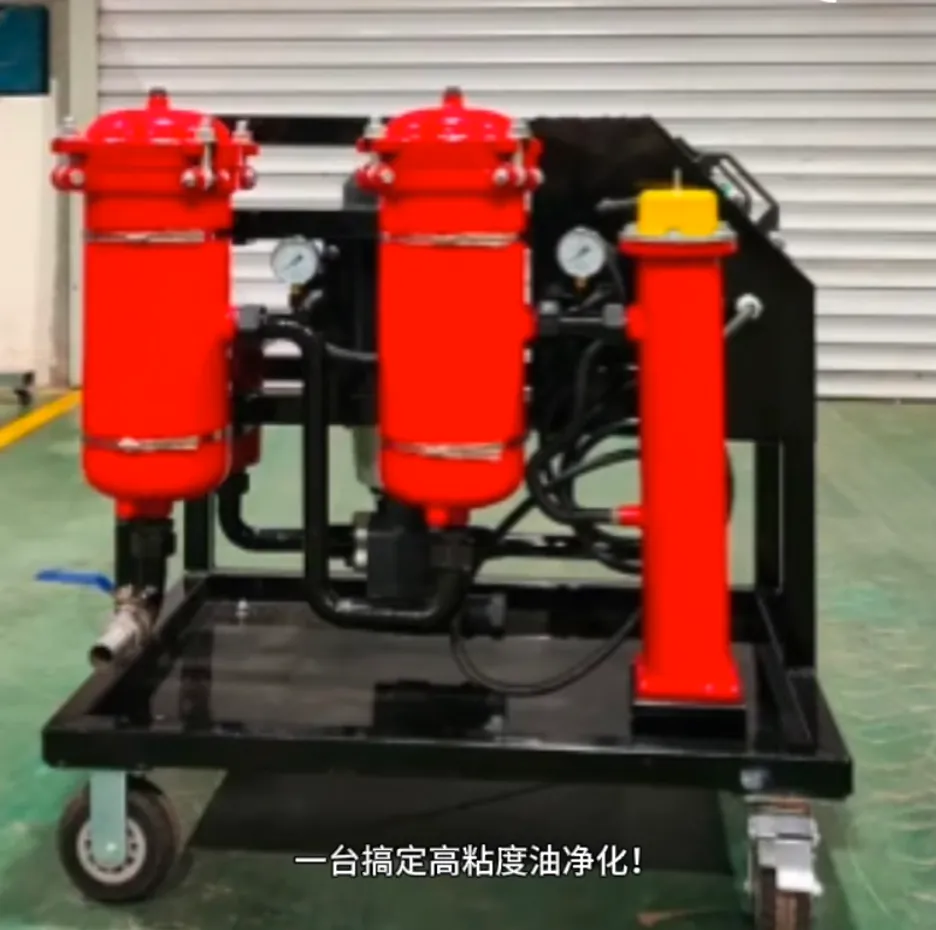

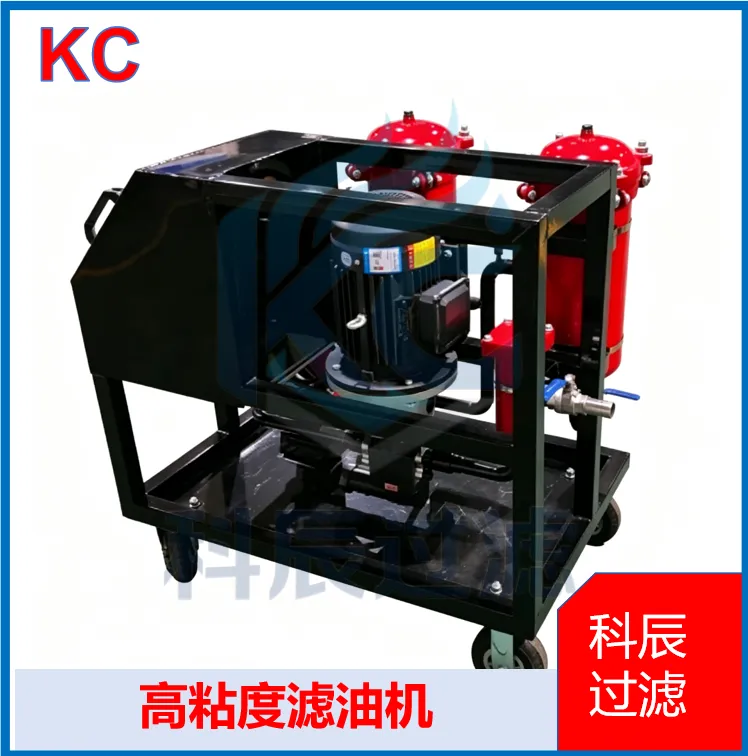

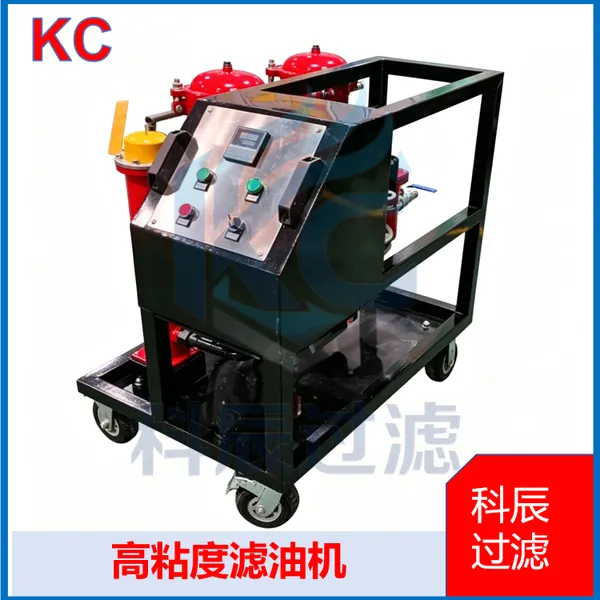

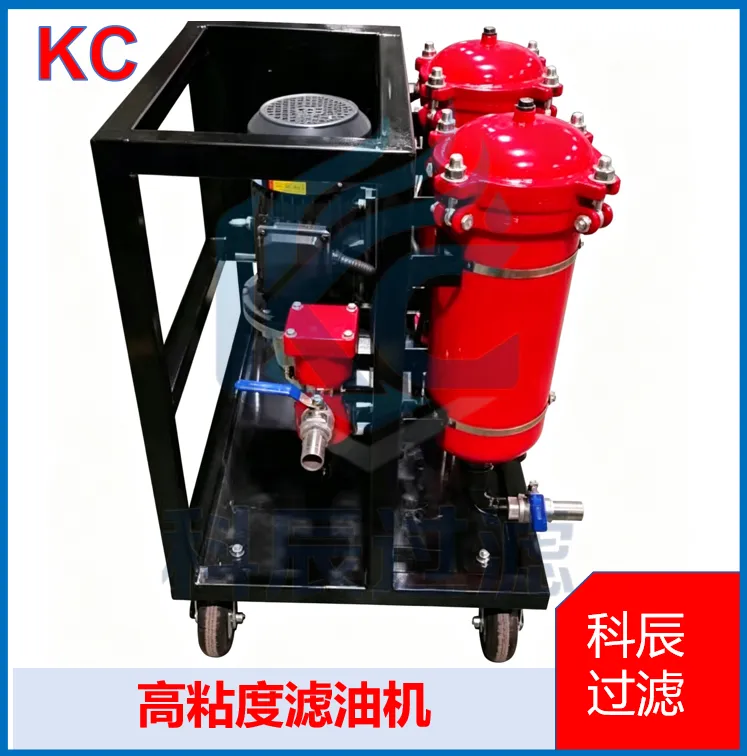

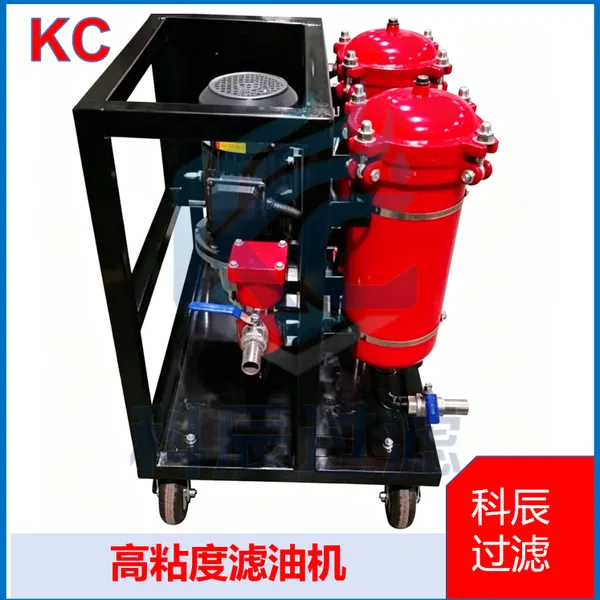

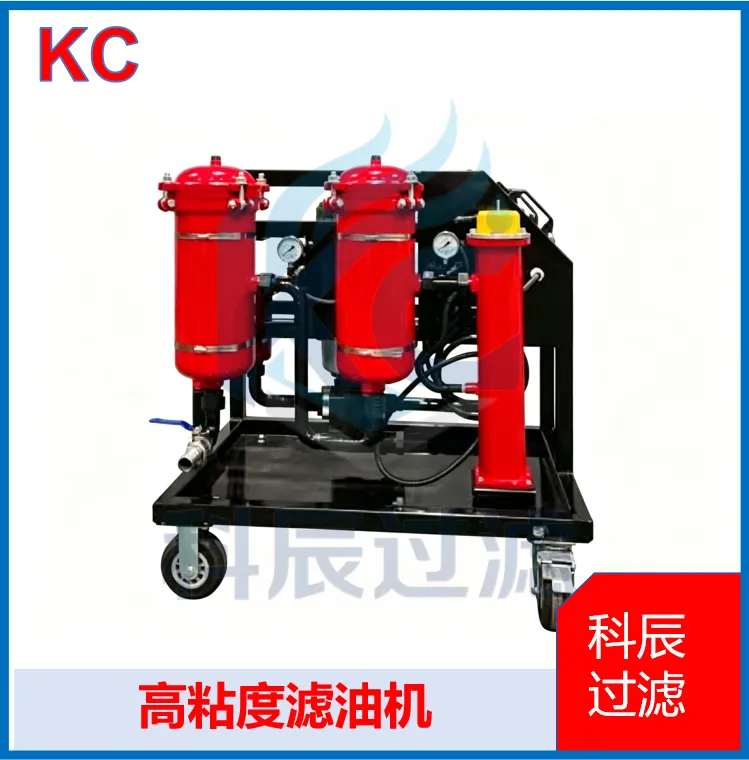

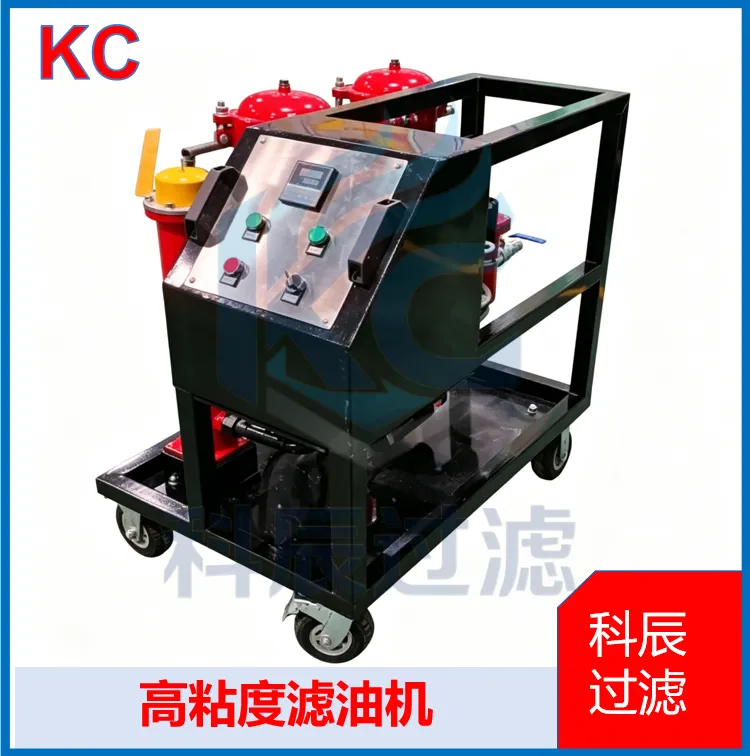

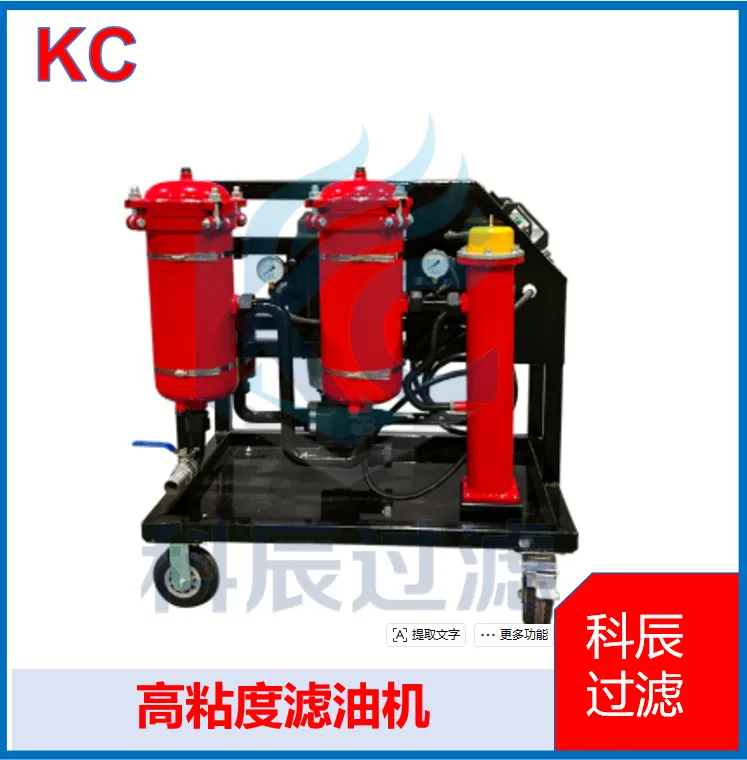

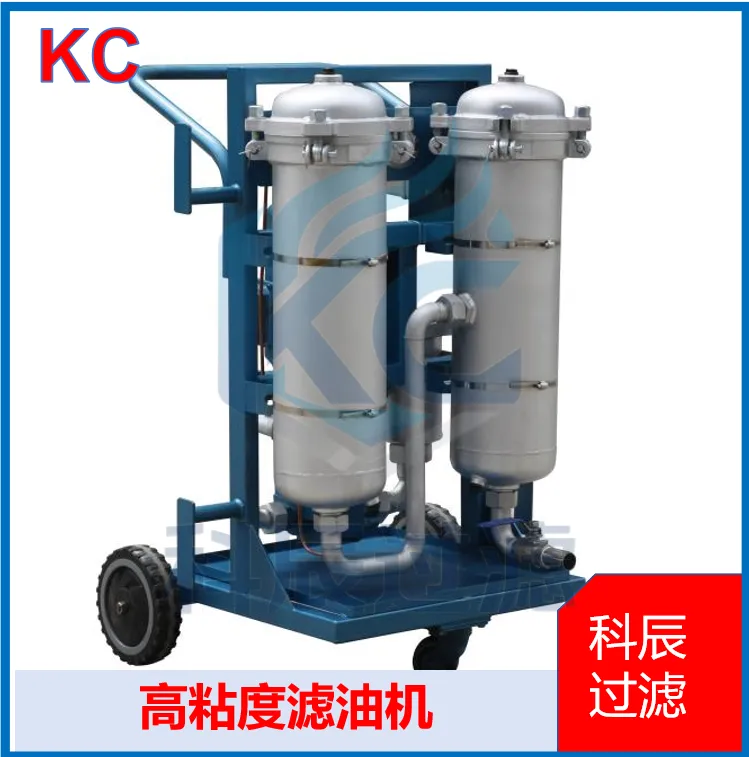

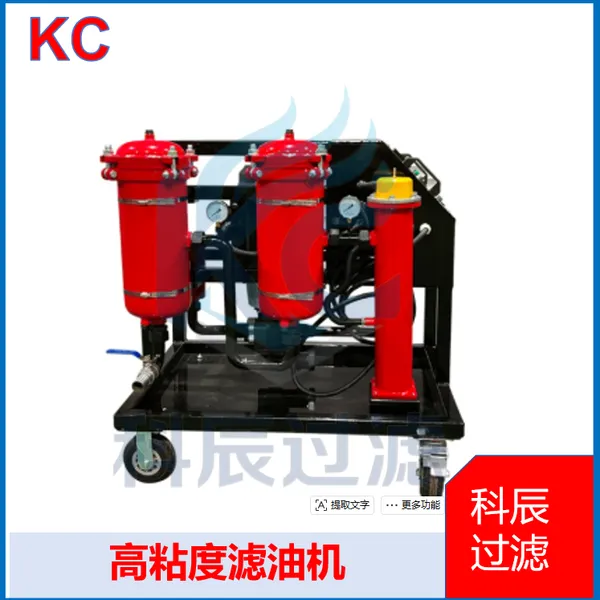

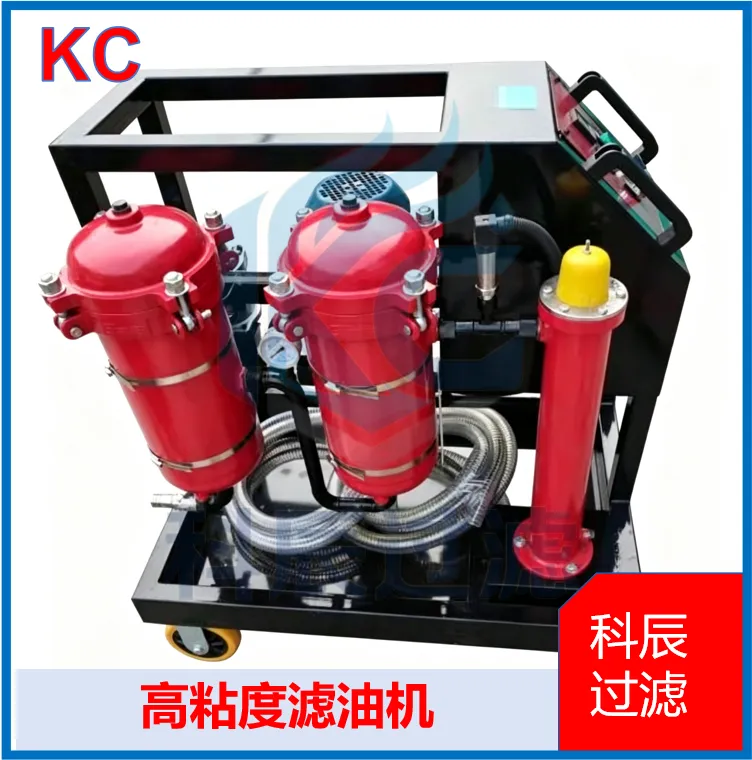

Help CenterHigh Viscosity Oil Filter for Filtering and Purifying Gear Oil, Heavy Oil and Industrial Lubricants
Product Spotlights
Related Products
-
High Solid Content Oil Filter for Industrial Oil Containing Abundant Solid ImpuritiesUS$ 800 - 1000MOQ: 1 Piece -
Ultra-precision Oil Filter for Removing Fine Particle Impurities, Suitable for Precision Machine Tools and Hydraulic Systems.US$ 800 - 1000MOQ: 1 Piece
-
Plate and Frame Oil FilterSuitable for Removing Solid Impurities and Trace Moisture From Transformer OilUS$ 800 - 1000MOQ: 1 Piece
-
Mobile LUC Oil Filter Trolley for Hydraulic OilUS$ 800 - 1000MOQ: 1 Piece
-
Mobile MLUC Oil Filter Trolley for Hydraulic OilUS$ 800 - 1000MOQ: 1 Piece

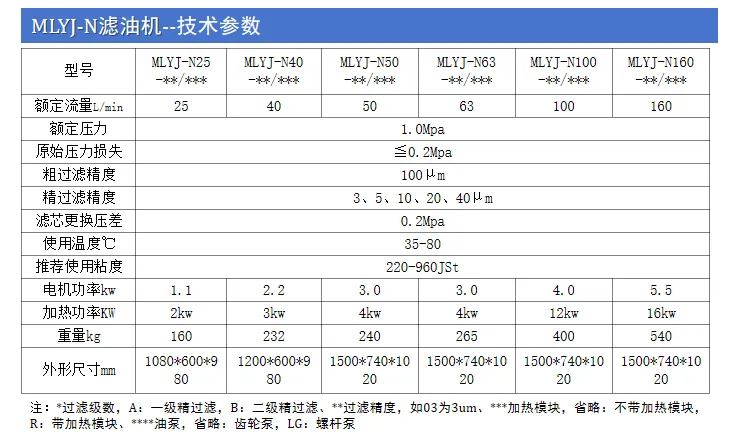

Brand: MTModel: MLYJ-NWorking Principle: Pressure filtrationType: MobileOil Pump: High-viscosity gear pumpKinematic Viscosity: ≥Cleanliness Class: NAS 8-12Connection Type: Quick couplings with oil hosesSurface Finish: Powder coatingMounting: Swivel casters with brakes
Design Standard: GB/T26114-2010 General technical specification for liquid filtersFilter Element Standard: GB/T1404.1/2/3-2007 Test methods for structural integrity of filter cartridgesNoise Test Standard: GB/T4214.1-2000 Noise measurement method
Application Scope: Filtration of gear oil above 320#, extraction of high-viscosity organic solvents, transfer of grease and ointment with poor fluidity, and purification of bio-oil during refining.
Working Principle：

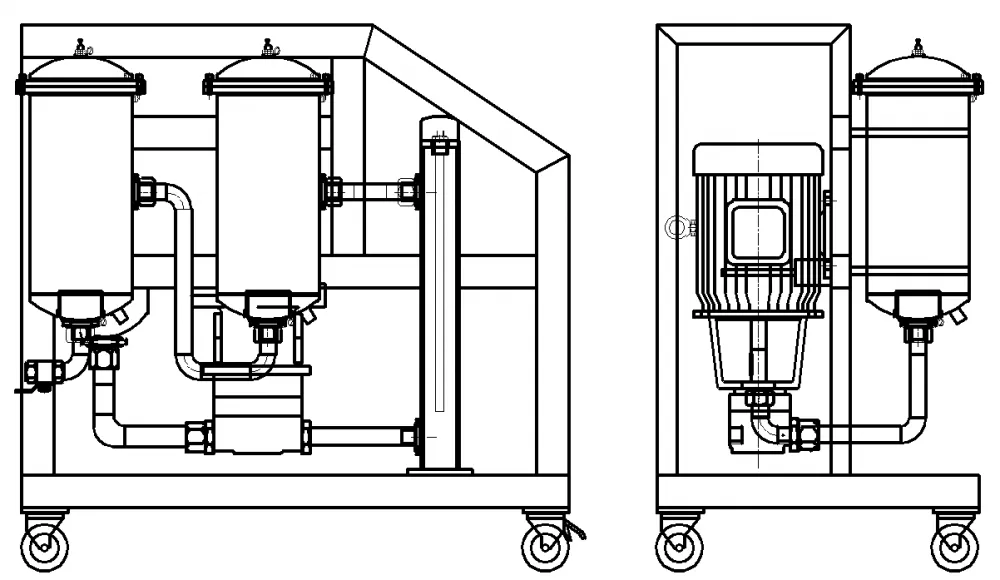

This oil filter is equipped with a dedicated pump for high-viscosity oil. It delivers fluid smoothly with no pulsation, low noise and slight vibration, and features strong self-priming capability.
A pre-pump strainer protects the oil pump and extends the service life of the main filter. It is fitted with optional A/B filter units (primary fine filter / secondary fine filter) after the pump, together with an overflow protection device to safeguard the hydraulic system effectively.
A comprehensive motor protection unit prevents motor damage caused by overload. A pressure gauge on the panel constantly indicates the system operating status and the contamination level of filter elements. Fine filter cartridges with various filtration ratings are available to meet different requirements, and a differential pressure alarm can be optionally installed.
This unit is applicable to various corrosive media and can work at temperatures up to 200℃. It is especially ideal for filling and filtration of high-viscosity oil.
