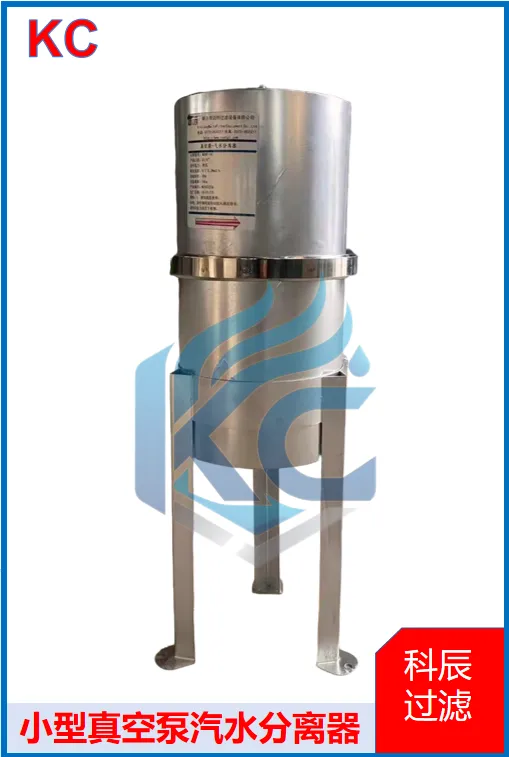

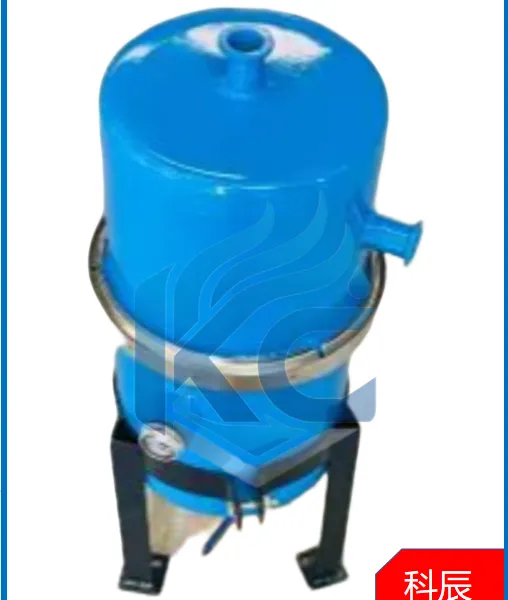

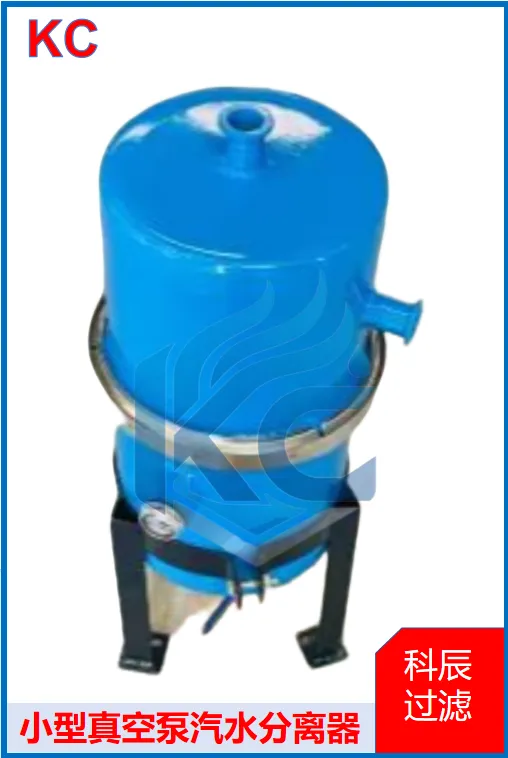

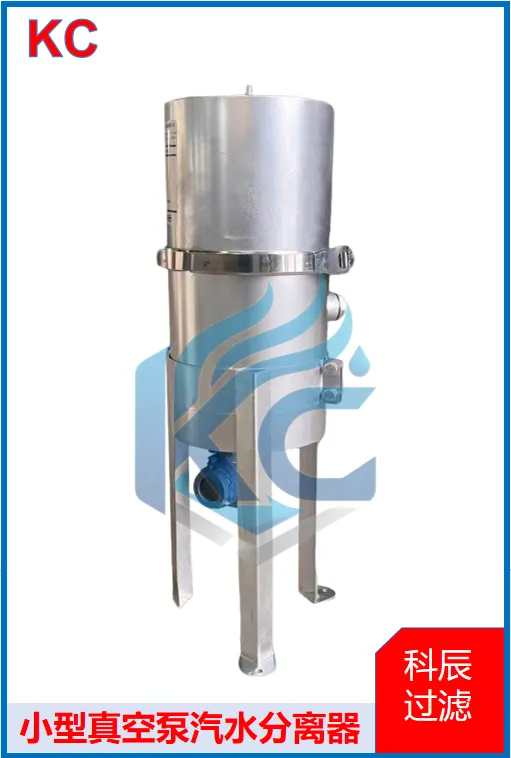

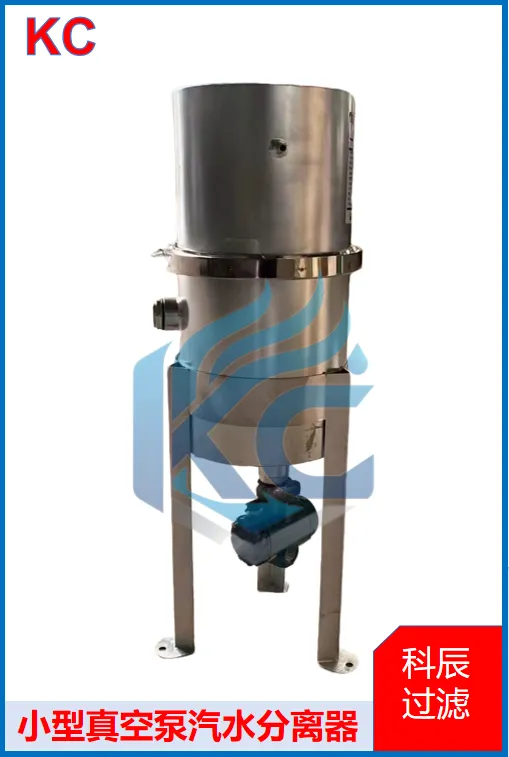

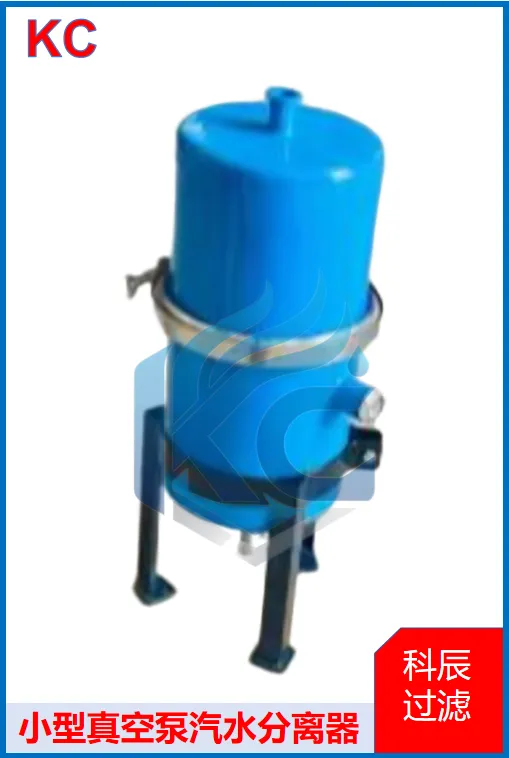

Help CenterSmall Vacuum Pump Steam-water Separator
Product Spotlights
Related Products
-
Portable Vacuum Oil Purifier | Oil Water SeparatorUS$ 800 - 1000MOQ: 1 Piece -
Industrial Movable Oil Purification EquipmentUS$ 800 - 1000MOQ: 1 Piece
-
High-precision Oil Filter for Hydraulic Stations, Removing Fine Solid ParticlesUS$ 800 - 1000MOQ: 1 Piece
-
Box-type Oil Filter for Stationary Indoor Applications Such as Oil StationsUS$ 800 - 1000MOQ: 1 Piece
-
High Viscosity Oil Filter for Filtering and Purifying Gear Oil, Heavy Oil and Industrial LubricantsUS$ 800 - 1000MOQ: 1 Piece
Brand: MTModel: MZKQF-XWorking Principle: Interception and adsorptionApplication: Vacuum water and oil removalStructure Type: Vertical with support legsDesign Pressure: -0.1 MPaFilter Element Material: Glass fiber, 304 separation meshMain Body Material: Carbon steel with plastic sprayingConnection Type: ThreadedSeparation Efficiency: Condensate water separation rate ≥99%Operating Temperature: 0~60℃Drainage Mode: Manual drainageDesign Standard: GB/T13554-2020 High-efficiency air filterApplication Scope:
Filtration during oil filling of industrial hydraulic and lubrication systems
Bypass filtration during operation of hydraulic and lubrication systems
Circulation filtration before commissioning of hydraulic and lubrication systems
Improve the overall cleanliness of hydraulic and lubrication systems after installation
Working Principle：

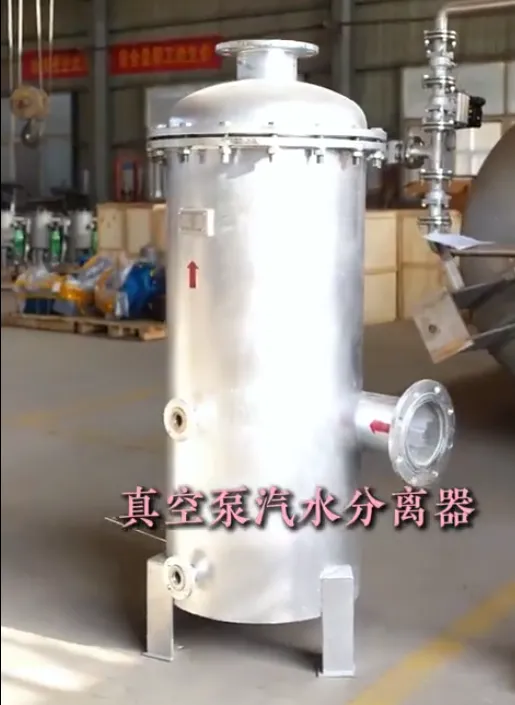

Vacuum pump gas-water separator (also known as gas-liquid separator) is applied to working conditions where the extracted gas contains a large amount of liquid water or other liquids. It separates and discharges liquids to prevent them from entering and damaging the vacuum pump. Primarily used to remove moisture from gas, this equipment improves the operating efficiency and service life of vacuum pumps. Water ring vacuum pumps are widely used in industrial production and laboratories, and a gas-water separator is essential in many operating scenarios to optimize pump performance.
The separator is mainly composed of an inner tube and an outer tube. It separates substances by utilizing the difference in resistance borne by gas molecules at varying flow velocities. Gas enters tangentially from the lower inlet. The high-speed rotating airflow generates centrifugal force to separate solid particles and liquid droplets. Then fine water droplets and impurities are further filtered out by multi-layer stainless steel separation cylinders or metal foam. The treated gas is discharged from the lower outlet. The separated liquid is manually drained via a ball valve. The stainless steel separation cylinders and metal foam are reusable after cleaning.
It achieves rapid gas-liquid separation, effectively boosting the efficiency and extending the service life of vacuum pumps.
Please consider the following factors during selection：
Selecting a suitable steam-water separator involves multiple factors, including required gas flow, vacuum degree and exhaust pressure. It is recommended to operate within the high-efficiency range and avoid running near the maximum vacuum degree or maximum exhaust pressure to prevent cavitation.
