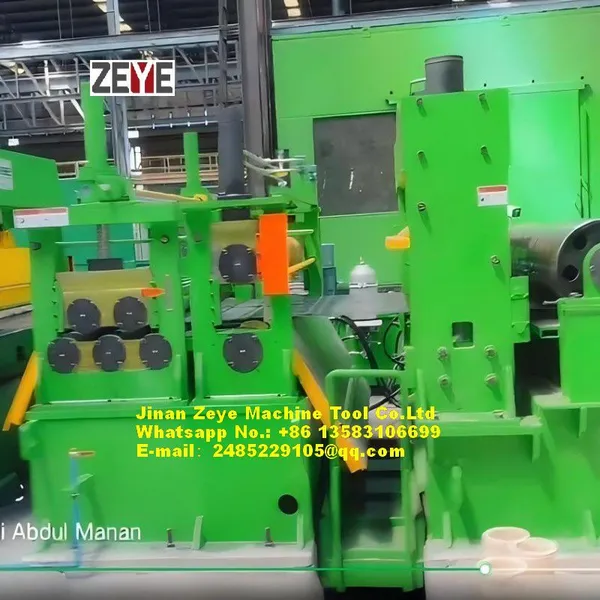

Help Center0.2–3mm Stainless Steel Slitter Slitting Line Machine With Zero Mark Thin Plate Processing Solution
Product Spotlights
Heavy Duty Stable Frame Thin Gauge Slitting Line | No Vibration At Max Speed
One-Stop Thin Coil Uncoil-Slit-Rewind Production Line Full Set Supply
Low Maintenance Design Thin Metal Slitting Machine | Reduce Daily Upkeep Cost
Fast Delivery Thin Plate Slitting Line Manufacturer | 100 Days Rush Order Support
Global After-Sales Service Thin Coil Slitter | 48 Hours Overseas Technical Support
Related Products
-

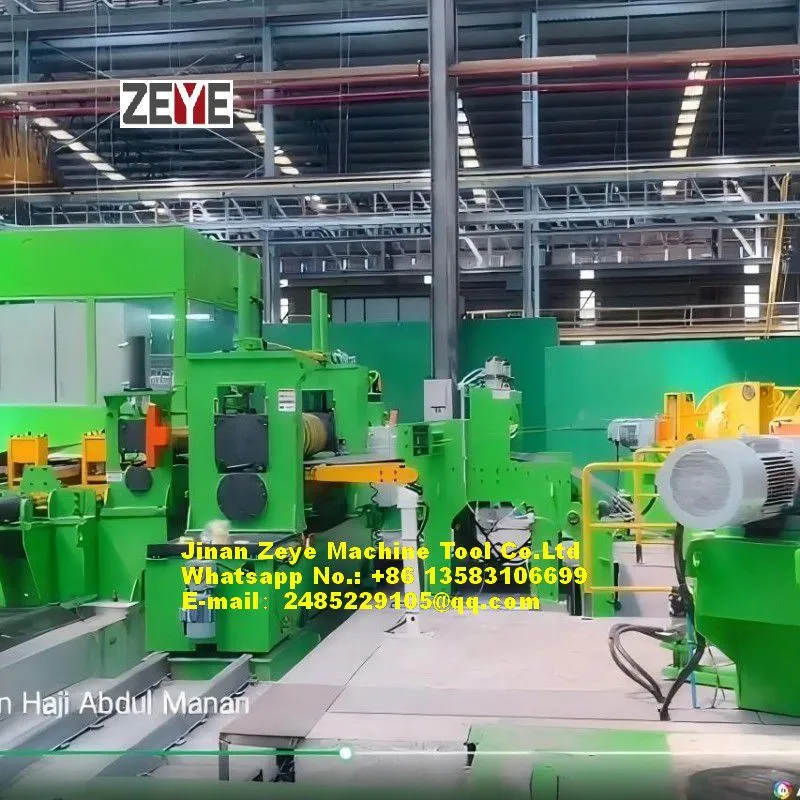

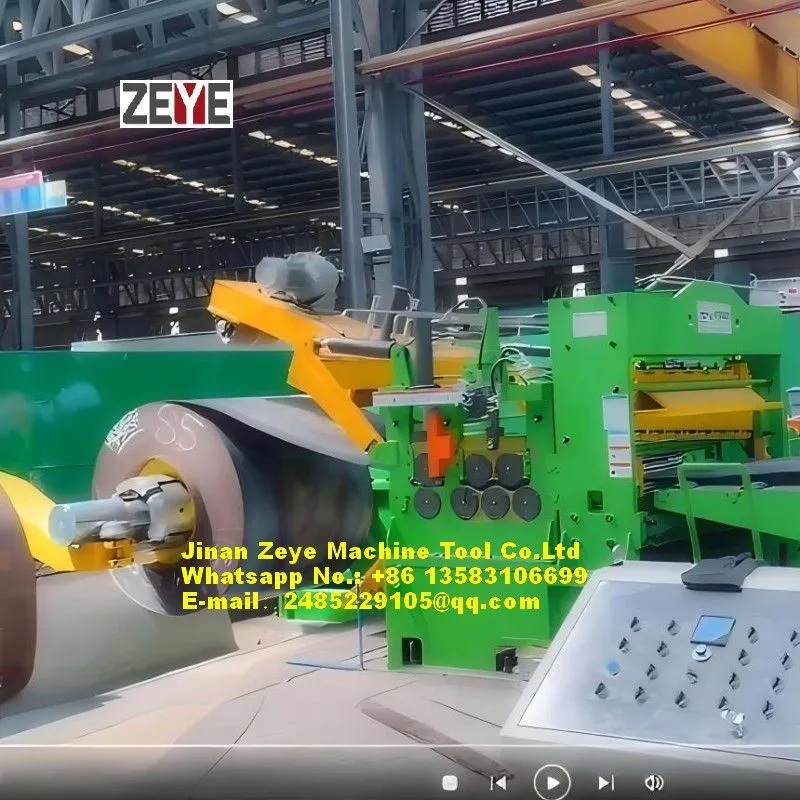

Overseas Customer Site Visit: ZEYE Stable Running Ultra-Thin Cold Rolled Steel Slitting Line, for Malaysia CustomerUS$ 100000MOQ: 1 Set -
Customized Fine Precision Slitting Line Cut to Length for Pipe MillUS$ 10 - 10MOQ: 1 Piece
-
Hydraulic Steel Slitting Line for Pipe Mill ZSL-2X1600US$ 10 - 10MOQ: 1 Piece
-
Customized Fine Precision Slitting Line ZSL-4X1800US$ 10 - 10MOQ: 1 Piece
-
Steel Slitting Line Straightening Machine ZSL-5X1800US$ 10 - 10MOQ: 1 Piece
Jinan Zeye Machine Tool Co.,Ltd
Cell & Whatsapp no.:+86 13583106699
E-mail: 2485229105@qq.com
Website:
Jinan Zeye Machine Tool Co.,Ltd, Supply good quality steel coil slitting machine and cut to length line.
If you need cutter machine, please contact me directly.
Welcome you visit our company!
ZeYe specializes in the R&D and manufacturing of metal coil processing equipment, including Cut-to-Length Lines, Slitting Lines, Rotary Shears, Moving Shears, Combined Slitting & Cut-to-Length Production Lines, Slitting & Recoiling Lines, Cut-to-Length Compound Lines, and Leveling Machines.
To date, our production lines have been exported to over 30 countries and regions across the globe, including Australia, Mexico, France, Italy, Russia, India, Brazil, South Korea, Ukraine, Vietnam, the Philippines, Uzbekistan, Algeria, Ethiopia, Thailand, the UAE, Sudan, Myanmar, and the Republic of the Congo.
We warmly welcome you to visit our factory!
The following are slitting line details.
Model |
ZSL-1 |
ZSL-2 |
ZSL-3 |
ZSL-4 |
Material thickness |
0.15-1.0mm |
0.2-2.0 mm |
0.3-3.0 mm |
0.5-4.0 mm |
Material width |
300-1250 mm |
300-1600 mm |
300-1800 mm |
300-2000 mm |
Slitting quantity |
35 |
35 |
35 |
25 |
Width accuracy |
±0.05 mm |
±0.05 mm |
±0.10 mm |
±0.10 mm |
Cutting burr |
||||
Winding split level floor |
||||
Line speed |
200 m/min |
200 m/min |
180 m/min |
150 m/min |
Coil weight |
10,15 t |
10,15,20 t |
15,20,25 t |
20,25,30 t |
Famous Hot Rolled Galvanized/Carbon/Mild Steel/ Stainless/Aluminum Steel Ctl Line Slitter Slitting Machine Line
Model |
ZSL-6 |
ZSL-8 |
ZSL-12 |
ZSL-16 |
ZSL-20/25 |
Material thickness |
1.5-6.0mm |
2.0-8.0 mm |
3.0-12 mm |
4.0-16.0 mm |
6.0-20/25 mm |
Material width |
300-1600 mm |
300-1800 mm |
300-2000 mm |
300-2000 mm |
300-2200 mm |
Slitting quantity |
30 |
25 |
25 |
20 |
20 |
Width accuracy |
±0.10 mm |
±0.10 mm |
±0.20 mm |
±0.20 mm |
±0.20 mm |
Cutting burr |
|||||
Winding split level floor |
|||||
Line speed |
120 m/min |
100 m/min |
80 m/min |
60 m/min |
60 m/min |
Coil weight |
20,30 t |
20,30 t |
20,35 t |
20,35 t |
20,35 t |
Feed Processing Machinery for Hot Rolled Metal Coil Slitting Line
High Speed Stainless Steel Coil Decoiler Machine, China Manufacturer
ZEYE slitting line advantage,
1. Heavy-duty vertical press roller device, suppress thick strip jumping to ensure straight cutting path
2. High-power main servo motor with strong torque reserve, adapt to intermittent heavy cutting working conditions
3. Reinforced deviation correction frame with thick guide rollers, correct offset of rigid thick steel strips efficiently
4. Detachable heavy material support platform, convenient for manual feeding of extra thick steel plates
5. Thickened safety protective cover with reinforced steel plate, anti-impact for heavy plate production workshop
6. Heavy-duty hydraulic turnover trolley for coil loading/unloading, reduce labor intensity for thick coil handling
