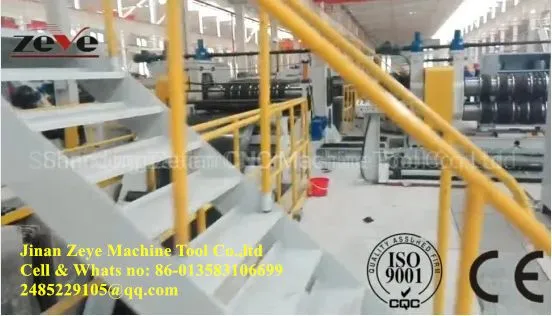

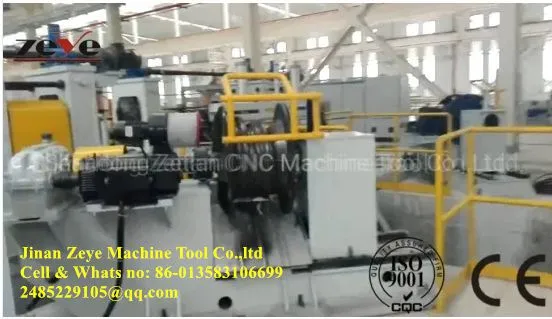

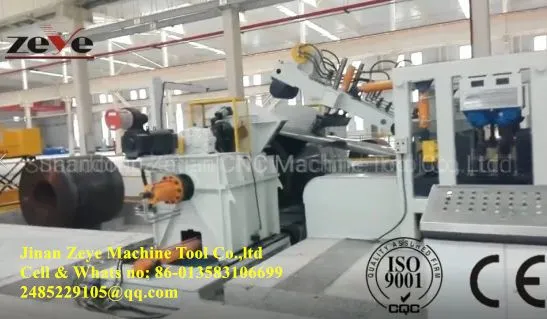

Help CenterEuropean Client Customized High Precision Thin Gauge Metal Slitting Line
Product Spotlights
Burr-free smooth cutting edges, Servo closed-loop constant tension control, no wrinkling, shifting or coil collapse during recoiling
Automatic hydraulic centering & deviation correction system to avoid strip deviation loss
Wide material compatibility: CR/HR steel, galvanized, stainless, aluminum, color coated coils
Over thickness range from 0.1mm thin gauge to 25mm heavy plate with customized configuration
Related Products
-
High-yield Thick Carbon Steel ZEYE Metal Slitting Line,Fast Delivery Think Plate Slitting Line Manufacturer-30 Days Rush Order SupportUS$ 80000MOQ: 1 Set -
Heavy-duty Hydraulic Metal Slitting Line, One-Stop Thin Coil Uncoil-Slit-Rewind Production Line Full Set SupplyUS$ 80000MOQ: 1 Set
-
Hot Rolled Steel Cold Slitting Line ZSL-5X1650US$ 10 - 10MOQ: 1 Piece
-
Steel Coil Slitting Line Straightening Machine ZSL-8X1850US$ 10 - 10MOQ: 1 Piece
-
Hot Rolled Steel Coil Slitting Line ZSL-10X2000US$ 10 - 10MOQ: 1 Piece
Product Description
Model |
ZSL-6 |
ZSL-8 |
ZSL-12 |
ZSL-16 |
ZSL-20/25 |
Material thickness |
1.5-6.0mm |
2.0-8.0 mm |
3.0-12 mm |
4.0-16.0 mm |
6.0-20/25 mm |
Material width |
300-1600 mm |
300-1800 mm |
300-2000 mm |
300-2000 mm |
300-2200 mm |
Slitting quantity |
30 |
25 |
25 |
20 |
20 |
Width accuracy |
±0.10 mm |
±0.10 mm |
±0.20 mm |
±0.20 mm |
±0.20 mm |
Cutting burr |
|||||
Winding split level floor |
|||||
Line speed |
120 m/min |
100 m/min |
80 m/min |
60 m/min |
60 m/min |
Coil weight |
20,30 t |
20,30 t |
20,35 t |
20,35 t |
20,35 t |
Model |
ZSL-1 |
ZSL-2 |
ZSL-3 |
ZSL-4 |
Material thickness |
0.15-1.0mm |
0.2-2.0 mm |
0.3-3.0 mm |
0.5-4.0 mm |
Material width |
300-1250 mm |
300-1600 mm |
300-1800 mm |
300-2000 mm |
Slitting quantity |
35 |
35 |
35 |
25 |
Width accuracy |
±0.05 mm |
±0.05 mm |
±0.10 mm |
±0.10 mm |
Cutting burr |
||||
Winding split level floor |
||||
Line speed |
200 m/min |
200 m/min |
180 m/min |
150 m/min |
Coil weight |
10,15 t |
10,15,20 t |
15,20,25 t |
20,25,30 t |

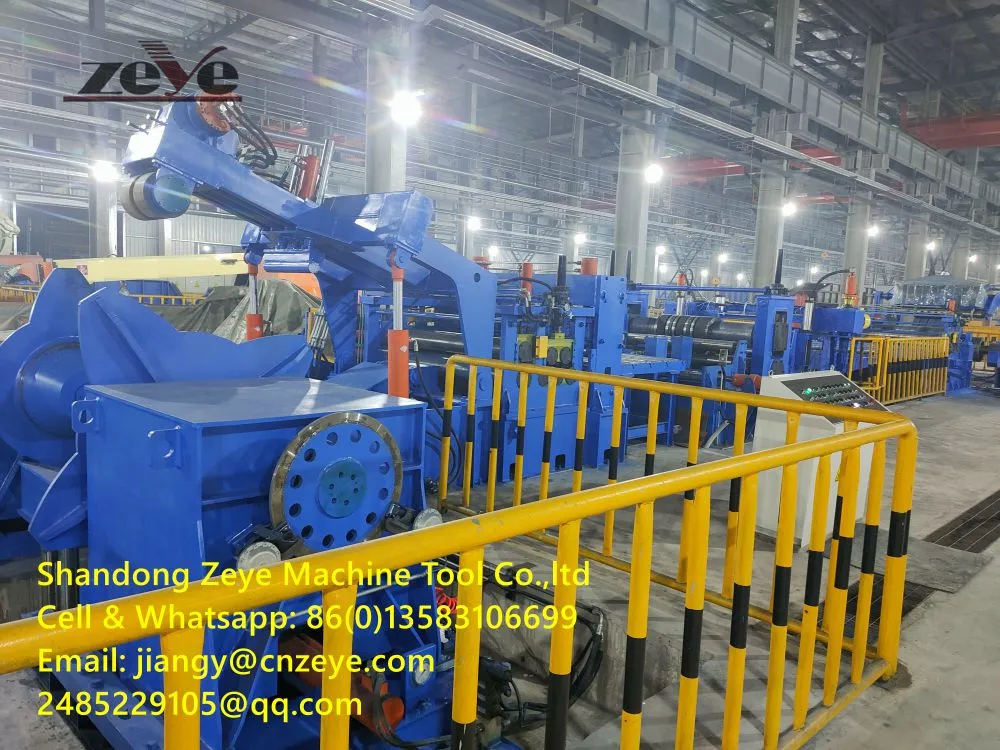

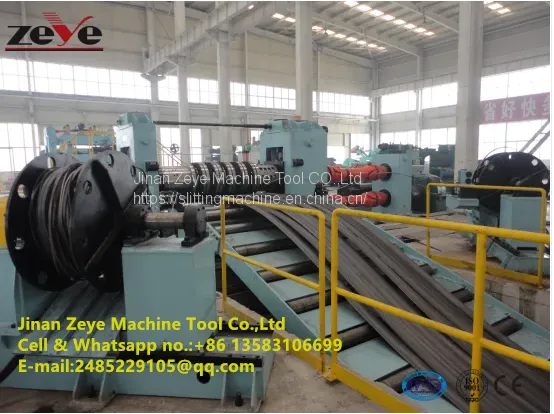

Slitting line ZSL series
Slitting line is mainly used for metail coil shear recoiling process from decoiling,feeding, head shear, loop, slitting to recoiling.
Its function is to shear wide metal coil longitudinlly into narrow coils, many kinds of material are availble to shear, such as,
cold rolled plate, electrolytic galvanized plate, hot dip galvanized plate, color-coated plate, stainless steel plate, aluminum plate, cooper plate etc.
Main Units
1.Entry coil car,

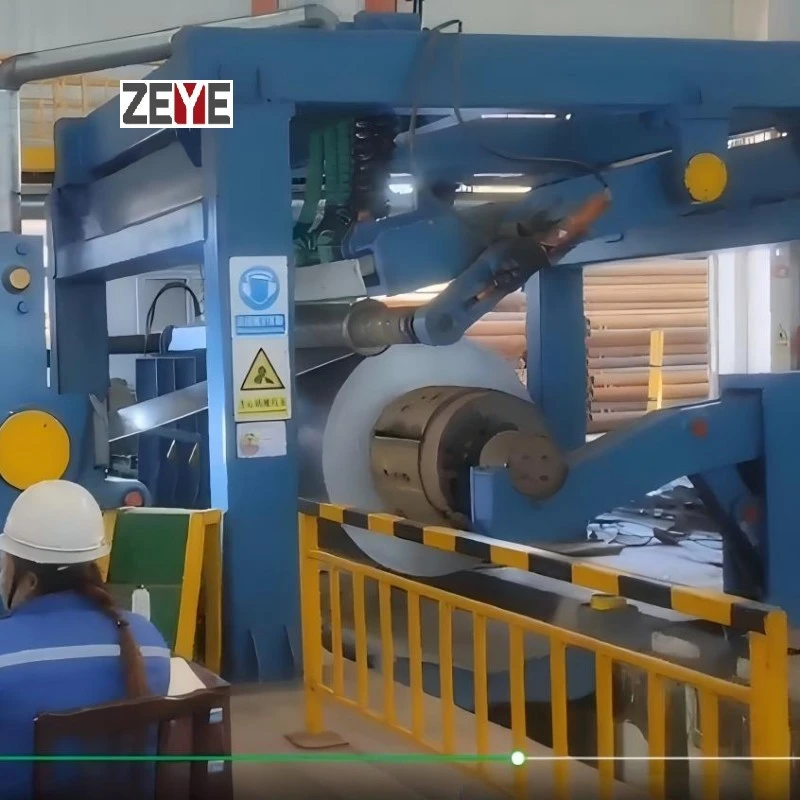

2.Uncoiler,
3.Feeding device,
4. Hydraulic head shear,
5.Looper,
6.Slitter machine,
7.Scrap winder,
8.Looper,
9.Tension device,
10.Hydraulic shear,
11.Recoiler
12.Exit coil car.
Slitting Line advantage
1. Energy regenerative servo drive system, reduce overall power consumption by over 20%
2. Low vibration optimized transmission structure, stable running with ultra-low failure rate
3. Adjustable knife clearance & overlap automatically via CNC, no manual repeated calibration
4. Support simultaneous multi-strip slitting, up to 60 narrow strips in one single coil pass
5. Neat tight finished coil winding with uniform density, convenient for storage & downstream processing
6. Independent hydraulic uncoiler with large bearing capacity, support heavy coil weight up to 35 tons
7. Built-in leveling unit to eliminate coil camber, guarantee flat raw material before slitting
8. Compact layout design, save factory floor space with complete integrated functions
9. All core spare parts adopt international famous brand, stable performance and easy procurement
10. Humanized operation interface, new operators master operation within 1 hour without complex training
11. Low maintenance cost, quick disassembly structure for daily inspection and lubrication
12. Customizable line width, speed and auxiliary functions according to customer factory demands
13. Compatible with upstream coating line and downstream packaging line for full automatic workshop linkage
14. Strict factory pre-assembly & full running test before delivery, reduce on-site installation trouble
15. Synchronized uncoiling, leveling, slitting and recoiling for seamless continuous production
