Since 1998, Anping County Boli Hardware Wiremesh Products Factory has been a trusted manufacturer of industrial filtration solutions. Our Wedge Filter Johnson Filter is crafted from premium 304 Stainless Steel, designed to deliver exceptional durability and precise filtration in demanding environments. As a factory with annual export value exceeding US$5 million and serving markets across North America, South America, Europe, Asia, and Africa, we combine decades of expertise with modern manufacturing to offer you a product that balances performance and cost. Each filter comes with free technical support and a replacement guarantee, ensuring your investment is protected.

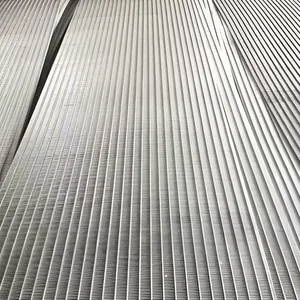

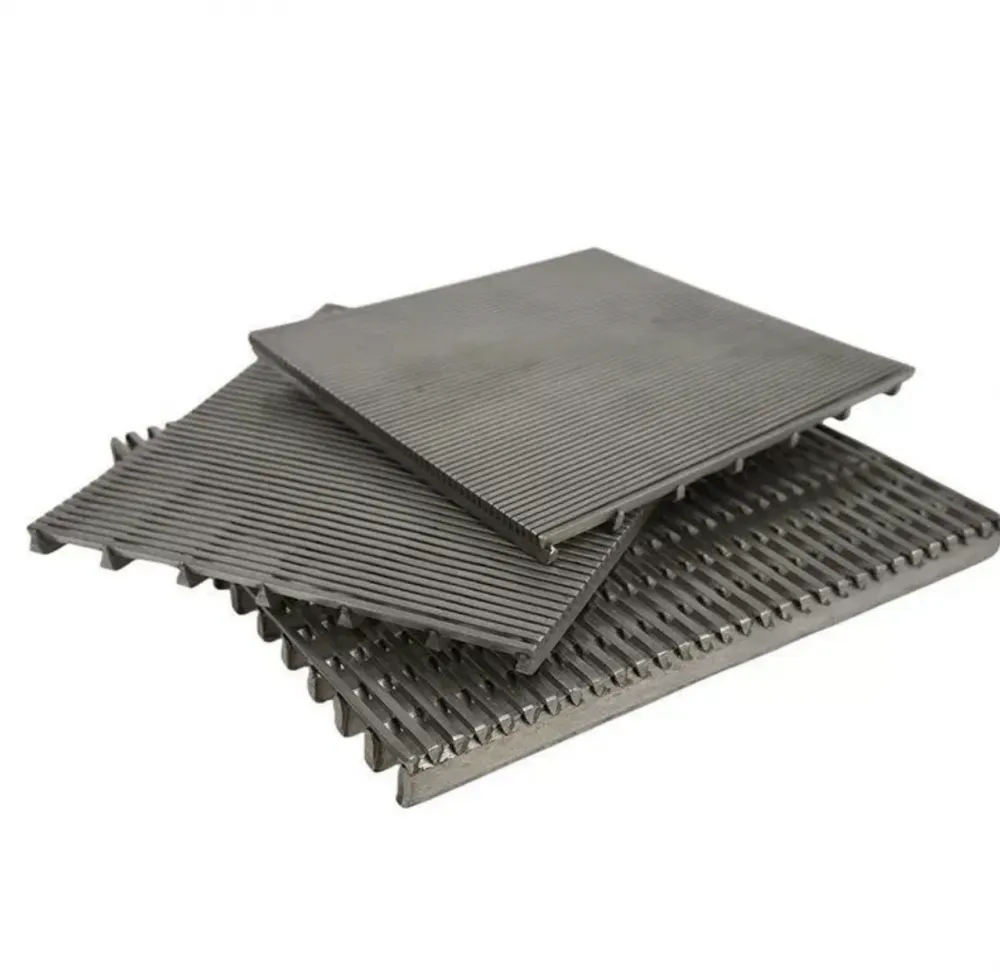

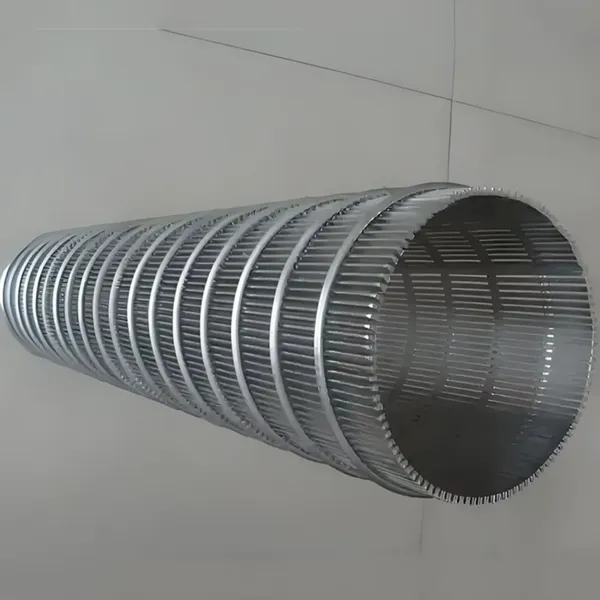

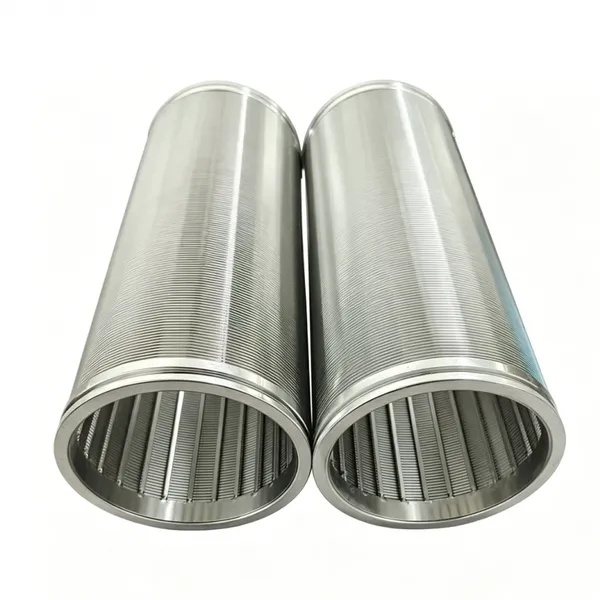

This wedge wire filter, also known as a Johnson screen, features a unique V-shaped wire profile wound around support rods. The slot opening is precisely controlled to allow efficient backwashing and prevent clogging, making it ideal for solid-liquid separation, water treatment, oil filtration, and chemical processing. The 304 stainless steel construction provides excellent corrosion resistance, making it suitable for both fresh and seawater applications.
Key Features & Technical Specifications
- High Slot Accuracy: Slot sizes from 0.1mm to 10mm, with ±0.05mm tolerance, ensuring consistent filtration efficiency.
- V-Shaped Wire Profile: Self-cleaning design minimizes clogging and allows easy backwashing.
- Continuous Slot Construction: No dead zones, maximizing open area and flow capacity.
- 304 Stainless Steel: Excellent corrosion resistance against water, mild chemicals, and oils.
- Customizable Dimensions: Diameter from 25mm to 500mm, length up to 6000mm, with various connection types (threaded, flanged, or welded).

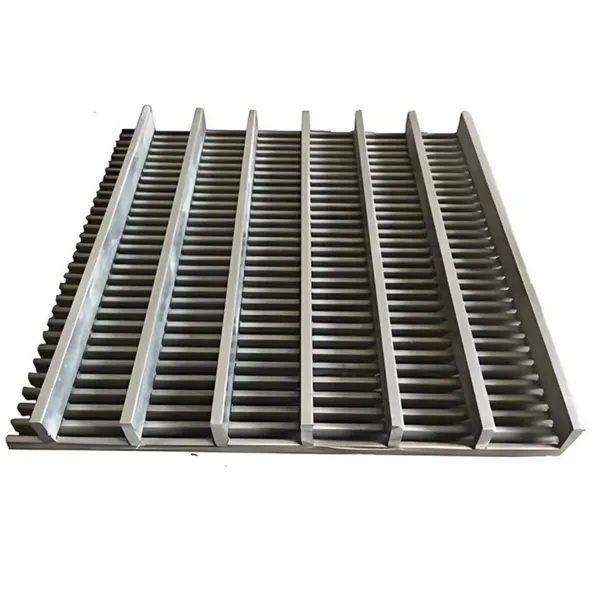

- Reinforced Support: Longitudinal rods or perforated tube inner support for high pressure resistance.
- Optional Surface Finish: Pickling, passivation, or electropolishing for enhanced durability and hygiene.
| Material | 304 Stainless Steel |
| Slot Size Range | 0.1 mm – 10 mm |
| Outer Diameter | 25 mm – 500 mm |
| Length | Up to 6000 mm |
| Max Operating Temperature | 400°C (depending on environment) |
| Connection Type | Threaded / Flanged / Welded (customizable) |
| Support Structure | Longitudinal rods or perforated tube |
Benefits to Your Business
- Reduced Downtime: The self-cleaning design and efficient backwashing capability minimize maintenance frequency.
- Consistent Filtration: Precision slot control ensures stable particle removal, improving final product quality.
- Long Service Life: 304 stainless steel resists corrosion and abrasion, offering years of reliable performance.
- Custom Fit: We tailor dimensions, slot size, and connection type to your existing system – no need for adapters or modifications.
- Cost-Effective: Factory-direct pricing eliminates middlemen, and our replacement guarantee protects your investment.
Our factory in Hengshui, Hebei, China, has been delivering wedge wire filters to global clients since 1998. With an annual export value of US$5–10 million, we serve industries ranging from water treatment to oil refining. We ship from major ports (Tianjin, Qingdao, Shanghai, Foshan) and offer flexible logistics. Every order includes free technical support – our engineers help you select the right slot size, connection, and installation method. If you encounter any quality issues within the warranty period, we provide a free replacement without hassle.
Choose a partner who stands behind their product. Contact us today for a quote or sample to test in your application. Join hundreds of satisfied customers across North America, South America, Europe, Asia, Africa, and Oceania who rely on Anping Boli for durable, high-performance wedge wire filters.
Frequently Asked Questions
-
What is the difference between a wedge wire filter and a Johnson screen?
They are essentially the same product. “Johnson screen” is a brand name that became a generic term for wedge wire screens used in well screens and industrial filters. Our wedge filter uses the same continuous V-wire winding technology. -
Can I use this filter for drinking water?
Yes, 304 stainless steel is food-grade and safe for potable water applications. We can also provide electropolished surface finish for enhanced hygiene. -
What slot size should I choose for my application?
It depends on your particle size and flow rate. Our technical support team can recommend the optimal slot size based on your specific requirements. Common ranges: 0.2–0.5mm for fine filtration, 1–5mm for coarse screening. -
How do I clean the filter?
Backwashing is the most effective method. The V-shaped slot design allows particles to be easily flushed out. For severe fouling, chemical cleaning or ultrasonic cleaning can be used. -
What is the maximum pressure this filter can withstand?
Pressure rating depends on diameter, wall thickness, and support structure. Typically, our filters handle up to 10 bar (150 psi) for standard designs. For high-pressure applications, we can reinforce the inner support. -
Do you offer samples before bulk order?
Yes, we provide sample filters for testing. Sample cost is reasonable, and we can deduct it from your first bulk order. Contact our sales team for details. -
How long is the replacement guarantee?
We offer a free replacement guarantee for manufacturing defects within 12 months from the date of shipment. Technical support is available for the entire service life of the product. -
Can you customize the connection type?
Absolutely. We can weld threaded couplings, flanges (ANSI, DIN, JIS), or provide plain ends for welding. Just let us know your system requirements.
