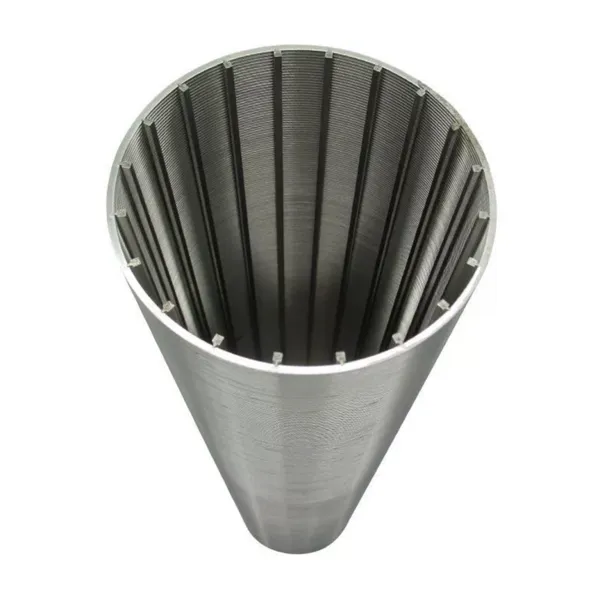

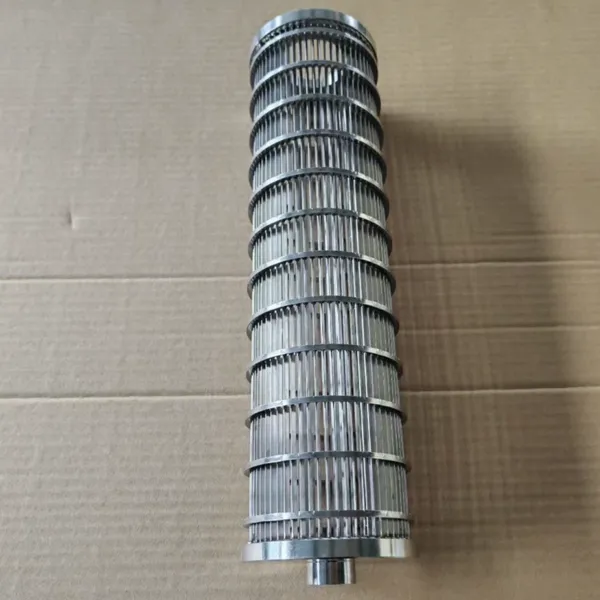

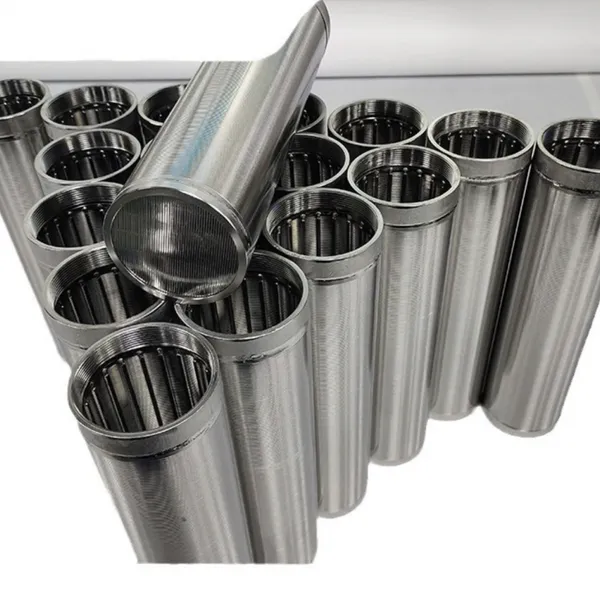

Johnson Wedge Wire Filter, 316L Stainless Steel, Standard Compliant, 2-Year Warranty
Product Spotlights
Johnson Wedge Wire Filter made of 316L stainless steel offers precision slot filtration, high mechanical strength, and corrosion resistance. Customizable dimensions, easy backwashing, and compliance with industry standards. Backed by 2-year warranty from a manufacturer with 20+ years of experience and $5-10M annual exports.
US$ 3
1 - 9 Unit
US$ 2.9
10 - 99 Unit
US$ 2.8
≥100 Unit
Key Specifications
Get Latest Price
Material:
Other, 316L Stainless Steel
Slot Width:
0.1mm - 10mm (customizable)
Outer Diameter:
20mm - 500mm (customizable)
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin shanghai qingdao
Delivery Detail:
1 days
Related Products
-
316L Stainless Steel Johnson Filter, 0.5mm Opening, 2" Flange, 10 Bar PressureUS$ 2.8 - 3MOQ: 1 Unit -
Stainless Steel Wedge Filter for Municipal Water Treatment, 0.5mm Slot, 304SSUS$ 2.8 - 3MOQ: 1 Unit
-
Stainless Steel Wedge Filter, 304 Material, 1-Year Warranty, Mill Test Report IncludedUS$ 2.8 - 3MOQ: 1 Unit
-
Stainless Steel Wedge Filter, 0.1mm Slot Width, 1" BSP Thread, 304 MaterialUS$ 2.8 - 3MOQ: 1 Unit
-
Stainless Steel Wedge Filter, 0.8mm Slot, 3/4" NPT, 20 Inch Length, 316SSUS$ 2.8 - 3MOQ: 1 Unit
Material
Other, 316L Stainless Steel
Slot Width
0.1mm - 10mm (customizable)
Outer Diameter
20mm - 500mm (customizable)
Length
50mm - 3000mm (customizable)
Connection Type
Threaded, Flanged, Welded (optional)
Application
Water treatment, Oil & gas, Food processing, Mining
Standard Compliance
Industry standard compliant
Warranty
2 Years
Welcome to Anping County Boli Hardware Wiremesh Products Factory – a trusted manufacturer since 1998, specializing in high-quality wire mesh and filtration solutions. Our Johnson Wedge Wire Filter, crafted from premium 316L stainless steel, delivers exceptional durability, precision filtration, and long service life. Designed to meet rigorous industry standards, this filter is backed by a 2-year warranty, ensuring your investment is protected. Whether for water treatment, oil & gas, or food processing, our product offers reliable performance under demanding conditions.
Key Features & Technical Advantages
- Superior Material: 316L stainless steel provides excellent corrosion resistance, high strength, and suitability for harsh environments, including acidic and alkaline media.
- Precision Wedge Wire Construction: The V-shaped profile wire wound around support rods creates a continuous slot that minimizes clogging, allows easy backwashing, and ensures uniform filtration.
- High Mechanical Strength: Robust welded structure withstands high pressure, vibration, and thermal stress, making it ideal for deep well screens, intake systems, and industrial filters.
- Customizable Dimensions: Outer diameter from 20mm to 500mm, length up to 3000mm, slot width from 0.1mm to 10mm – tailored to your specific application requirements.
- Standard Compliance & Quality Control: Manufactured in accordance with industry norms, each filter undergoes strict inspection to ensure dimensional accuracy and slot uniformity.
- Easy Maintenance & Long Lifespan: Smooth surface and self-cleaning design reduce downtime. The 2-year warranty reflects our confidence in product reliability.
Technical Specifications (Typical)
| Parameter | Value |
|---|---|
| Material | 316L Stainless Steel (also available in 304, 904L, duplex) |
| Slot Width | 0.1 mm – 10 mm (customizable) |
| Outer Diameter | 20 mm – 500 mm (customizable) |
| Length | 50 mm – 3000 mm (customizable) |
| Connection Type | Threaded (NPT/BSP), Flanged, Welded, or as per request |
| Operating Temperature | Up to 400°C (depending on seal and media) |
| Warranty | 2 Years |
Benefits for Your Application
- Water & Wastewater Treatment: Efficiently remove sand, silt, and debris in well screens, intake filters, and treatment systems.
- Oil & Gas Industry: Withstand high pressure and corrosive fluids for downhole filters, pipeline strainers, and refinery separators.
- Food & Beverage Processing: Meet hygienic requirements with smooth, easy-to-clean surfaces; 316L resists acids and cleaning agents.
- Mining & Mineral Processing: Handle abrasive slurries and large flow rates with minimal maintenance.
- Chemical & Pharmaceutical: Provide precise particle separation and catalyst retention in reactors and columns.
Why Choose Us?
Since 1998, Anping County Boli Hardware Wiremesh Products Factory has been a reliable manufacturer of wire mesh products. With an annual export value of US$5 million to US$10 million, we serve clients across North America, South America, Europe, Asia, Africa, and Oceania. Our products are shipped from major ports including Tianjin, Qingdao, Shanghai, and Foshan. We combine over two decades of experience with rigorous quality control to deliver filters that meet your exact specifications. The 2-year warranty is our commitment to your satisfaction. Contact us today to discuss your requirements or request a custom quote. Let our expertise work for you!
Frequently Asked Questions (FAQ)
-
Q: What is the difference between wedge wire and wire mesh filters?
A: Wedge wire filters use a continuous V-shaped wire wound around support rods, creating a slot that is less prone to clogging and allows backwashing. Wire mesh filters are woven, which can trap particles more easily but may require more frequent cleaning. -
Q: Can you provide filters with custom slot widths and dimensions?
A: Yes, we offer full customization. Slot width can be from 0.1mm to 10mm, outer diameter from 20mm to 500mm, and length up to 3000mm. Please provide your specifications for a quotation. -
Q: Is 316L stainless steel suitable for seawater applications?
A: Yes, 316L has excellent resistance to chloride-induced corrosion, making it a common choice for seawater intake screens and desalination plants. -
Q: What connection types are available?
A: We offer threaded (NPT/BSP), flanged, and welded connections. Other custom connection types are available upon request. -
Q: How do I clean the wedge wire filter?
A: The filter can be cleaned by backwashing, chemical cleaning, or mechanical brushing. The smooth surface and non-clogging slot design make maintenance easy. -
Q: Do you provide samples before bulk order?
A: Yes, we can produce samples for your testing and approval. The cost of samples is negotiable, and we can expedite delivery. -
Q: What is the warranty period?
A: All our Johnson wedge wire filters come with a standard 2-year warranty against manufacturing defects. Extended warranty options are available upon request. -
Q: How long does delivery take?
A: Typical lead time is 15-30 days depending on quantity and customization. We ship from Tianjin, Qingdao, Shanghai, or Foshan, and can arrange express delivery for urgent orders.
