1. Product Overview
Aluminum sheets used in power batteries and energy storage modules will be contaminated with cutting oil, stretching oil, tiny aluminum scraps and dust after stamping and cutting. Residues will cause laser welding pores, cold joints, increased contact resistance and aluminum oxidation.

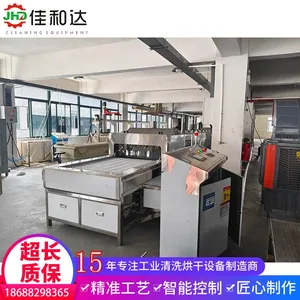

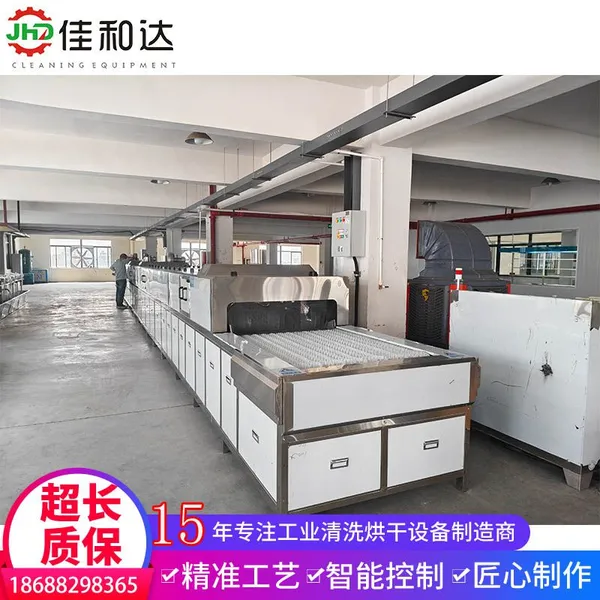

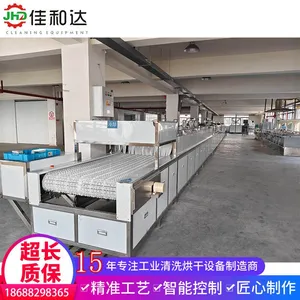

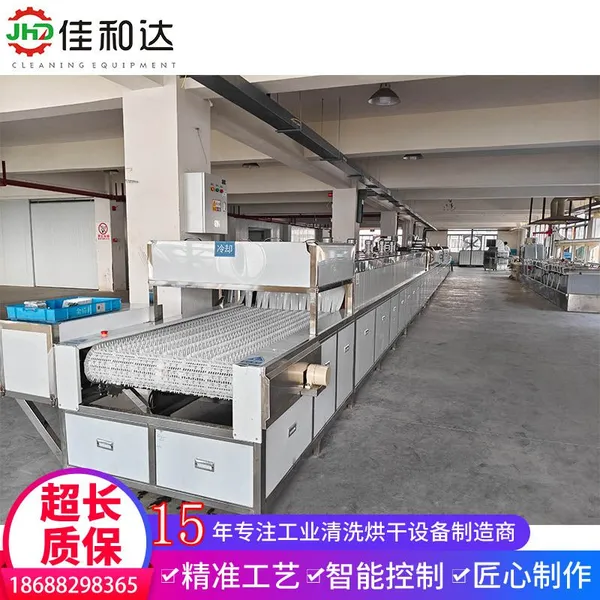

Our through-type ultrasonic cleaning & drying production line is specially developed for new energy aluminum sheets, suitable for continuous mass production of conductive aluminum sheets, liquid cooling plates and heat dissipation aluminum plates. Widely supplied to lithium battery component factories, energy storage PACK manufacturers and new energy thermal management enterprises.
2. Standard Process Flow
Loading → Ultrasonic Main Cleaning (Degreasing & Removing Aluminum Chips) → High-pressure Spray Rinsing → Primary Pure Water Rinsing → DI Water Fine Rinsing → Air Knife Water Removal → Constant Temperature Hot Air Drying → UnloadingContinuous mesh belt transmission, adjustable speed, no manual transfer required.
3. Core Advantages
Deep cleaning without dead cornersIndustrial ultrasonic transducers remove micro aluminum scraps and oil film on surfaces and edges. Circulating filtration system prevents secondary contamination.
Aluminum-friendly cleaningAdjustable ultrasonic power, compatible with 1060, 3003, 5052 aluminum alloy. Matched with neutral cleaning agent, no whitening, oxidation or surface pitting on aluminum sheets.
No water spots after dryingMulti-stage countercurrent pure water rinsing + segmented hot air drying, ensure dry and clean workpieces.
Improve welding yieldEliminate surface pollutants, reduce welding blowholes and poor connection.
Durable for 24-hour continuous operationThick SUS304 stainless steel tank, anti-corrosion. PLC intelligent control with multiple protection functions: over-temperature, water shortage, overload.
Non-standard customizationWe can adjust line length, mesh width, tank quantity according to aluminum sheet size, hourly output and workshop layout. Optional functions: filtration system, surface passivation, spray system.
4. Applicable Workpieces
✅ Power battery conductive aluminum sheets, bus aluminum plates✅ Energy storage heat dissipation aluminum sheets, liquid cooling plates✅ Lithium battery structural aluminum components✅ Material: 1060, 3003, 5052 aluminum alloy
5. Services We Provide
Free sample cleaning test
On-site layout planning
Machine production, loading, installation & commissioning
Operation training and long-term spare parts supply
Professional cleaning process solution support
Welcome global buyers to inquire and visit our factory!
