Product Introduction

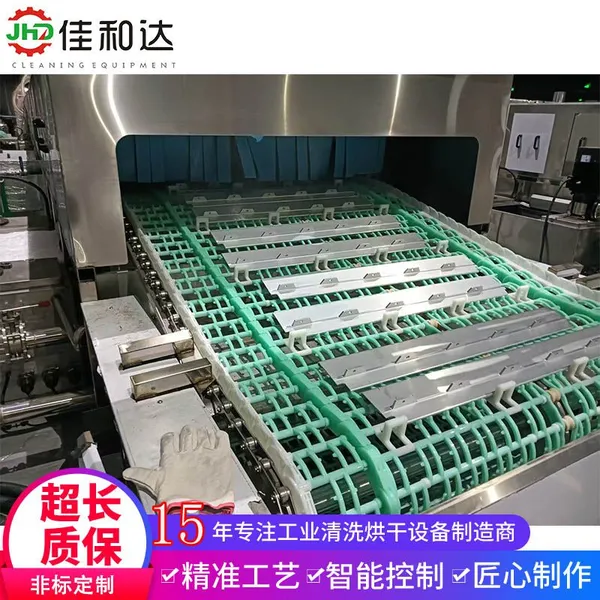

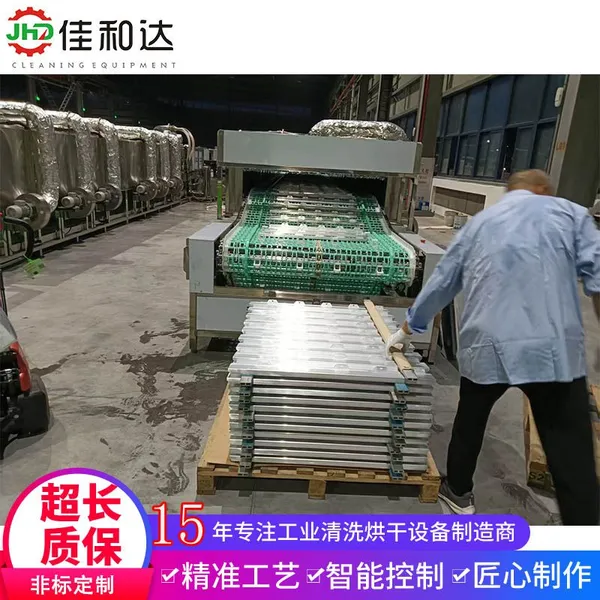

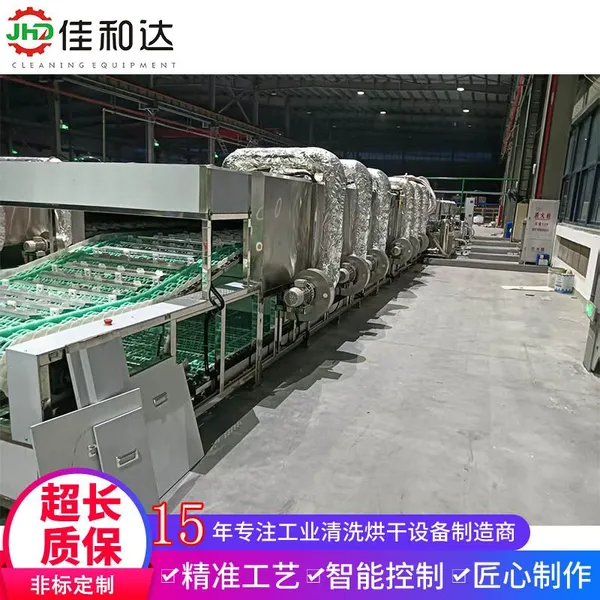

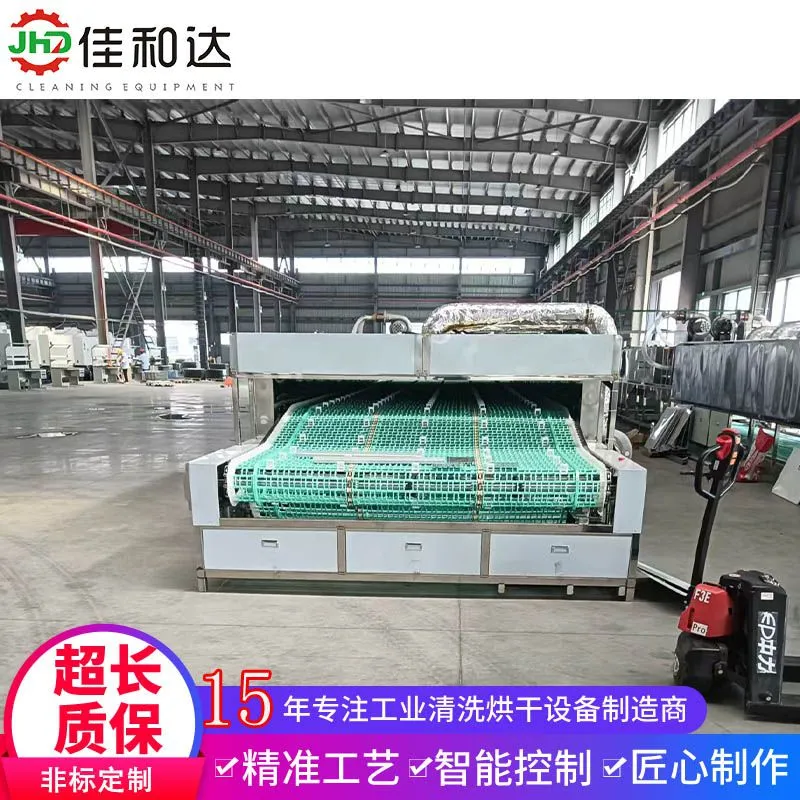

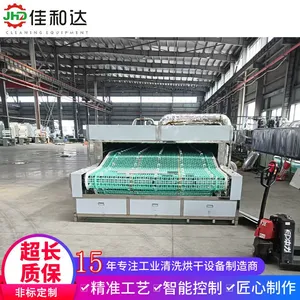

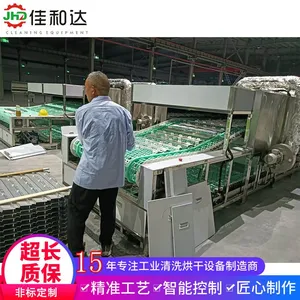

This continuous through-feed ultrasonic cleaning drying line is specially developed for new energy industry aluminum extrusions, widely used for EV battery tray, water cooling plate, new energy auto chassis aluminum profile, energy storage aluminum shell before anodizing, coating and passivation pretreatment.Whole production from feeding to finished drying is fully automatic without manual operation, realizing mass continuous production.
2. Working Flow
Loading → Pre-spray rough washing → Ultrasonic deep degreasing → Multi-stage pure water counter-flow rinsing → Air knife blow drying → Zoned circulating hot air drying → Unloading1.Pre-spray: Remove big aluminum scraps and heavy grease to reduce ultrasonic load;2.Ultrasonic cleaning: 28KHz/40KHz optional transducer, remove cutting oil, drawing oil and dust from inner cavity & gaps without damaging aluminum base material;3.Multi-stage rinsing: Pure water overflow rinsing to avoid detergent residue;4.Air knife dewatering: Blow off surface free water to prevent water mark;5.Zoned hot air drying: Insulated circulating oven, low temp drying to avoid aluminum deformation, dry output.
3. Main Configuration
1.Tank & water tank: full SUS304 stainless steel, corrosion resistant;2.Variable speed mesh belt conveyor, speed adjustable from 0.5~6m/min;3.Circulation filtration & oil-water separation system for water & detergent recycling;4.Heat insulation drying oven with separate temperature control for energy saving;5.Optional passivation tank & high-pressure spray station for full pretreatment line.
4. Advantages
1.Fully automatic mass production, greatly improve production efficiency vs immersion cleaning machine;2.High cleaning rate, stable cleanliness to meet high-standard pretreatment requirement;3.Air knife + circulating drying effectively eliminate water stain problem;4.Energy & water saving design to cut production cost;5.Complete non-standard customization according to workpiece size, workshop space and daily output.
5. Application Scope
EV battery aluminum tray, water cooling plate, energy storage aluminum casing, new energy vehicle aluminum extrusion, photovoltaic aluminum accessories, pretreatment before anodizing & painting.
6. Our Service
Factory direct supply, free workpiece cleaning test; site layout design as customer demand; factory pre-test before delivery, overseas installation & commissioning & operator training, reliable after-sales support.
