Shanghai Guangbin Bearing Factory produces SF-1 open rolled sliding bearings 1220 in Shanghai. The oil-free bearing rolled bush is designed to meet the hardness requirements of bearings. Different thicknesses of low-carbon steel or stainless steel are used as the substrate. A spherical porous copper powder layer is sintered in the middle, and a wear-resistant lubricating material mainly composed of PTFE is rolled on the surface as the working layer of the bearing. This material has excellent mechanical bearing capacity. The middle copper powder layer can not only transfer the heat generated during the operation of the bearing in time, but also improve the bonding strength between the plastic layer and the substrate. In order to prevent the bush surface from rusting and seizing, electroplating treatment is carried out, usually by copper plating, tin plating, or zinc plating. So customers can use it with confidence.
Precautions for using the bush:
When the self-lubricating flanged positioning bush open rolled bush bearing 1220 produced in Shanghai starts to operate, the contact surface between the bearing and the mating shaft is smooth enough. However, after a period of operation, the contact surface will inevitably produce slight irregularities. It is also impossible for the shaft and the bush to be completely concentric and coaxial in theory. The contact surface may form an incomplete contact situation. Therefore, it is not recommended to load the bearing at the beginning of operation to avoid damage to the bearing surface and shorten the service life of the bearing. Therefore, during the initial operation stage, the bearing should be started gradually and accelerated slowly to allow the slight irregularities on the surface to be gradually worn down, so as to make the contact surface run-in and reduce the damage to the contact surface between the bearing and the shaft.

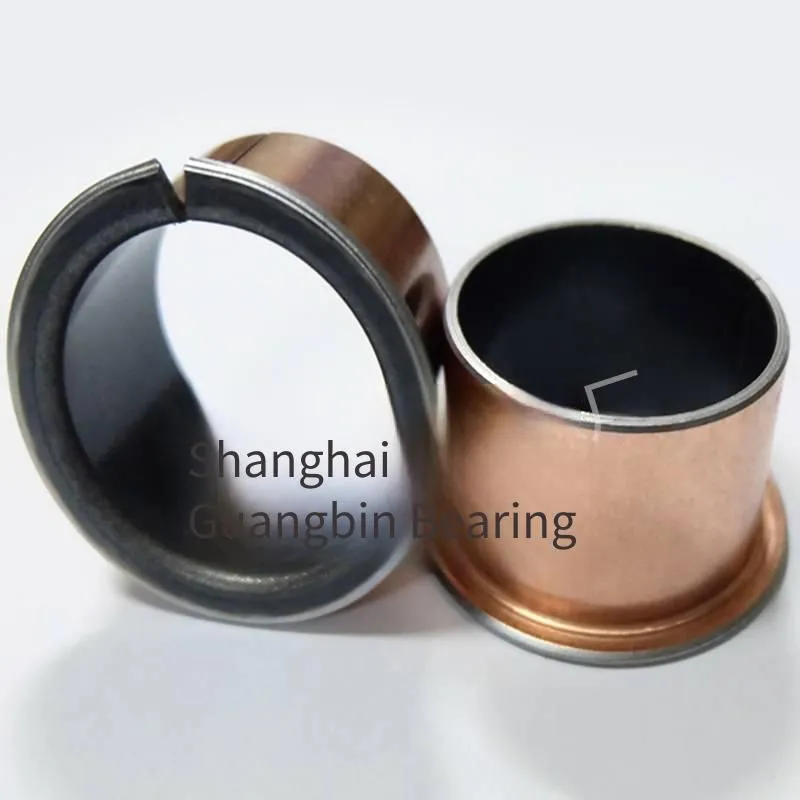

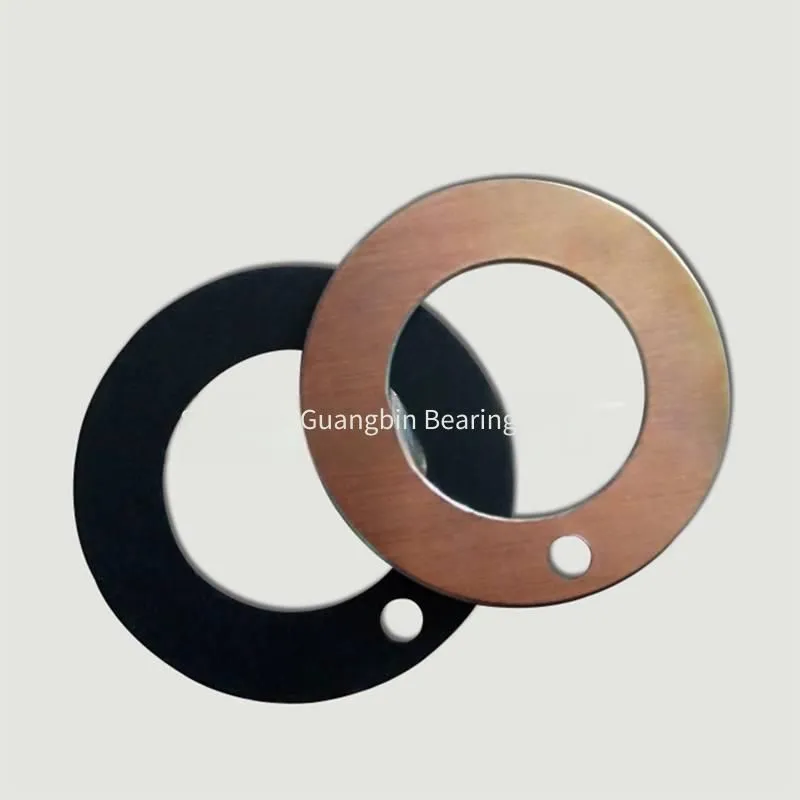

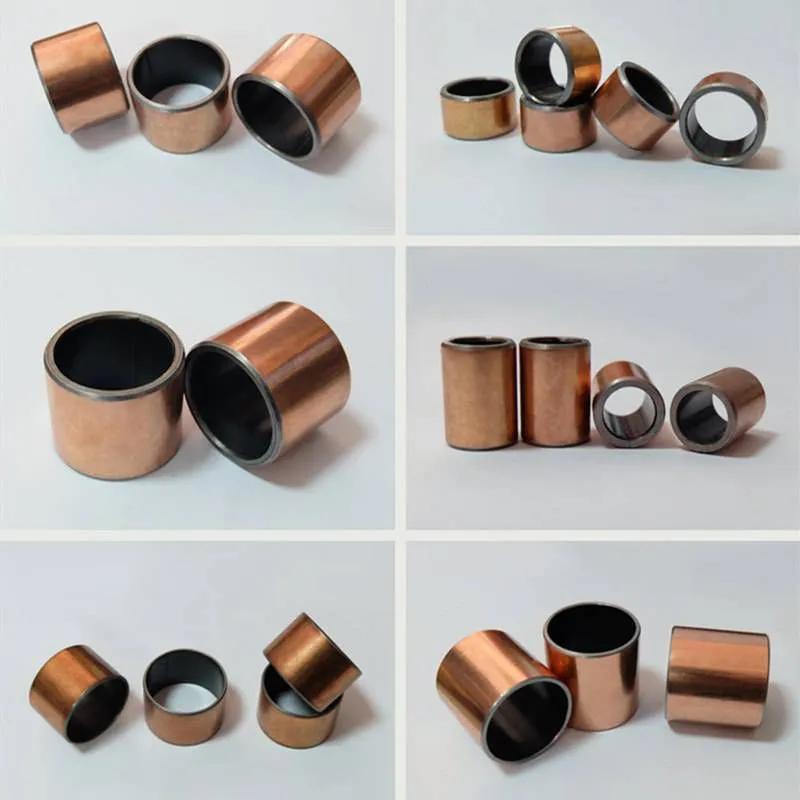

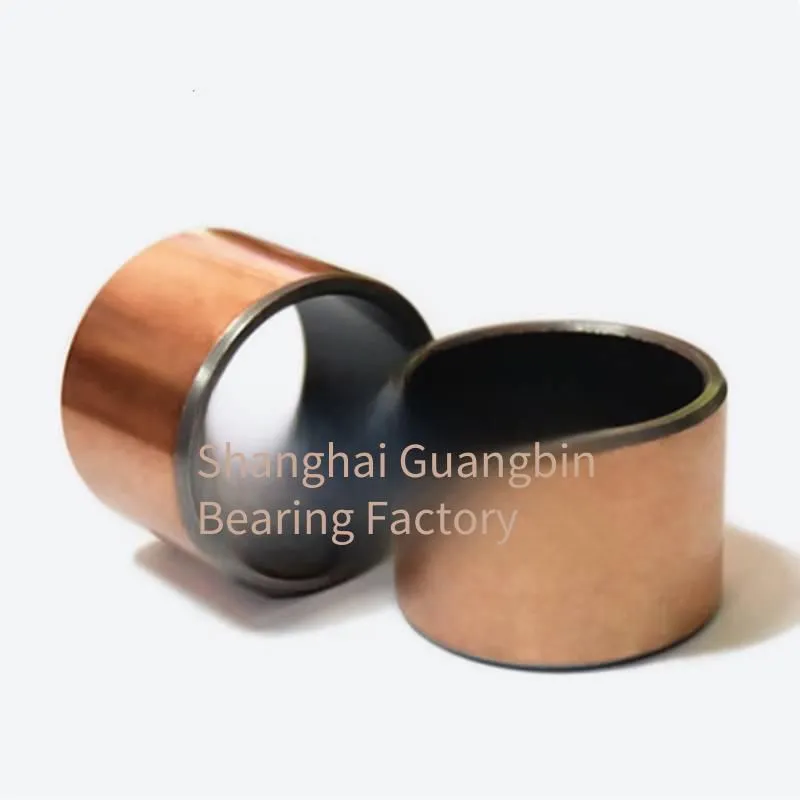

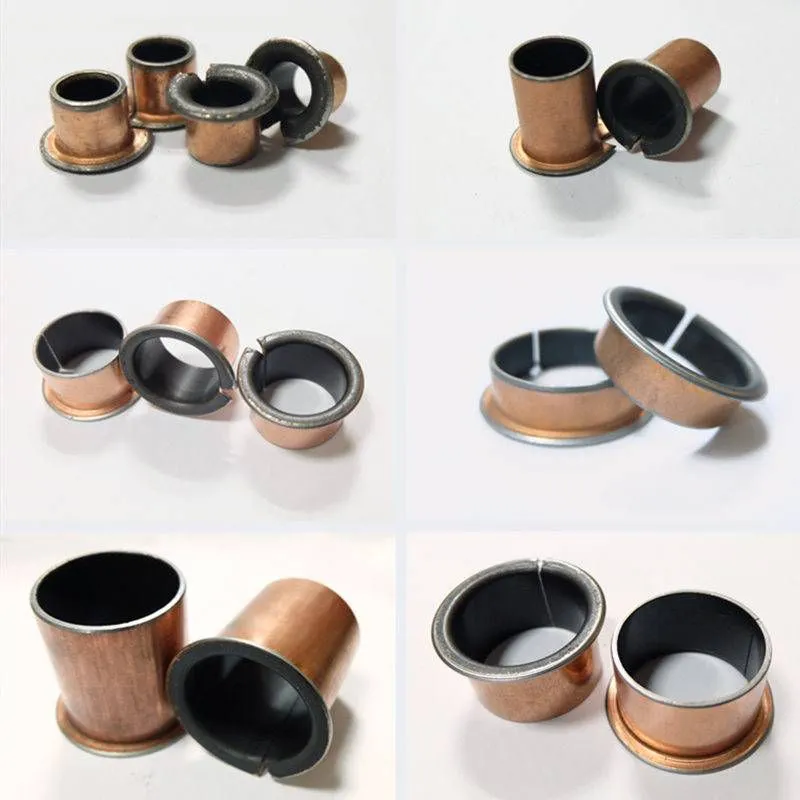

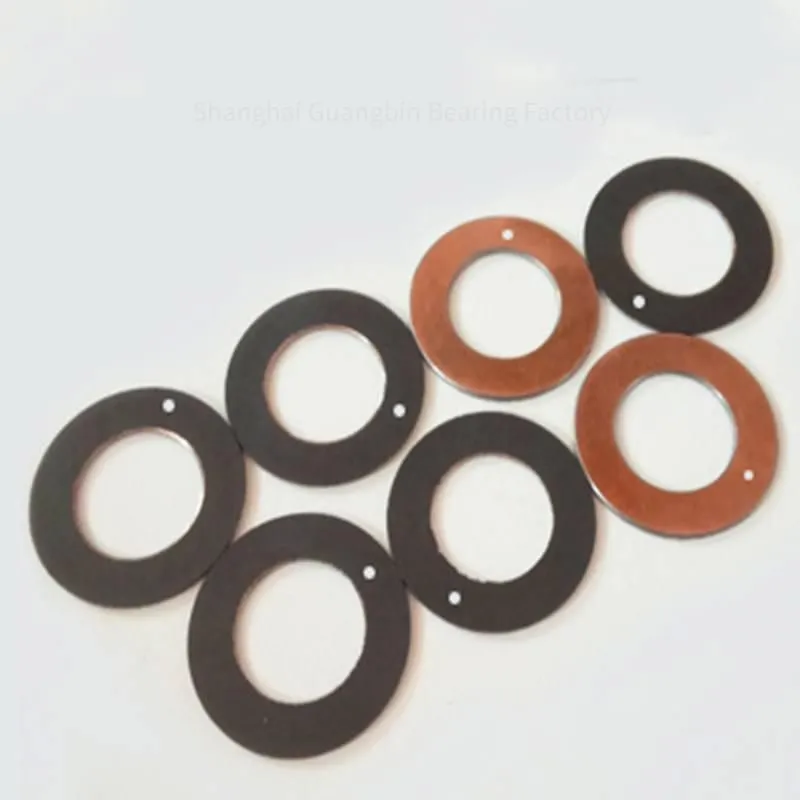

Product pictures:
Product applications:
The self-lubricating flanged bearing bush 1220 copper-plated rolled steel bush, oil-free flanged flange thrust washer, dry self-lubricating open rolled bush, PTFE composite sliding bearing, and copper-plated rolled self-lubricating steel bush products are widely used. In the automotive industry, such as door hinge bushes, trunk hinge bushes, engine hood hinge bushes. They are also widely used in gear pumps, vane pumps, shock absorbers, gearbox motor bushes, piston pump bushes, textile machine bushes, micro-motor bushes, motorcycle shock absorber bushes, food machinery bushes, printing machine bushes and other fields. At the same time, they are also favored by users in the marine industry for corrosion-resistant sliding parts.
Product packaging and storage
Shanghai produces sliding bearings, including 1420SF-1 open rolled bushing bearings, 1220 self-lubricating flanged bearing bushings, and 0812 copper-plated rolled self-lubricating steel bushings. The packaging is divided into bulk items placed in cartons and items in plastic bags placed in cartons. Bearings should be stored in a clean and moisture-proof place. Special attention should be paid to preventing the deformation of thin-walled bearings during storage. Do not store the products in high-temperature, humid environments or under direct sunlight. Avoid stacking the products too high or too heavy during storage.
