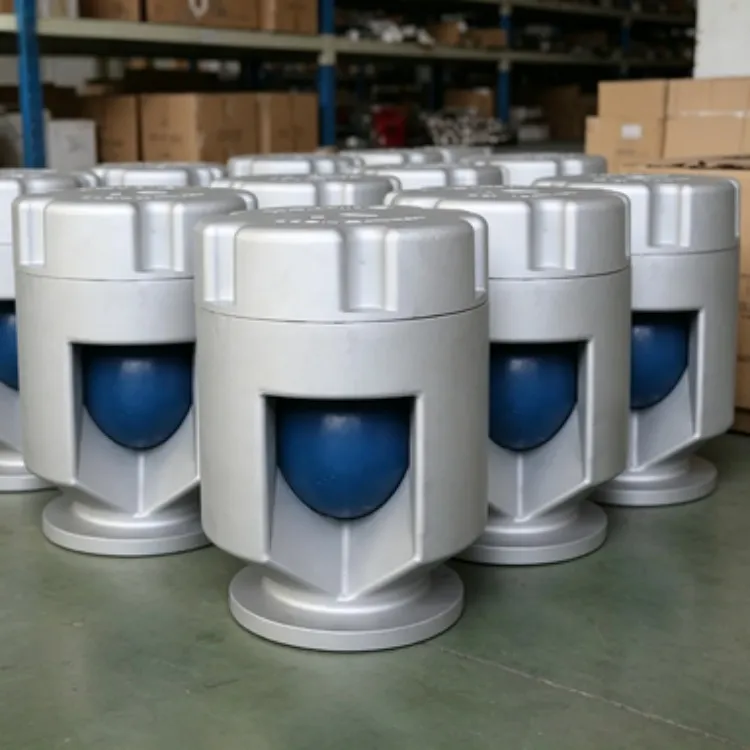

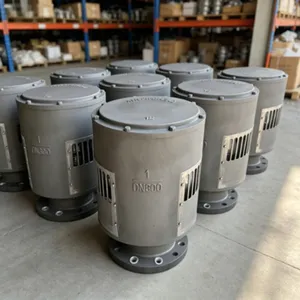

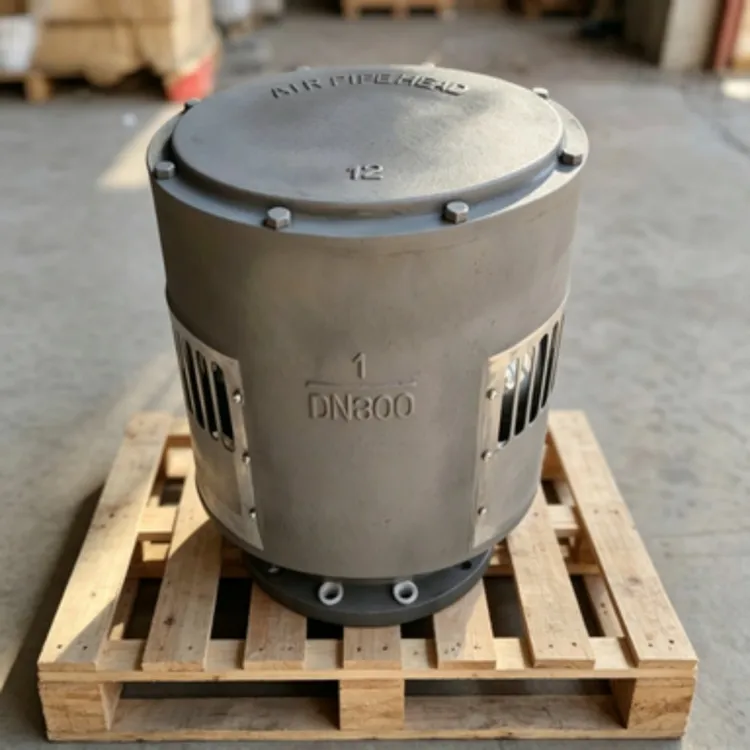

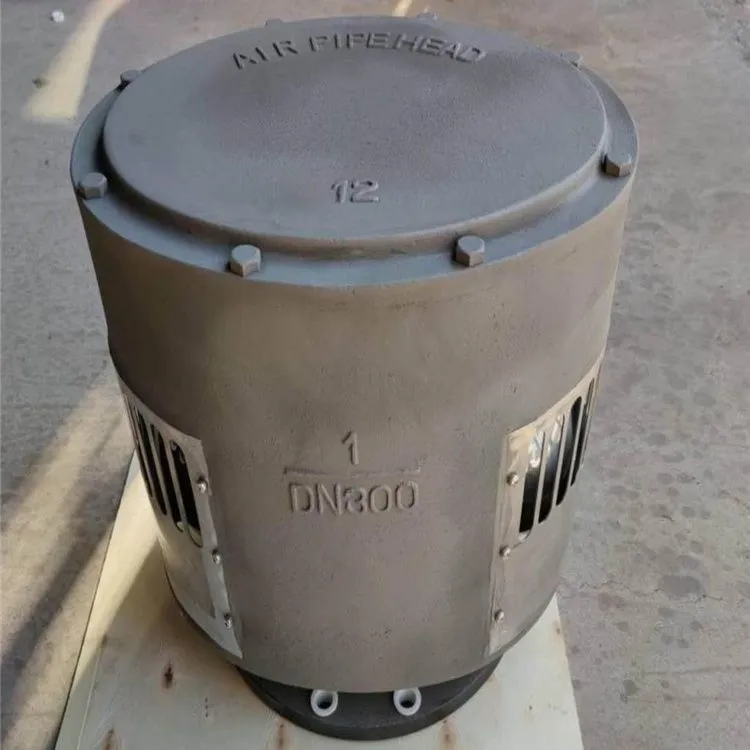

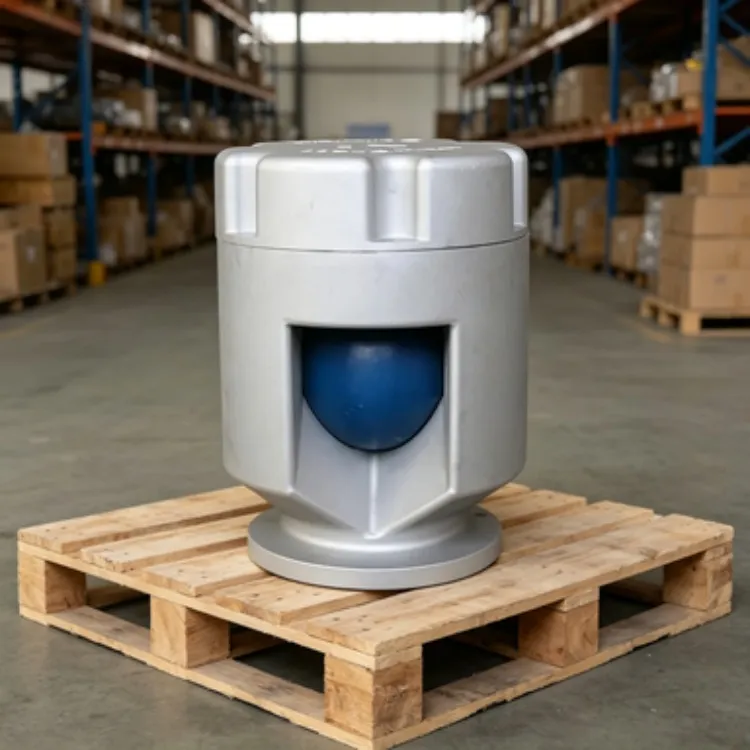

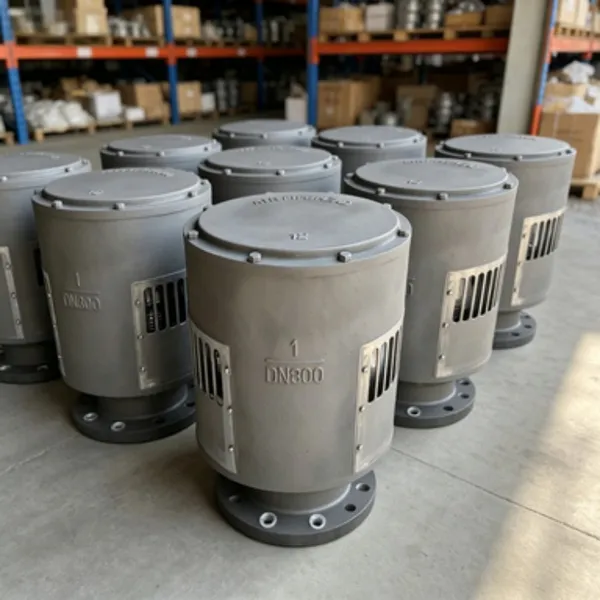

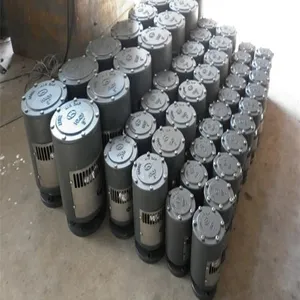

Help CenterCast Aluminum Alloy Marine Air Vent Head, 10 Bar Pressure Rating Zhibangjbalve
Product Spotlights
Related Products
-
Cast Aluminum Alloy Marine Air Vent Head, Standard Compliant Zhibang ValveNegotiableMOQ: 1 Unit -
Zhibang Valve Cast Aluminum Alloy Marine Air Vent Head, Leak-Proof SealingNegotiableMOQ: 1 Unit
-
Zhibang Valve Cast Aluminum Alloy Marine Air Vent Head, 2 Inch ConnectionNegotiableMOQ: 1 Unit
-
Cast Aluminum Alloy Marine Air Vent Head, Corrosion Resistant Zhibang ChinaNegotiableMOQ: 1 Unit
-
Zhibang Valve Cast Aluminum Alloy Marine Air Vent Head, 1 Inch NPT PortNegotiableMOQ: 1 Unit
Shanghai Zhibang Valve Manufacture Co., Ltd has been a trusted manufacturer of high-quality marine components since 2016. Our Cast Aluminum Alloy Marine Air Vent Head with a 10 Bar pressure rating is engineered to deliver reliable performance in demanding marine environments. Designed for efficient air release and pressure management, this vent head combines lightweight cast aluminum alloy construction with robust sealing technology, ensuring long service life even in corrosive saltwater conditions. With ISO9001 certification and a global export network spanning over 15 regions, we bring you a product that meets international standards and offers exceptional value.
Key Features & Technical Specifications
- Durable Cast Aluminum Alloy Body: Lightweight yet strong, corrosion-resistant for extended marine use.
- 10 Bar Pressure Rating: Suitable for high-pressure marine systems, providing reliable performance under load.
- Efficient Air Venting: Automatically releases trapped air to prevent system cavitation and maintain optimal flow.
- Versatile Connection Options: Available in threaded or flanged configurations, customizable to your piping system.
- Low Maintenance Design: Simple internal structure reduces cleaning and repair frequency.
- Compact Size: Space-saving footprint ideal for tight engine rooms and deck installations.
| Parameter | Details |
|---|---|
| Material | Cast Aluminum Alloy (A356 or equivalent) |
| Pressure Rating | 10 Bar (145 PSI) |
| Temperature Range | -20°C to +100°C (optional high-temp version available) |
| Connection Type | BSP/NPT Threaded or Flanged (DIN/ANSI/JIS) |
| Applicable Standards | ISO9001, marine industry practices |
| Weight | Approx. 0.5–2.5 kg depending on size |
Advantages That Benefit Your Operations
Our marine air vent head is designed to solve common issues in shipboard systems: air accumulation, pressure fluctuation, and component corrosion. The cast aluminum alloy body offers excellent resistance to seawater and UV exposure, reducing the need for frequent replacements. The 10 Bar rating ensures compatibility with many hydraulic, cooling, and fuel systems. Additionally, the easy-to-clean interior minimizes downtime during maintenance. Whether you're building a new vessel or retrofitting an existing system, this vent head provides a cost-effective, long-lasting solution.
Customization Options: We offer tailored solutions including different connection sizes, special coatings, and color coding to match your specifications. Lead times are competitive, and we support small to large orders.
Trusted by Global Clients – Why Choose Shanghai Zhibang Valve?
Since 2016, Shanghai Zhibang Valve Manufacture Co., Ltd has exported over US$1 Million to US$1.5 Million worth of products annually to markets including North America, Europe, Southeast Asia, Africa, and Oceania. Our manufacturing facility is ISO9001 certified, ensuring consistent quality control. We ship from major ports: Shanghai, Guangzhou, Hong Kong, and Beijing, offering flexible logistics. Our experienced team provides responsive after-sales support and technical guidance. With a strong reputation among marine engineers and system integrators, we are committed to delivering products that perform reliably in harsh conditions.
Contact us today for a quote or sample request. Let us be your trusted partner for marine ventilation solutions.
Frequently Asked Questions (FAQ)
-
Q: What material is the air vent head made of?
A: It is made of cast aluminum alloy (A356 or equivalent), which offers excellent corrosion resistance and lightweight properties for marine use. -
Q: Is the vent head suitable for high-pressure systems?
A: Yes, it is rated for 10 Bar (145 PSI) and can be used in many marine hydraulic, cooling, and compressed air systems. -
Q: Can I get custom connection sizes?
A: Absolutely. We offer threaded (BSP/NPT) and flanged connections in various sizes from DN15 to DN100. Custom sizes are available upon request. -
Q: Does the product come with a certification?
A: Our manufacturing process is ISO9001 certified, ensuring consistent quality. We can provide a certificate of compliance upon request. -
Q: What is the typical lead time?
A: For standard sizes, lead time is 15–25 working days. Custom orders may require 30–45 days depending on quantity and specifications. -
Q: How should I maintain the vent head?
A: Regular inspection of the internal float and seal is recommended. Flush with fresh water periodically to remove salt deposits. No special tools required. -
Q: Do you provide samples for testing?
A: Yes, sample orders are welcome. We offer samples at cost with shipping charges, and production orders can be adjusted accordingly. -
Q: What payment terms do you accept?
A: We accept T/T, L/C, and other negotiable terms. Minimum order quantity is flexible for new customers.
