Shanghai Zhibang Valve Manufacture Co., Ltd., established in 2016 and located in Shanghai, China, is a professional manufacturer specializing in high-quality valve solutions for marine and industrial applications. Our Cast Aluminum Alloy Marine Air Vent Head with 1 Inch NPT Port represents a perfect blend of durability, precision engineering, and corrosion resistance, designed to meet the rigorous demands of marine environments. With annual export values exceeding US$1 million and ISO9001 certification, we ensure every product delivers reliable performance and long service life.

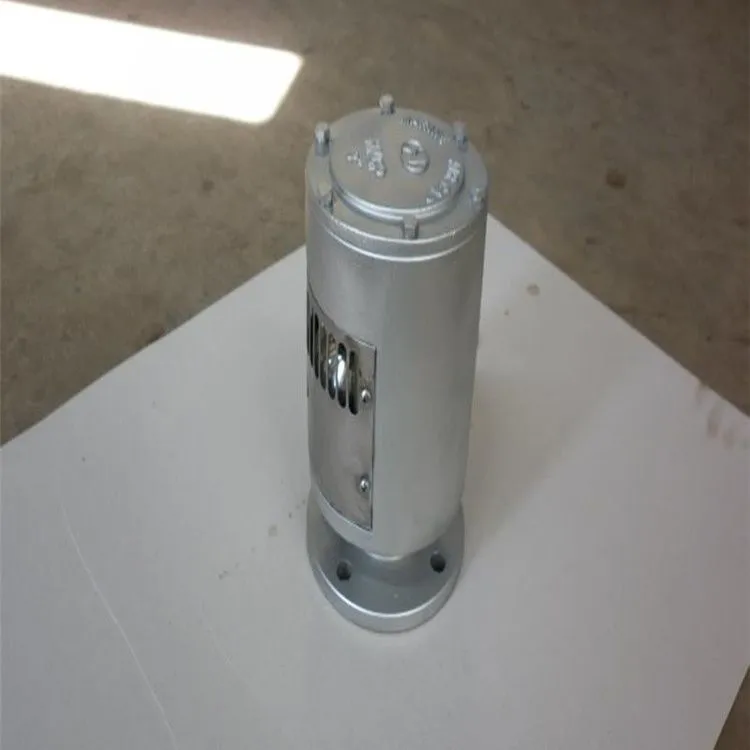

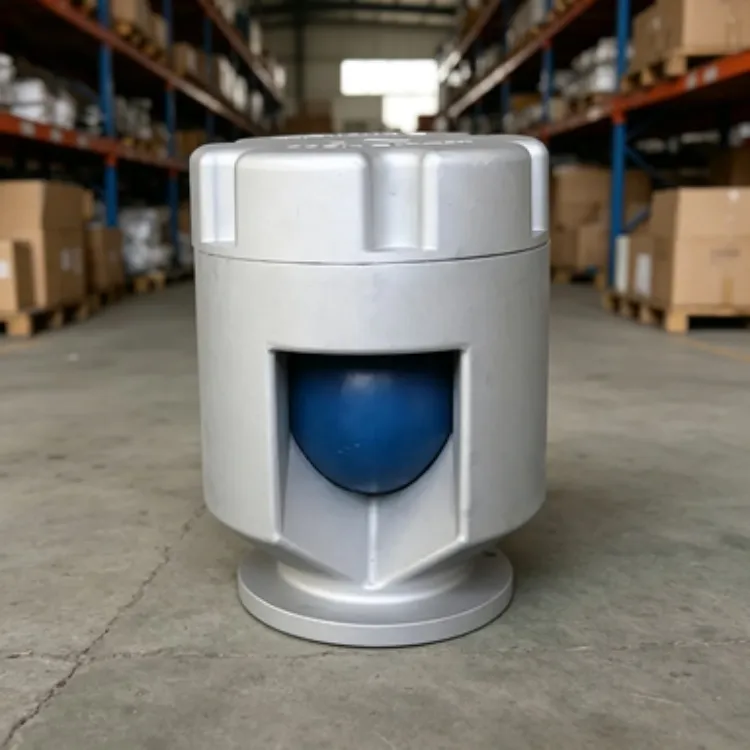

This air vent head is meticulously crafted from cast aluminum alloy, offering exceptional resistance to saltwater corrosion while maintaining lightweight properties for easy installation. The 1-inch NPT (National Pipe Thread) port ensures universal compatibility with standard piping systems used in vessel bilge, fuel tank, and freshwater tank ventilation. Built to withstand harsh marine conditions, it prevents vacuum lock, allows proper airflow, and protects tanks from overpressure or collapse.
Our marine air vent head is widely used across various vessel types including cargo ships, fishing boats, yachts, and offshore platforms. It complies with international marine standards and is available in customizable colors and configurations to suit specific project requirements. Below is a detailed specification table:
| Parameter | Specification |
| Material | Cast Aluminum Alloy (A356 or equivalent) |
| Port Size | 1 Inch NPT Female Thread |
| Working Pressure | 0.1 – 0.5 MPa (customizable up to 1.0 MPa) |
| Temperature Range | -20°C to +80°C (optional high-temp version available) |
| Surface Finish | Natural aluminum, anodized, or painted (color optional) |
| Weight | Approx. 1.2 kg (depending on exact configuration) |
| Applicable Standards | ISO9001:2015, Marine standards (SOLAS, ABS, DNV optional) |
| Warranty | 12 months from shipment (extended available upon request) |
Key Features & Benefits
- Corrosion Resistant: Cast aluminum alloy with optional anodizing or marine-grade paint ensures long-term durability in saltwater environments.
- Lightweight Design: Easier to handle and install compared to traditional bronze or steel vent heads, reducing labor cost and structural load.
- Universal NPT Connection: 1-inch NPT female thread fits standard piping, compatible with both metric and imperial systems.
- Effective Ventilation: Large internal passage area prevents clogging and allows smooth air flow, avoiding pressure buildup in fuel, water, or bilge tanks.
- Customizable Options: Available in different colors, with or without a built-in flame arrestor, and can be tailored to specific pressure/temperature requirements.
- Easy Maintenance: Simple disassembly design allows quick cleaning and inspection of internal components.
- Certified Quality: Manufactured under ISO9001 quality management system, with optional third-party certifications (ABS, DNV, CCS) upon request.
Our manufacturing process uses advanced casting and precision machining to ensure tight tolerances and leak-free performance. Each unit undergoes rigorous pressure testing and visual inspection before packaging. The vent head is designed to withstand the vibration and movement typical in marine applications, providing reliable service for years.
We understand that marine projects require strict adherence to specifications. That is why we offer free technical consultation and sample testing for bulk orders. Our products are exported to over 30 countries, serving markets in North America, Europe, Asia, Africa, and Oceania. With ports of shipment including Shanghai, Guangzhou, Hong Kong, and Beijing, we ensure fast and cost-effective logistics worldwide.
Trust & Reliability
As a dedicated manufacturer since 2016, Shanghai Zhibang Valve has built a strong reputation for quality and integrity. Our ISO9001 certification guarantees consistent process control and product excellence. With an annual export value between US$1 million and US$1.5 million, we have successfully partnered with clients across diverse marine and industrial sectors. We provide 12-month warranty and responsive after-sales support. When you choose Zhibang Valve, you choose a partner committed to your project’s success. Contact us today for a quote or free sample – we are ready to support your marine ventilation needs with the best possible solution.
Frequently Asked Questions (FAQ)
-
Q: Is this air vent head suitable for both fuel and water tanks?
A: Yes, it is designed for general marine ventilation of fuel, water, and bilge tanks. However, for fuel tanks, we recommend confirming with our technical team if a flame arrestor is required for your specific application (optional add-on available). -
Q: Can I get a different thread size instead of 1 inch NPT?
A: Our standard model is 1-inch NPT, but we can customize the port size (e.g., 1/2 inch, 3/4 inch, or 1-1/2 inch) based on your order volume. Please contact us with your requirements. -
Q: What is the maximum operating pressure?
A: The standard design handles up to 0.5 MPa. For higher pressure applications (up to 1.0 MPa), we offer an upgraded version with reinforced structure. Please specify your pressure requirement when ordering. -
Q: Do you provide certificates for material or third-party inspection?
A: Yes, we can supply mill test certificates for the aluminum alloy, as well as third-party inspection reports from ABS, DNV, CCS, or other classification societies at an additional cost. Our standard product comes with ISO9001 certification. -
Q: How long does it take to ship?
A: For standard models, we ship within 7-15 working days after order confirmation. Custom orders may take 20-30 days. We ship via sea, air, or express from Shanghai, Guangzhou, Hong Kong, or Beijing. -
Q: What is the warranty period?
A: We offer a 12-month warranty from the date of shipment against manufacturing defects. Extended warranties are negotiable for large contracts or ongoing partnerships. -
Q: Can I order a sample before bulk purchase?
A: Absolutely. We provide samples with a lead time of 5-7 days. Sample cost is reasonable and can be deducted from your first bulk order. Contact our sales team for sample availability. -
Q: Is the valve body color customizable?
A: Yes, the natural aluminum finish is standard, but we can apply anodizing or marine paint in colors like white, red, blue, or black. Please specify your preferred color and required quantity for customization.
