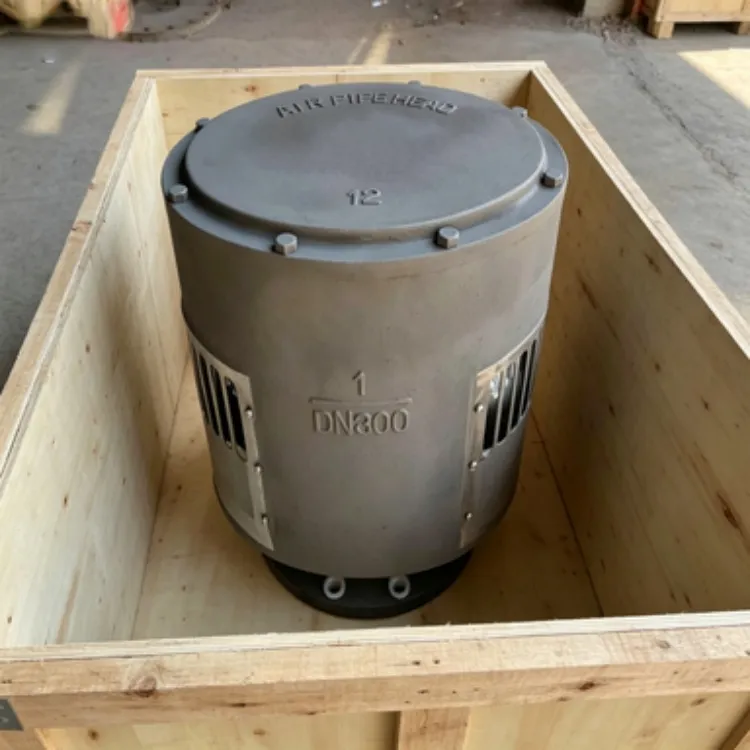

Cast Aluminum Alloy Marine Air Vent Head, Excellent Sealing Zhibang Valve
Product Spotlights
Shanghai Zhibang's Cast Aluminum Alloy Marine Air Vent Head delivers excellent sealing with double O-ring design, lightweight corrosion-resistant aluminum construction, and customizable sizes/connections (DN15-DN300). ISO9001 certified, 100% pressure tested, suitable for ballast tanks, fuel systems, and offshore platforms. Trusted by global shipbuilders since 2016.
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Cast Aluminum Alloy
Sealing Type:
Excellent Sealing (O-ring or Gasket)
Application:
Marine, Shipbuilding, Offshore
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
Cast Aluminum Alloy Marine Air Vent Head, High Pressure Rated Zhibang ValveNegotiableMOQ: 1 Unit -
Cast Aluminum Alloy Marine Air Vent Head, Warranty Provided Zhibang ValveNegotiableMOQ: 1 Unit
-
With Mill Test Report, Cast Steel Self-Closing Level Gauge Valve CB/T3265NegotiableMOQ: 1 Unit
-
1-Year Warranty Cast Steel Self-Closing Level Gauge Valve CB/T3265NegotiableMOQ: 1 Unit
-
Cast Steel Self-Closing Level Gauge Valve, CB/T3265 Standard CompliantNegotiableMOQ: 1 Unit
Material
Cast Aluminum Alloy
Sealing Type
Excellent Sealing (O-ring or Gasket)
Application
Marine, Shipbuilding, Offshore
Connection
Threaded or Flanged (Customizable)
Size Range
DN15-DN300 (Customizable)
Color
Natural Aluminum or Painted (Optional)
Working Pressure
Up to 25 bar (Customizable)
Certification
ISO9001:2015
Brand
Zhibang
Model
ZB-MAV- Series
Shanghai Zhibang Valve Manufacture Co., Ltd., established in 2016, proudly presents its premium Cast Aluminum Alloy Marine Air Vent Head designed for exceptional sealing performance in demanding marine environments. As a dedicated manufacturer with an annual export value of US$1–1.5 million, we combine precision engineering with robust materials to deliver a vent head that effectively releases air from ballast tanks, fuel tanks, and piping systems while preventing water ingress. Our product is built to withstand corrosion, vibration, and pressure fluctuations, ensuring reliable operation aboard vessels worldwide.
Key Features & Technical Specifications
- Material Excellence: Constructed from high-grade cast aluminum alloy (e.g., ADC12 or LM6), offering excellent corrosion resistance in saltwater environments and reducing weight for easier installation.
- Advanced Sealing Design: Equipped with a double O-ring seal (NBR or Viton) and a precision-machined mating surface, achieving zero leakage under normal operating conditions.
- Pressure & Temperature Range: Suitable for working pressures up to 25 bar (customizable) and temperatures from -20°C to +120°C, meeting diverse marine system requirements.
- Versatile Connection Options: Available in threaded (BSP, NPT) or flanged (ANSI, DIN, JIS) configurations, with sizes from DN15 to DN300. Custom sizes and connections are available upon request.
- Optimized Flow Path: Internal baffle design prevents direct water splashing, while the large venting area ensures quick air release and minimal pressure drop.
- Durable Finish: Natural aluminum surface or optional epoxy/polyester powder coating for enhanced UV and corrosion resistance (RAL colors available).
| Parameter | Value |
| Material | Cast Aluminum Alloy (ADC12 / LM6) |
| Sealing Elements | NBR, Viton, or EPDM O-rings (optional) |
| Working Pressure | 0–25 bar (customizable higher) |
| Temperature Range | -20°C to +120°C |
| Connection Type | Threaded (BSP/NPT) or Flanged (ANSI/DIN/JIS) |
| Size Range | DN15 – DN300 (1/2" – 12") |
| Certification | ISO9001:2015 |
Why Choose Zhibang’s Cast Aluminum Alloy Marine Air Vent Head?
- Superior Corrosion Resistance: The aluminum alloy body, combined with optional anti-corrosion coating, provides long service life even in harsh marine environments.
- Excellent Sealing Performance: Our unique O-ring groove design and fine surface finish ensure a tight seal that prevents water ingress and air leakage, protecting your system from contamination.
- Easy Installation & Maintenance: Lightweight construction (approx. 30% lighter than cast iron) reduces handling effort. The vent head can be disassembled for cleaning or seal replacement without special tools.
- Customizable Options: We offer custom sizes, connection types, thread standards, and color coatings to match your specific vessel requirements. MOQ is flexible for OEM/ODM orders.
- Global Compliance: Our products are designed to meet international standards, and we have shipped to markets including North America, Europe, Southeast Asia, the Middle East, and Africa.
Trust & Quality Assurance
Shanghai Zhibang Valve Manufacture Co., Ltd. has been a reliable manufacturer since 2016, exporting over US$1 million annually to more than 10 global markets. Our ISO9001:2015 certified quality management system ensures every air vent head undergoes rigorous leak testing, dimensional inspection, and material verification before shipment. We ship from major ports (Shanghai, Guangzhou, Hong Kong, Beijing) and offer prompt delivery within 25–35 days for standard orders. Our dedicated sales team provides technical support and after-sales service, making us a trusted partner for shipbuilders, offshore platforms, and marine equipment suppliers. Contact us today for a quotation or sample request – experience the Zhibang difference in sealing reliability.
Frequently Asked Questions (FAQ)
-
Q: What is the typical material of the marine air vent head?
A: It is made of cast aluminum alloy (e.g., ADC12 or LM6), which offers excellent corrosion resistance and lightweight properties for marine applications. -
Q: Can this vent head be used for both air release and vacuum breaking?
A: Yes, our design allows bidirectional flow – it releases air from the system and also permits air ingress to prevent vacuum collapse, depending on the configuration. -
Q: What sealing materials are available?
A: Standard O-rings are NBR (nitrile). For higher temperature or chemical resistance, we offer Viton, EPDM, or silicone – please specify when ordering. -
Q: Do you provide custom sizes or thread types?
A: Absolutely. We can customize body size, connection type (threaded or flanged), thread standards (BSP, NPT, etc.), and even add special coatings. Contact our sales team with your requirements. -
Q: What is the maximum working pressure?
A: Standard products are rated up to 25 bar. Higher pressure ratings (e.g., 40 bar) are possible with reinforced design – please consult us for details. -
Q: How do you ensure the sealing performance?
A: Every unit undergoes a 100% hydrostatic pressure test and an air leak test at 1.5 times the rated pressure. We also check dimensional tolerances and surface finish. -
Q: What is the minimum order quantity (MOQ)?
A: For standard sizes, MOQ is typically 10 pieces. For custom designs, MOQ may be higher – please inquire for specific quantities. -
Q: Do you ship internationally?
A: Yes, we ship from Shanghai, Guangzhou, Hong Kong, and Beijing ports to worldwide destinations. We have experience exporting to North America, Europe, Southeast Asia, Africa, and the Middle East.
