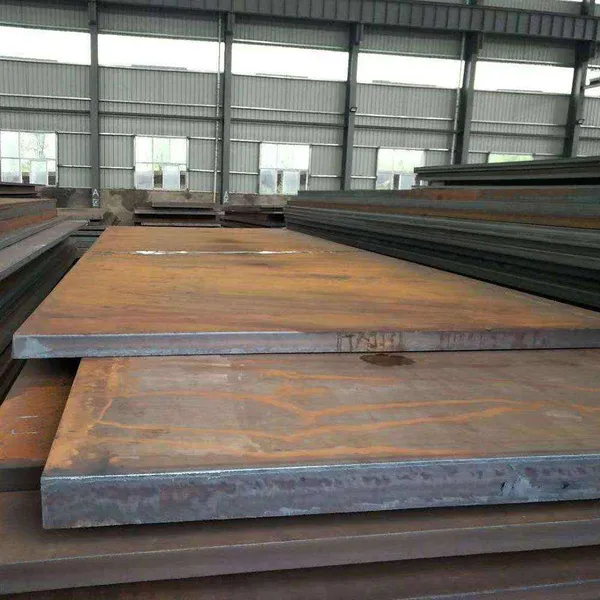

Help CenterHardfacing Wear Plate AR450 X120Mn12 Low Alloy Steel Power Plant Ash Handling 1800x9000mm 10-100mm Thickness Supplier
Product Spotlights
Related Products
-
AR400 Wear Plate Carbon Steel Sheet Hot Rolled High Hardness Skip Car Liner 8-200mm ThicknessUS$ 0.65 - 1.05MOQ: 100 Kilograms -
400HB AR600 High Manganese Steel Plate Chromium Carbide Overlay 6-80mm Thickness Ore Processing Equipment ASTM StandardUS$ 0.65 - 1.05MOQ: 100 Kilograms
-
NM600 Hardox 500 Wear Plate Low Alloy Steel 4-120mm Thickness Mining Machinery ASTM StandardUS$ 0.65 - 1.05MOQ: 100 Kilograms
-
High Hardness Overlay Wear Plate Hardox 500 Forged Chromium Carbide Overlay 2200x12000mm for Coal Handling ChuteUS$ 0.65 - 1.05MOQ: 100 Kilograms
-
Bimetallic Wear Plate Surfacing Welded Mn13 Manganese Steel Plate Construction Machinery 3000x12000mm High ToughnessUS$ 0.65 - 1.05MOQ: 100 Kilograms
What Is Wear Resistant Steel Plate？
Product Definition：
Wear resistant steel plate is a high-strength specialty steel plate designed for applications involving severe abrasion, impact, and wear. Through optimized alloy composition and quenching + tempering heat treatment (also known as quenching and tempering), the steel achieves high hardness (typically 360–550+ HBW) while maintaining good toughness and weldability--2. The “NM” designation stands for “Nai Mo”, the Chinese pinyin for wear resistance, with the number indicating the nominal Brinell hardness value-2-7.
Key Characteristics：
| Feature | Description |
|---|---|
| High Hardness | 360–550+ HBW (Brinell hardness) – provides excellent resistance to abrasive wear |
| High Strength | Yield strength from 840 MPa to 1300+ MPa, tensile strength up to 1600+ MPa-2-1 |
| Good Toughness | Optimized alloy design maintains impact resistance even at high hardness levels |
| Excellent Weldability | Suitable for welding using standard procedures (preheating may be required for thicker plates) |
| Good Formability | Can be cut, bent, and fabricated into various shapes |
| Cost-Effective | 3–5x longer service life than ordinary carbon steel – reduces downtime and maintenance costs |
| 100% Recyclable | Environmentally friendly with no loss of properties |
Why Choose Wear Resistant Steel？
| Factor | Wear Resistant Steel | Ordinary Carbon Steel |
|---|---|---|
| Hardness | 360–550+ HBW | 120–180 HBW |
| Wear Resistance | Excellent (3–5x longer life) | Poor |
| Service Life | Long (reduces downtime) | Short (frequent replacement) |
| Maintenance Cost | Low | High |
| Initial Cost | Higher | Low |
| Total Lifecycle Cost | Lower | Higher |
Typical Applications by Industry：
| Industry | Applications | Recommended Grades |
|---|---|---|
| Mining & Quarrying | Dump truck bodies, chute liners, crusher housings, feeder pans, bucket liners, conveyor components | NM400, NM450, NM500 |
| Cement Industry | Cyclone liners, classifier blades, raw mill separators, ductwork, silo liners, clinker chutes | NM360, NM400 |
| Steel & Metallurgy | Coke injection elbows, sinter screens, slag pots, transfer chutes | NM400, NM450 |
| Power Generation | Coal pulverizer liners, cyclone burners, coal handling chutes, ash handling systems | NM360, NM400 |
| Construction & Earthmoving | Excavator buckets, bulldozer blades, loader buckets, scraper blades | NM400, NM450, NM500 |
| Recycling & Waste | Shredder liners, compactor liners, sorting chutes | NM400, NM450 |
| Dredging | Dredge pump casings, cutter head protection, pipeline elbows | NM400, NM500 |
Key Specifications – Wear Resistant Steel Plate
| Parameter | Specification / Range | Remarks |
|---|---|---|
| Standards | GB/T 24186 (NM series), ASTM, EN, JIS | Others on request |
| NM360 | 320–400 HBW hardness, yield ≥840 MPa, tensile ≥980 MPa-2 | General wear resistance |
| NM400 | 360–440 HBW hardness, yield ≥900 MPa, tensile ≥1050 MPa-6 | Most common, versatile |
| NM450 | 420–480 HBW hardness, yield ≥1225 MPa, tensile ≥1477 MPa- | Higher wear resistance |
| NM500 | 480–530 HBW hardness, tensile ≥680 MPa-7 | High abrasion applications |
| NM550 | 525–575 HBW hardness, yield ≥1300 MPa, tensile ≥1600 MPa-1 | Extreme wear conditions |
| Thickness – NM360/400 | 3 mm – 120 mm | Custom on request |
| Thickness – NM450/500 | 6 mm – 60 mm-7 | – |
| Thickness – NM550 | 10 mm – 50 mm-1 | – |
| Width | 1000 mm – 4000 mm | Custom on request |
| Length | 2000 mm – 12000 mm | Custom cut to size |
| Delivery Condition | Quenched + Tempered (QT) | Also known as quenched and tempered |
| Density | 7.85 g/cm³ | – |
| Hardness Test | Brinell hardness (HBW) per GB/T 231 | Test after surface milling 1.0–2.5mm-2 |
| Testing | Chemical analysis, tensile, hardness, impact (Charpy), UT (optional) | Mill cert EN 10204 3.1 |
| Packaging | Steel strapped bundles, wooden pallet | Seaworthy, ISPM 15 |
Wuxi Yansheng Technology Co., Ltd. – Company Profile
Wuxi Yansheng Technology Co., Ltd. is a comprehensive technology enterprise specializing in high-quality metal raw material supply and precision processing services. Located in Wuxi City, a major steel distribution center in China, the company leverages the mature industrial chain advantages of the Yangtze River Delta region to provide professional material solutions to global customers.
As a technology-driven enterprise, Yansheng Tech maintains strategic cooperation with several well-known steel mills (such as TISCO, Baosteel, JISCO, Dongfang Special Steel, etc.) and is an authorized distributor of these mills. Our main products include stainless steel (304/316/BA/EP pipe), carbon steel, silicon steel, copper, aluminum and other materials in the form of sheets, pipes, coils, as well as custom-processed parts.
Core Business Highlights:
Material Supply: We maintain sufficient stock inventory, offering 304/316 stainless steel sheets, pipes, coils, API 5L casing, electrical steel, and more. We also accept orders for special steel grades and non-standard specifications.
Precision Processing: Equipped with imported mirror polishing machines, water jet cutting machines, high-precision slitting/leveling lines, large CNC milling machines, boring machines, and more. We provide customized services including BA/EP pipe finishing, medium plate polishing, matte finishing, embossing, plasma cutting, etc.
Main Applications: Our products are widely used in industries such as solar energy, pressure vessels, boilers, electric heating equipment, petrochemicals, environmental protection machinery, pharmaceutical and food processing, and new energy vehicles.
Our processing center is located in Xishan District, Wuxi City, covering nearly 10,000 square meters, with an experienced technical and service team. We adhere to the business philosophy of "Technology First, Quality Oriented, Service Supreme" , providing 24/7 warehousing and logistics support as well as comprehensive after-sales service. Yansheng Tech is committed to being your trusted long-term partner.
Frequently Asked Questions (FAQ)
Q1. What products do you mainly supply?
We mainly supply stainless steel (304/316/BA/EP pipes), carbon steel, silicon steel, copper, aluminum, and other materials in sheets, pipes, and coils. Customized processing services are also available.
Q2. Do you have stock available?
Yes, we maintain sufficient stock for most standard specifications. For non-standard sizes, we can accept orders with reasonable lead time.
Q3. Can you provide MTC (Mill Test Certificate)?
Yes, we provide MTC for every shipment. Third-party inspection (SGS, TÜV, BV, etc.) is also available upon request.
Q4. Do you support video inspection before shipment?
Yes, we fully support video inspection. You can also arrange an agent or third party to visit our factory for on-site inspection before shipment.
Q5. What are your main export markets?
We export to Southeast Asia, the Middle East, Europe, Africa, and South America. We have rich experience in international trade and export documentation.
Q6. What payment terms do you accept?
We accept T/T (wire transfer), L/C at sight (irrevocable), and sometimes a combination of T/T deposit + L/C balance. Payment terms are negotiable based on order size and customer history.
Q7. Can you provide samples?
Yes, samples are available for most standard products. For custom sizes, we may need to produce small batch samples. Sample cost and shipping are usually borne by the customer, but can be discussed.
Q8. What is your typical lead time?
For stock items: 7–10 days after order confirmation. For custom production: 20–30 days, depending on the specification and quantity.
Q9. What quality certifications do you have?
We provide MTC with every shipment. Our partner mills are ISO9001 certified. We can also assist with third-party inspections (SGS, TÜV, BV) upon request.
Q10. How can I get a quotation?
Please send us your material grade, specification (size, thickness, length), quantity, and preferred trade term (FOB, CIF, DAP, etc.). We will reply with a detailed quotation within 24 hours.
