Welcome to Hengshui City Yike Composite Materials Co., Ltd. – your trusted partner in FRP storage solutions since 2009. Our FRP Sodium Hypochlorite Tank 10000L is engineered to safely store sodium hypochlorite (bleach) for water treatment, disinfection, and industrial processes. With a 1-year warranty and free installation guidance, you get both reliability and expert support. This tank is built to withstand corrosive chemicals while offering a lightweight, cost-effective alternative to steel or concrete tanks.
Our tanks are manufactured using premium isophthalic or vinyl ester resin, combined with high-strength glass fibers via advanced winding technology. The result is a seamless, leak-proof structure that resists UV degradation and harsh chemicals. The 10000L capacity is ideal for medium-to-large scale operations, and the free installation guidance ensures your team can set it up correctly and safely.
Product Features & Technical Specifications
- Corrosion Resistance: Specially formulated resin matrix provides excellent resistance to sodium hypochlorite and other oxidizing agents, preventing degradation over years of service.
- Lightweight & High Strength: FRP offers a strength-to-weight ratio superior to steel, making handling and installation easier without sacrificing durability.
- Seamless One-Piece Construction: No welded joints or liners – the monolithic structure eliminates leakage points.
- UV Stabilization: Outer gel coat includes UV inhibitors to prevent yellowing and surface cracking under direct sunlight.
- Customizable Fittings: Inlet/outlet nozzles, manways, vents, and level indicators can be added based on your requirements.
- Optional Insulation: For outdoor installations in cold climates, insulation layers can be incorporated.
- Free Installation Guidance: Our technical team provides detailed manuals, drawings, and remote support – no extra cost.
- 1-Year Warranty: Covers manufacturing defects. Our after-sales team promptly addresses any issues.
| Parameter | Value |
|---|---|
| Capacity | 10,000 liters (2,641 US gallons) |
| Diameter (standard) | ~2.0 – 2.5 meters (customizable) |
| Height (standard) | ~3.0 – 4.0 meters (customizable) |
| Working Temperature | -20°C to 50°C (with appropriate resin) |
| Design Pressure | Atmospheric (±0.5 psi) – higher upon request |
| Wall Thickness | 6-12 mm depending on design |
| Weight (empty) | Approx. 300-500 kg |
| Standard Color | Light grey (other colors available) |
Why Choose Our FRP Sodium Hypochlorite Tank? Unlike metal tanks that corrode rapidly when in contact with bleach, FRP provides long-term chemical resistance without the need for expensive linings or coatings. The 10000L size matches typical batch treatment volumes in municipal water plants, swimming pools, and industrial disinfection systems. With free installation guidance, your on-site team can follow proven procedures to ensure proper foundation preparation, pipe connections, and venting – reducing the risk of operational issues.

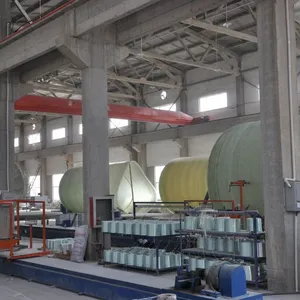

Our manufacturing facility in Hengshui, Hebei, China, has been producing composite tanks since 2009. We export to over 10 regions globally, including North America, Europe, Southeast Asia, Africa, and Oceania, with an annual export value of US$1.5-2.5 million. Every tank undergoes rigorous quality checks including hydrostatic testing and UV resistance verification. Our reputation is built on consistent quality, competitive pricing, and responsive customer service. We also offer customization options such as special nozzle sizes, ladder attachments, and color matching.
Customer Trust & Support: Over 14 years of experience, thousands of tanks delivered worldwide, and a dedicated team that speaks English, Chinese, and other languages to assist you. Our free installation guidance includes digital manuals, step-by-step videos, and live chat support during business hours. After your purchase, you can rely on our 1-year warranty and spare parts availability for peace of mind.
Frequently Asked Questions (FAQ)
-
Q: Can this tank store sodium hypochlorite with concentrations up to 15%?
A: Yes, our standard resin formulation (isophthalic or vinyl ester) is suitable for concentrations up to 15% at ambient temperature. For higher concentrations, we recommend specifying vinyl ester resin at the time of order. -
Q: What does “free installation guidance” include?
A: We provide a detailed installation manual with drawings, foundation requirements, piping diagrams, and a remote support session via video call. If needed, we can also offer on-site assistance at an additional cost. -
Q: Is the tank compliant with any international standards?
A: Our tanks are designed in accordance with general FRP tank standards (such as ASTM D3299, BS 4994 principles). Specific certifications can be discussed on request. We do not claim unverified certifications. -
Q: How long does it take to manufacture and deliver?
A: Typical production time is 15-20 working days after order confirmation. Shipping time depends on the destination port (Tianjin/Shanghai). We can work with your logistics provider or arrange shipping. -
Q: What is the expected lifespan of an FRP sodium hypochlorite tank?
A: With proper usage and maintenance, the tank can serve 10-15 years or more. Regular inspections for UV damage and chemical compatibility are recommended. -
Q: Can I get accessories like a level gauge or overflow nozzle?
A: Yes, we offer customizable fittings. Please provide your requirements (size, type, position) when placing an order. -
Q: Do you provide spare parts after the warranty period?
A: Yes, we maintain a stock of common spare parts (manhole covers, gaskets, nozzles) and can ship them at reasonable prices. -
Q: Is the tank suitable for outdoor installation in hot climates?
A: Yes, the UV-stabilized gel coat protects the tank from sunlight. However, for temperatures above 50°C, please consult us for heat-resistant resin options.
Ready to order? Contact Hengshui City Yike Composite Materials Co., Ltd. today. With our 2009-founded company, strong export track record, and commitment to quality, we ensure your investment in an FRP sodium hypochlorite tank yields reliable storage for years. Request a quotation or technical drawing – we are here to help.
