1. Product Overview

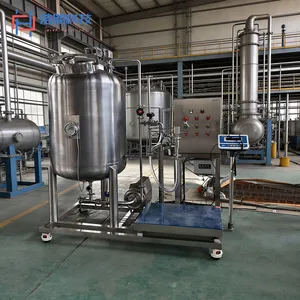

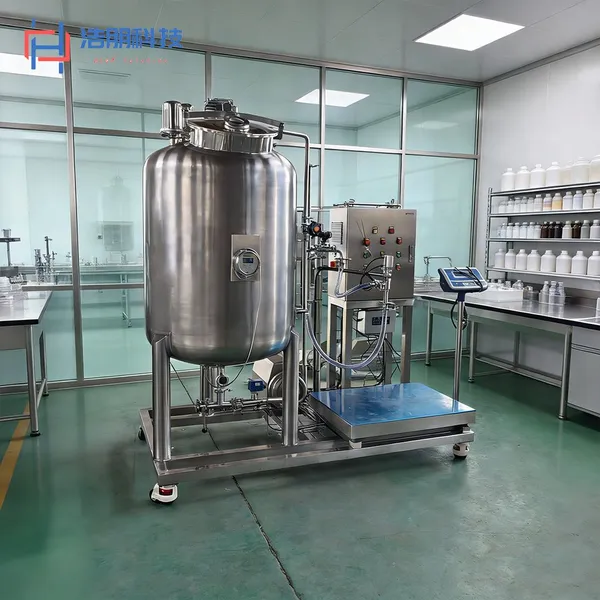

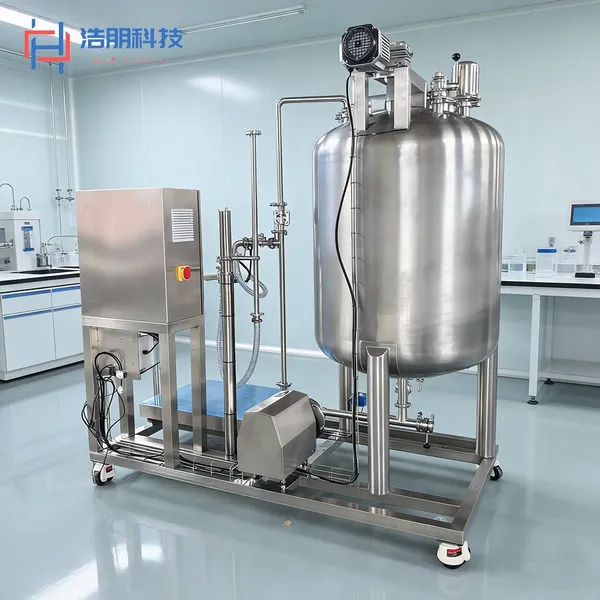

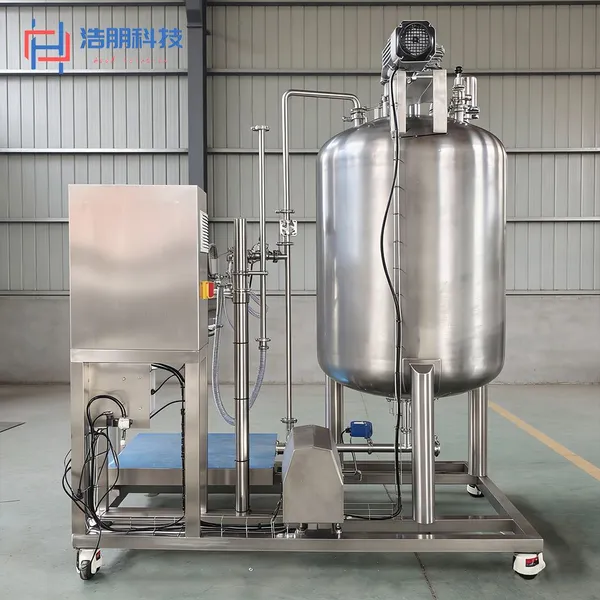

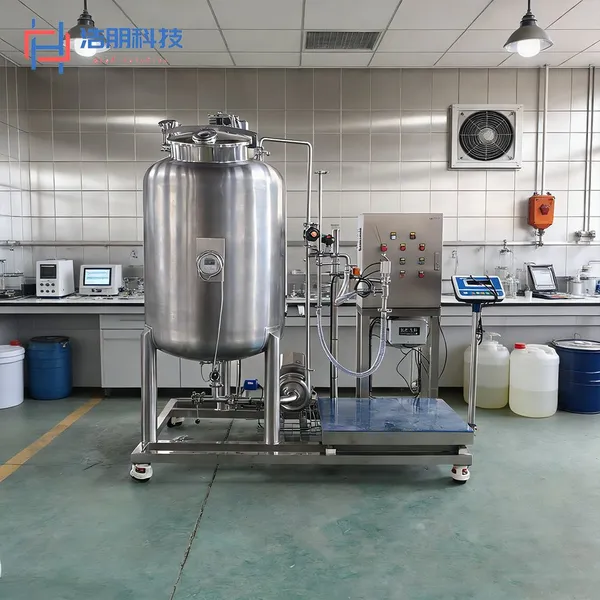

The 300L stainless steel dispensing tank is a sanitary - grade process equipment that integrates mixing, agitation, and temporary storage. It is widely used in the preparation of dairy products, juice beverages, food additives, and pharmaceutical raw materials, aiming to address the issues of uneven traditional mixing, difficult cleaning, and multiple hygiene dead corners.
2. Core Process and Materials
-
Main Material: The tank body is made of 304 stainless steel plate, which has excellent corrosion resistance and mechanical strength.
-
Inner Wall Polishing: To prevent material contamination and facilitate cleaning, the inner surface of the tank undergoes high - standard mirror polishing. The surface roughness is strictly controlled within Ra
-
Structural Design: It adopts a top - mounted semi - open cover design for convenient feeding and maintenance. The bottom features a downward - facing elliptical head, combined with a support leg structure for a stable center of gravity. Foot pads can be customized with casters according to customer needs to enable mobile operation.
3. Performance Parameters and Configuration
-
Effective Volume: 300L.
-
Agitation System: Equipped with a 0.75KW agitation motor, it uses a low - speed paddle agitation structure. The rotation speed is stable at 30 - 50rpm, which can not only ensure sufficient material mixing but also avoid excessive heat generation from high - speed rotation that may affect material properties.
-
Temperature Control System: The tank is equipped with a three - zone thermometer and a dedicated probe to monitor the material temperature in real - time, meeting the dispensing requirements of heat - sensitive materials.
-
Interface Configuration: A breather is installed at the top to maintain internal positive pressure and isolate external contaminants. A standard CIP cleaning nozzle interface is provided, allowing connection to an external CIP system for automated in - place cleaning. Standardized material inlets and outlets are reserved on the side.
4. Application Value
This 300L stainless steel dispensing tank not only improves the mixing efficiency of materials but also significantly reduces the difficulty and labor intensity of manual cleaning due to its surface treatment process. It is an ideal supporting equipment for modern small and medium - sized food and pharmaceutical production lines.
