Fuchen854Epoxy Vinyl Ester Resin
Epoxy Vinyl Ester Resin(Epoxy Vinyl Ester Resin)is currently an internationally recognized high-performance corrosion-resistant resin,Shanghai Fuchen Chemical Co., Ltd.The series of epoxy vinyl ester resins developed and produced by the company have been recognized as national key new products
854is a high-performance, corrosion-resistant bisphenolA type epoxy vinyl ester resin,suitable for various FRP molding processes
Product Features
1.Excellent chemical corrosion resistance,resistant to the erosion of most acids, alkalis, salt solutions and some solvents,outstanding alkali resistance.
2.Low viscosity,good wettability with reinforcing materials,the products have good air-drying property.
3.Low exothermic peak and low shrinkage,thicker parts can be made.
4.Excellent mechanical properties and outstanding toughness.
5.The storage period can reach10 months
Applicable occasions
· Suitable for various FRP molding processes, such as hand lay-up, spraying, winding, pultrusion and RTM etc.
· Can be used to manufacture chemical-resistant storage tanks, pipe fittings, yachts, etc., and corrosion-resistant integral resin mortar floors, cement joint (grouting) materials for granite and acid-resistant brick plates
· Suitable for FRP lining and scale processing on the surface of metal structures or concrete
Liquid Resin Indicators
Items |
854 |
Test Methods |
Appearance |
Light yellow transparent liquid |
Visual inspection |
Acid valuemgkoh/g |
10.0±3.0 |
GB/T2895-2008 |
Viscosity,mpas(25℃) |
350±100 |
GB/T7193-2008 |
Gel time,min(25℃) |
20.0±5.0 |
GB/T7193-2008 |
Solid content,% |
57.0±3.0 |
GB/7193-2008 |
Properties of resin casting body
Project |
854 |
Test method |
Tensile strength,MPa |
80~95 |
GB/2567-2008 |
Tensile modulus,MPa |
3400-3700 |
GB/T2567-2008 |
Elongation at break,% |
5.0-6.0 |
GB/T2567-2008 |
Flexural strength,MPa |
120~150 |
GB/T2567-2008 |
Flexural modulus,MPa |
3300~3800 |
GB/T2567-2008 |
Heat distortion temperature,℃(18MPa) |
100~106 |
GB/T1634-2004 |
Barcol hardness |
48~42 |
GB/T3854-2005 |
Packaging and storage

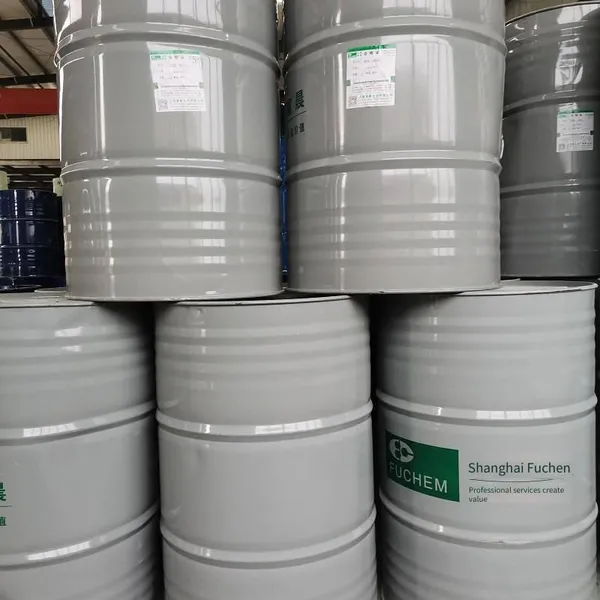

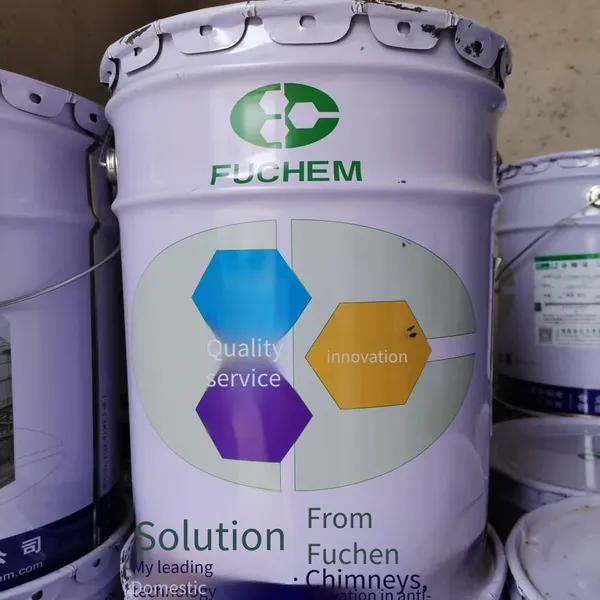

• This product is packed in clean and dry containers, with a net weight of 200Kg/iron drum,50Kg/plastic drum20KG/iron drum.
• The storage environment should be cool, dry and ventilated. The storage period is six months below 25°C. Improper storage or transportation conditions may shorten the storage period of the resin.
