6-S Gravity Shaking Table (Shaker Table / Table Concentrator)
1. Product Overview
The 6-S Shaking Table is a widely used gravity concentration device for the separation of fine minerals. It separates materials based on the difference in specific gravity (density), particle size, and shape under the combined action of asymmetric reciprocating motion of the deck, transverse sloping water flow, and riffles (grooves) on the table surface. No chemical reagents are required, making it an environmentally friendly mineral processing solution.
It is extensively applied in the beneficiation of gold, silver, tungsten, tin, tantalum-niobium, chromite, zircon, lead, zinc, iron, manganese, etc., and can be used for roughing, cleaning, and scavenging operations.
2. Working Principle

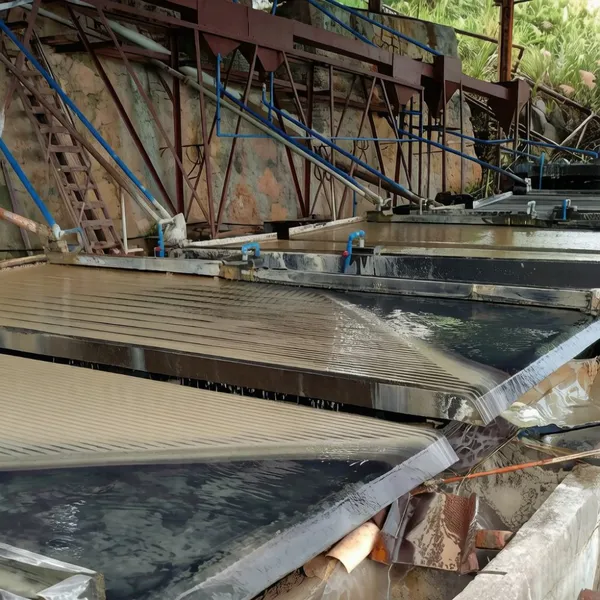

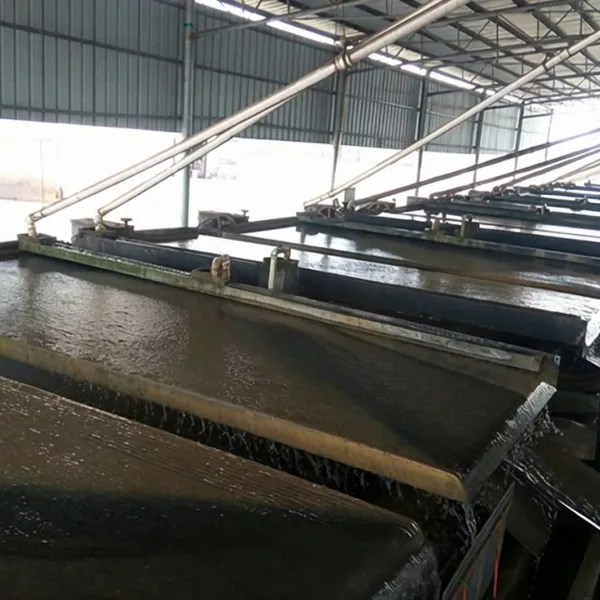

Ore pulp is fed from the feed box onto the inclined table deck. Wash water flows transversely across the deck surface. Under the asymmetric back-and-forth motion generated by the head motion (eccentric linkage mechanism), heavy minerals settle into the riffles while light minerals remain on top and are swept away by the water flow. Particles stratify by density and are transported differentially along the deck, forming a fan-shaped zoning pattern. The final products — concentrate, middlings, and tailings — are discharged separately along different edges of the table.
3. Deck Types (by Feed Particle Size)
Deck Type |
Applicable Feed Size |
Description |
|---|---|---|
Coarse Sand Deck |
0.5 – 2 mm |
Rectangular riffles; for coarse particle recovery |
Fine Sand Deck |
0.074 – 0.5 mm |
Saw-tooth riffles; for fine particle recovery |
Slime Deck |
Triangular/flat riffles; for slime/turbidity recovery |
4. Main Components
-
Head Motion / Transmission Mechanism — Eccentric linkage with adjustable stroke & frequency
-
Table Deck — FRP (Fiberglass Reinforced Plastic) with embedded corundum/emery surface; wear-resistant & anti-corrosion
-
Feed Box & Water Box — Even distribution of ore pulp and wash water
Slope Adjuster — Adjustable lateral tilt angle (typically 0°–5°)
Support Frame — Channel steel stand (left-hand or right-hand type available)
5. Technical Specifications (Standard 6-S Model)
Parameter |
Value |
|---|---|
Model |
6-S (Standard) |
Deck Dimensions (L × Transmission End W × Concentrate End W) |
4500 × 1850 × 1550 mm |
Beneficiation Area |
7.6 m² |
Max. Feeding Size |
≤ 2 mm |
Feeding Density |
15–30 % (by solid content) |
Stroke Length |
8–36 mm (adjustable, typical 16–22 mm for coarse sand) |
Stroke Frequency |
210–380 r/min (adjustable) |
Processing Capacity |
0.3–1.8 t/h (depends on deck type & ore) |
Water Consumption |
0.4–1.2 t/h |
Motor Power |
1.1 kW |
Overall Dimension (L × W × H) |
~5600 × 1850 × 900 mm |
Deck Weight |
Approx. 600–750 kg |
Smaller models (LS-3000 / LS-2100 / LS-1100) with respective deck sizes 3000×1320mm, 2100×1050mm, 1100×500mm are also available.
6. Key Features & Advantages
-
High enrichment ratio and good recovery rate (up to 85–95% for liberated gold)
-
Clear fan-shaped separation zone — easy to observe and adjust splitters
-
FRP deck — corrosion-resistant, waterproof, long service life
-
Adjustable stroke length and frequency to suit various ores
-
Simple structure, easy installation & low maintenance
-
No chemicals required — eco-friendly physical gravity separation
7. Typical Applications
-

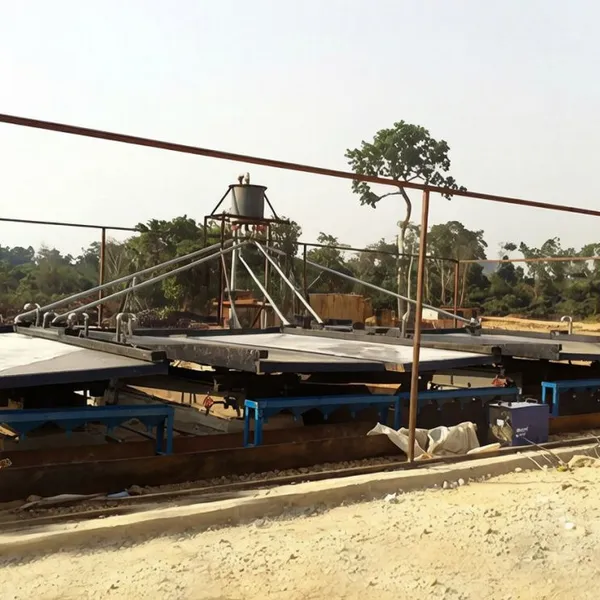

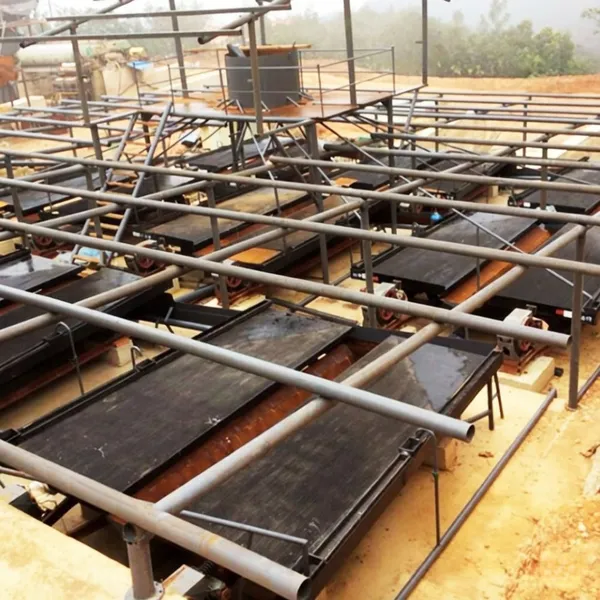

Gold washing plants (alluvial & hard-rock gold final cleaning)
-
Tungsten & Tin ore dressing lines
-
Tantalum-Niobium & rare metal recovery
-
Zircon, Ilmenite, Chromite separation
-
Coal desulfurization (fine coal from pyrite)
