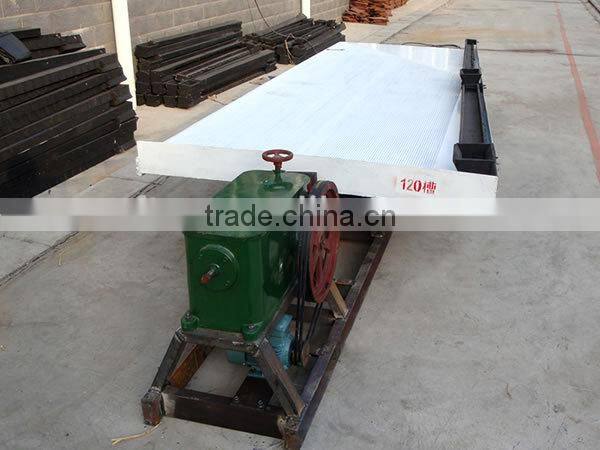

High recovery rate gold mining gravity separator shaking table
Overview
Shake table is one of the main equipment of gravity concentration. This table mainly by the head of a bed, motor, adjustable slope, bed, ore groove, groove, reflex and lubrication systems of eight parts. According to the mine in different position, shaking table can be divided into right and left shaking table two forms. The right table feed position for shaking organizations on the right, the left table to mine position on the left.
Application
Shaking table is a kind of mine selecting machine for fine materials under the gravity, it is widely used for the selection of tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrochromium and coal.

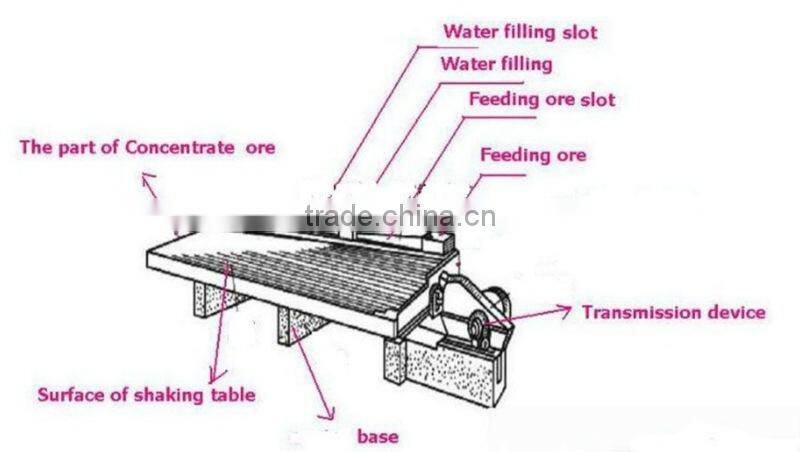

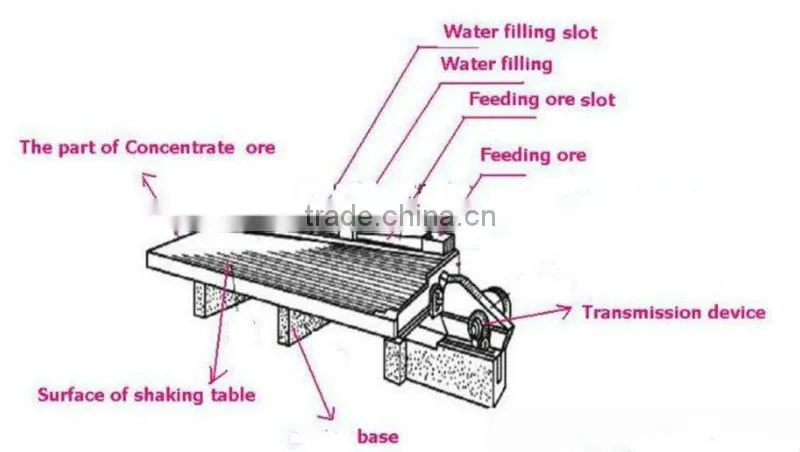

Basic Structure
This table is mainly composed by the head of a bed, motor, adjustable slope, bed, ore groove, groove, reflex and lubrication systems of eight parts.
Working Principle
Shake table is on the lean table board with raffles. The ore material is fed in by the feeding chute upper table board; meanwhile, the water is fed by water feeder transversely. Under the impact of vibrating wave, the materials go on vertical and horizontal movement as per the different proportion and granularity. The ore material with different proportion and granularity move down in laddershipped state along with their own movement, then discharge from the fine concentrate end and tailings end, finally they are separated out to fine concentrate, middle concentrate and tailings.
Features
1. Get concentrate and gangue at one time;
2. Fine water-resistance, chemical resistance, corrosion resistance, abrasion resistance, etc;
3. We can simplify the repair and painting process, which directly reduces the maintenance cost, greatly increases recovery rate, and prolongs the life of ore concentration tables;
4. High enrichment ratio, good selection effect, easy operation;
5. Low energy consumption, competitive price.

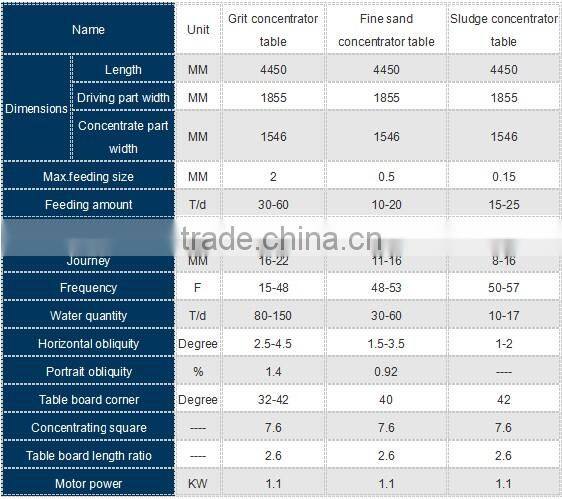

Technical Date
Packaging and Shipping
Our payment Term:
1. We usually accept T/T, L/C;
2. T/T: 30% in advance as down payment, the balance before delivery;
3. We take pictures of finished products before delivery.
Ways of Packing:
1. Sand blasting, coat with high quality paint;
2. Product wrap by PP-Bubble;
3. Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE;
3. We will remind you before boat arrival.
Company Information
Henan Fote Heavy Machinery Co., Ltd., the former Henan First Machinery Factory, founded in Henan
ZhengzhouChina machinery manufacturing capital in 1982, is a large jointstock company specialized
in manufacturing heavy mining machinery and civilian machinery; it has six production bases with an
area of 240,000m2, more than 2000 existing employees, 160,000 m2 tandardized heavy industrial
plant, and about 500 sets of big and medium sized processing, riveting, welding and assembly
equipment. After 30year construction and development, Fote has become famous production and
export base of mining machinery and civilian machinery in China.
We provide series of ore-dressing plant,sandstone equipment,ball mill,industrial dryer,ungrouped,confeyor system,magnetic separator,flotation machine,gravity separating machines,high frequency screen,rotary kiln, ect. Our products have been sold to more than 90 countries and regions all over the world, such as Russia, the United States, Kazakhstan, India, Indonesia, South Africa, Libya, Sudan, Iran and so on.
Our Services
1, We will provide you the prophase plan,process flow design and manufacturer equipment according to your special requests.
2,Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3,We will regularly pay return visit to customers to establish long term friendship. Supplying technique, building design, instruction, installation and debugging for free.
4,We provide one-year warranty to make sure your machine runs consistently. We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years.
FAQ
1,What guarantee do you provide?
Our products are manufactured strictly according to national and international standard, and we take a test on every machine before delivery. If products’ quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
2,How about the price?
We are the direct manfacturer,so we can offer you the lowest price than market price, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
