Glue Dispenser Machine Price Manual AB Glue Mixing & Metering Machine for Industrial Potting
Daheng Automation specializes in potting and dispensing systems for various resin applications, including 1- and 2-component, polyurethanes, epoxies, silicone, and more. We provide solutions for potting and encapsulation to protect products from harsh environments, including vacuum and atmosphere pressure options. Our offerings include automatic and semi-automatic fluid dispensing machines, dual-component systems, and high-precision dispensing robots. We have the right equipment for adhesive, epoxy, or silicone applications to meet your needs.
D&H accepts a variety of customization, including size, number of tanks, temperature control, etc.
Please contact us for more information!
Introduction ：
1. Working Area: controlled by PLC module and MCGS touch screen. 2.High precision valve: high speed, glue off clean, no glue drawing, no dropping. 3. Gear pump special for transparent glue. 4. Mix glue A & B more evenly; no more or no less for agent B.
Working principle ：
Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
Tank system technology：
1. Stainless panel vacuum pressure tank which can bear negative pressure of inner tank . 2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature. 3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level . 4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure . 5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve. 6 Tank with artificial feeding mouth that can be added glue appropriately by hand . 7 Tank with silica-dryer which can prevent material especially PU from crystallization .
D&H Pump technology
1. Two cylinder plunger pumps work by durable motors. 2.The biggest flow volume :24g/s，The smallest output is 0.2g/s . Repetition accuracy:0.02g. 3.Also Suitable for high viscosity glue: 50cps~35000cps. 4. Suitable for big flow dispensing or slight flow dispensing. 5. Suitable for frequent start and stop dispensing. 6. Anti-wear, Anti-corrosion, super long life time.
Valve technology
1. Two cylinder plunger pumps work by durable motors. 2.The biggest flow volume :24g/s，Repetition accuracy:0.2g. 3.Also Suitable for high viscosity glue: 50cps~35000cps. 4. Suitable for big flow dispensing or slight flow dispensing. 5. Suitable for frequent start and stop dispensing. 6. Anti-wear, Anti-corrosion, super long life time.
Tech Data
ITEM |
Parameter |
Mixing ratio |
1:1--10:1 adjustable |
Working range |
750*700*100mm |
Displacement speed |
500mm/s（speed） |
Out-glue speed |
1-12g/s |
Accuracy |
±2%（output volume）±2%（mixing） |
Flow control |
Digital input |
Program memory |
99pcs |
Motion trail |
Dot , line ,curve ,circle |
Automatic controlling system |
Touch screen (to achieve program programming, modification, storage and so on |
Out-glue control system |
AB glue back suction valve, achieve AB glue independent operation |
Programmatically |
Tech programming |
Mixing method |
dynamic mixing |
Power supply |
220V/50Hz/1500W |
Air source |
0.5-0.8Mpa |
Viscosity range |
50-20000cps |
Outer dimension |
3000L*1200W*1600H mm |
A tank |
25L stainless tank（optional） |
B tank |
10L stainless tank（optional） |
Others |
AB tank 、A pump、AB pipeline heating function |
PLC Operation Controlling System
1 Dispensing volume is controlled by the speed of pump’s motors ; Glue speed adjustable within the speed range .
2 Machine with detecting function that detect the speed and running time of pumps to ensure the ratio reliability.
3 Adjustable gluing-out volume make sure glue A/B dispense out at the same time from glue valve to get better glue mixing effect .
4 Machine with gel resistance calculator , which prevent the mixture curing inside .
5 You can set single gluing-out and steady gluing-out function to meet up with your different process requirement .
6 Whole machine system and function is controlled by Panasonic PLC and MGCS touch screen .
7 Reserved PLC communication interface, which easy connecting with outside device .
8 Equipped with a safety lock to prevent staff from wrong operation .

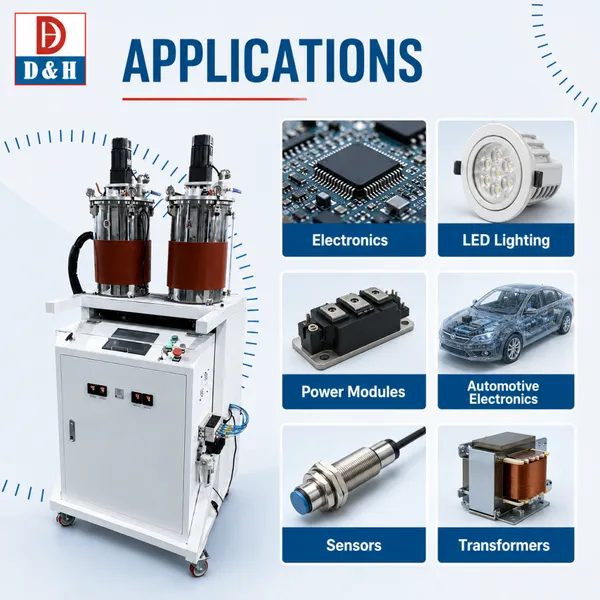

Application
1.Potting&Encapsulation &Casting: electronics components ,Electronic parts , PCB board,PCBA, integrated circuits，Capacitor,circuit board power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts，SMD transformers, relays and other products which need to fixed and dust and moisture protection..... 2.Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling .... 3.Bonding&doming : LCD screen ,LOCA bonding，ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....

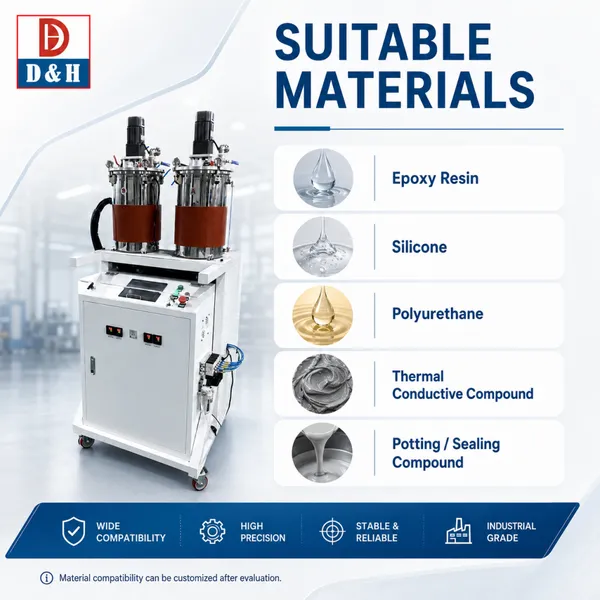

Applicable material
1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .
Certifications
About company
Guangzhou Daheng Automation Equipment Co., Ltd.
As a leading innovator in the R&D and application of adhesive metering, mixing, and dispensing equipment, D&H Automation Equipment upholds the philosophy of "Innovation Shapes the Future," focusing on high-precision liquid control system development. Its core product, the Double-Cylinder Pump Technology, excels in precise control of adhesives with varying viscosities, setting industry benchmarks through adaptability, accuracy, and durability.
Core Advantages:Technical Leadership: Holds over 60 patents and multiple industry-first products, with certifications like CE and SGS, demonstrating global technical excellence. Customized Solutions: Provides tailored equipment and services beyond standard models to meet diverse application needs. Global Reach: Headquartered in Guangzhou, with 5 branches in Suzhou, Shenzhen, Chongqing, and exports to over 60 countries, including Russia, Turkey, and Singapore. Comprehensive Support: Offers professional training and 24/7 customer service to ensure seamless client experiences.
