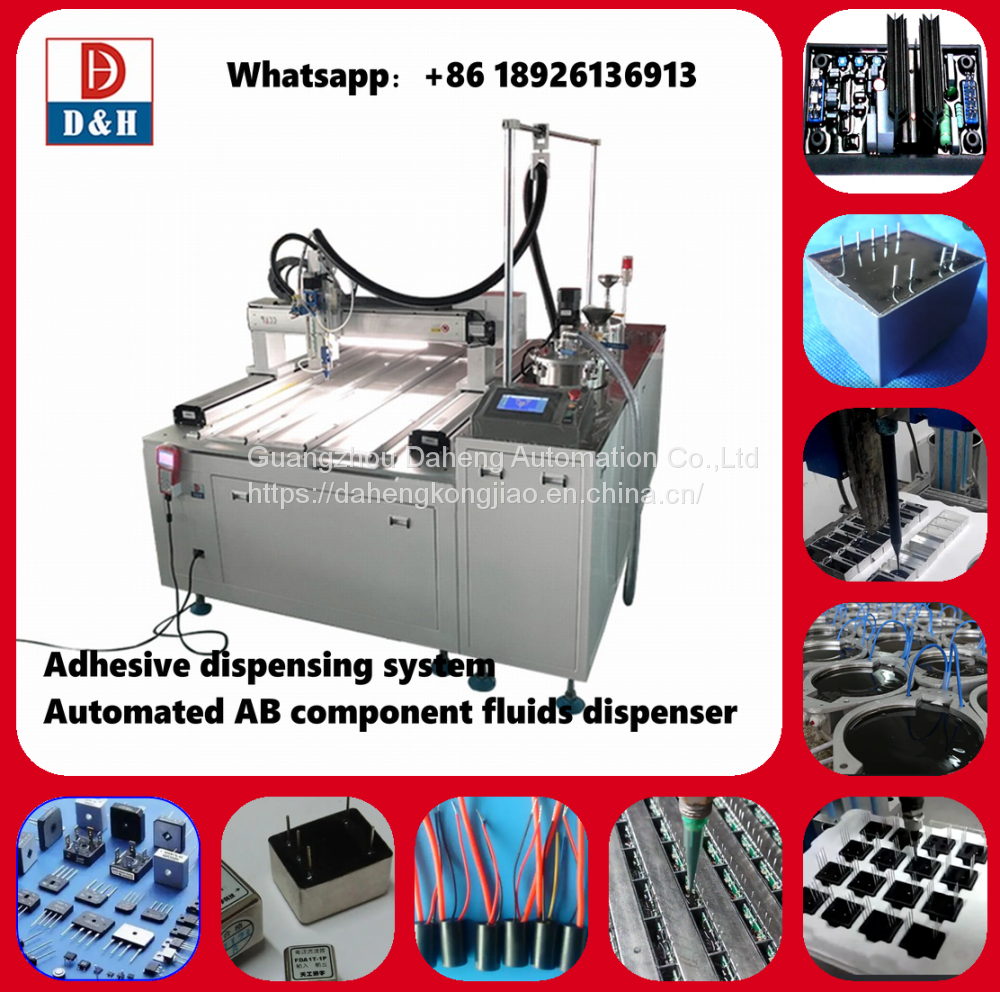

CNC 3 Axis 2K AB Glue Potting Silicone Epoxy pu Glue Dispensing Dispenser Automatic Machine
US$ 6900 - 15900
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
D&H
Place of Origin:
China
Model Number:
PGB-700,PGB-1200, PGB-200,PGB-650B
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AB Fluid Dispensingsemi-automatic Industrial Dispenser 2 Component Epoxy Resin Silicone Casting Machine Two Component Dispenser 1 - 1 PiecesUS$ 6900 - 15900MOQ: 1 Piece -
Automated 2 Part Epoxy Dispenser Equipment Glue Dispenser and Industrial Tunnel Oven MachineUS$ 6900 - 15900MOQ: 1 Piece
-
Automatic CNC Auto Epoxy Dispenser ab Glue Dispensing Machine for Capacitor ProductionUS$ 6900 - 15900MOQ: 1 Piece
-
Loctite Adhesive Potting Gluing MachineUS$ 6900 - 15900MOQ: 1 Piece
-
Automatic CNC Auto Epoxy Dispenser ab Glue Dispensing Machine for Capacitor ProductionUS$ 6900 - 15900MOQ: 1 Piece
Brand Name
D&H
Place of Origin
China
Model Number
PGB-700,PGB-1200, PGB-200,PGB-650B
Certification
CE， Rohs
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
13 Months
Weight
500KG
Dimension(L*W*H)
700x700x100mm , 1200x1200x100mm , 1500x480x100mm
Condition
New
Voltage
220V 50-60HZ or 380V 50-60HZ
Power(W)
2000W
CNC 3 axis 2K AB glue potting silicone epoxy pu glue dispensing dispenser automatic machine
We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.
Potting and encapsulation is the process of embedding products & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed. Encapsulation of parts will stop corrosion of metals and reduce damage caused by vibration and mechanical stress.
We offer automatic ,se-mi automatic fluid dispensing potting machine and the related production line and vacuuming systems .AB glue dispensing machine Epoxy dispensing machine Two-component dispensing machine Dual-component dispensing machine Meter-mix dispensing machine Resin dispensing machine Adhesive dispensing system Dispensing robot Dispensing valve Liquid dispenser Automated dispensing equipment
Introduction ：
1. Working Mode: controlled by PLC module and MCGS touch screen.
2.High precision valve: high speed, glue off clean, no glue drawing, no dropping. 3. Core metering pump specially design for different material from low to high viscosities. 4. Mix glue A & B more evenly; no more or no less for agent B.
Working principle ：
Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
Tank system technology：
1. Stainless panel vacuum pressure tank which can bear negative pressure of inner tank . 2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature. 3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level . 4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure . 5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve.
6 Tank with heater which can preheat materials to assure good flowability . 7 Tank with artificial feeding mouth that can be added glue appropriately by hand . 8 Tank with silica-dryer which can prevent material especially PU from crystallization .
D&H Pump technology
1. Two cylinder plunger pumps work by durable motors. 2.The biggest flow volume :24g/s，Repetition accuracy:0.2g. 3.Also Suitable for high viscosity glue: 50cps~35000cps. 4. Suitable for big flow dispensing or slight flow dispensing. 5. Suitable for frequent start and stop dispensing. 6. Anti-wear, Anti-corrosion, super long life time.
Valve technology
1. Two cylinder plunger pumps work by durable motors. 2.The biggest flow volume :24g/s，Repetition accuracy:0.2g. 3.Also Suitable for high viscosity glue: 50cps~35000cps. 4. Suitable for big flow dispensing or slight flow dispensing. 5. Suitable for frequent start and stop dispensing. 6. Anti-wear, Anti-corrosion, super long life time.
Tech Data
PLC Operation Controlling System
Fully Automatic Two Component glue equipment Epoxy silicone Resin control system for electronic industry
1 Dispensing volume is controlled by the speed of pump’s motors ; Glue speed adjustable within the speed range . 2 Machine with detecting function that detect the speed and running time of pumps to ensure the ratio reliability.
3 Adjustable gluing-out volume make sure glue A/B dispense out at the same time from glue valve to get better glue mixing effect .
4 Machine with gel resistance calculator , which prevent the mixture curing inside .
5 You can set single gluing-out and steady gluing-out function to meet up with your different process requirement .
6 Whole machine system and function is controlled by Panasonic PLC and MGCS touch screen .
7 Reserved PLC communication interface, which easy connecting with outside device .
8 Equipped with a safety lock to prevent staff from wrong operation .
Application

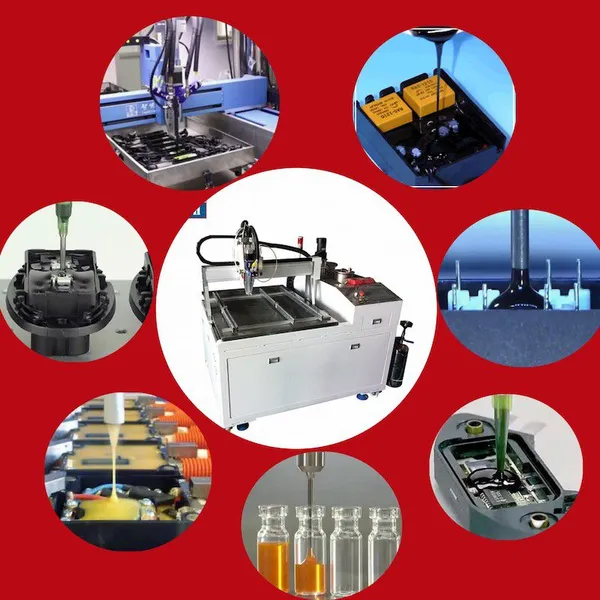

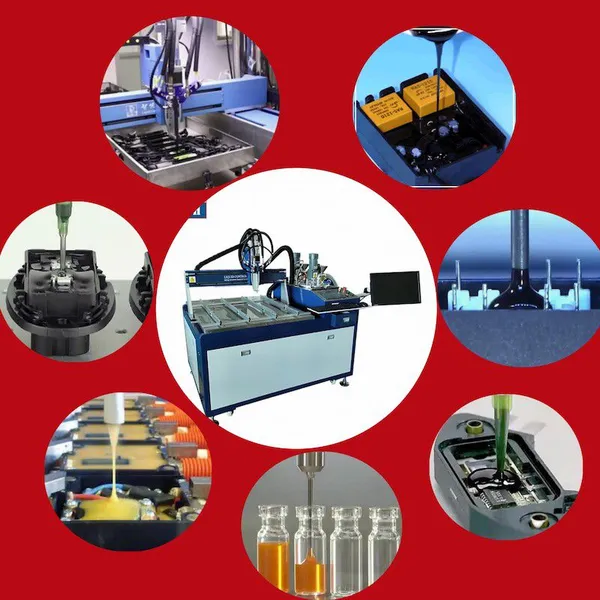

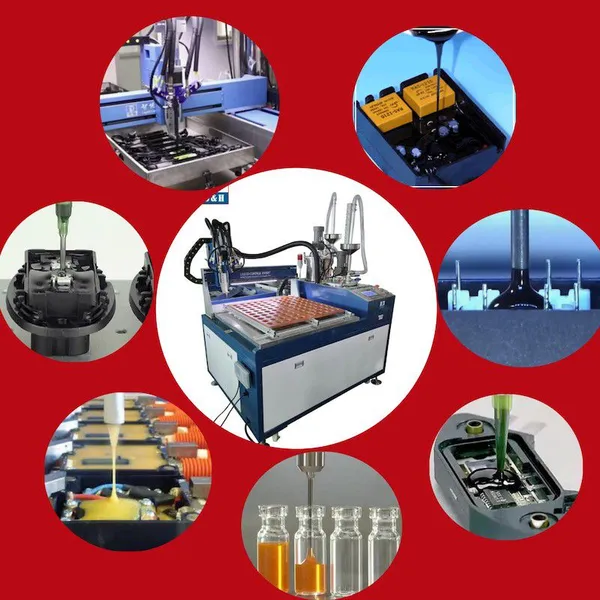

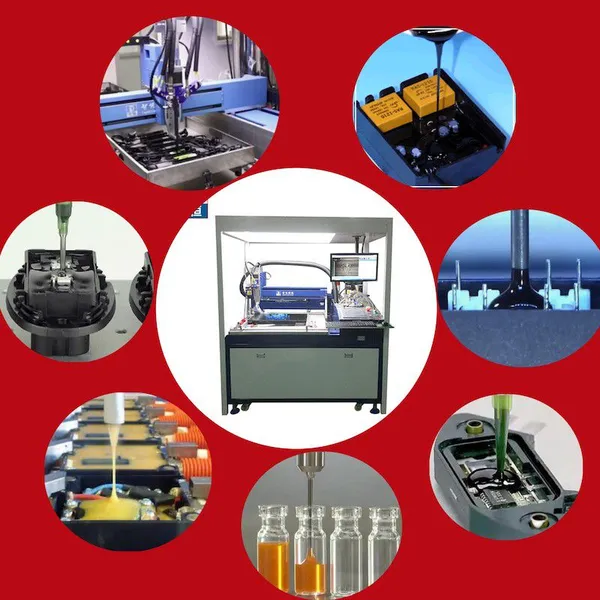

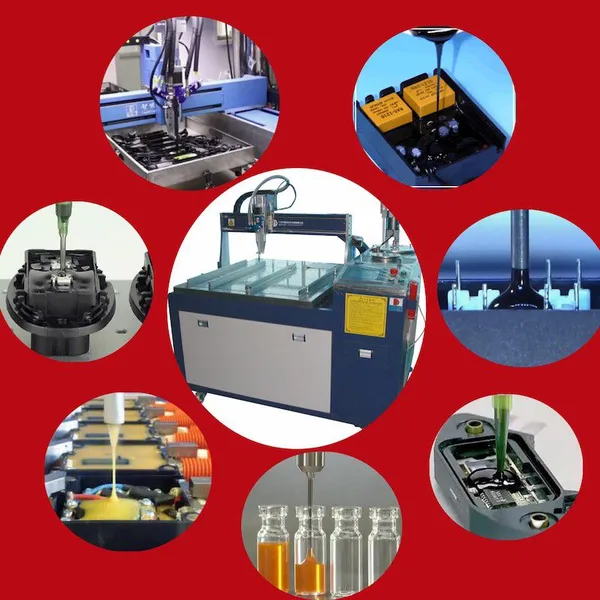

1.Potting&Encapsulation &Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts.... 2.Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling .... 3.Bonding&doming : LCD screen ,LOCA bonding，ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....
Fully Automatic Two Component glue equipment Epoxy silicone Resin control system for electronic industry
Applicable material
1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .
Our customer cases
Service Term
1、 Staff training Seller is responsible to provide machine’s training including installation, debugging, maintenance to assured customer can totally use the operation skills and well acknowledge maintenance of machine .
2、Maintenance Service 2.1Seller provide one year warranty period and support free maintenance service during warranty . Software upgrade service is provided for a long life time.
2.2 In case parts of the machine become broken within the warranty because of non-artificial factors, we send you part replacement free, buyer pay for the shipment. Double-liquid valve should be bought at its cost price.
2.3If the parts of the machine become broken past warranty , the parts replacement should be shouldered by buyer.
