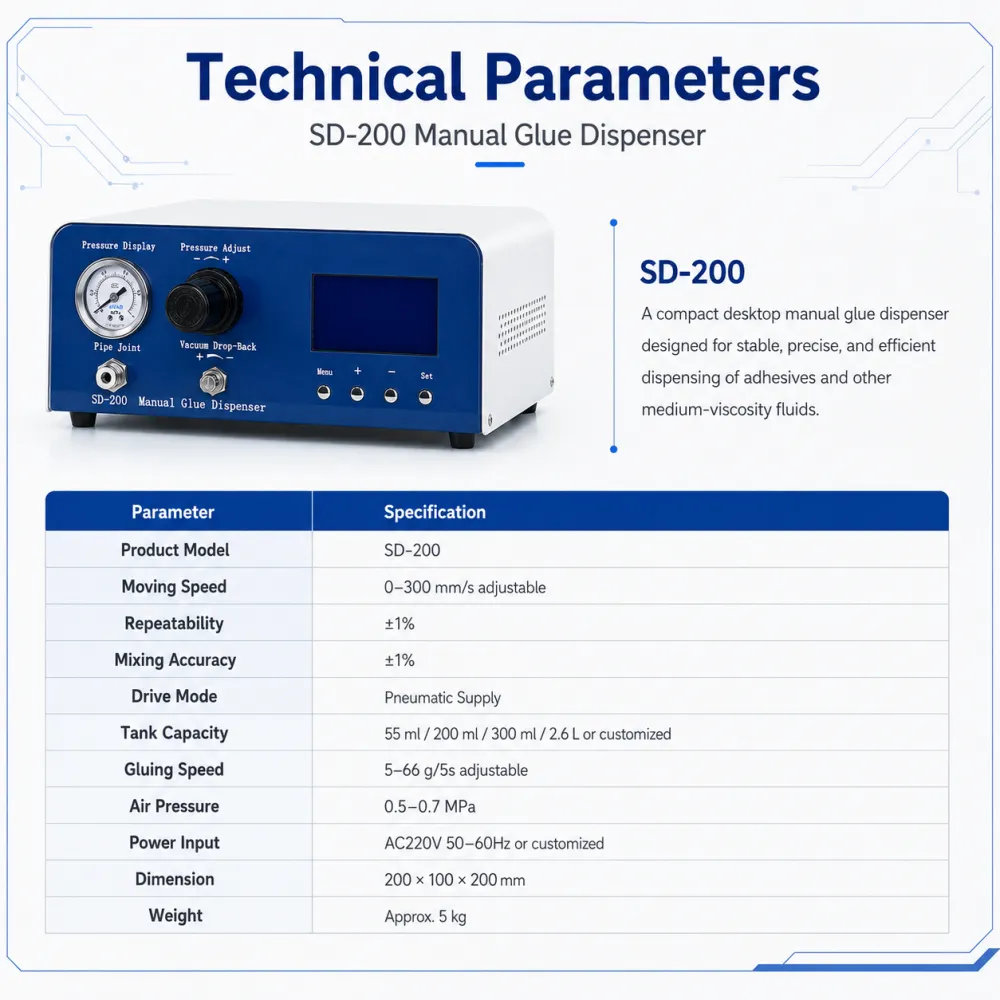

Help CenterDesktop Manual Glue Dispenser SD-200
Product Spotlights
Good stability
Fully automatic
Related Products
-
Two Components Glue Dispensing and Potting Machine for Electronic SensorsUS$ 6900 - 15900MOQ: 1 Piece -
Two Components Glue Dispensing and Potting Machine for Electronic SensorsUS$ 6900 - 15900MOQ: 1 Piece
-
RTV Silicone Addition Potting Compound 3 Axis Dispensing Robot Automatic Machine Two Component Dispensing MachineUS$ 6900 - 15900MOQ: 1 Piece
-
CNC 3 Axis 2K AB Glue Potting Silicone Epoxy pu Glue Dispensing Dispenser Automatic MachineUS$ 6900 - 15900MOQ: 1 Piece
-
AB Fluid Dispensingsemi-automatic Industrial Dispenser 2 Component Epoxy Resin Silicone Casting Machine Two Component Dispenser 1 - 1 PiecesUS$ 6900 - 15900MOQ: 1 Piece
Product Description
Why Choose Us
Intelligent Desktop Gluing Machine with Customized Jig for Precision Adhesive Dispensing
In the modern manufacturing industry, Semi-Auto Epoxy Resin Dispensing Machine AB Glue Potting Machine can efficient and precise encapsulation ensuring the durability and reliability of components. This is where advanced machines like the two-part encapsulation machine and epoxy dispensing machine come into play. These systems are designed to handle a variety of resins, including epoxy, silicone, and polyurethane, offering tailored solutions for a wide range of industrial applications.
Daheng is a Leading machine manufacturer that develops glue dispensing systems for industries such as automotive,electronics, and LED lighting. Their systems, including potting dispenser machines and encapsulation equipment, are designed to optimize production while ensuring that each product is protected with a high-quality resin layer. For those requiring larger-scale applications, automation machinery such as dispensing machines with integrated mixing capabilities ensures reliable performance across production lines.
Advanced 2 part epoxy mixing machine with precision mixing technology for reliable electronic encapsulation manufacturing
The evolving manufacturing landscape demands high-quality, efficient, reliable, and reliable solutions. The two-part
encapsulation machine, epoxy dispenser, and other dispensing systems are critical components in meeting these needs, providingautomation and precision to keep up with the fast-paced demands of modern industries.
Advanced 2 Part Epoxy Mixing Machine with Precision Mixing Technology

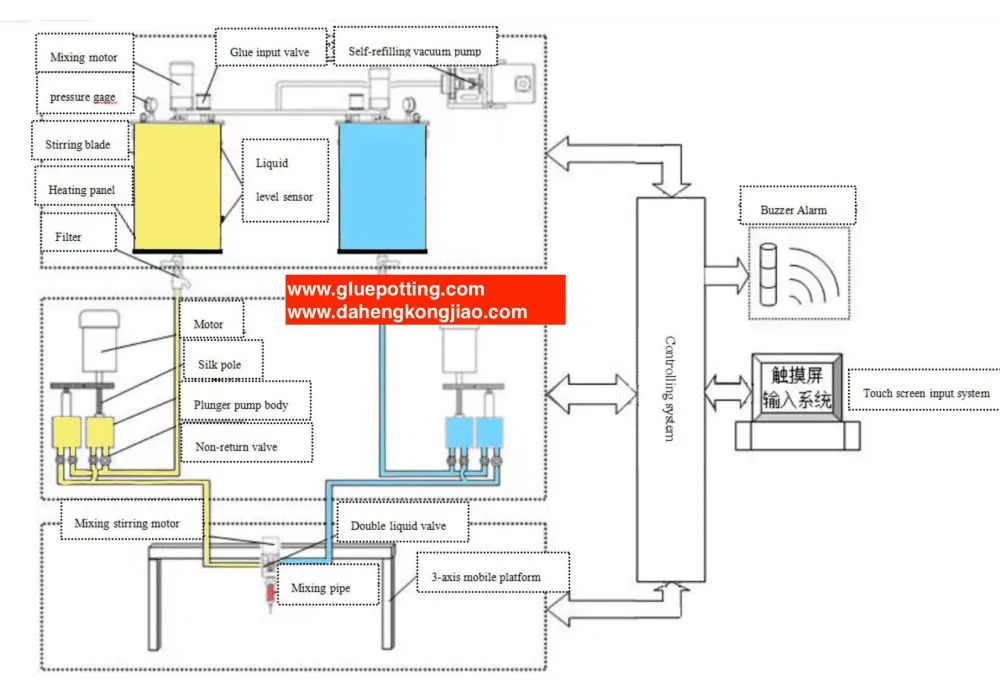

Basic Working principle :
Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
Daheng Automation specializes in a diverse range of Fillling Dosing Potting and Dispensing systems. Regardless of the specific resin application requirements you may have, our fully equipped is capable of handling most of them.
We are proficient in dealing with various materials, including one - and two - component polyurethanes, epoxies, acrylics,silicones, as well as temperature, humidity, and UV - curing materials. These materials can span from low - to high - viscosity,be either filled or unfilled, and even include highly abrasive substances for thermal conductivity purposes.

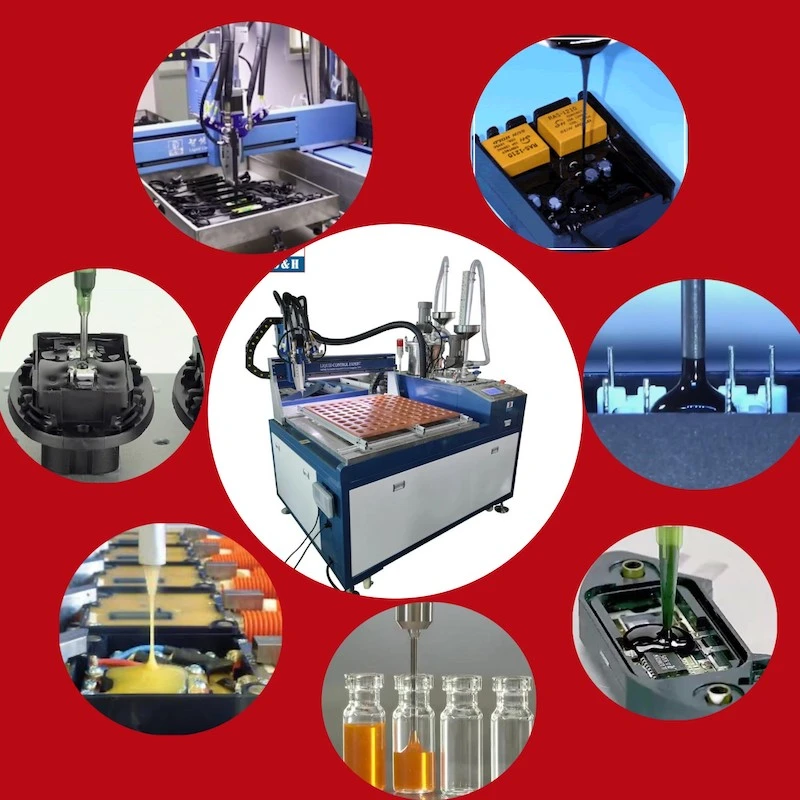

Application range
Main application industries: automotive electronics, industrial electronics, electrical industry, new energy, aviation/aerospace/navigation, lighting,communication/power supply, power tools, electronic components, etc.
Main product applications: automotive electronics, industrial equipment, sensors, mutual inductors, transformers, ignition coils, capacitors, module power supplies, control systems, communication equipment, inverters, motors, motors, household appliances, power tools, etc.

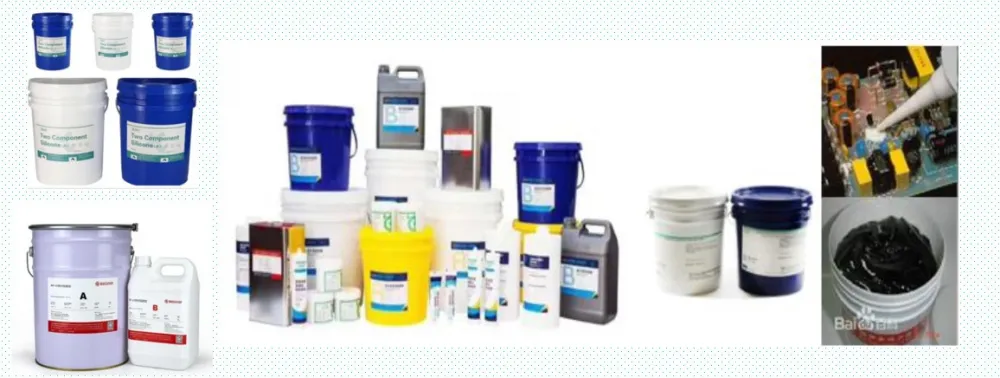

Application resin: two-component liquids such as two-component epoxy resin, two-component polyurethane resin/two-component PU glue, two-component silicone, etc.
Technological Innovation Advantages

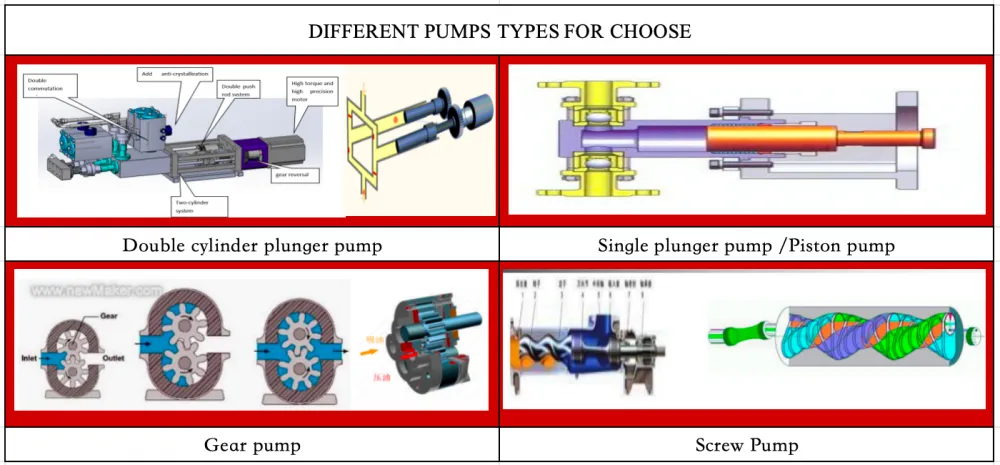

The pioneering "double-cylinder double-plunger pump technology" introduces a next-generation fluid metering and control system with exceptional precision, variable output, uninterrupted operation, and extended lifespan. This technology accommodates a wide range of viscosities, as well as liquid-liquid and solid-liquid mixtures, ensuring precise control over glue output and mixing ratios. This guarantees stable and consistent glue-filling quality for diverse applications.Double-Cylinder Double-Plunger Pump Technology
Optimized Plunger-to-Pump Sleeve Clearance:
Daheng's plunger pump is engineered with precise machining to meticulously control the clearance between the plunger and the pumpsleeve. This ensures smooth plunger movement while minimizing residual liquid in the gap, which reduces the risk of crystalformation due to leftover fluid.
Innovative Flow Channel Design:
Daheng has independently developed an advanced anti-crystallization plunger pump featuring specialized flow channels and annular grooves in the pump sleeve. The inner wall of the pump sleeve is designed with an inclined flow channel that optimizes the cleaning process. As the plunger moves, cleaning fluid is more effectively directed over the plunger surface, preventing solute adhesion and crystallization.
1 Dispensing volume is controlled by the speed of pump's motors ; Glue speed adjustable within the speed range .
2 Machine with detecting function that detect the speed and running time of pumps to ensure the ratio reliability.
3 Adjustable gluing-out volume make sure glue A/B dispense out at the same time from glue valve to get better glue mixing effect .
4 Machine with gel resistance calculator , which prevent the mixture curing inside .
5 You can set single gluing-out and steady gluing-out function to meet up with your different process requirement .
6 Whole machine system and function is controlled by Panasonic PLC and MGCS touch screen .
7 Reserved PLC communication interface, which easy to connect with outside device .
8 Equipped with a safety lock to prevent staff from operation .
Tech Data
ITEM |
Parameter |
Mixing ratio |
1:1--10:1 adjustable |
Working range |
700*700*100mm |
Displacement speed |
250mm/s(speed) |
Out-glue speed |
1-12g/s per single pump |
Accuracy |
±2%(output volume)±2%(mixing) |
tolerance |
≤0.2mm |
Flow control |
Digital input |
Program memory |
99pcs-999pcs |
Motion trail |
Dot , line ,curve ,circle |
Automatic controlling system |
Touch screen (to achieve program programming, modification, storage and so on |
Out-glue control system |
AB glue back suction valve, achieve AB glue independent operation |
Programmatically |
Tech programming/or computer systems (Micro software Windows 7,Windows10 optional) |
Mixing method |
dynamic mixing |
Power supply |
220V/50Hz/1500W without heating |
Air source |
0.5-0.8Mpa |
Viscosity range |
50-20000cps |
Outer dimension |
1500L*1200W*1600H mm |
A tank |
10L 25L 40L stainless tank(optional) |
B tank |
10L 25L 40L stainless tank(optional) |
Others |
AB tank ,A pump,AB pipeline heating function |
About Us Guangzhou Zhengqi Technology Co.,Lt(Guangzhou Daheng Automation Equipment Co., Ltd. )
Guangzhou Zhengqi Technology Co.,Lt(Guangzhou Daheng Automation Equipment Co., Ltd. )is a leader in the R&D and sales of glue metering, mixing, and dispensing machinery. We firmly believe that "innovation shapes the future," with core technology being the driving force behind true creation. At the heart of every liquid control device lies its metering and mixing system, and this is where Daheng excels.
Our continuous commitment to innovation has led us to develop the unique "Double-Cylinder Pump"-a high-precision, adaptable, and long-lasting liquid control system capable of handling glues with varying viscosities. This advanced technology positions us as pioneers in the gluing machine industry, earning us prestigious certifications such as CE and SGS. With over 60 patents and numerous industry-first products, Daheng is proud to be at the forefront of technology.
In addition to our standard machines, we also offer customized solutions tailored to specific customer needs. Headquartered in Guangzhou, with branches in Zhongshan, Shenzhen, Shanghai, and international exports to Russia, Turkey, the Netherlands, Singapore, Indonesia, and more, we are committed to providing ongoing training and 24/7 customer support.Our continued growth and success are driven by your trust and support. As we move forward, we remain dedicated to enhancing our cylinder pump and precision valve technologies, ensuring that we continue to lead the industry and outpace our competitors.
