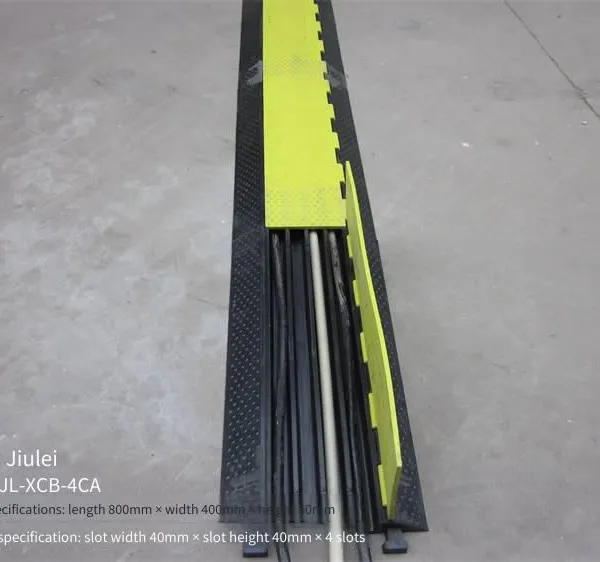

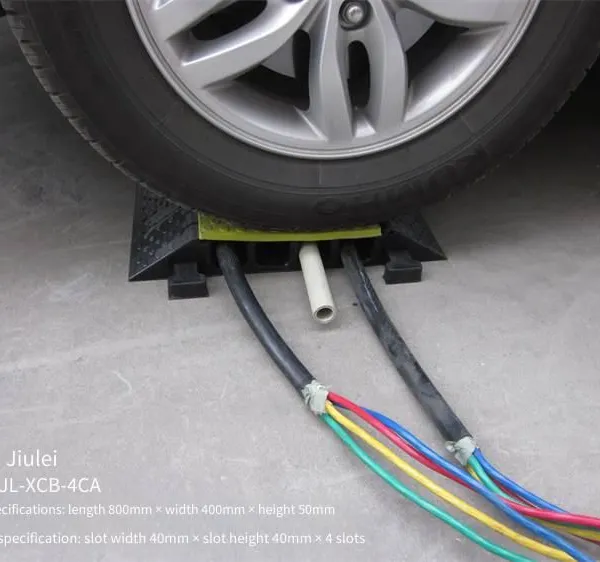

Help CenterJiulei Brand Jl-xcb-4ca Rubber and Plastic Bridge Belt (picture) - Length: 800mm * Width: 400mm * Height: 50mm - Slot Width: 40mm * Slot Height: 40mm * 4 Slots
Related Products
-
Jiulei Brand Jl-xcb-4cc Rubber and Plastic Bridge Belt (specification): Length 900mm * Width 500mm * Height 60mm, Slot Width 40mm * Slot Height 40mm * 4 SlotsUS$ 20MOQ: 1 Piece -
Jiulei Brand Jl-xcb-4cb Rubber and Plastic Bridge Belt (specification) Length 900mm * Width 600mm * Height 58mm, Slot Width 50mm * Slot Height 40mm, 4 HolesUS$ 46.15MOQ: 1 Piece
-
Jiulei Brand Jl-xcb-3cf | Rubber and Plastic Bridge Belt (picture) Length 1000mm * Width 300mm * Height 50mm | Slot Width 30mm * Slot Height 30mm * Three SlotsUS$ 15.38MOQ: 1 Piece
-
Jiulei Brand Jl-xcb-3cc Rubber and Plastic Bridge Belt (picture), Length: 900mm * Width: 500mm * Height: 75mm, Slot Width: 55mm * Slot Height: 55mm, 3 HolesUS$ 43.08MOQ: 1 Piece
-
Jiulei Brand Jl-xcb-3ce, Rubber and Plastic Bridge Belt (picture), Length: 900mm * Width: 500mm * Height: 70mm, Slot Width: 65mm * Slot Height: 55mm * 3 SlotsUS$ 20MOQ: 1 Piece
【Parameters of Jiulei Brand Rubber and Plastic Bridge Crossing Belt】
Manufacturer: Shanghai Jiulei Traffic Facilities Co., Ltd.
Product Qualifications: Test Report, Certificate of Conformity.
Product Name: Jiulei Brand JL-XCB-4CA Rubber and Plastic Bridge Crossing Belt
Brand: JIULEI
Model: Jiulei Brand JL-XCB-4CA
Overall Specification: Length 800mm * Width 400mm * Height 50mm
Inner Dimensions of the Slot: Slot Width 40mm * Slot Height 40mm * 4 Slots
Base Material: Rubber
Cover Plate Material: Rubber
Base Color: Black
Cover Plate Color: Yellow
Number of Cable Slots: 4 Slots
Load Capacity: 5 Tons
Product Weight: 10kg

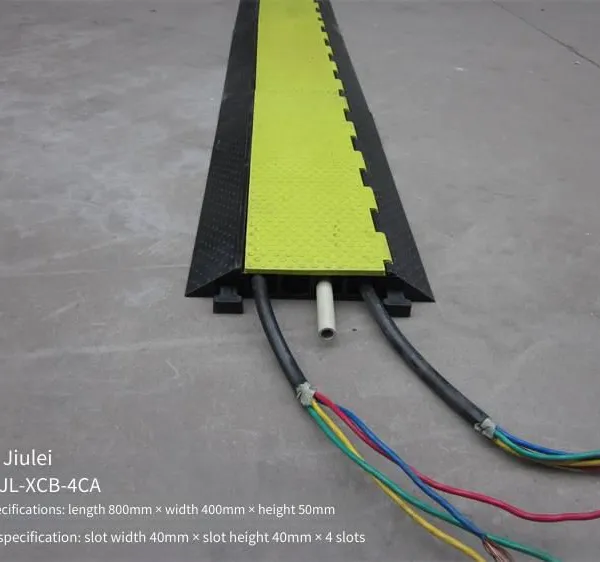

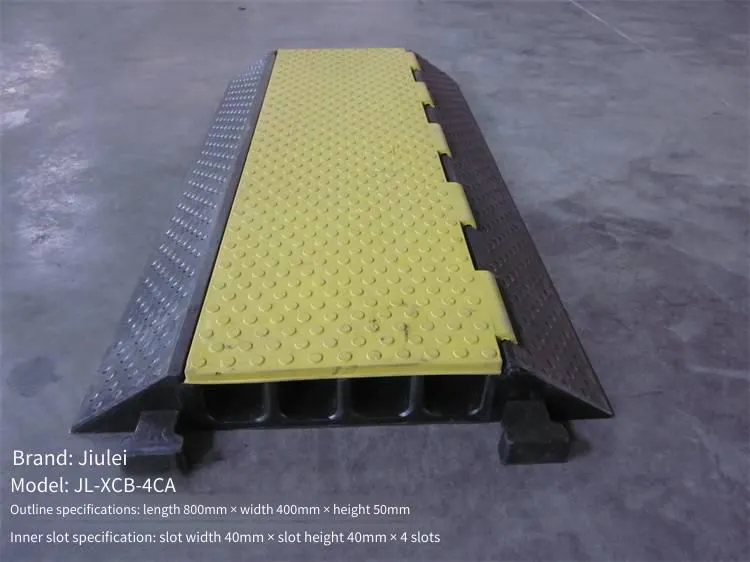

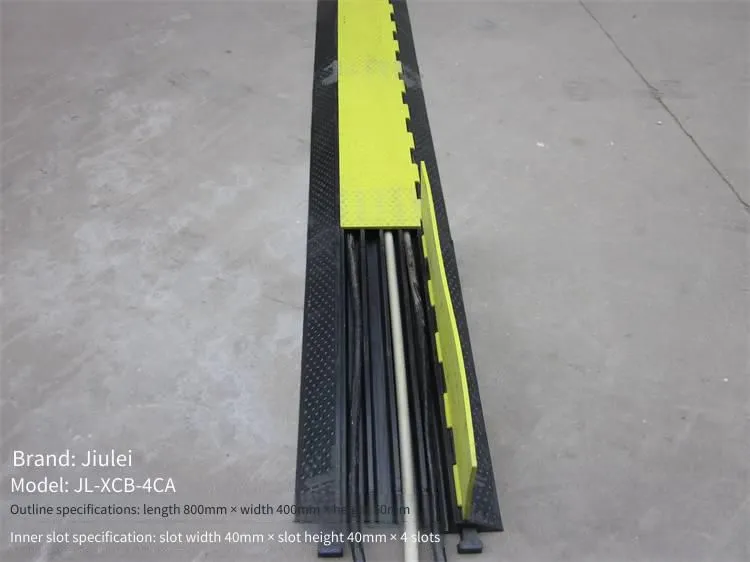

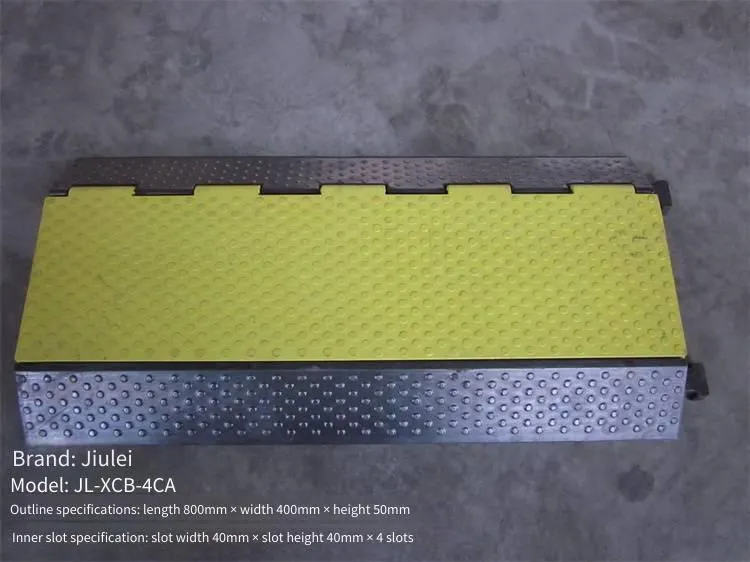

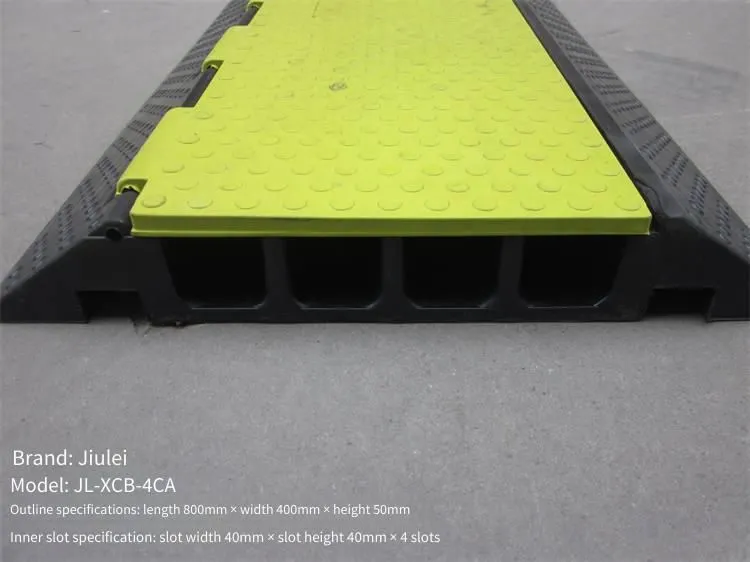

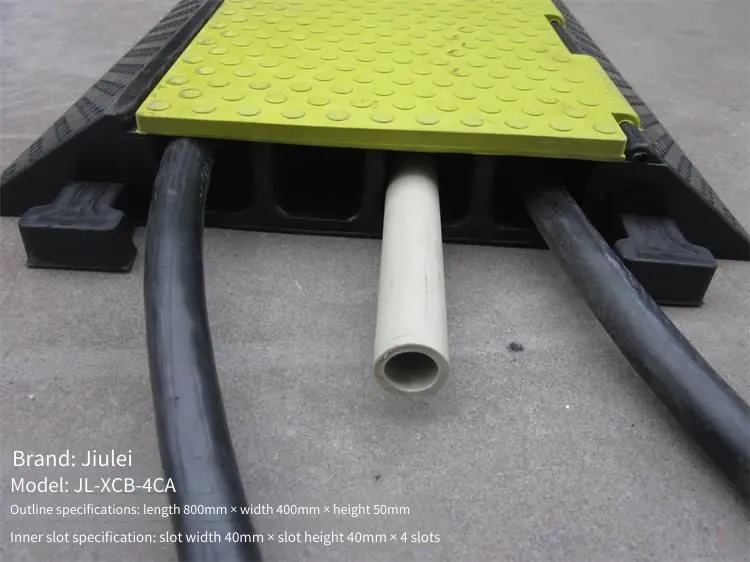

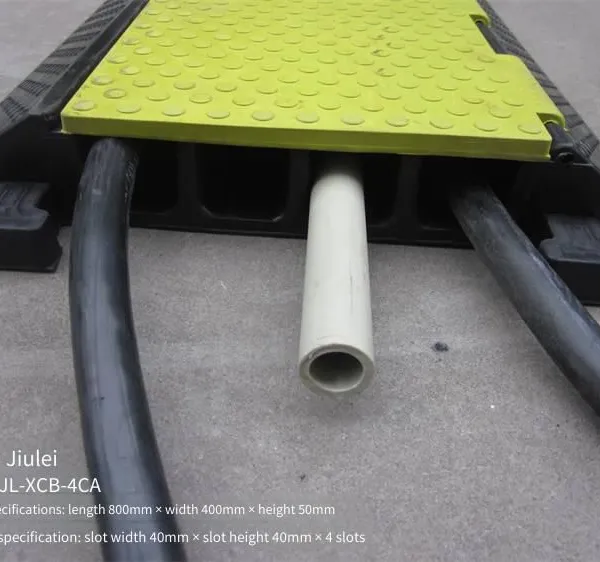

【Pictures of Jiulei Brand JL-XCB-4CA Rubber and Plastic Bridge Crossing Belt】

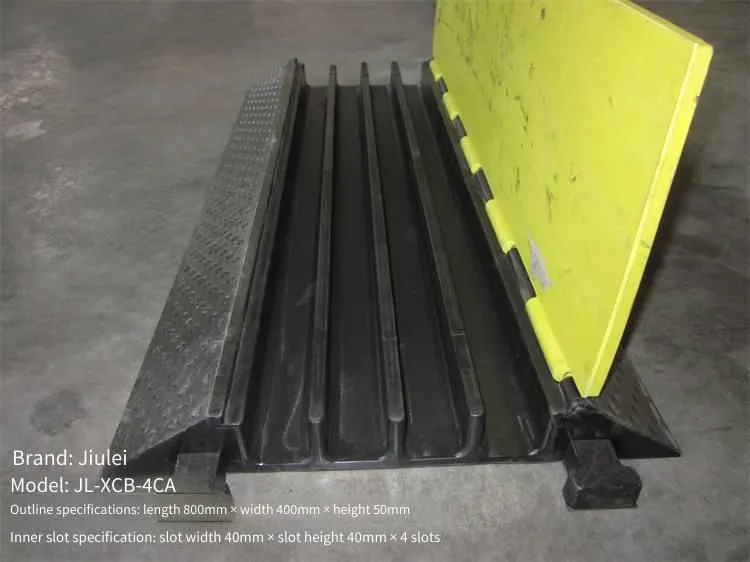

Pictures of Jiulei Brand JL-XCB-4CA Rubber and Plastic Bridge Crossing Belt

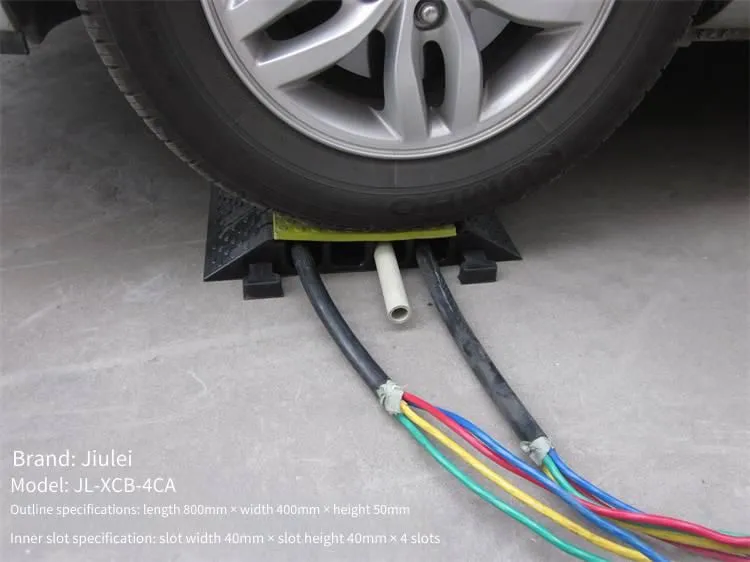

Pictures of Jiulei Brand JL-XCB-4CA Rubber and Plastic Bridge Crossing Belt

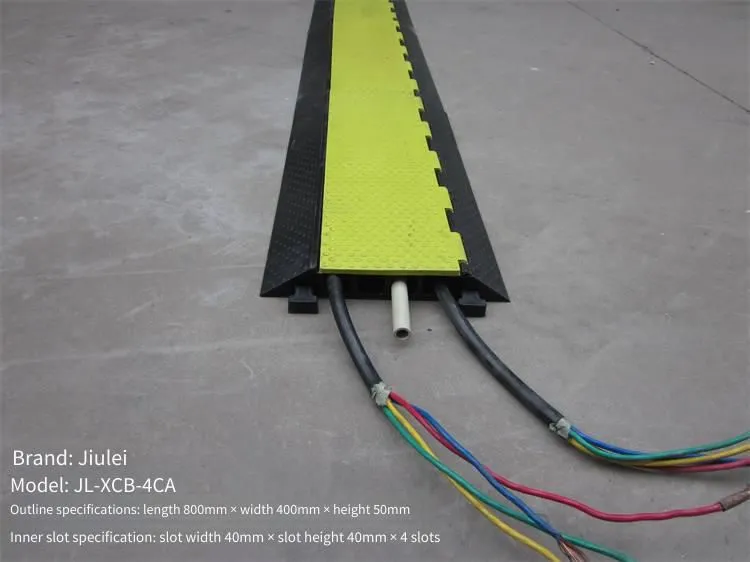

Pictures of Jiulei Brand JL-XCB-4CA Rubber and Plastic Bridge Crossing Belt

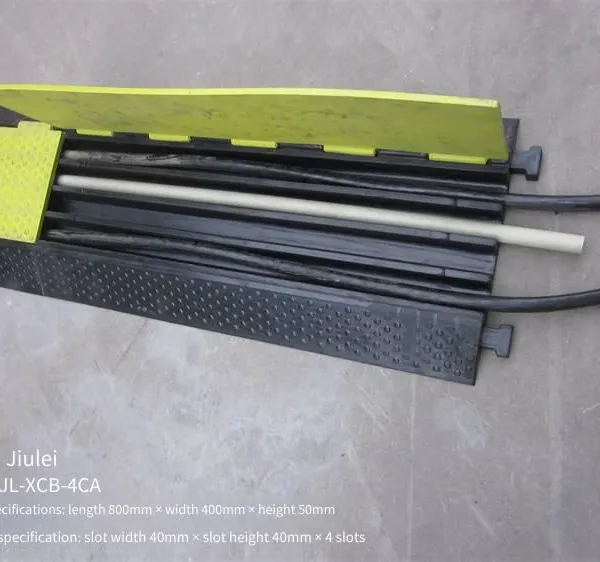

Pictures of Jiulei Brand JL-XCB-4CA Rubber and Plastic Bridge Crossing Belt

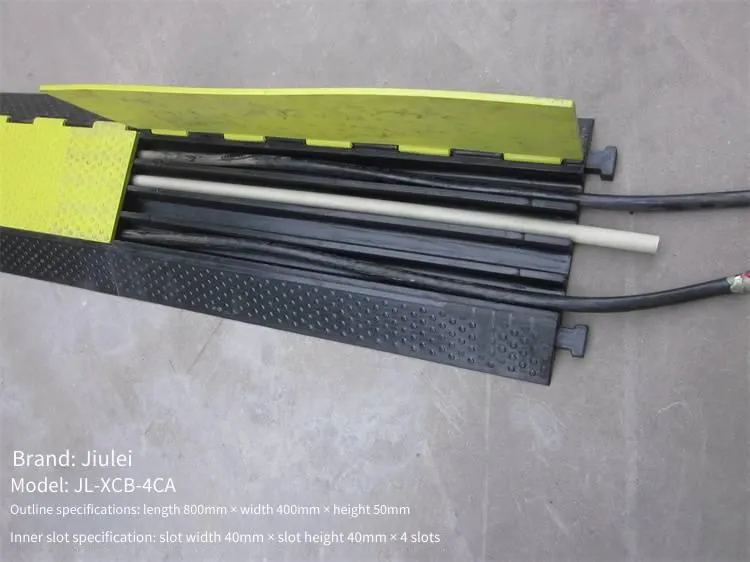

Pictures of Jiulei Brand JL-XCB-4CA Rubber and Plastic Bridge Crossing Belt

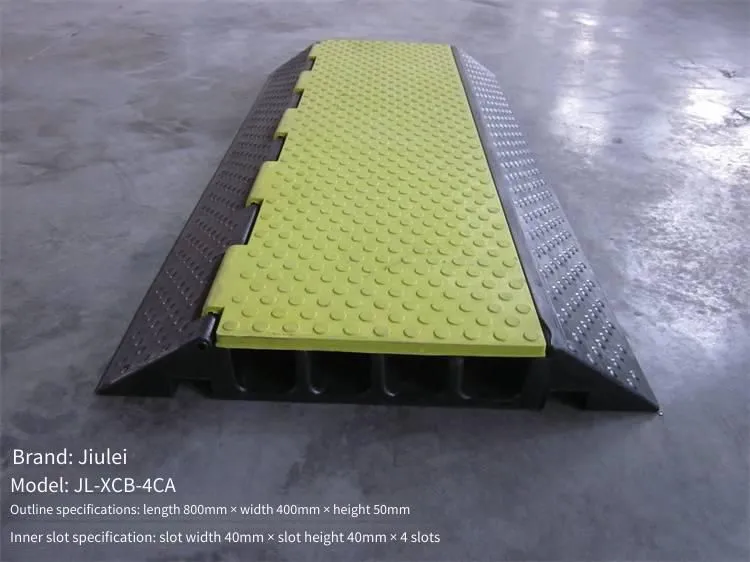

Pictures of Jiulei Brand JL-XCB-4CA Rubber and Plastic Bridge Crossing Belt
Pictures of Jiulei Brand JL-XCB-4CA Rubber and Plastic Bridge Crossing Belt
Pictures of Jiulei Brand JL-XCB-4CA Rubber and Plastic Bridge Crossing Belt
Pictures of Jiulei Brand JL-XCB-4CA Rubber and Plastic Bridge Crossing Belt
【Features of Rubber and Plastic Bridge Crossing Belt】
1. Tough, Insulating, Ultra-high Pressure Resistance (Compressive Resistance of 50 Tons);
2. Suitable for All Outdoor Weather Conditions, Rainproof, Lightning-proof, Moisture-proof, Flame-retardant;
3. Anti-slip Surface Texture on the Surface;
4. All-round Protection for Various Cables and Communication Data Lines;
5. Unique Design, No Need to Damage the Ground for Installation;
6. Durable, Anti-slip Surface Texture on the Surface;
7. Simple Installation, Easy to Move, Simple and Practical Structural Design;
8. Unique right-angle elbows and tees are available for selection;
9. Diverse designs including one slot, 1 hole, single hole, one wire slot, single wire slot, two slots, 2 holes, two slots, two holes, double slots, double holes, two wire slots, three slots, 3 holes, three wire slots, four slots, 4 holes, four wire slots, five slots, 5 holes, five wire slots are fully applicable to industries such as media, exhibition, energy, manufacturing, power, communication, and sports;
【Applicable Scope of Rubber and Plastic Crossing Belt】
1. On the aisles where cars pass in places such as stages, hotels, exhibition halls, large conference venues, and sports fields;
2. On the ground where wiring is required in the parking lots of residential communities, shopping malls, and office buildings;
3. In places where vehicles enter and exit, such as material warehouses and personnel and goods gathering places;
4. On the passages in factory workshops where forklifts often come and go;
【Functions of Rubber and Plastic Crossing Belt】
The rubber and plastic crossing belt is made of high-strength rubber and high-quality PVC. It is suitable for temperatures ranging from -32 to 65 degrees Celsius. The product is sturdy and durable, with long-lasting pressure resistance and a long service life. It causes less wear on vehicles, produces no noise, and has excellent shock absorption and compression resistance. It adopts the standard yellow and black interlaced manufacturing process, with distinct colors and obvious signs. It has high visibility both during the day and at night, attracting the attention of drivers to slow down. It is especially suitable for use in amusement parks, entertainment venues, sports events, exhibition halls, and squares, and for temporary emergency applications in most public places, commercial, industrial, and construction sites. It can protect wires, cables, and audio-video data cables in a fast and simple way. It provides a safe and stable crossing passage, continuously protecting various cables and the safety of pedestrians. It eliminates the public safety hazards caused by on-site wires and cables and maintains a clean and orderly public activity environment. The optional elbows allow your protection lines to bend arbitrarily and extend in multiple directions.
【Features of Rubber and Plastic Crossing Belt】
1: It can protect up to 5 single cables with a large diameter, and the cable diameter can reach 90 millimeters;
2: It provides all-round protection for various power and communication data cables, and is fully applicable to power cables YJVV4*150+1*70mm2;
3: Load-bearing capacity: 45 tons per square centimeter, allowing high-load vehicles such as generator emergency vehicles, launch and relay vehicles, and telecommunication signal vehicles to drive normally;
4: Suitable for all outdoor weather conditions, rainproof, lightning-proof, moisture-proof, with a fire-retardant rating of three, and a breakdown voltage of 3500 volts;
5: Outdoor applicable temperature range: -35 degrees Celsius to +75 degrees Celsius;
6: The convenient and flexible hinge cover design makes the installation and disassembly of wires and cables extremely easy;
7: The design with strong adhesion at the bottom allows for arbitrary placement and installation without using bolts to damage the ground or tools, and can also prevent running and displacement;
8: The elbows and tee connection accessories enable the protection lines to bend arbitrarily and extend infinitely in multiple directions;
9: The independently designed shape after multiple demonstrations is light in weight, convenient for transportation, installation, disassembly, and handling;
10: The unique bottom groove treatment allows the cables to maintain a circular appearance even under high pressure.
11: Advanced surface vulcanization treatment process makes its appearance more exquisite;
12: Conspicuous safety warning signs comply with the regulations for road traffic facility markings;
13: Eliminated the metal keel support of the rubber-plastic bridge belt, and it is entirely cast with high-strength rubber, completely eliminating the electromagnetic eddy current thermal effect;
【Installation Method of Rubber-Plastic Bridge Belt】
1. Lay the special rubber-plastic bridge belt along the electrical line path;
2. Open the upper cover and put the cables into the rubber-plastic bridge belt;
3. After closing the cover of the rubber-plastic bridge belt, vehicles and pedestrians can pass freely;
【Use and Maintenance of Rubber-Plastic Bridge Belt】
The protruding part at the head of the rubber-plastic bridge belt is stuck in the groove part at the tail of another rubber-plastic bridge belt. Being stuck to each other can prevent the rubber-plastic bridge belt from moving forward or backward with the vehicle, better protecting the cables. In addition, although the rubber-plastic bridge belt is a rubber product with a certain degree of flexibility, in order to extend its service life, do not throw it from a high distance. After use, if it needs to be cleaned, wipe it with a damp cloth. Then, place all of them on a flat ground and stack them face up to prevent the bottom from deforming and affecting the fit with the cover.
