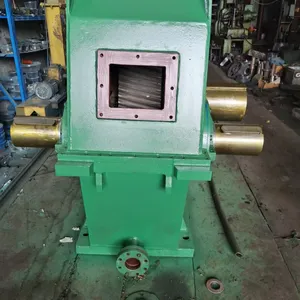

Jiangsu Manqi Machinery Co., Ltd. presents the JDX560 Ball Mill Gearbox – a robust 55 kW, 3-stage helical gear transmission designed for heavy-duty grinding applications. As a professional manufacturer since 2017 with a factory spanning 10,000–30,000 square meters, we engineer this gearbox to deliver reliable performance in ball mill operations. Its compact design, high torque output, and compliance with ISO9001 standards make it a trusted choice for cement, mining, and mineral processing industries seeking efficient power transmission.
Key Features & Technical Specifications
- 3-Stage Helical Gear Design – Ensures smooth and quiet operation with high load-carrying capacity.
- Rated Power: 55 kW – Suitable for medium to large ball mills requiring consistent torque.
- High Efficiency – Helical gears achieve more than 95% efficiency, reducing energy loss.
- Durable Construction – Made from alloy steel with carburized and ground gears for long service life.
- Easy Maintenance – Modular design allows quick access and replacement of components.
- Versatile Mounting – Available in horizontal or vertical configurations.
| Parameter | Value |
|---|---|
| Model | JDX560 |
| Power Rating | 55 kW |
| Speed Ratio | Customizable (e.g., 25:1 to 100:1) |
| Input Speed | Up to 1500 RPM |
| Lubrication | Oil splash / forced circulation |
| Material | Alloy steel, carburized and ground |
| Certification | ISO9001 Compliant |
Why Choose JDX560 for Your Ball Mill?
The JDX560 gearbox is engineered to withstand the harsh environments of ball mill applications. Its 3-stage helical gear train provides smooth power transmission with minimal vibration, protecting your mill and extending equipment life. Key benefits include:
- Reduced Downtime – High-quality bearings and seals minimize maintenance intervals.
- Energy Savings – Optimized gear geometry lowers friction and heat generation.
- Customizable Options – Available with additional cooling systems, backstop devices, or different shaft configurations.
- Global Compatibility – Designed to meet international standards, suitable for both new installations and retrofits.
At Jiangsu Manqi Machinery Co., Ltd., we have been delivering industrial gearboxes since 2017. With a production facility of over 10,000 square meters and a dedicated team of 11–50 skilled professionals, we ensure every JDX560 gearbox undergoes rigorous quality checks. Our products are exported to markets across Eastern Europe, Southeast Asia, Africa, and South Asia, shipped from the Port of Shanghai.
We back our gearboxes with responsive technical support and after-sales service. The JDX560 Ball Mill Gearbox is built to last – trust our experience in providing reliable power transmission solutions. Contact us today for a quote or technical consultation.
Frequently Asked Questions (FAQ)
-
What is the typical lifespan of the JDX560 gearbox?
With proper lubrication and maintenance, the gearbox can operate for over 10 years in normal ball mill conditions. The carburized gears offer high wear resistance. -
Can the gearbox be customized for different power requirements?
Yes, the JDX560 platform is modular. We can adjust the gear ratio, input/output shaft dimensions, and add accessories like oil coolers based on your specifications. -
Does the gearbox come with a warranty?
Yes, we offer a standard 12-month warranty covering manufacturing defects. Extended warranty options are available upon request. -
What type of lubricant is recommended?
We recommend EP gear oil (ISO VG 320-460) for most applications. Specific recommendations depend on operating temperature and load. -
Is the JDX560 suitable for other industrial machinery besides ball mills?
While optimized for ball mills, the gearbox can also be used in conveyors, crushers, and other heavy rotating equipment with similar torque requirements. -
How long does shipping take to my location?
Shipping time depends on the destination. For example, orders to Southeast Asia typically arrive within 15–20 working days after shipment from Shanghai port. -
Do you provide installation support?
We supply a detailed installation manual. For large projects, on-site guidance can be arranged at an additional cost. -
What certifications does the product hold?
The JDX560 gearbox is manufactured under an ISO9001 quality management system. Additional certifications can be provided as required by specific markets.
With decades of accumulated engineering experience (since 2017) and a factory size of 10,000–30,000 square meters, Jiangsu Manqi Machinery is your reliable partner for industrial gearboxes. Our dedicated 11–50 employee team ensures quality control at every stage. The JDX560 is ready to power your ball mill with efficiency and durability. Contact us now for a competitive quotation!
