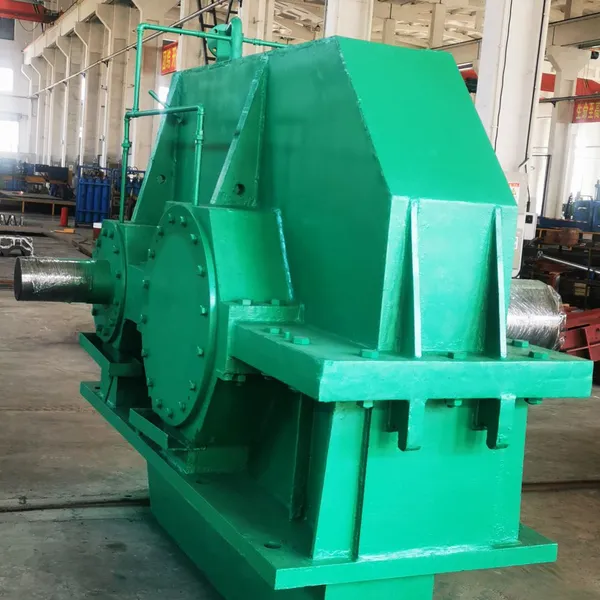

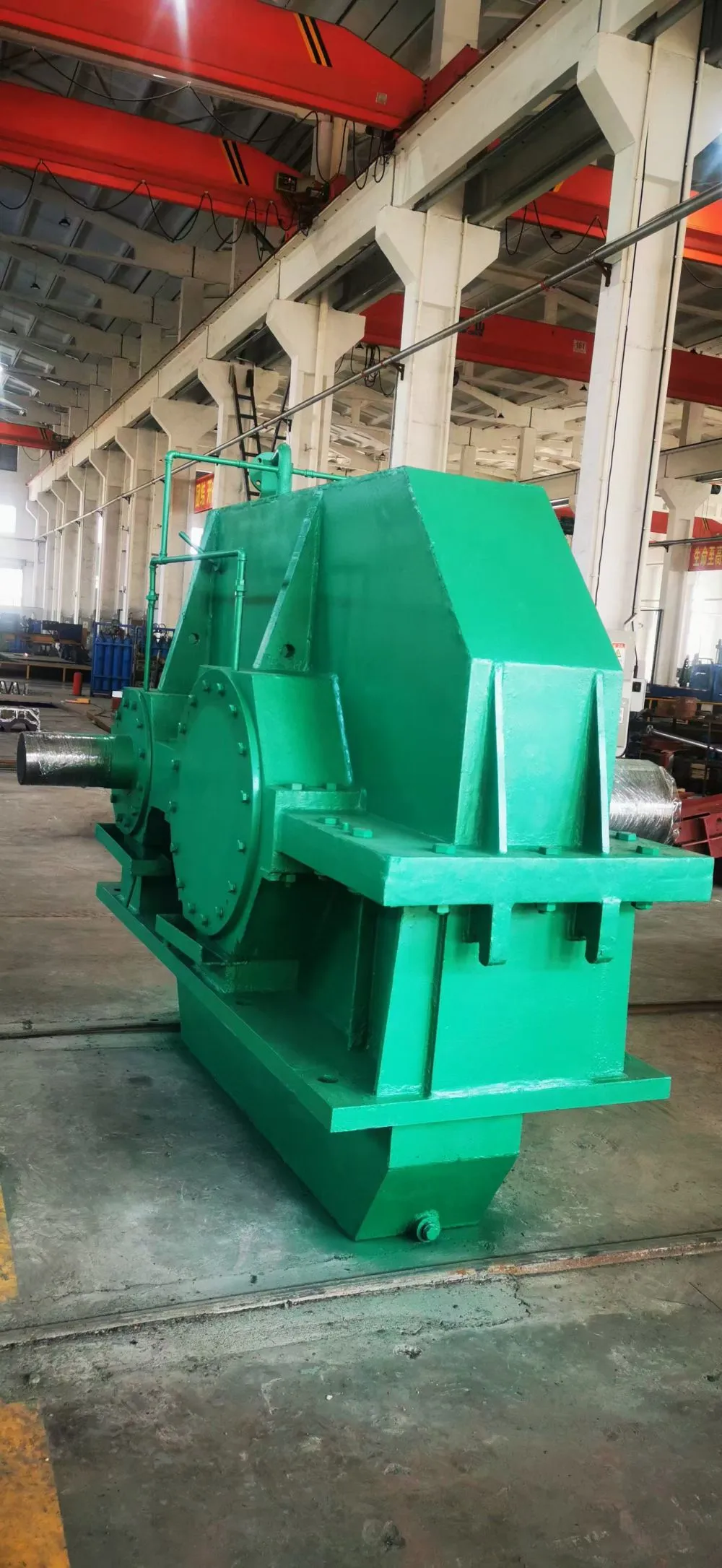

Jiangsu Manqi Machinery Co., Ltd. is a professional manufacturer of heavy-duty transmission solutions, established in 2017 with a factory area of 10,000-30,000 square meters. Our MBY500 Ball Mill Gearbox is specifically designed for ball mill drives in mining, cement, and mineral processing industries. With an input power capacity of 800kW and a double-stage reduction ratio ranging from 5.6 to 8.0, this gearbox delivers reliable torque transmission and long service life under harsh operating conditions. The spline output configuration ensures precise alignment and high torque transfer, making it a trusted choice for global customers in Eastern Europe, Southeast Asia, Africa, and South Asia.
Key Features and Technical Specifications:
High Input Power: Designed for 800kW continuous operation, suitable for large-scale ball mill applications.
Double Stage Reduction: Two-stage helical gear design for smooth and efficient power transmission, reducing wear and noise.
Adjustable Ratio Range: Ratio options from 5.6 to 8.0 to match different mill speeds and material requirements.
Spline Output Shaft: Provides high torque capacity and easy coupling with mill pinion, reducing maintenance downtime.
Robust Construction: Housing made of high-strength cast iron or welded steel (customizable), with precision-ground gears from alloy steel.
Advanced Lubrication System: Forced oil lubrication or splash lubrication options are available for optimal cooling and gear life.
Compact and Durable: Space-saving design with high rigidity, suitable for continuous duty in dusty and high-temperature environments.
Detailed Advantages for Customers:
Long Service Life: Our gearbox uses high-quality alloy steel and precision heat treatment, resulting in gears that withstand heavy loads and reduce failure rates.
Low Noise and Vibration: Helical gear profiles with optimized tooth contact minimize operational noise, improving working environment.
Easy Maintenance: Spline output simplifies connection to mill pinion; modular design allows quick replacement of seals and bearings.
Global Compatibility: Designed to meet international standards (ISO, DIN, AGMA upon request), ensuring interchangeability with existing systems.
Customizable Options: Additional cooling fins, temperature sensors, oil heaters, and monitoring ports can be added per customer specifications.
Our MBY500 Ball Mill Gearbox is ideal for cement mills, ore grinding, and mineral processing plants. It delivers high efficiency (over 95%) and reliable performance even under continuous 24/7 operation. The gearbox is tested before shipment to ensure no oil leaks, noise levels below 85 dB, and smooth operation.
Trust and Quality Assurance:
As a manufacturer with over 7 years of experience, Jiangsu Manqi Machinery Co., Ltd. has served clients in more than 10 countries. Our factory covers 10,000-30,000 sqm and employs 11-50 skilled workers, ensuring careful production control. Each gearbox undergoes a thorough run-in test and inspection. We offer a warranty period of 12-24 months (depending on terms) and provide technical support via video or on-site if needed. Our port of shipment is Shanghai, ensuring fast logistics to Eastern Europe, Southeast Asia, Africa, and South Asia. Choose Manqi for dependable ball mill gearboxes that keep your mill running smoothly.
Frequently Asked Questions (FAQ):
1. What is the maximum input speed for the MBY500 gearbox?
The recommended input speed is typically 1000-1500 RPM. For higher speeds, please consult our engineering team.
2. Can the gear ratio be customized outside the 5.6-8.0 range?
Yes, we offer custom ratios upon request, but the standard model covers this range. Additional design fees may apply.
3. Does the gearbox come with a cooling system?
Standard models come with natural cooling. For high-temperature environments, forced lubrication with cooling fins or an external oil cooler is available as an option.
4. What type of lubricant should be used?
We recommend ISO VG 320 or 460 mineral-based gear oil. Synthetic oils can also be used. Full lubrication guidelines are provided in the manual.
5. How is the spline output shaft dimensioned?
The spline dimensions follow DIN 5480 or ISO 14 standards. Custom splines based on customer drawings are accepted.
6. What is the typical lead time for this gearbox?
Standard models have a lead time of 30-45 days. Customized orders may take 45-60 days, depending on complexity.
7. Do you offer spare parts packages?
Yes, we provide a recommended spare parts list (seals, bearings, gaskets) for two years of operation. Spare parts can be shipped together or separately.
8. Can the gearbox be used for other applications besides ball mills?
While optimized for ball mills, the MBY500 can be adapted for kilns, conveyors, and crushers after verifying torque and speed requirements. Contact us for a feasibility check.
